Isuzu WW
▶
TRUCKS
▶
FTS
▶
11405 - FTS(RHD)EURO1
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

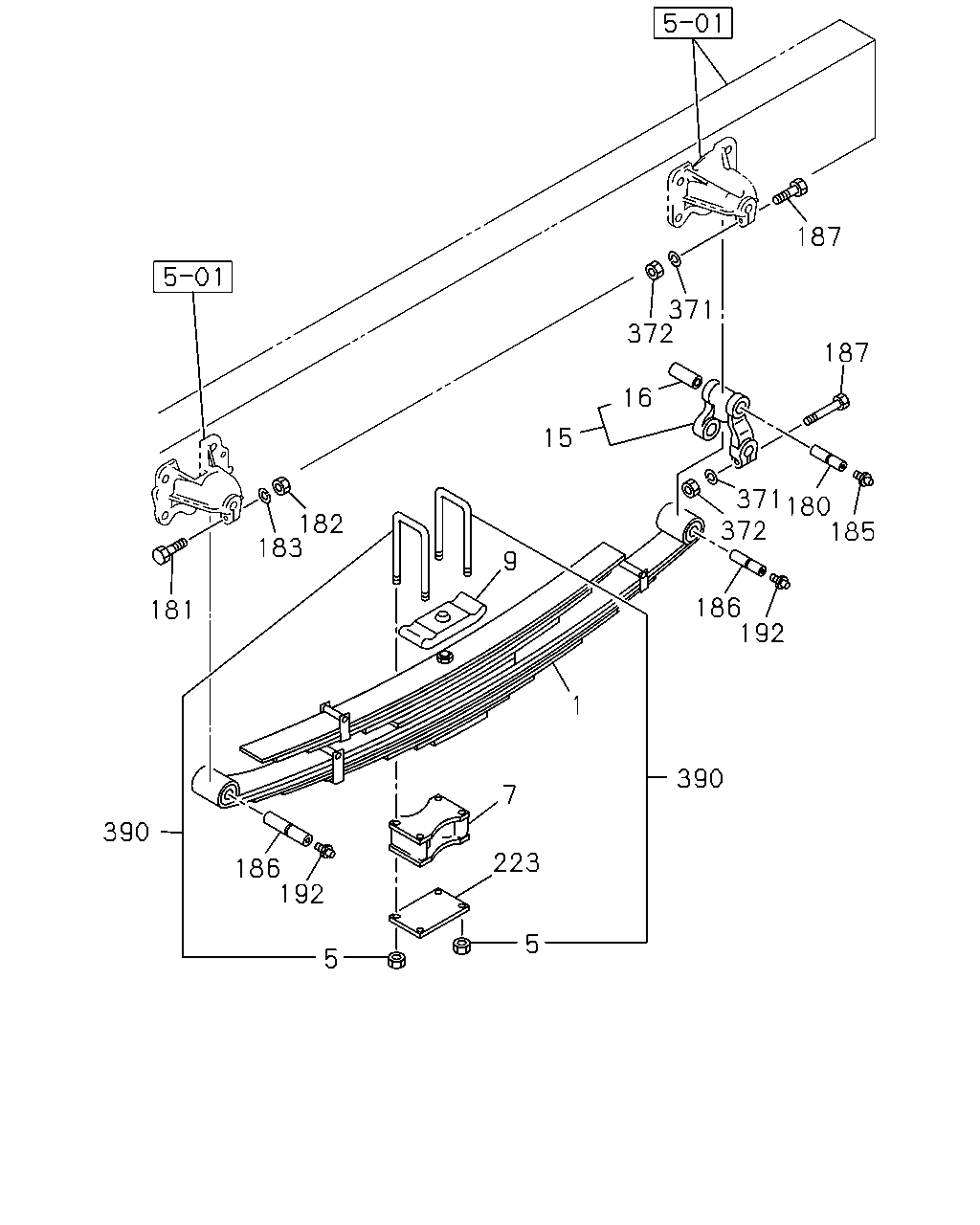

4-60 — REAR SUSPENSION
(#60206) — 18 parça
187
371
372
187
16
15
371
180
372
185
182
183
9
186
192
181
1
390
7
390
223
186
192
5
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
8-98034-467-0
02
1
1112-
5
NUT; U-BOLT,RR SPR
M24
0-91112-824-0
08
1
1112-
7
SEAT; SPR,LWR
1-51385-062-2
02
1
1112-
9
PAD; U BOLT,RR SPR
1-51372-048-1
02
1
1112-
15
SHACKLE; RR SPR
1-51362-049-2
02
1
1112-
16
BUSHING; SHACKLE,RR SPR
8-98081-830-0
02
1
1112-
180
PIN; RR SPR
DO=28 L=131 PT1/8
1-51361-015-0
02
1
1112-
181
BOLT; SPR & SHACKLE
M14X65
0-10811-465-0
02
1
1112-
182
NUT; PIN,RR SPR
M14
0-91110-514-0
02
1
1112-
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
1112-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
1112-
186
PIN; SHACKLE,RR SPR
DO=28 L=131 PT1/8
1-51361-015-0
04
1
1112-
187
BOLT; SPR & SHACKLE
M14X65
0-10811-465-0
04
1
1112-
192
NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT
0-90301-410-0
04
1
1112-
223
SPACER; U BOLT,RR SPR
1-51377-246-0
01
1
1112-
371
WASHER; LK,SHACKLE
ID=14.2
0-91510-514-0
04
1
1112-
372
NUT; SHACKLE
M14
0-91110-514-0
04
1
1112-
390
U-BOLT SET; RR SPRING
L=590
1-87870-478-0
04
1
1112-
