8-80 — WINDSHIELD WIPER AND WASHER (#6020) — 160 parça

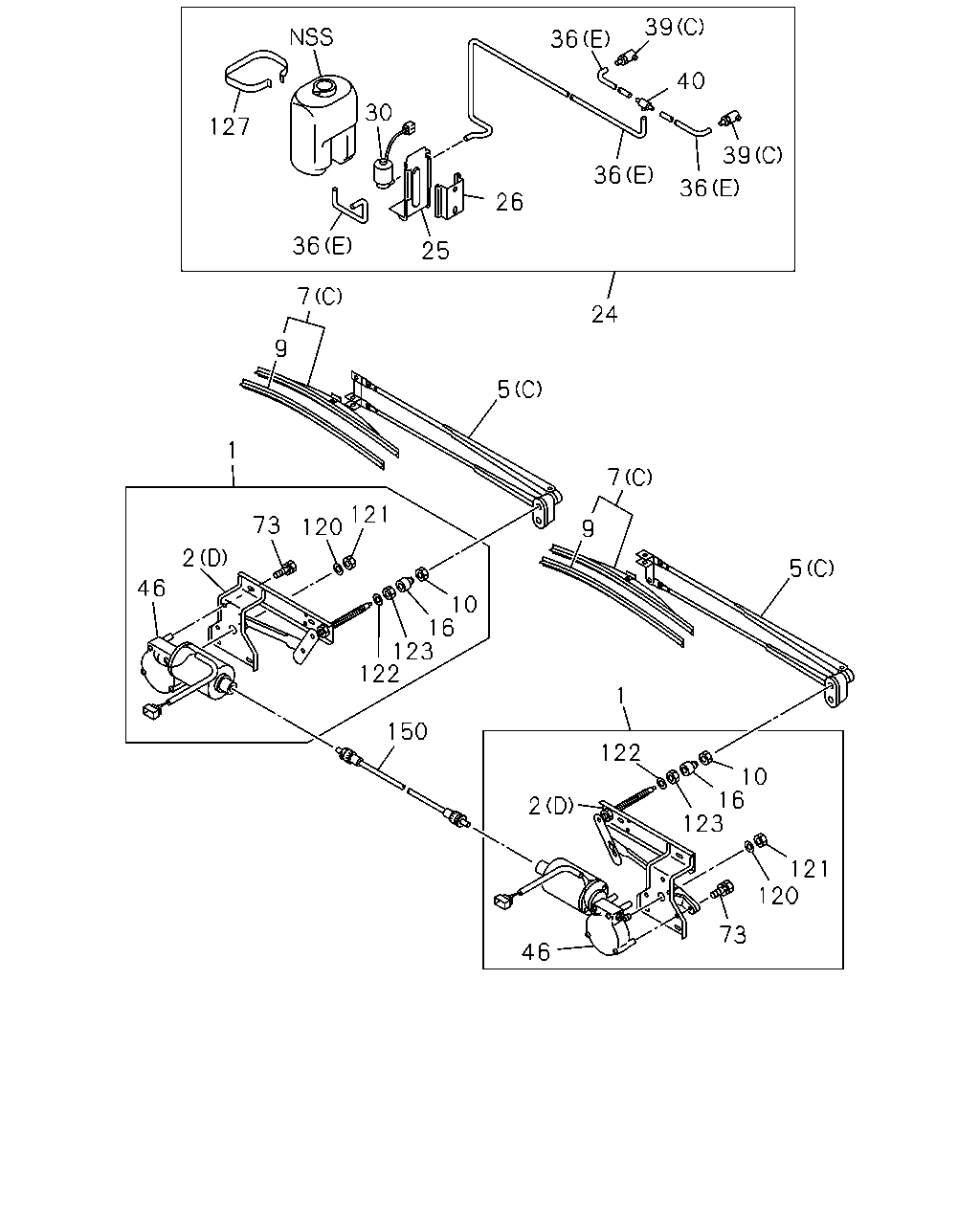

çizim 5973
39 36 40 30 127 39 36 36 26 36 25 7 24 9 5 1 7 121 120 73 9 2 5 46 10 16 123 122 1 150 122 10 16 123 2 121 120 73 46
BalonParca AdiParca NoAdetTipApplied Date
1 LINK ASM; FRT WIPER 1-83310-071-0 01 1 9606-9609
1 LINK ASM; FRT WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83310-071-0 01 1 9610-9810
1 LINK ASM; FRT WIPER 1-83310-114-0 01 1 9606-9609
1 LINK ASM; FRT WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83310-114-0 01 1 9610-9810
1 LINK ASM; FRT WIPER 1-83312-138-1 01 1 9811-
2 LINK; FRT WIPER
(D) 		1-83314-117-0 01 1 9606-9609
2 LINK; FRT WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D) 		1-83314-117-0 01 1 9610-9810
2 LINK; FRT WIPER
(D) 		1-83312-082-0 01 1 9606-9609
2 LINK; FRT WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D) 		1-83312-082-0 01 1 9610-9810
2 LINK; FRT WIPER
(A) 		1-83312-147-1 01 1 9811-
2 LINK; FRT WIPER
(B) 		1-83312-148-1 01 1 9811-
2 LINK; FRT WIPER
(C) 		1-86810-135-1 01 1 9811-
5 ARM; WIPER
(C) 		1-83314-121-0 01 1 9606-9609
5 ARM; WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) 		1-83314-121-0 01 1 9610-9810
5 ARM; WIPER
(C) 		1-83314-120-0 01 1 9606-9609
5 ARM; WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) 		1-83314-120-0 01 1 9610-9810
5 ARM; WIPER
(A) 		1-86810-138-0 01 1 9811-0205
5 ARM; WIPER
(A) 		1-83315-088-0 01 1 0206-
5 ARM; WIPER
(B) 		1-86810-139-0 01 1 9811-0205
5 ARM; WIPER
(B) 		1-83315-090-0 01 1 0206-
7 BLADE; WIPER
(C) 		1-83315-039-0 02 1 9606-9609
7 BLADE; WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) 		1-83315-039-0 02 1 9610-9810
7 BLADE; WIPER
(B) 		1-83315-045-2 01 1 9811-
7 BLADE; WIPER
(A) 		1-83315-046-2 01 1 9811-
9 RUBBER; FRT WIPER BLADE
L=563 		1-83355-009-0 02 1 9606-9609
9 RUBBER; FRT WIPER BLADE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=563 		1-83355-009-0 02 1 9610-9810
9 RUBBER; FRT WIPER BLADE
L=550 		1-83355-014-0 02 1 9811-
10 NUT; WIPER ARM TO WIPER PIVOT 1-83318-049-0 02 1 9606-9609
10 NUT; WIPER ARM TO WIPER PIVOT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83318-049-0 02 1 9610-9810
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 9811-
16 SEAL; BALL JOINT 1-83318-048-0 02 1 9606-9609
16 SEAL; BALL JOINT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83318-048-0 02 1 9610-9810
24 TANK ASM; WASHER 1-83330-033-0 01 1 9606-9609
24 TANK ASM; WASHER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83330-033-0 01 1 9610-9810
24 TANK ASM; WASHER 1-86815-023-3 01 1 9811-
25 BRACKET; WASHER TANK 9-83561-926-0 01 1 9606-9609
25 BRACKET; WASHER TANK
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		9-83561-926-0 01 1 9610-9810
26 HANGER; WASHER TANK 9-83561-925-0 01 1 9606-9609
26 HANGER; WASHER TANK
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		9-83561-925-0 01 1 9610-9810
30 MOTOR ASM; FRT WASHER TANK 9-83561-208-0 01 1 9606-9609
30 MOTOR ASM; FRT WASHER TANK
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		9-83561-208-0 01 1 9610-9810
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-1 01 1 9811-
36 HOSE; WASHER
(E) L=10000 		9-09914-906-0 01 1 9606-9609
36 HOSE; WASHER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (E) SERVICED BY L=10000 		9-09914-906-0 01 1 9610-9810
36 HOSE; WASHER
(A) L=680 		1-86810-036-0 01 1 9811-0011
36 HOSE; WASHER
(A) L=670 		1-86810-147-0 01 1 0012-
36 HOSE; WASHER
(C) L=660 		1-86810-037-0 01 1 9811-
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 9811-
36 HOSE; WASHER
(B) SERVICED BY L=10000 		8-94389-303-0 01 1 9811-
39 NOZZLE; WINDSHIELD WASHER
(C) 		1-83334-012-0 02 1 9606-9609
39 NOZZLE; WINDSHIELD WASHER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) 		1-83334-012-0 02 1 9610-9810
39 NOZZLE; WINDSHIELD WASHER
(B) 		1-86810-040-0 01 1 9811-0205
39 NOZZLE; WINDSHIELD WASHER
(B) 		1-83315-085-0 01 1 0206-
39 NOZZLE; WINDSHIELD WASHER
(A) 		1-86810-041-0 01 1 9811-0205
39 NOZZLE; WINDSHIELD WASHER
(A) 		1-83315-086-0 01 1 0206-
40 JOINT; WASHER HOSE 9-83565-006-0 01 1 9606-9609
40 JOINT; WASHER HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		9-83565-006-0 01 1 9610-9810
40 JOINT; WASHER HOSE
3WAY 		1-83338-005-0 01 1 9811-
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-83311-059-0 01 1 9606-9609
46 MOTOR ASM; FRT WINDSHIELD WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83311-059-0 01 1 9610-9810
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-83311-065-0 01 1 9606-9609
46 MOTOR ASM; FRT WINDSHIELD WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83311-065-0 01 1 9610-9810
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-133-2 01 1 9811-
73 BOLT 1-83318-079-0 06 1 9606-9609
73 BOLT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83318-079-0 06 1 9610-9810
73 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9811-
120 WASHER; ARM TO BRKT 1-83318-045-0 01 1 9606-9609
120 WASHER; ARM TO BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83318-045-0 01 1 9610-9810
120 WASHER; ARM TO BRKT 1-83318-077-0 01 1 9606-9609
120 WASHER; ARM TO BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83318-077-0 01 1 9610-9810
121 NUT; ARM TO BRKT 1-83318-044-0 01 1 9606-9609
121 NUT; ARM TO BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83318-044-0 01 1 9610-9810
121 NUT; ARM TO BRKT 1-83318-078-0 01 1 9606-9609
121 NUT; ARM TO BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83318-078-0 01 1 9610-9810
122 WASHER; PIVOT FIX,FRT WIPER 1-83318-046-0 02 1 9606-9609
122 WASHER; PIVOT FIX,FRT WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83318-046-0 02 1 9610-9810
123 NUT; PIVOT FIX,FRT WIPER 1-83318-050-0 02 1 9606-9609
123 NUT; PIVOT FIX,FRT WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83318-050-0 02 1 9610-9810
127 BAND; WASHER TANK 9-83561-928-0 01 1 9606-9609
127 BAND; WASHER TANK
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		9-83561-928-0 01 1 9610-9810
150 SHAFT; FLEX,WIPER MOTOR TO WIPER 1-83124-080-0 01 1 9606-9609
150 SHAFT; FLEX,WIPER MOTOR TO WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83124-080-0 01 1 9610-9810

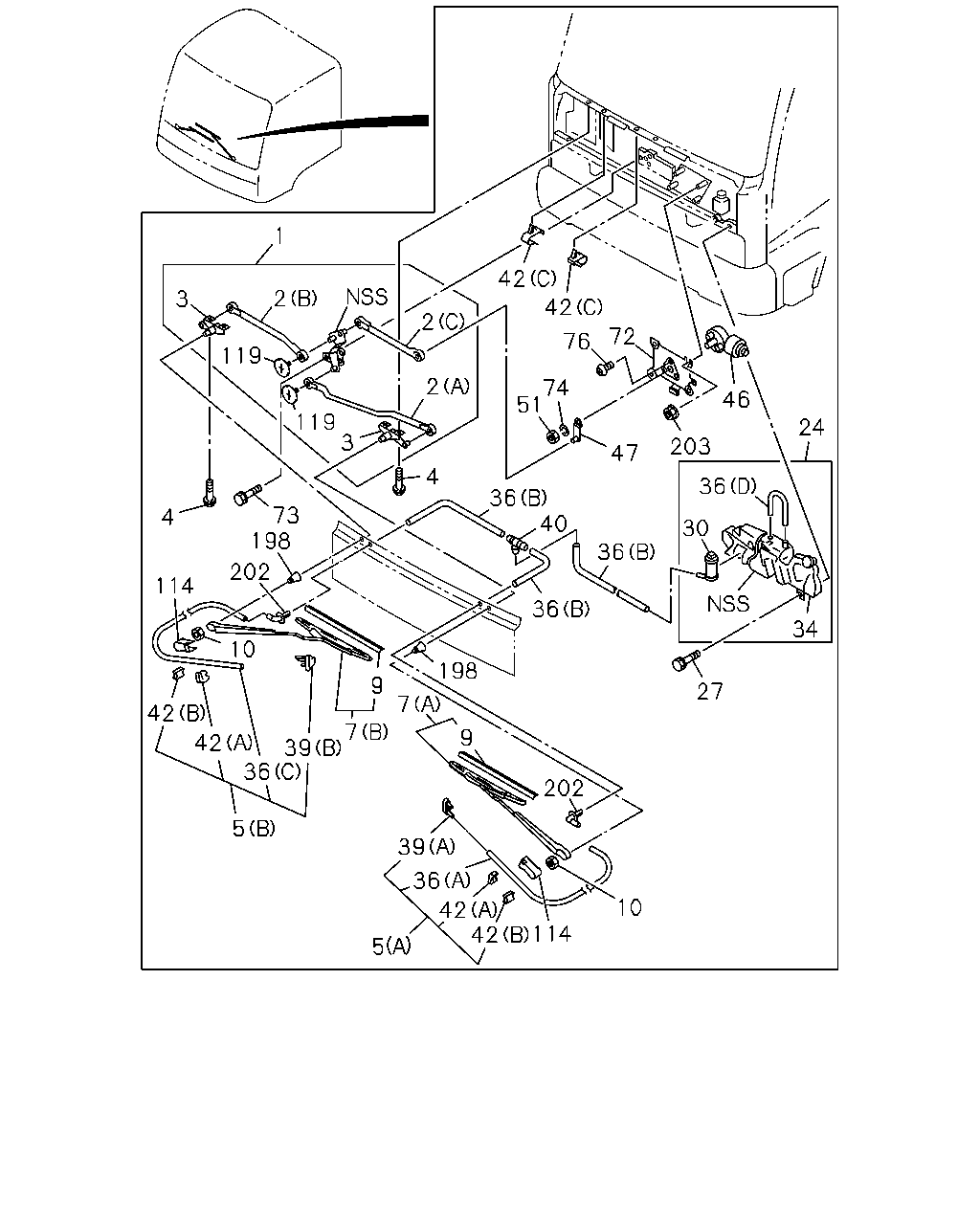

çizim 5976
1 42 2 3 42 2 72 76 119 2 74 51 46 119 3 24 203 47 4 36 36 40 73 198 4 30 36 202 114 36 34 10 198 9 27 7 7 39 36 42 9 42 202 5 39 36 10 42 5 42 114
BalonParca AdiParca NoAdetTipApplied Date
1 LINK ASM; FRT WIPER 1-83310-071-0 01 1 9606-9609
1 LINK ASM; FRT WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83310-071-0 01 1 9610-9810
1 LINK ASM; FRT WIPER 1-83310-114-0 01 1 9606-9609
1 LINK ASM; FRT WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83310-114-0 01 1 9610-9810
1 LINK ASM; FRT WIPER 1-83312-138-1 01 1 9811-
2 LINK; FRT WIPER
(D) 		1-83314-117-0 01 1 9606-9609
2 LINK; FRT WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D) 		1-83314-117-0 01 1 9610-9810
2 LINK; FRT WIPER
(D) 		1-83312-082-0 01 1 9606-9609
2 LINK; FRT WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D) 		1-83312-082-0 01 1 9610-9810
2 LINK; FRT WIPER
(A) 		1-83312-147-1 01 1 9811-
2 LINK; FRT WIPER
(B) 		1-83312-148-1 01 1 9811-
2 LINK; FRT WIPER
(C) 		1-86810-135-1 01 1 9811-
3 PIVOT ASM; FRT WIPER 1-86810-067-1 02 1 9811-
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9811-
5 ARM; WIPER
(C) 		1-83314-121-0 01 1 9606-9609
5 ARM; WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) 		1-83314-121-0 01 1 9610-9810
5 ARM; WIPER
(C) 		1-83314-120-0 01 1 9606-9609
5 ARM; WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) 		1-83314-120-0 01 1 9610-9810
5 ARM; WIPER
(A) 		1-86810-138-0 01 1 9811-0205
5 ARM; WIPER
(A) 		1-83315-088-0 01 1 0206-
5 ARM; WIPER
(B) 		1-86810-139-0 01 1 9811-0205
5 ARM; WIPER
(B) 		1-83315-090-0 01 1 0206-
7 BLADE; WIPER
(C) 		1-83315-039-0 02 1 9606-9609
7 BLADE; WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) 		1-83315-039-0 02 1 9610-9810
7 BLADE; WIPER
(B) 		1-83315-045-2 01 1 9811-
7 BLADE; WIPER
(A) 		1-83315-046-2 01 1 9811-
9 RUBBER; FRT WIPER BLADE
L=563 		1-83355-009-0 02 1 9606-9609
9 RUBBER; FRT WIPER BLADE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=563 		1-83355-009-0 02 1 9610-9810
9 RUBBER; FRT WIPER BLADE
L=550 		1-83355-014-0 02 1 9811-
10 NUT; WIPER ARM TO WIPER PIVOT 1-83318-049-0 02 1 9606-9609
10 NUT; WIPER ARM TO WIPER PIVOT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83318-049-0 02 1 9610-9810
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 9811-
24 TANK ASM; WASHER 1-83330-033-0 01 1 9606-9609
24 TANK ASM; WASHER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83330-033-0 01 1 9610-9810
24 TANK ASM; WASHER 1-86815-023-3 01 1 9811-
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9811-
30 MOTOR ASM; FRT WASHER TANK 9-83561-208-0 01 1 9606-9609
30 MOTOR ASM; FRT WASHER TANK
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		9-83561-208-0 01 1 9610-9810
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-1 01 1 9811-
34 CAP; WASHER TANK 1-86815-018-0 01 1 9901-
36 HOSE; WASHER
(E) L=10000 		9-09914-906-0 01 1 9606-9609
36 HOSE; WASHER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (E) SERVICED BY L=10000 		9-09914-906-0 01 1 9610-9810
36 HOSE; WASHER
(A) L=680 		1-86810-036-0 01 1 9811-0011
36 HOSE; WASHER
(A) L=670 		1-86810-147-0 01 1 0012-
36 HOSE; WASHER
(C) L=660 		1-86810-037-0 01 1 9811-
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 9811-
36 HOSE; WASHER
(B) SERVICED BY L=10000 		8-94389-303-0 01 1 9811-
39 NOZZLE; WINDSHIELD WASHER
(C) 		1-83334-012-0 02 1 9606-9609
39 NOZZLE; WINDSHIELD WASHER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) 		1-83334-012-0 02 1 9610-9810
39 NOZZLE; WINDSHIELD WASHER
(B) 		1-86810-040-0 01 1 9811-0205
39 NOZZLE; WINDSHIELD WASHER
(B) 		1-83315-085-0 01 1 0206-
39 NOZZLE; WINDSHIELD WASHER
(A) 		1-86810-041-0 01 1 9811-0205
39 NOZZLE; WINDSHIELD WASHER
(A) 		1-83315-086-0 01 1 0206-
40 JOINT; WASHER HOSE 9-83565-006-0 01 1 9606-9609
40 JOINT; WASHER HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		9-83565-006-0 01 1 9610-9810
40 JOINT; WASHER HOSE
3WAY 		1-83338-005-0 01 1 9811-
42 CLIP; WASHER HOSE
(C) 		1-09987-247-0 05 1 9811-
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 02 1 9811-
42 CLIP; WASHER HOSE
(B) 		1-86810-045-0 02 1 9811-
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-83311-059-0 01 1 9606-9609
46 MOTOR ASM; FRT WINDSHIELD WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83311-059-0 01 1 9610-9810
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-83311-065-0 01 1 9606-9609
46 MOTOR ASM; FRT WINDSHIELD WIPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83311-065-0 01 1 9610-9810
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-133-2 01 1 9811-
47 ARM; CRANK,WIPER MOTOR 1-86810-060-0 01 1 9811-
51 NUT; WIPER MOTOR LINK 1-83319-012-0 01 1 9811-
72 BRACKET; WIPER MOTOR 1-86810-131-0 01 1 9811-
73 BOLT 1-83318-079-0 06 1 9606-9609
73 BOLT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-83318-079-0 06 1 9610-9810
73 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9811-
74 WASHER; ARM TO MOTOR 1-83319-011-0 01 1 9811-
76 SCREW; BRKT TO WIPER MOTOR 1-86810-062-0 03 1 9811-0012
76 SCREW; BRKT TO WIPER MOTOR 1-83319-043-0 03 1 0101-
114 COVER; FRT WIPER ARM 1-86810-144-0 02 1 9811-
119 STOPPER; WIPER LINK 1-86810-074-0 02 1 9811-
198 COVER; PIVOT,WIPER 1-86810-016-3 02 1 9811-
202 GROMMET; WIPER 1-86815-003-2 02 1 9811-
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 9811-
