Isuzu WW
▶
TRUCKS
▶
CXH
▶
10585 - CXH RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-65 - CONTROL LEVER; HEATER AND AIR CON
▶

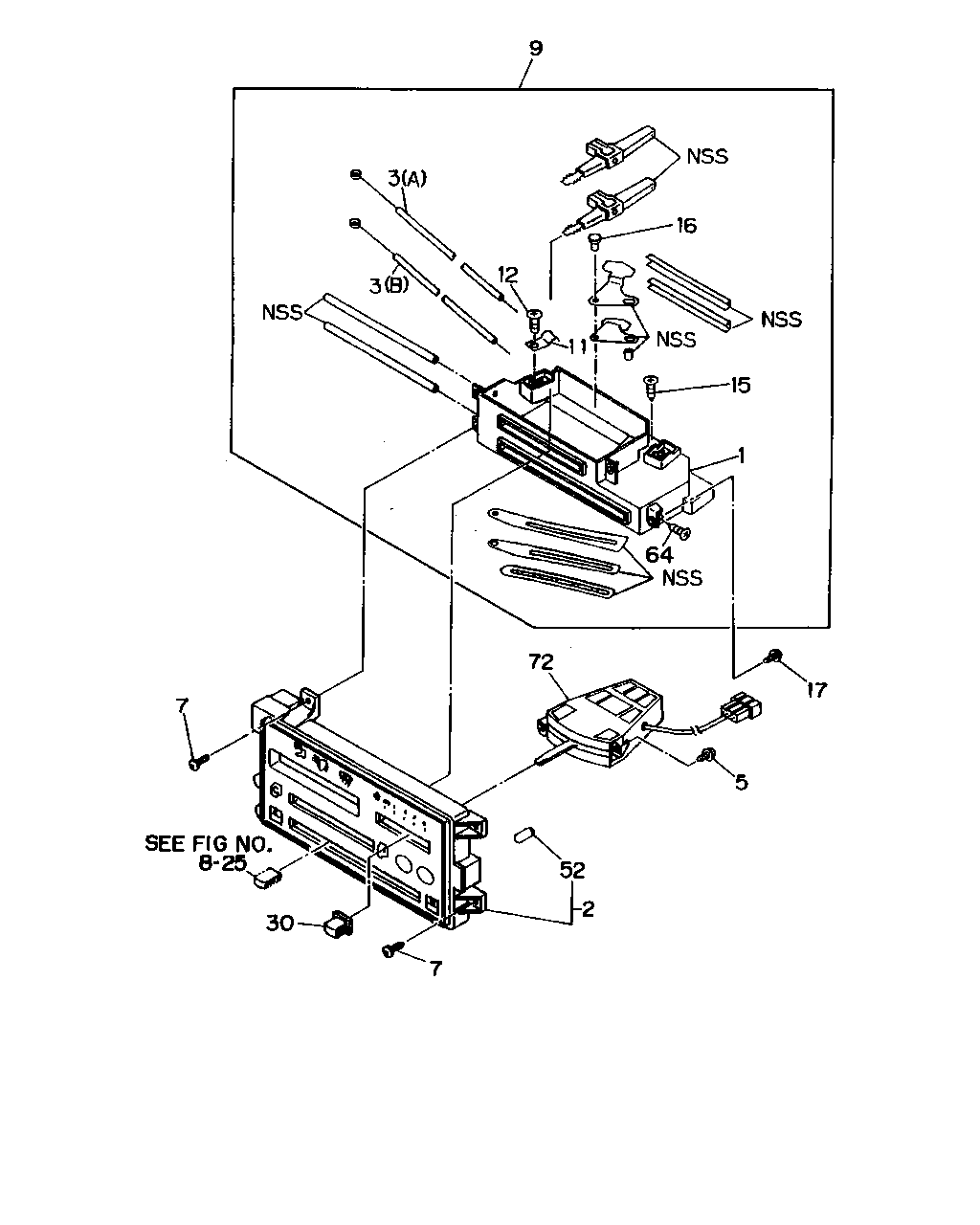

8-65 — CONTROL LEVER; HEATER AND AIR CON
(#602) — 18 parça
9
3
3
12
16
15
11
1
64
17
5
72
52
2
7
30
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER SUB ASM; HTR CONT
1-83519-040-0
01
1
9002-
2
PANEL ASM; CONT,ILLUMINATION
1-72410-135-3
01
1
8712-
3
CABLE; HTR CONT LVR
(A) L=1310
1-83519-037-0
01
1
8712-
3
CABLE; HTR CONT LVR
(B) L=470
1-83519-043-0
01
1
8712-
5
SCREW; FAN SW
M5X14 W/PL WASHER
5-09981-050-0
02
1
8712-
7
SCREW; ILLUMINATION PNL
M5X14 W/PL WASHER
5-09981-050-0
04
1
8712-
9
LEVER ASM; HTR & A/C CONT
1-83513-079-3
01
1
8712-
11
CLIP; CABLE,HTR CONT LVR
1-83519-034-0
02
1
8712-
12
SCREW; CABLE CLIP,HTR CONT LVR
1-83519-038-0
02
1
8712-
15
SCREW; HTR CONT LVR CLIP
1-83519-036-0
06
1
8712-
16
PIN; HTR CONT LVR
1-83519-039-0
02
1
8712-
17
SCREW; CONT LEVER,HTR
M5X14 W/PL WASHER
5-09981-050-0
04
1
8712-
30
KNOB; FAN SW
1-82346-067-0
03
1
8712-
52
BULB; PANEL ILLUMINATION
WO/FILTER 24V 1.2W
1-82194-027-0
01
1
8712-
52
BULB; PANEL ILLUMINATION
GREEN FILTER 24V 1.2W
1-82194-045-0
02
1
8712-
52
BULB; PANEL ILLUMINATION
BLUE FILTER 24V 1.2W
1-82194-046-0
01
1
8712-
64
SCREW; PANEL,HTR CONT LVR
1-83519-041-0
04
1
9307-
72
SWITCH; FAN MOTOR
1-82360-236-0
01
1
8712-
