◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11399 - FSR(RHD)EURO1 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#60193) — 21 parça
çizim 147659
71 378 378
BalonParca AdiParca NoAdetTipApplied Date
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98017-234-1 01 1 1110-1301
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) 		8-98017-234-1 01 1 1302-
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98041-759-0 01 1 1110-1111
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98204-846-0 01 1 1112-
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98041-428-0 01 1 1110-

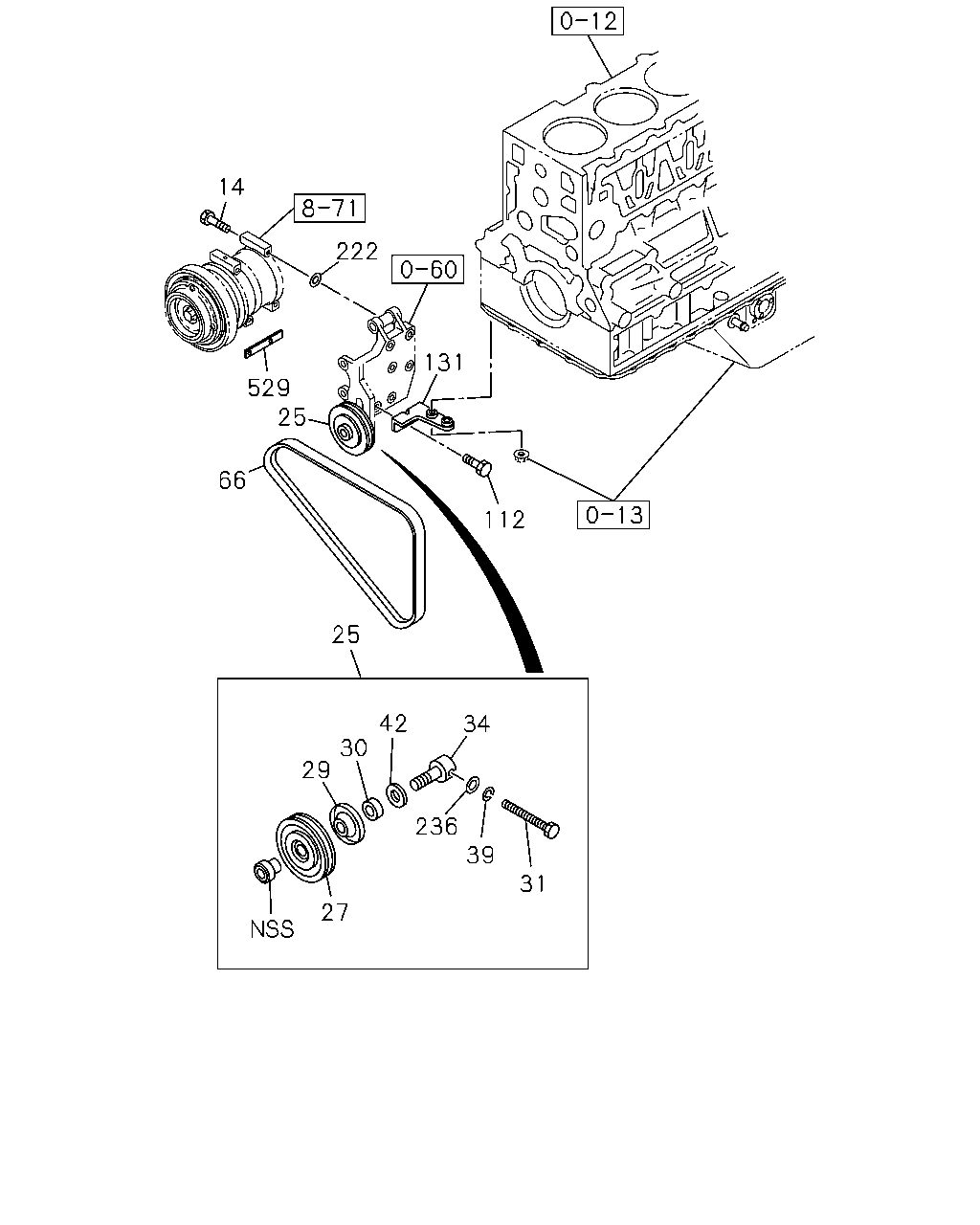

çizim 147662
14 222 131 529 25 66 112 25 42 34 30 29 236 39 31 27
BalonParca AdiParca NoAdetTipApplied Date
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X78 W/LK WASHER 		5-09000-228-1 04 1 1110-
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94399-957-0 01 1 1110-
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-116-0 01 1 1110-
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		9-13369-603-0 01 1 1110-
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-144-0 01 1 1110-
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-143-0 01 1 1110-
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-236-0 01 1 1110-
39 WASHER; LK,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2 		9-09150-608-0 01 1 1110-
42 WASHER; PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97014-636-0 01 1 1110-
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1082 		1-13671-256-0 01 1 1110-1402
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1077 		8-98253-452-0 01 1 1403-
112 BOLT; STAY
M8X16 FLANGE 		0-28050-816-0 02 1 1110-
131 STAY; CMPR BRKT 8-94393-451-0 01 1 1110-
222 GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2 		8-98019-967-0 02 1 1110-
236 WASHER; PL,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-09503-216-0 01 1 1110-
529 SPACER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-271-0 01 1 1110-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
