Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#60190) — 19 parça

39 36 34 33 34 35 261 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-871-2	01	1	1110-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1110-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1110-
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	8-98034-702-0	01	1	1110-
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	1110-
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M10X25 FLANGE	0-28651-025-0	02	1	1110-
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	1110-

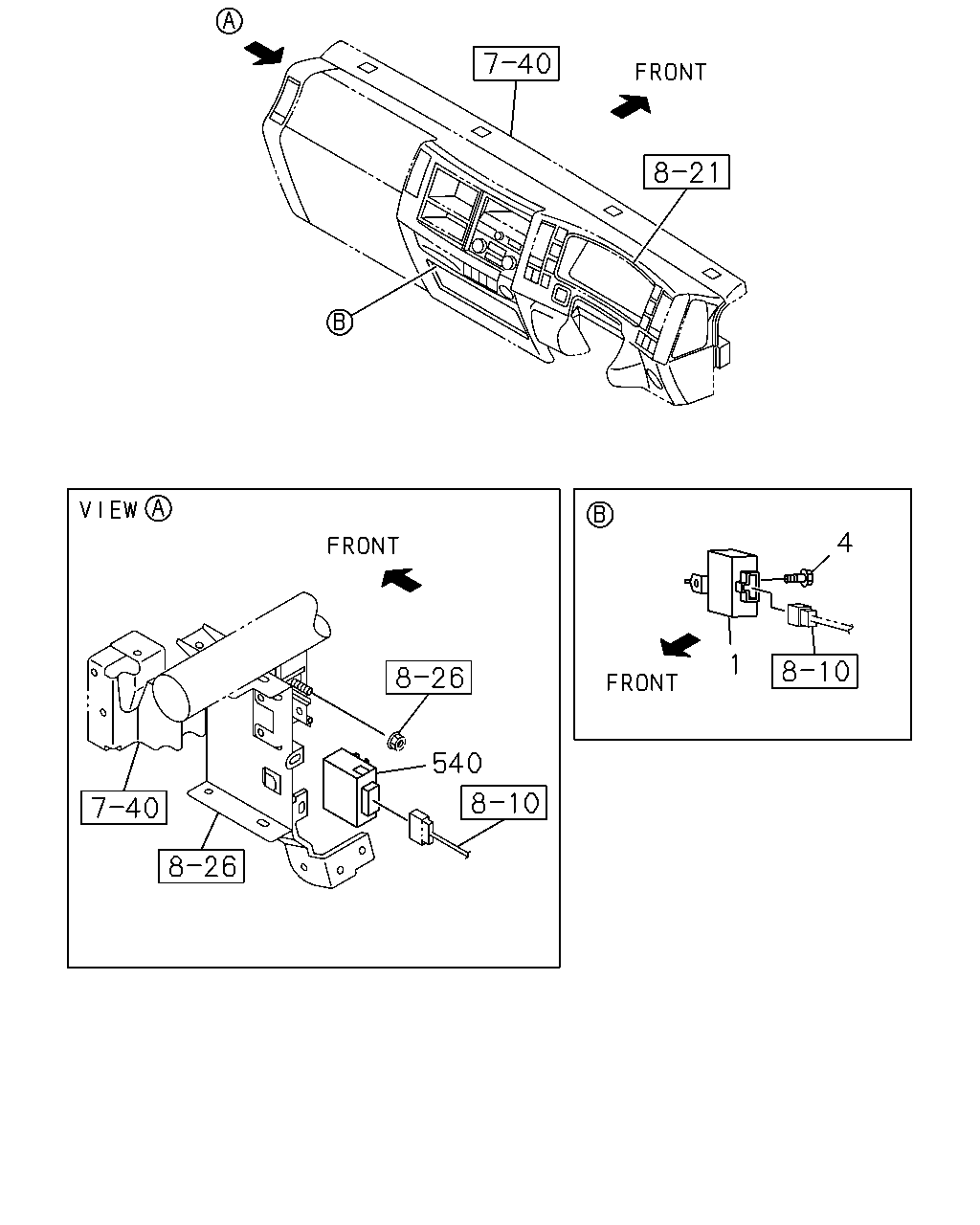

4 1 540

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-98025-533-1	01	1	1110-
4	SCREW; FLASHER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1110-
4	SCREW; FLASHER UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X16 FLANGE	0-28650-616-0	01	1	1110-
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	1110-1308
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-

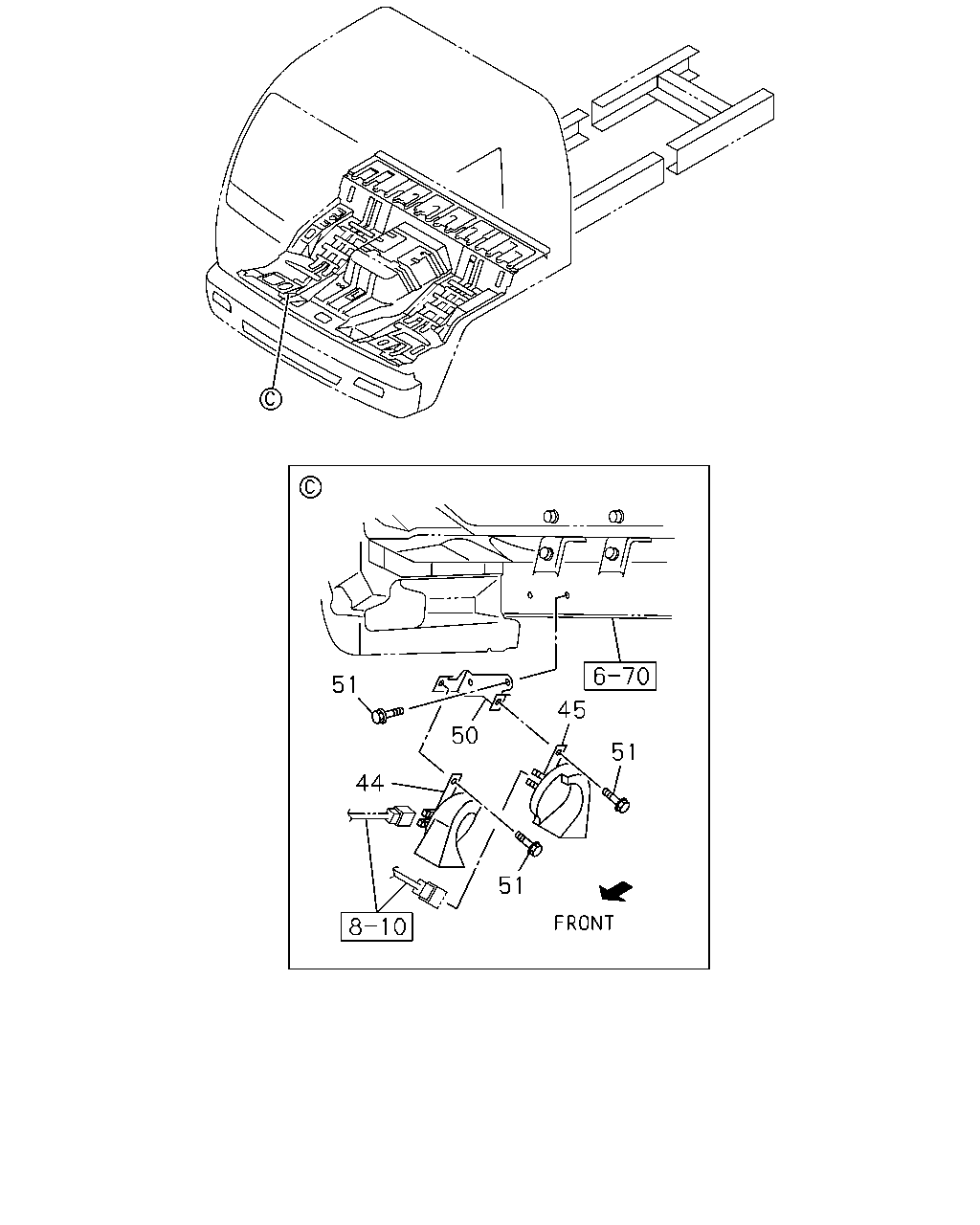

51 45 50 51 44 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	8-98022-022-0	01	1	1110-
45	HORN; LOW NOTE	8-98022-023-0	01	1	1110-
50	BRACKET; HORN	8-97613-300-2	01	1	1110-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1110-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1110-

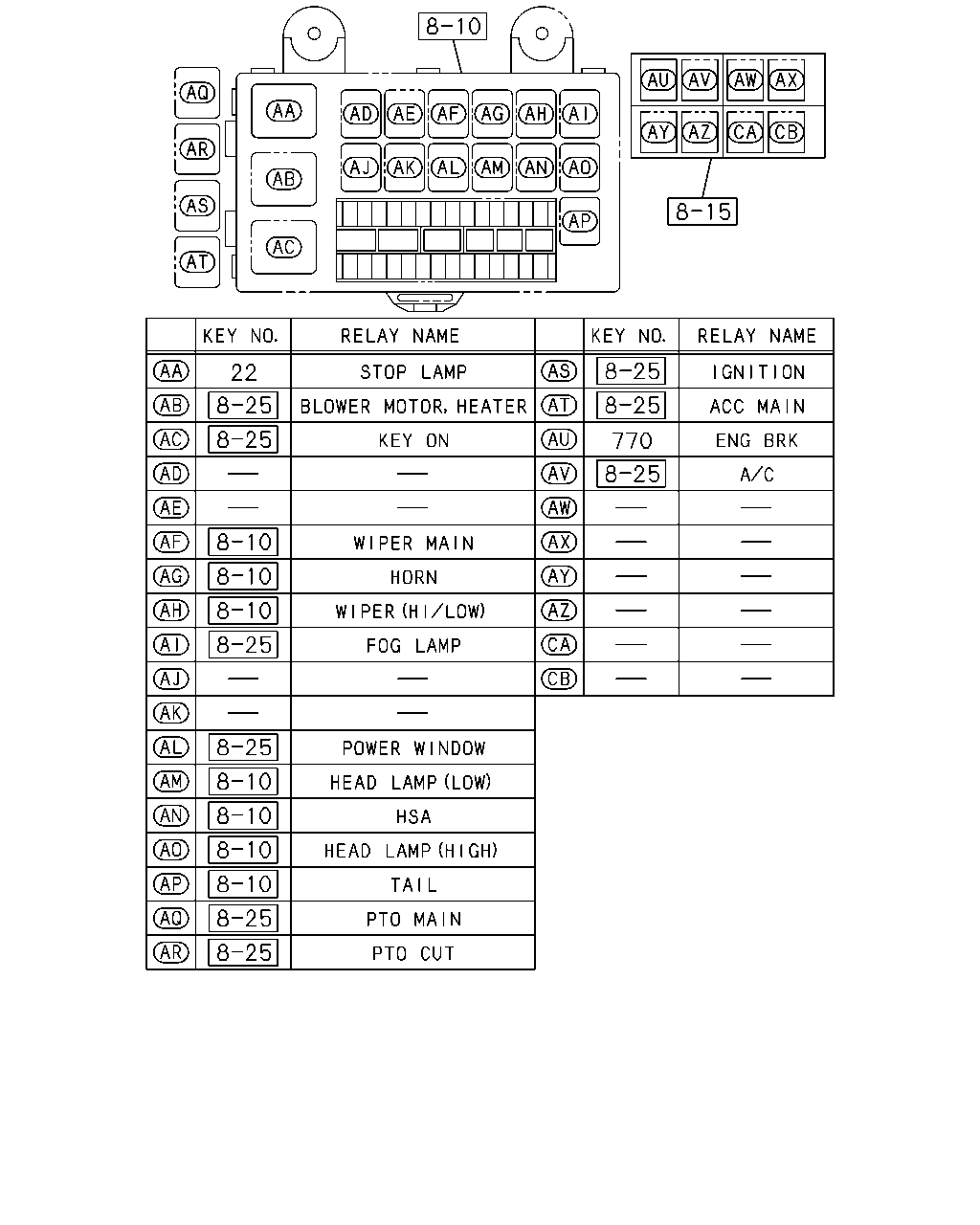

22 770

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1110-
	770	RELAY; ENG BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1110-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
