◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11399 - FSR(RHD)EURO1 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#60185) — 75 parça

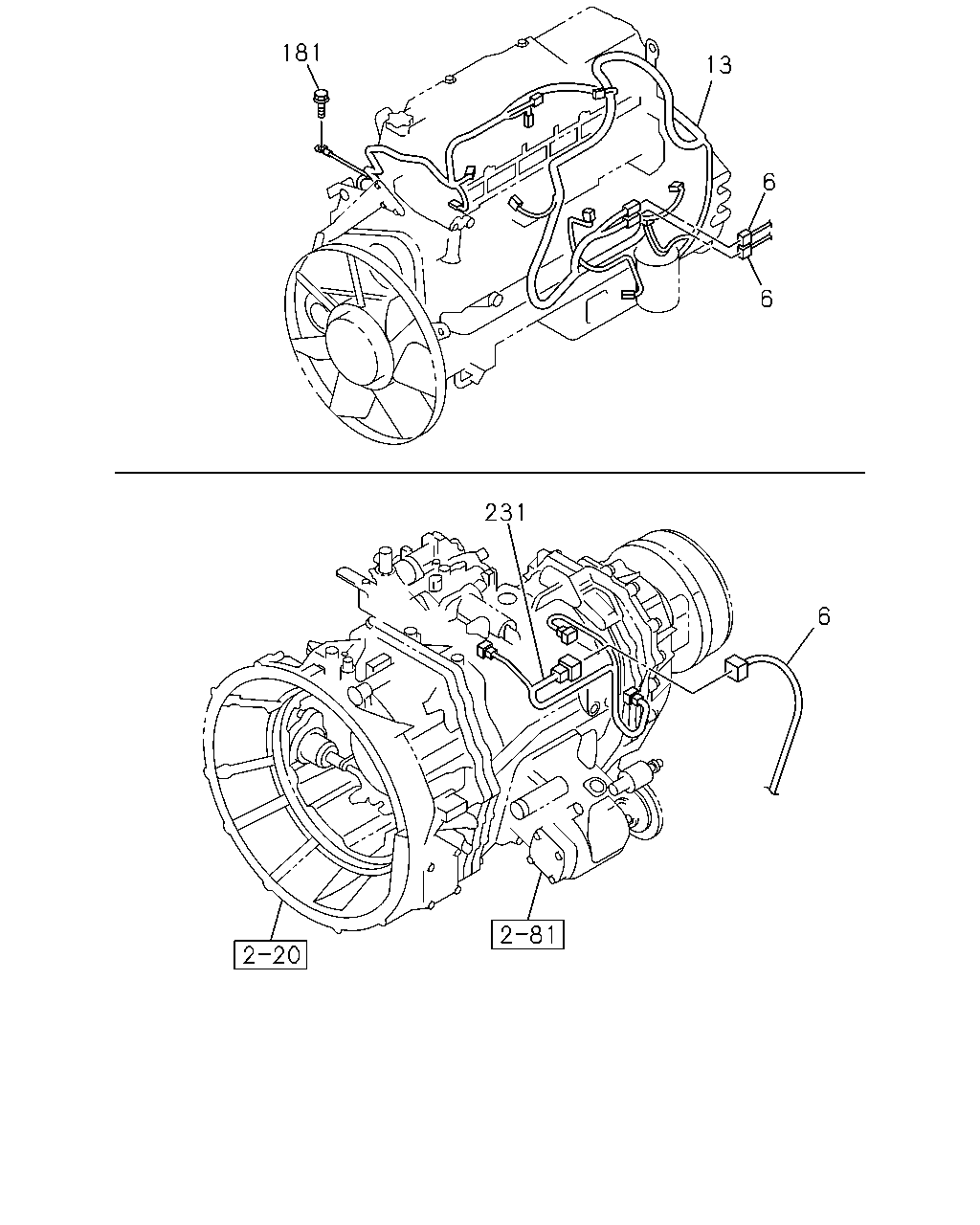

çizim 147635
181 13 6 6 231 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98178-649-2 01 1 1110-
13 HARNESS; ENG 8-98165-469-1 01 1 1110-
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 1110-
231 HARNESS; TRANS 8-98178-660-2 01 1 1110-1410
231 HARNESS; TRANS 8-98286-173-0 01 1 1411-

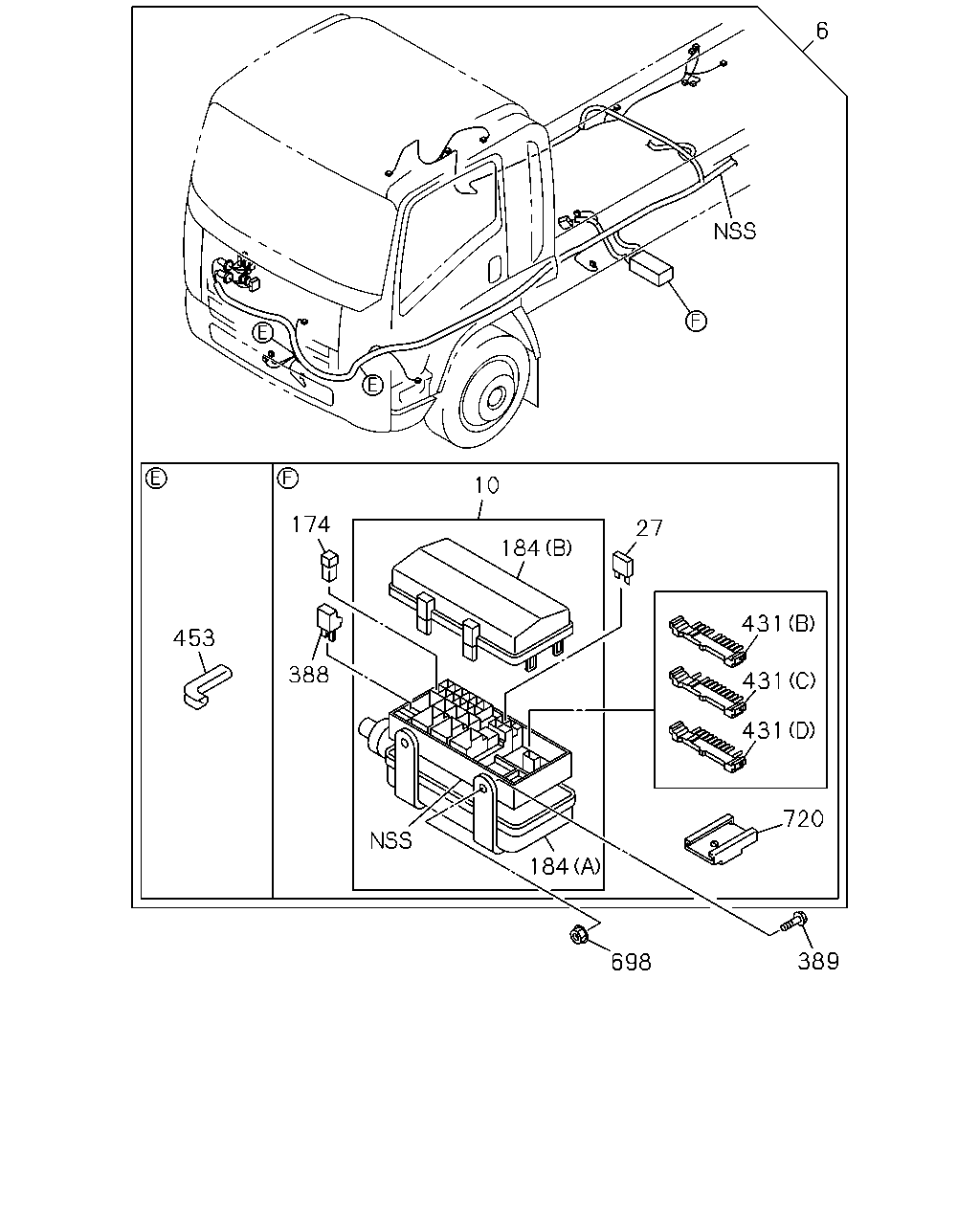

çizim 147637
6 10 174 27 184 431 453 388 431 431 720 184 389 698
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98178-649-2 01 1 1110-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1110-
27 FUSE UNIT
10A RED 		8-98054-257-0 02 1 1110-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 01 1 1110-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1110-
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 1110-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1110-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1110-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1110-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1110-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1110-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1110-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-375-0 01 1 1110-
431 CONNECTOR; JOINT
(D) 10P GREEN 		1-82698-579-0 01 1 1110-
431 CONNECTOR; JOINT
(B) 10P BLUE 		1-82699-598-0 01 1 1110-
431 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 01 1 1110-
431 CONNECTOR; JOINT
(B) 10P BROWN 		1-82699-601-0 01 1 1110-
453 PROTECTOR; HARNESS 1-82699-709-0 02 1 1110-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1110-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 02 1 1110-

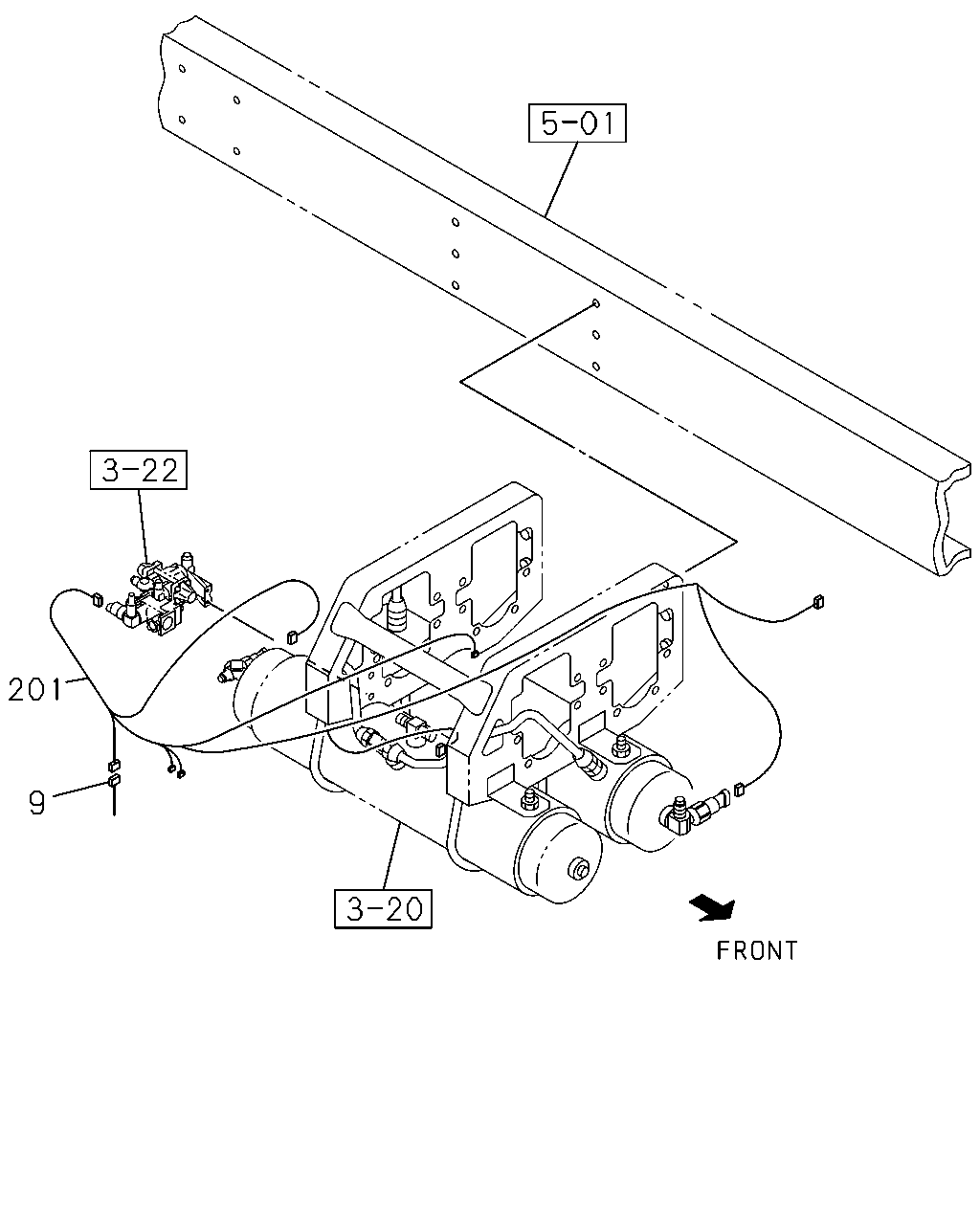

çizim 147645
201 9
BalonParca AdiParca NoAdetTipApplied Date
9 HARNESS; FRAME,RR 8-98168-584-0 01 1 1110-
201 HARNESS; AIR TANK 8-98163-747-2 01 1 1110-

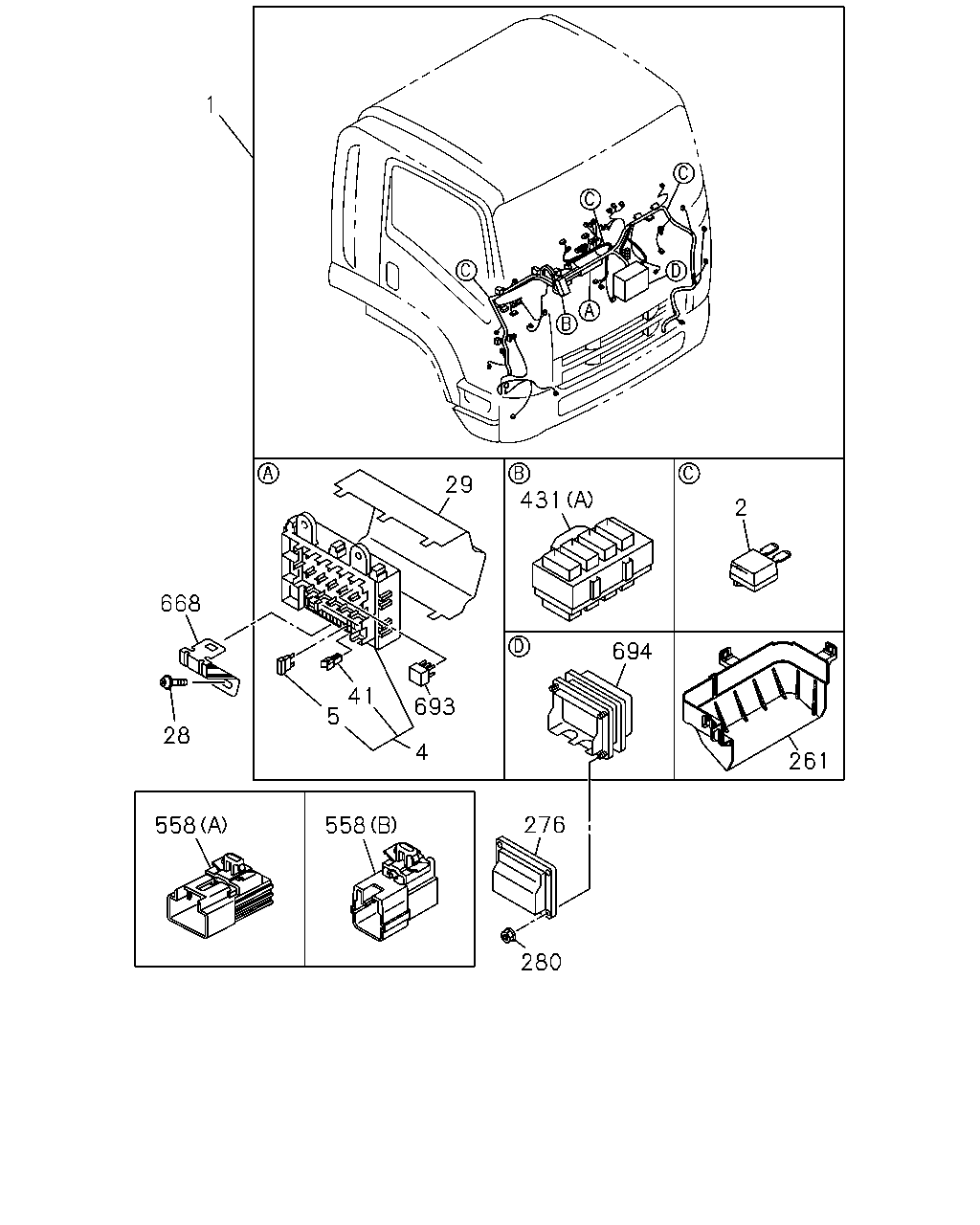

çizim 147648
1 431 29 2 668 694 41 5 693 28 4 261 276 558 558 280
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> 		8-98186-706-1 01 1 1110-1203
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,FOG LAMP<T96> 		8-98186-706-1 01 1 1110-1203
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> FOG LAMP<T96> EXC. AUTO DOOR LOCK<AU4> 		8-98186-706-1 01 1 1110-1203
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> 		8-98186-706-1 01 1 1204-1504
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,FOG LAMP<T96> 		8-98186-706-1 01 1 1204-1504
1 HARNESS; CAB
FOG LAMP<T96> EXC. AUTO DOOR LOCK<AU4> 		8-98186-706-1 01 1 1204-1504
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> 		8-98220-274-0 01 1 1505-1505
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,FOG LAMP<T96> 		8-98220-274-0 01 1 1505-1505
1 HARNESS; CAB
FOG LAMP<T96> EXC. AUTO DOOR LOCK<AU4> 		8-98220-274-0 01 1 1505-1505
1 HARNESS; CAB 8-98220-274-0 01 1 1506-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),FOG LAMP<T96> 		8-98186-705-1 01 1 1110-1203
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),FOG LAMP<T96> 		8-98186-705-1 01 1 1204-1504
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),FOG LAMP<T96> 		8-98220-273-0 01 1 1505-1505
2 DIODE; CABLE HARNESS
BLACK 2P-1.5A 		8-94422-639-1 01 1 1110-
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1110-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1110-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1110-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1110-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1110-
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1110-
28 SCREW; FUSE BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X16 FLANGE 		0-28650-616-0 01 1 1110-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1110-
41 PULLER; FUSE 8-98054-260-0 01 1 1110-
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1110-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1110-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1110-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-375-0 01 1 1110-
431 CONNECTOR; JOINT
(D) 10P GREEN 		1-82698-579-0 01 1 1110-
431 CONNECTOR; JOINT
(B) 10P BLUE 		1-82699-598-0 01 1 1110-
431 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 01 1 1110-
431 CONNECTOR; JOINT
(B) 10P BROWN 		1-82699-601-0 01 1 1110-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1110-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1110-
668 BRACKET; HARNESS 8-98095-653-2 01 1 1110-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1110-
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1110-

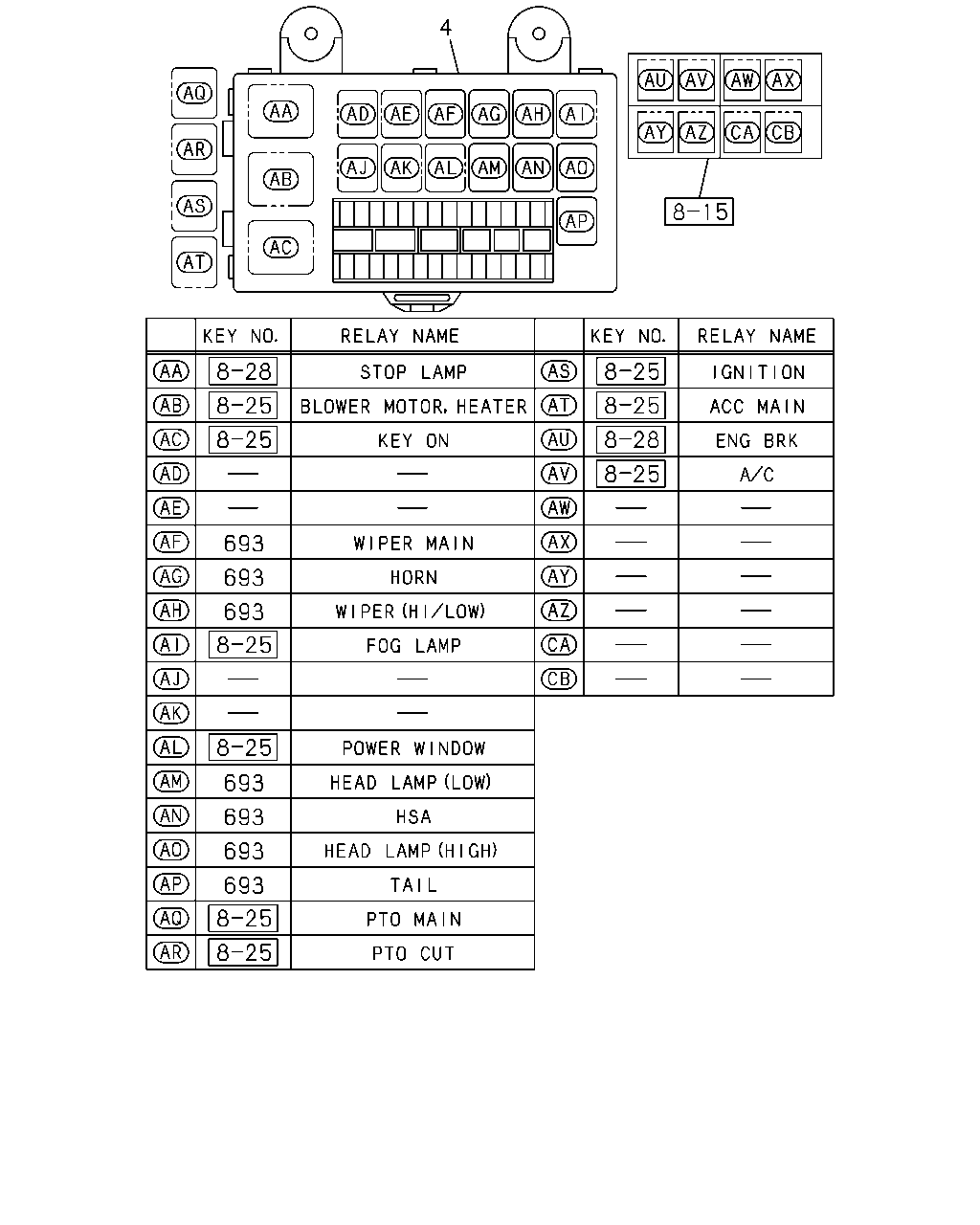

çizim 147649
4 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1110-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1110-

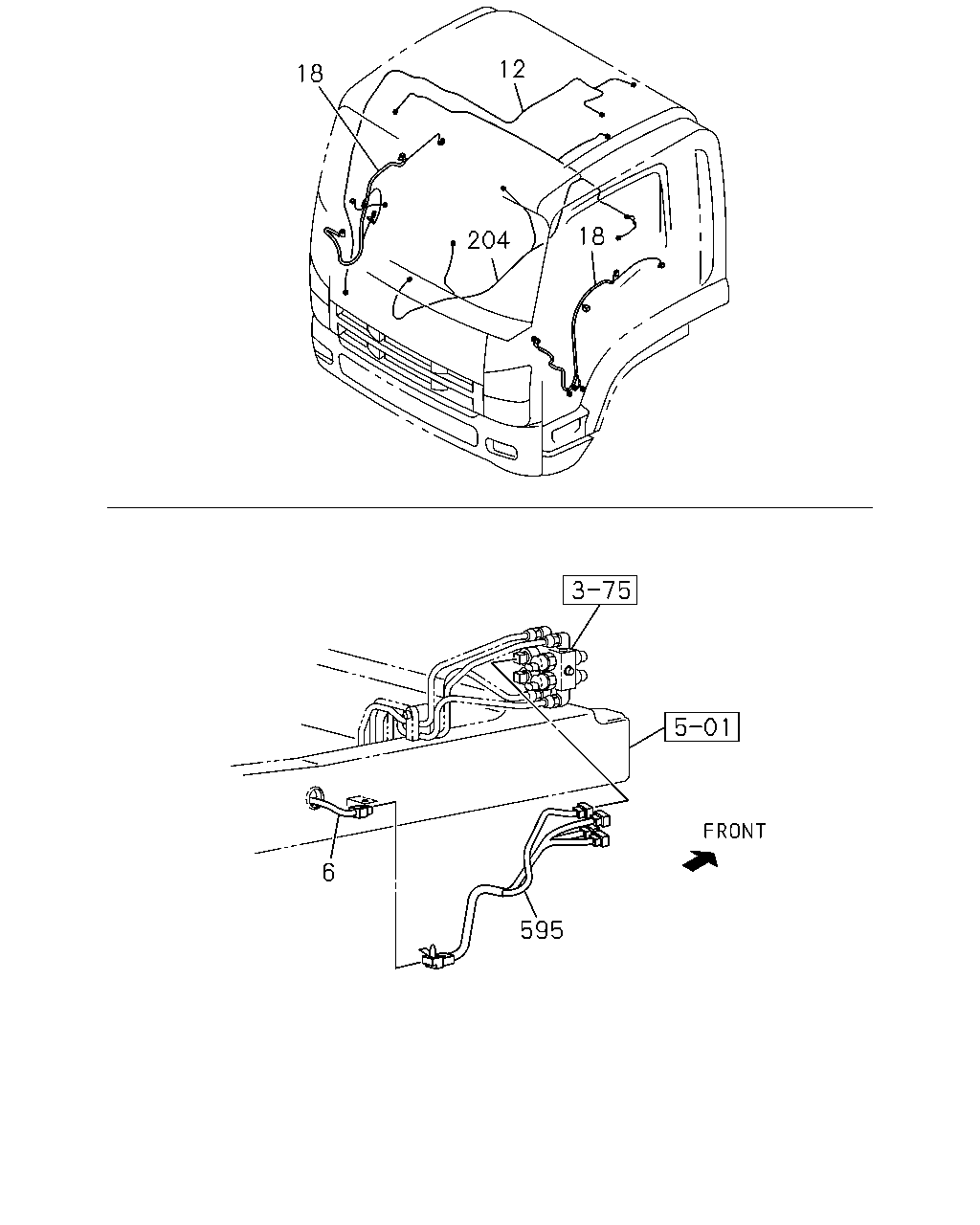

çizim 147650
12 18 18 204 6 595
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98178-649-2 01 1 1110-
12 HARNESS; ROOF 8-98041-948-2 01 1 1110-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98108-439-1 01 1 1110-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98108-440-1 01 1 1110-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98076-304-3 01 1 1110-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98076-305-3 01 1 1110-
204 HARNESS; CABLE,FLOOR 8-98084-188-0 01 1 1110-
595 HARNESS; WARNING,BRK 8-97621-003-3 01 1 1110-

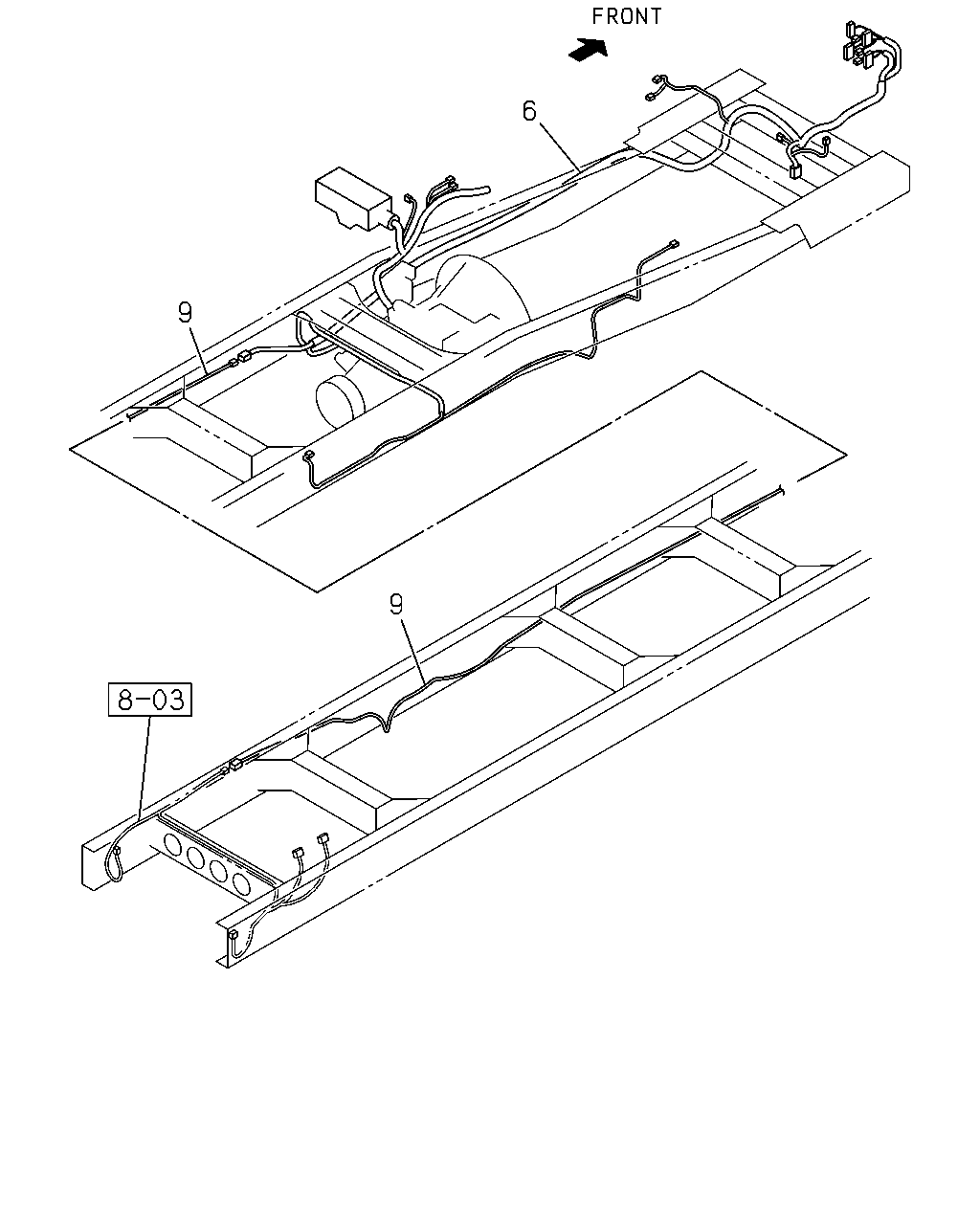

çizim 147652
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98178-649-2 01 1 1110-
9 HARNESS; FRAME,RR 8-98168-584-0 01 1 1110-
