Isuzu WW
▶
TRUCKS
▶
FSR
▶
11399 - FSR(RHD)EURO1
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

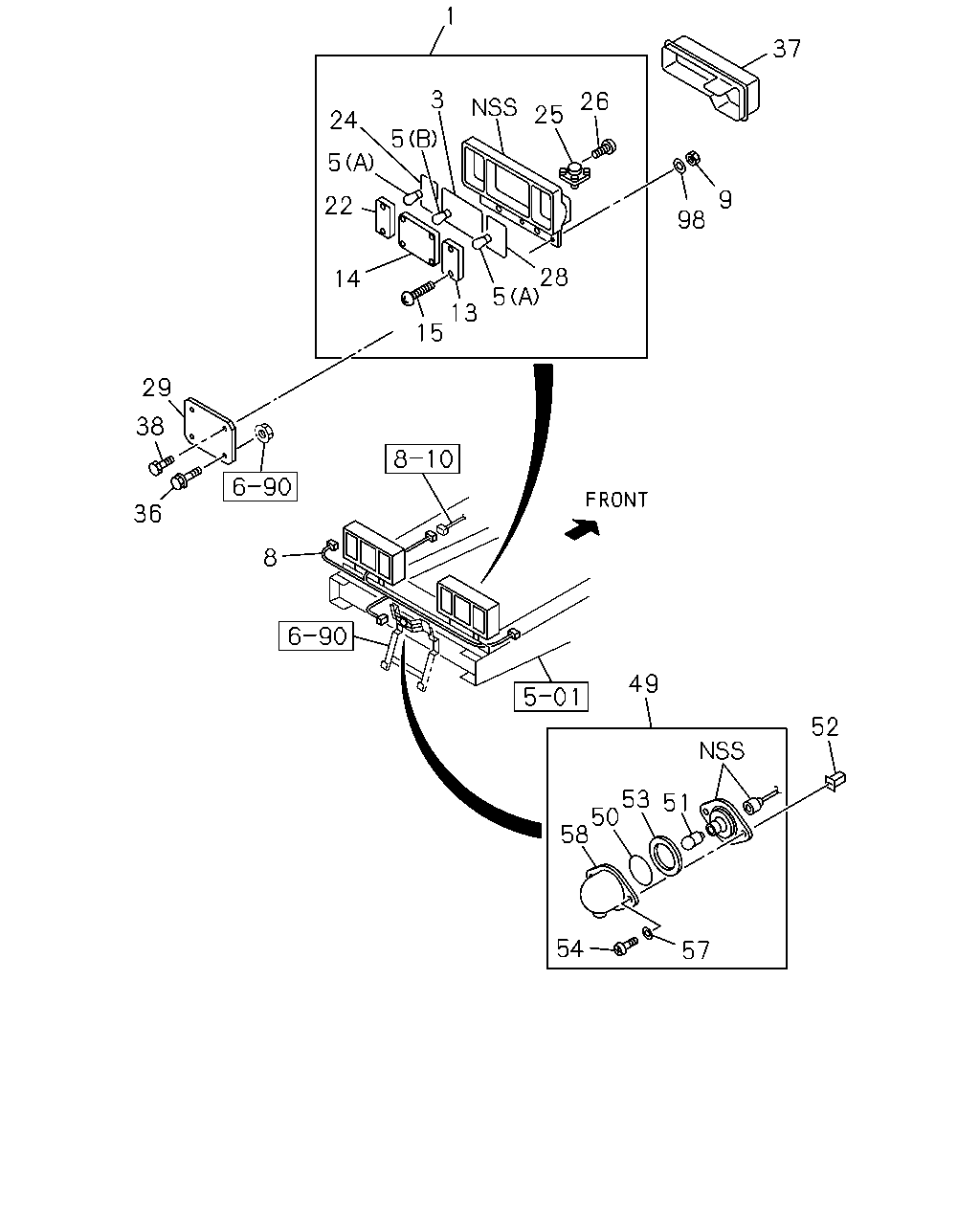

8-03 — LAMP; REAR AND REAR SIDE
(#60183) — 35 parça
1
37
3
26
25
24
5
5
9
22
98
28
14
5
13
15
29
38
36
8
49
52
53
50
58
51
54
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
8-98034-325-0
01
1
1110-
1
LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9>
8-98034-328-0
01
1
1110-
1
LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9>
8-98034-324-0
01
1
1110-
3
GASKET; RR COMB LAMP
8-94257-505-0
01
1
1110-
5
BULB; RR COMB LAMP
(A) 24V 21W
1-82194-108-0
02
1
1110-
5
BULB; RR COMB LAMP
(B) 24V 21/5W
1-82194-109-0
01
1
1110-
8
HARNESS; RR COMB LAMP
8-98064-342-3
01
1
1110-1201
8
HARNESS; RR COMB LAMP
8-98203-887-0
01
1
1202-
9
NUT; LAMP,RR COMB
M6
0-91110-506-0
04
1
1110-
13
LENS; TURN SIGNAL
8-94174-639-0
01
1
1110-
13
LENS; TURN SIGNAL
8-94174-638-0
01
1
1110-
14
LENS; TAIL & STOP,RR COMB LAMP
8-94178-625-0
01
1
1110-
14
LENS; TAIL & STOP,RR COMB LAMP
8-94178-624-0
01
1
1110-
15
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS
0-71190-420-0
08
1
1110-
22
LENS; BACKUP,RR COMB LAMP
CLEAR
8-94257-512-1
01
1
1110-
24
GASKET; BACK,LAMP
8-94257-506-0
01
1
1110-
25
HORN ASM; BACK
REVERSING WARNING BUZZER<YM9>
8-94257-518-0
01
1
1110-
26
SCREW; BACK HORN
M4X14 TAPPING
9-07076-414-0
01
1
1110-
26
SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> M4X12 TAPPING
9-07076-412-0
02
1
1110-
26
SCREW; BACK HORN
EXC. REVERSING WARNING BUZZER<YM9> M4X12 TAPPING
9-07076-412-0
01
1
1110-
28
GASKET; TURN,LAMP
8-94257-507-0
01
1
1110-
29
BRACKET; LAMP,RR COMB
1-82237-050-1
02
1
1110-
36
BOLT; BRKT,RR COMB
M8X25 FLANGE
0-28650-825-0
02
1
1110-
37
COVER; RR COMB LAMP
8-94129-274-4
01
1
1110-
37
COVER; RR COMB LAMP
8-94128-858-4
01
1
1110-
38
BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER
0-50640-630-0
04
1
1110-
49
LAMP; LICENSE PLATE
24V 10W
1-82120-024-1
01
1
1110-
50
LENS; LICENSE PLATE LAMP
1-82235-006-0
01
1
1110-
51
BULB; LICENSE PLATE LAMP
24V 10W
1-82194-037-0
01
1
1110-
52
GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK
8-94275-946-0
02
1
1110-
53
GASKET; LICENSE LAMP
1-82126-005-0
01
1
1110-
54
SCREW; LICENSE PLATE LAMP
M5X20
1-82129-007-0
02
1
1110-
57
WASHER; PL,LICENSE PLATE LAMP
1-82129-008-0
02
1
1110-
58
COVER; LICENSE PLATE LAMP
1-82129-005-0
01
1
1110-
98
WASHER
ID=6.4 OD=18
0-91610-706-0
04
1
1110-
