◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#6017) — 98 parça

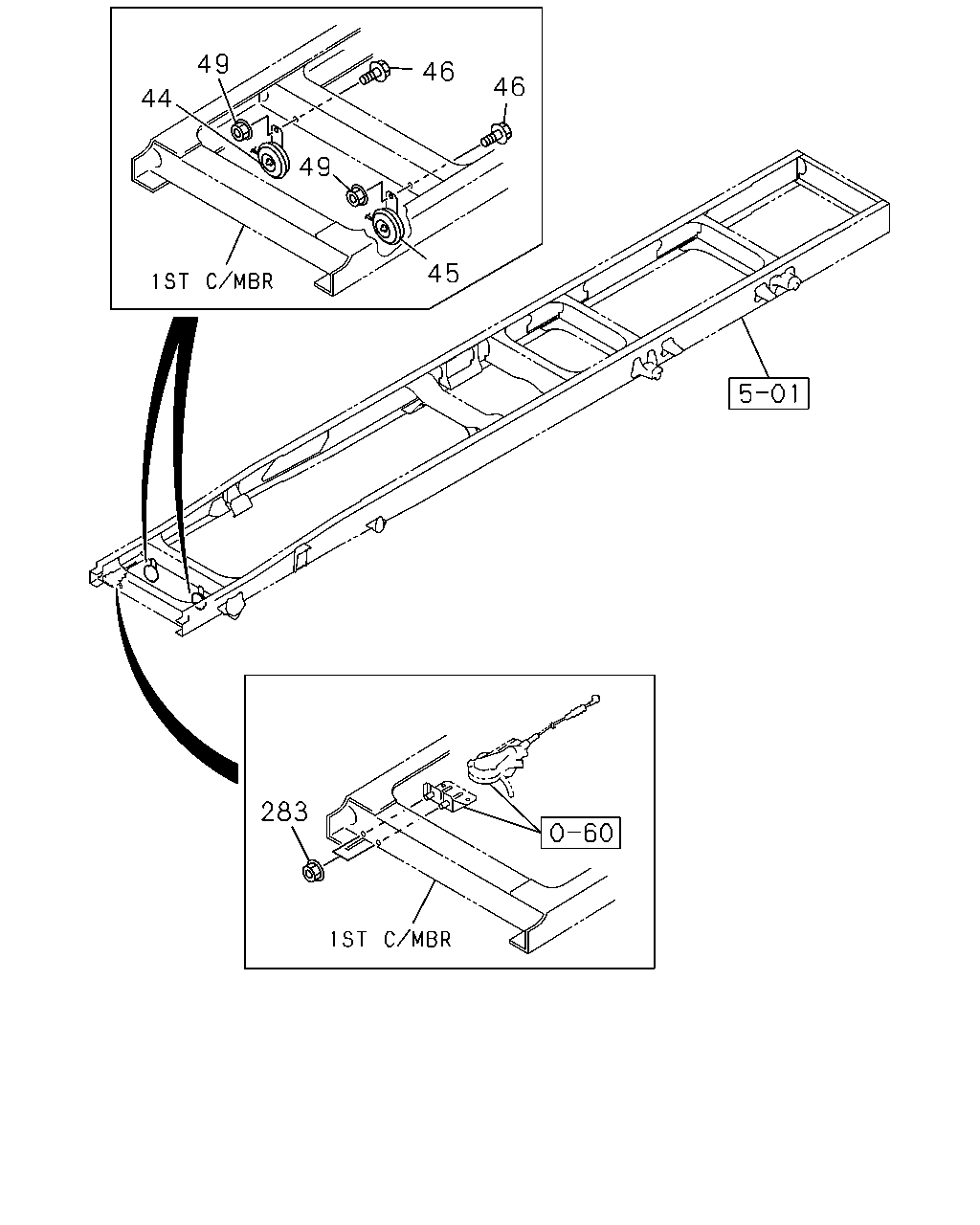

çizim 40412
49 46 46 44 49 45 283
BalonParca AdiParca NoAdetTipApplied Date
44 HORN; HIGH NOTE 1-83410-053-1 01 1 9606-9810
44 HORN; HIGH NOTE 1-83410-057-1 01 1 9811-0211
44 HORN; HIGH NOTE 1-83410-065-0 01 1 0212-
45 HORN; LOW NOTE 1-83410-054-1 01 1 9606-9810
45 HORN; LOW NOTE 1-83410-058-1 01 1 9811-0211
45 HORN; LOW NOTE 1-83410-064-0 01 1 0212-
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28680-825-0 02 1 9606-0512
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
49 NUT; HORN TO BODY
M8 FLANGE 		5-09440-005-0 02 1 9606-9810
49 NUT; HORN TO BODY
M8 FLANGE 		0-91150-108-0 02 1 9811-0602
49 NUT; HORN TO BODY
M8 FLANGE 		0-91180-108-0 02 1 0603-
283 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9811-0602
283 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
283 NUT; BRKT
6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 04 1 9903-0203
283 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0204-0602
283 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-

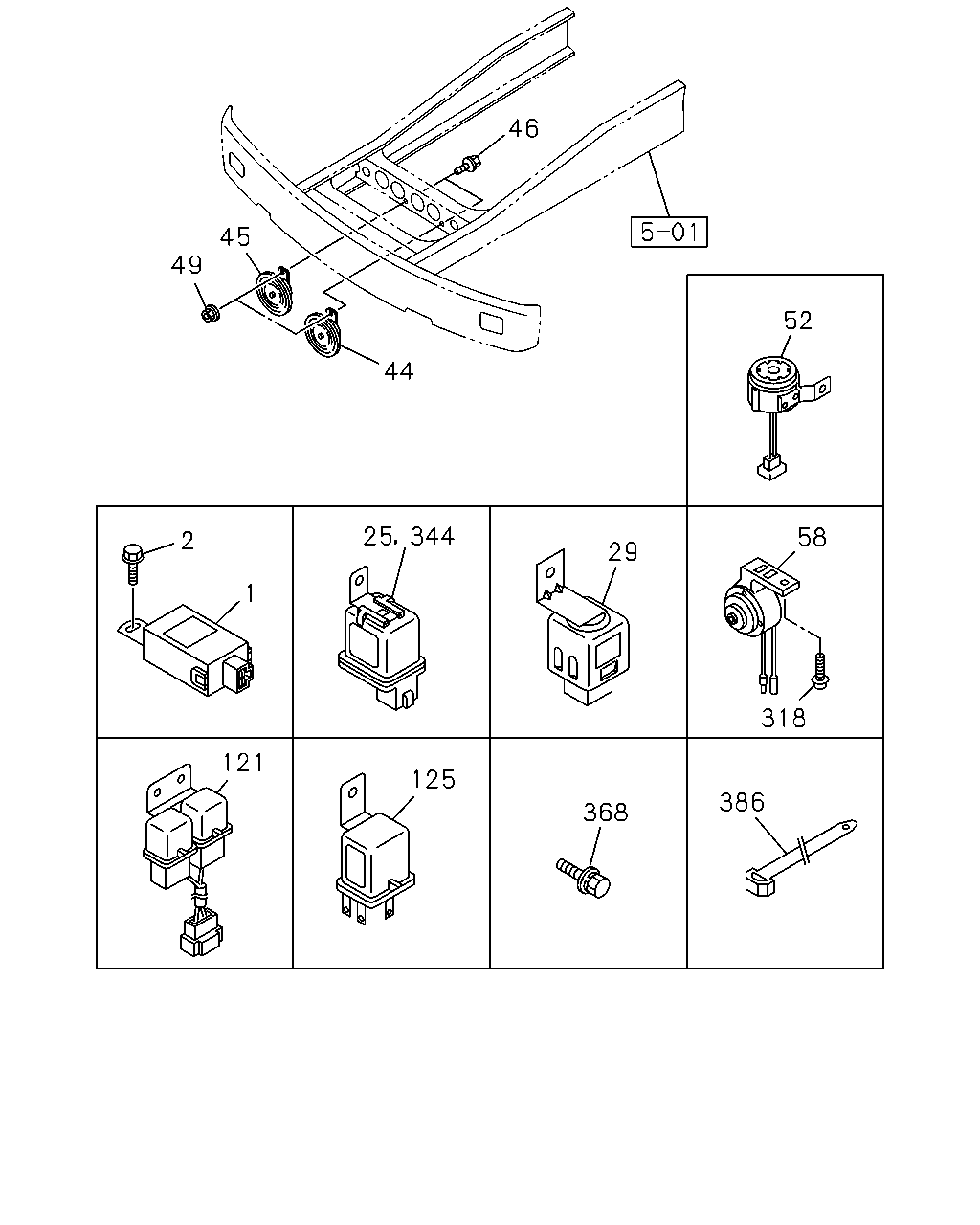

çizim 40866
46 45 49 52 44 25 344 58 2 29 1 318 121 125 386 368
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 1-83470-034-1 01 1 9606-9810
1 UNIT; FLASHER 1-83470-060-1 01 1 9811-
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28080-616-0 01 1 9606-9810
2 BOLT; FLASHER UNIT
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9606-9810
25 RELAY; TAIL LAMP
24V 		1-82550-176-0 01 1 9606-9810
25 RELAY; TAIL LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-0111
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
29 RELAY; HORN 1-83420-001-0 01 1 9606-9810
29 RELAY; HORN
24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-0111
29 RELAY; HORN
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
44 HORN; HIGH NOTE 1-83410-053-1 01 1 9606-9810
44 HORN; HIGH NOTE 1-83410-057-1 01 1 9811-0211
44 HORN; HIGH NOTE 1-83410-065-0 01 1 0212-
45 HORN; LOW NOTE 1-83410-054-1 01 1 9606-9810
45 HORN; LOW NOTE 1-83410-058-1 01 1 9811-0211
45 HORN; LOW NOTE 1-83410-064-0 01 1 0212-
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28680-825-0 02 1 9606-0512
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
49 NUT; HORN TO BODY
M8 FLANGE 		5-09440-005-0 02 1 9606-9810
49 NUT; HORN TO BODY
M8 FLANGE 		0-91150-108-0 02 1 9811-0602
49 NUT; HORN TO BODY
M8 FLANGE 		0-91180-108-0 02 1 0603-
52 BUZZER; BACK
HEAVY DUTY PACKAGE TRUCK<RD2> REVERSING WARNING BUZZER<YM9> NIKKO 		1-83460-043-0 01 1 9610-9810
58 BUZZER; AIR PRESSURE WARNING 1-83460-022-0 01 1 9606-9810
58 BUZZER; AIR PRESSURE WARNING
NIKKO 		1-83460-056-0 01 1 9811-
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-074-0 01 1 9904-9907
58 BUZZER; AIR PRESSURE WARNING
EXC. NIKKO<Y70> METRO DENSO 		1-83460-074-1 01 1 9908-0203
121 RELAY; PARKING BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82550-285-0 01 1 9606-9810
125 RELAY; STROKE,BRAKE LINING WARNING 5-82550-046-0 01 1 9606-9810
318 SCREW; BUZZER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9606-9810
344 RELAY; LAMP
24V 		1-82550-176-0 02 1 9606-9810
368 SCREW; RELAY FIX
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 04 1 9606-9810
368 SCREW; RELAY FIX
M6X16 W/LK&PL WASHER 		1-09981-141-0 01 1 9606-9810
368 SCREW; RELAY FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9606-9810
368 SCREW; RELAY FIX
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9606-9810
368 SCREW; RELAY FIX
HEATER & DEFROSTER<C41> M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9606-9810
386 CLIP; HARNESS
L=219.5 		1-09987-136-0 01 1 9606-9810

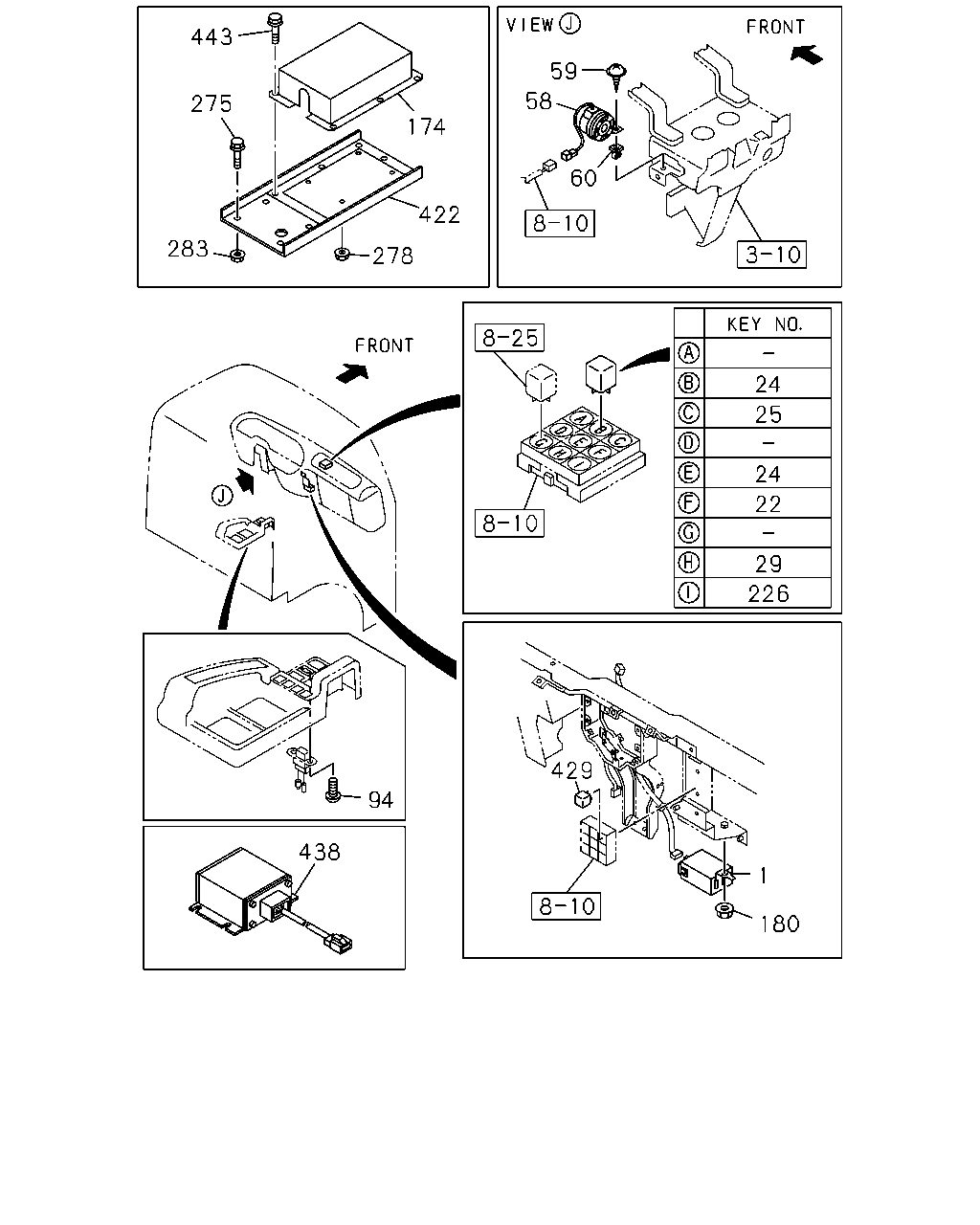

çizim 41999
443 59 58 275 174 60 422 283 278 24 25 24 22 29 226 429 94 438 1 180
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 1-83470-034-1 01 1 9606-9810
1 UNIT; FLASHER 1-83470-060-1 01 1 9811-
22 RELAY; STOP LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-0111
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
24 RELAY; LIGHTING
24V 12.5A MITUBA 		8-97062-815-1 02 1 9811-0111
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0112-
25 RELAY; TAIL LAMP
24V 		1-82550-176-0 01 1 9606-9810
25 RELAY; TAIL LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-0111
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
29 RELAY; HORN 1-83420-001-0 01 1 9606-9810
29 RELAY; HORN
24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-0111
29 RELAY; HORN
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
58 BUZZER; AIR PRESSURE WARNING 1-83460-022-0 01 1 9606-9810
58 BUZZER; AIR PRESSURE WARNING
NIKKO 		1-83460-056-0 01 1 9811-
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-074-0 01 1 9904-9907
58 BUZZER; AIR PRESSURE WARNING
EXC. NIKKO<Y70> METRO DENSO 		1-83460-074-1 01 1 9908-0203
59 SCREW; BUZZER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9811-0604
59 SCREW; BUZZER
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605-
60 GROMMET; SCREW,BUZZER
D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 9811-
94 SCREW; CONSENT TO BLIND PNL
M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 9811-0604
94 SCREW; CONSENT TO BLIND PNL
M5X12 TAPPING W/PL WASHER 		0-74160-512-0 02 1 0605-
174 COVER
6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> 		1-82699-985-1 01 1 9903-0203
174 COVER 1-82699-985-1 01 1 0204-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 9811-0602
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0603-
226 RELAY; EXH BRK
24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-0111
226 RELAY; EXH BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
275 BOLT; BRKT
6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> M8X35 FLANGE 		0-28680-835-0 04 1 9903-0203
275 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 04 1 0204-0512
275 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 0601-
278 NUT; CONT UNIT
6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9903-0203
278 NUT; CONT UNIT
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0204-
283 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9811-0602
283 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
283 NUT; BRKT
6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 04 1 9903-0203
283 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0204-0602
283 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-
422 BRACKET; CONT UNIT
6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> 		1-82699-986-1 01 1 9903-0203
422 BRACKET; CONT UNIT 1-82699-986-1 01 1 0204-
429 RELAY; POWER CUT
EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9903-0111
429 RELAY; POWER CUT
EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-0203
429 RELAY; POWER CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0204-
438 UNIT; SPD CONTROL
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-82540-071-0 01 1 9906-
443 BOLT; COVER
6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28680-820-0 07 1 9903-0203
443 BOLT; COVER
M8X20 FLANGE 		0-28680-820-0 07 1 0204-0512
443 BOLT; COVER
M8X20 FLANGE 		0-28650-820-0 07 1 0601-
