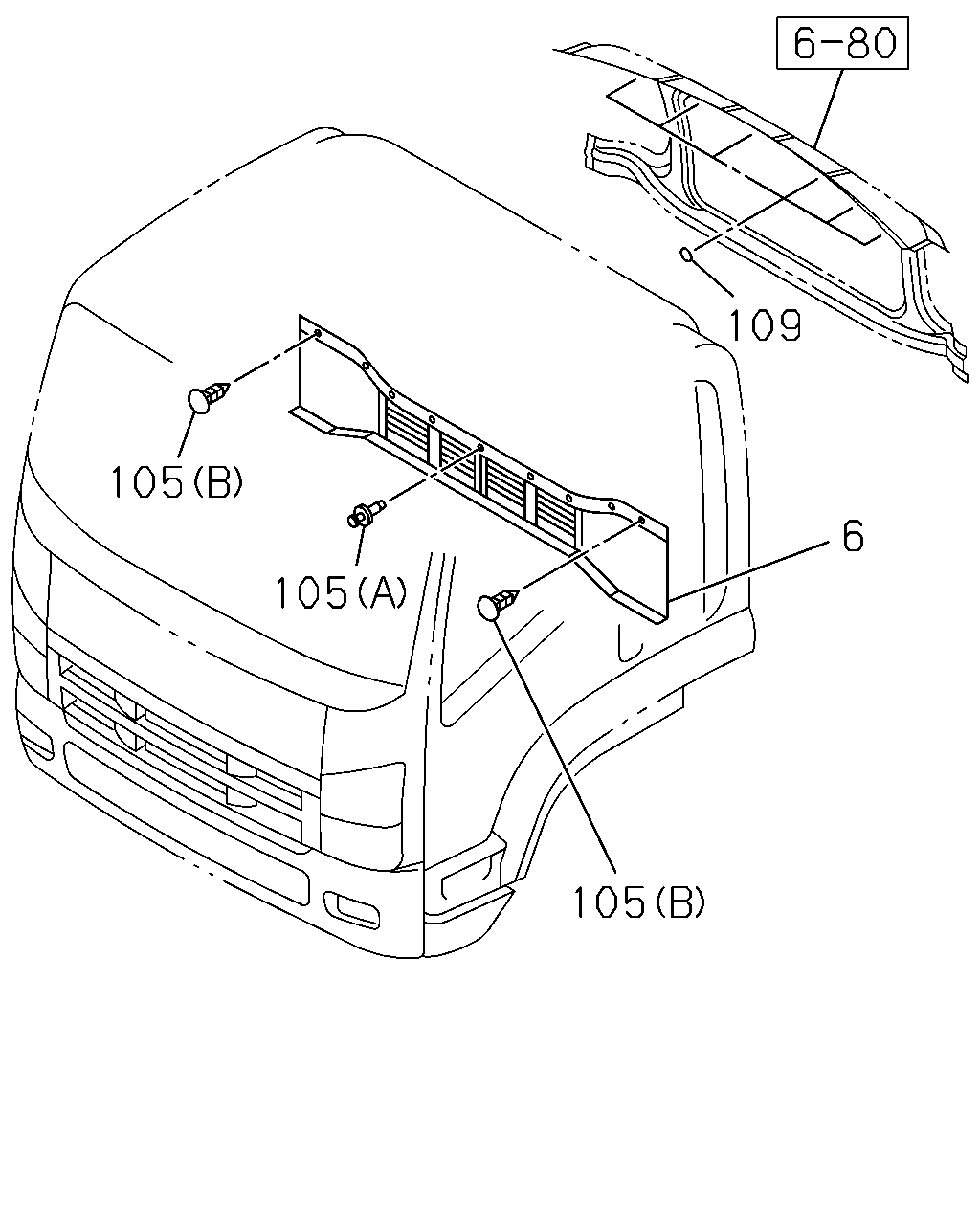

6-84 — BACK TRIM (#60169) — 5 parça

109 105 6 105 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	MAT; SILENCER,CAB BACK GRAY	8-97407-457-1	01	1	1110-
105	CLIP; BACK TRIM (B) GRAY	8-97407-467-0	02	1	1110-
105	CLIP; BACK TRIM (A) GRAY	8-97408-022-0	07	1	1110-
109	SEAL; HOLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BO DY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK	5-76777-036-0	06	1	1110-
109	SEAL; HOLE BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=20 T=0.05 WHITE	8-98059-421-0	06	1	1110-
