Isuzu WW
▶
TRUCKS
▶
FSR
▶
11399 - FSR(RHD)EURO1
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

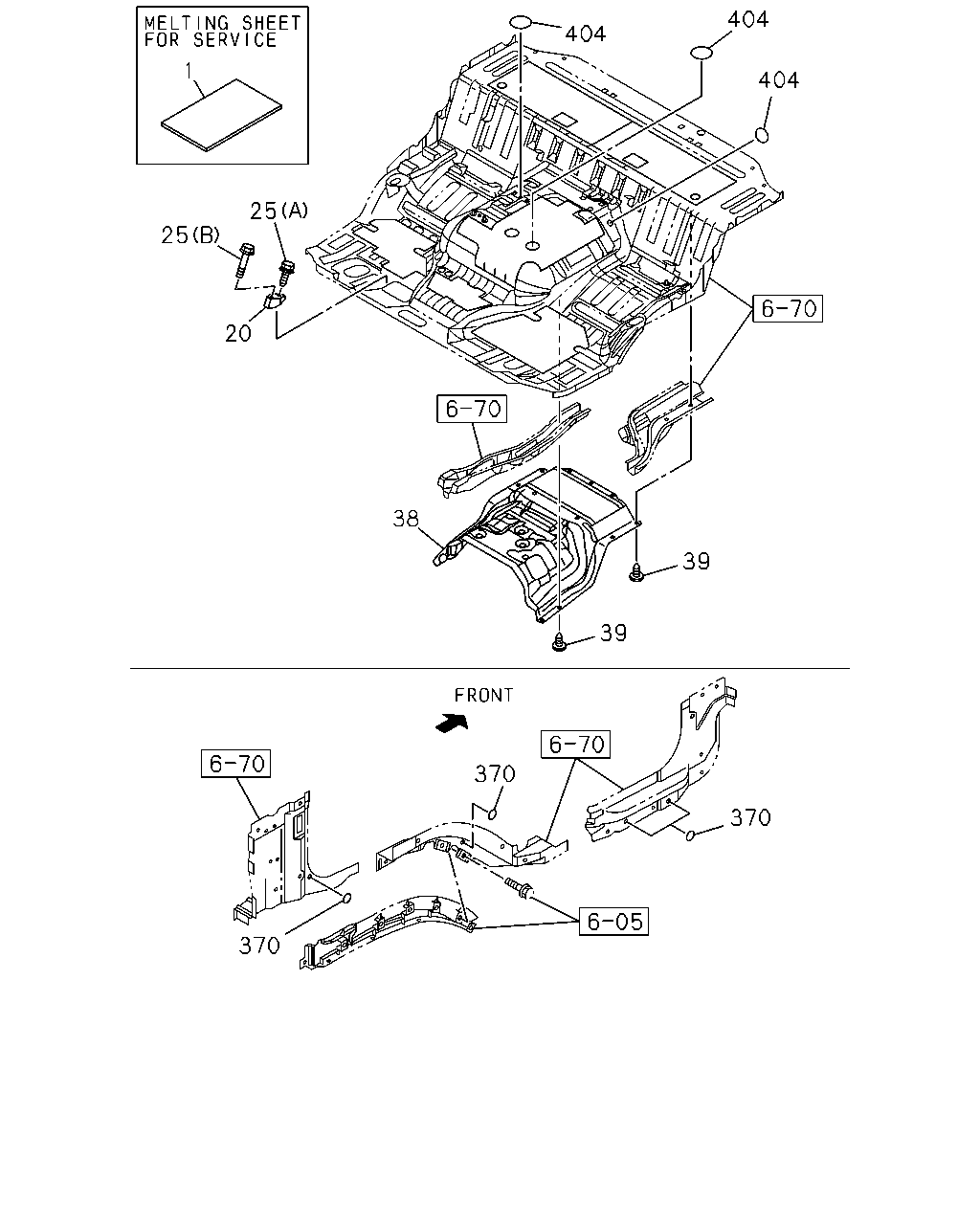

6-76 — FLOOR EQUIPMENT AND SEALING
(#60165) — 11 parça
404
404
1
404
25
25
20
38
39
39
370
370
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY
8-94262-093-0
AR
1
1110-
20
REST; FOOT
1-73907-176-1
01
1
1110-
25
SCREW; FOOT REST
(A) BOLT M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
1110-
25
SCREW; FOOT REST
(B) M6X47
8-94407-876-1
01
1
1110-
38
INSULATOR; ENG COVER
8-97586-180-6
01
1
1110-1310
38
INSULATOR; ENG COVER
8-98240-137-1
01
1
1311-
39
CLIP; INSULATOR,COVER
ID=6.2 L=11.4
8-97808-623-0
24
1
1110-
370
SEAL; LOCATION HOLE
OD=30 T=1.0
8-98051-161-0
08
1
1110-1211
370
SEAL; LOCATION HOLE
OD=30 T=0.8
8-98230-420-0
08
1
1212-
404
SEAL; FLOOR,HOLE
OD=25 BLACK
1-76798-019-0
12
1
1110-
404
SEAL; FLOOR,HOLE
EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK
1-76798-019-0
02
1
1110-
