◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11399 - FSR(RHD)EURO1 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#60164) — 9 parça

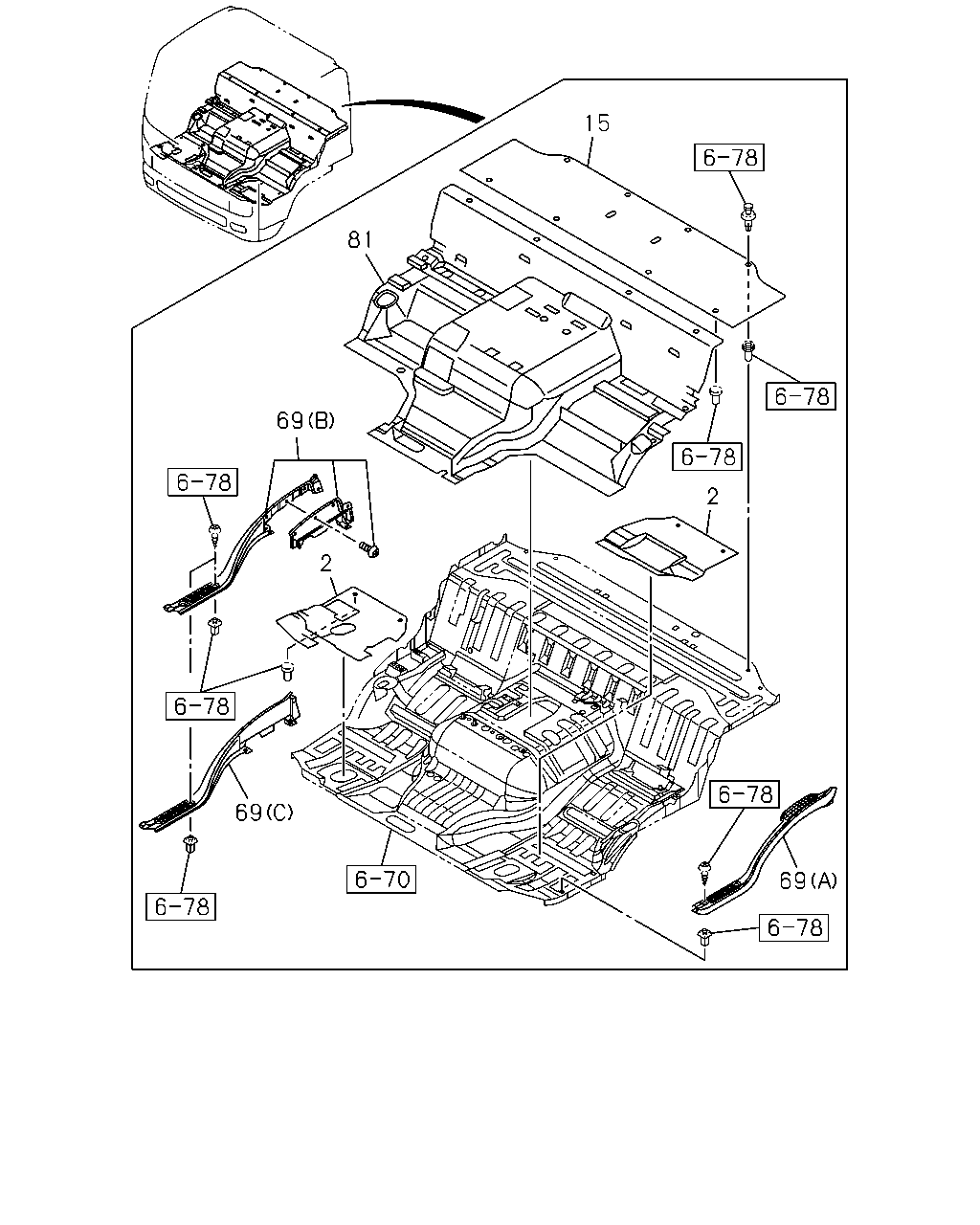

çizim 147600
81 15 69 2 69 69 2
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-745-2 01 1 1110-
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97422-223-0 01 1 1110-
15 MAT; FLOOR REAR
FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97418-950-0 01 1 1110-
15 MAT; FLOOR REAR
FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-403-1 01 1 1110-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(A) GRAY 		8-97407-413-1 01 1 1110-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (B) GRAY 		8-97407-414-3 01 1 1110-1503
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97465-138-0 01 1 1504-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97407-412-1 01 1 1110-
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-405-3 01 1 1110-
