Isuzu WW
▶
TRUCKS
▶
FSR
▶
11399 - FSR(RHD)EURO1
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

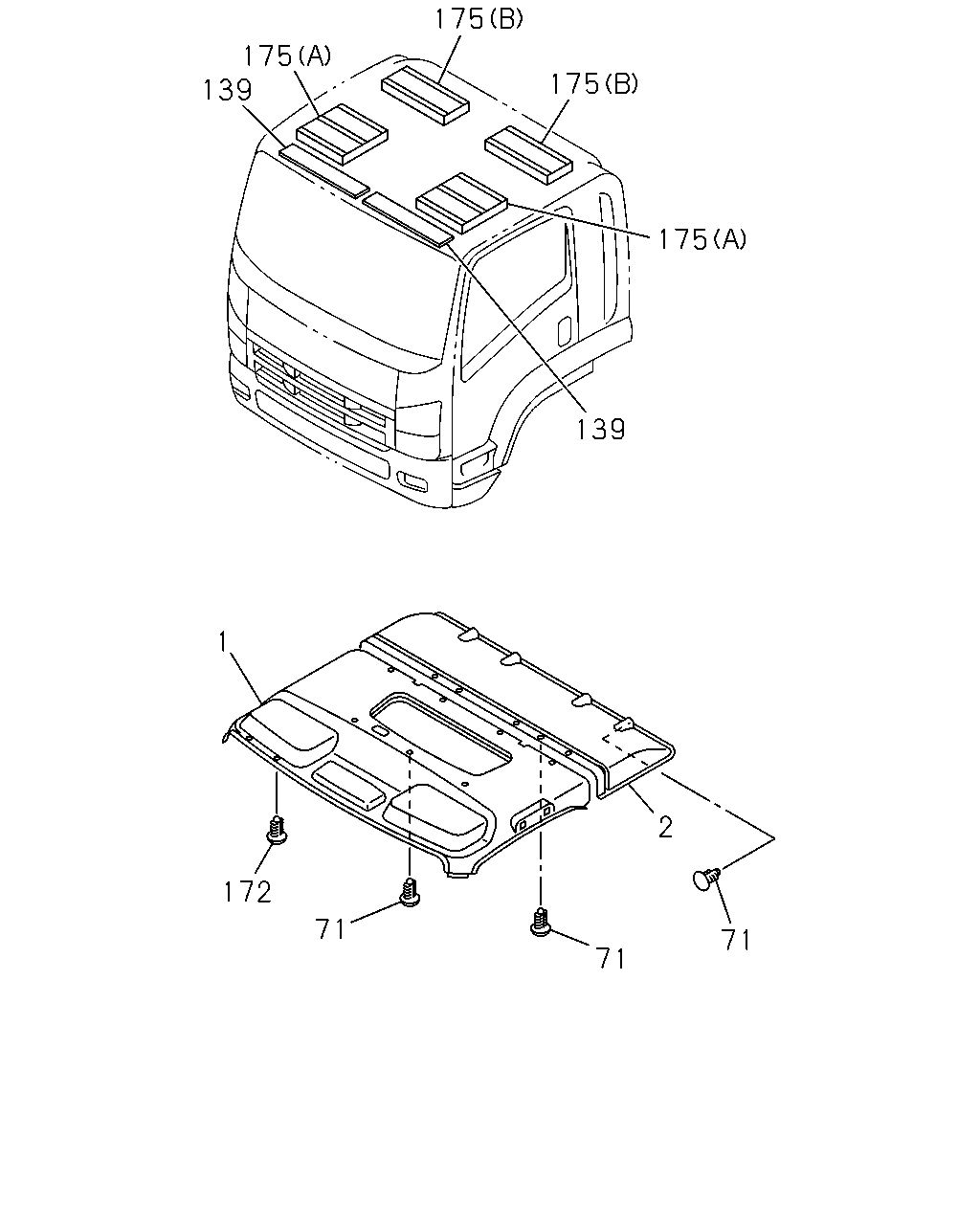

6-66 - HEAD LINING AND TRIM
▶
6-66 — HEAD LINING AND TRIM
(#60162) — 10 parça
175
175
139
175
175
139
1
2
172
71
71
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97411-877-4
01
1
1110-1306
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97426-688-0
01
1
1307-
1
LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97411-876-4
01
1
1110-1306
1
LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97426-687-0
01
1
1307-
2
LINING; HD,ROOF RR
DARK GRAY
8-97415-673-0
01
1
1110-
71
FASTENER; HD LINING
DARK GRAY
8-97405-282-0
07
1
1110-
139
SEAL; ROOF
8-98169-116-0
02
1
1110-
172
RETAINER; HEAD LINING
DARK GRAY
8-97411-875-0
14
1
1110-
175
CUSHION; HEAD LINING
(A)
8-98030-965-2
02
1
1110-
175
CUSHION; HEAD LINING
(B)
8-98082-685-1
02
1
1110-
