◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11399 - FSR(RHD)EURO1 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#60161) — 9 parça

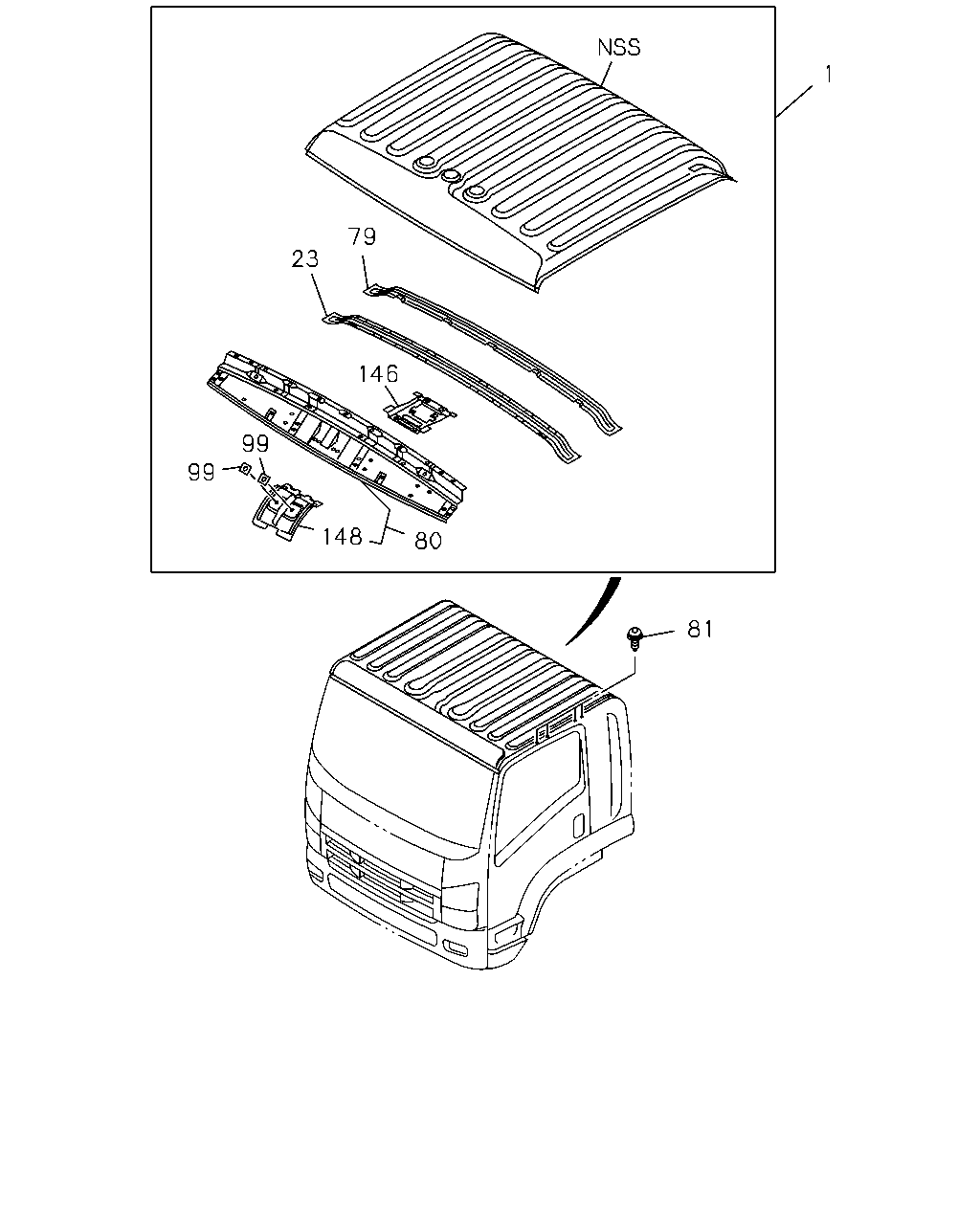

çizim 147594
1 79 23 146 99 99 148 80 81
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98152-801-1 01 1 1110-
1 PANEL; ROOF
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98152-802-1 01 1 1110-
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 1110-
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-199-1 01 1 1110-
80 PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97584-191-4 01 1 1110-
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1110-
99 SEAL; BODY,METAL
O/SIDE MIRROR UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1110-
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 1110-
148 REINFORCEMENT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97411-015-1 01 1 1110-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
