6-47 — MUD GUARD AND INSULATOR (#60160) — 61 parça

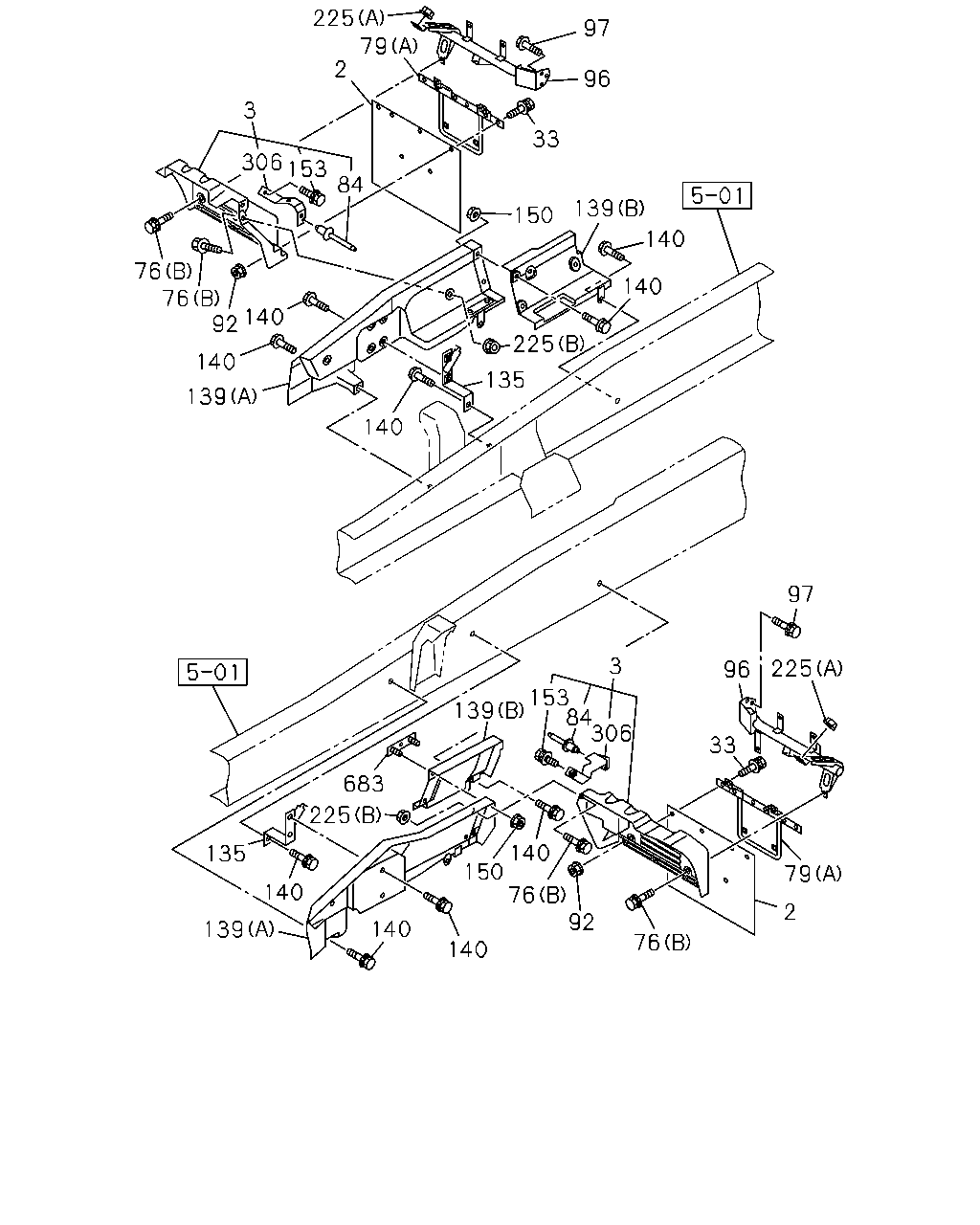

çizim 147584
225 79 2 3 306 153 84 76 76 92 140 140 139 140 135 225 150 33 96 97 139 140 140 97 225 96 33 79 2 76 92 76 150 140 306 3 84 153 139 683 225 135 140 140 140 139
BalonParca AdiParca NoAdetTipApplied Date
2 COVER; MUD,TIRE RR 8-98121-829-0 02 1 1110-
3 GUARD; MUD,RR 1-79931-471-0 01 1 1110-1212
3 GUARD; MUD,RR 8-98196-103-0 01 1 1301-
3 GUARD; MUD,RR 1-79931-542-0 01 1 1110-1212
3 GUARD; MUD,RR 8-98196-117-0 01 1 1301-
33 BOLT; MUD COVER
M6X20 W/LK&PL WASHER 		1-09980-495-0 10 1 1110-
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 1110-1211
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 07 1 1212-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		8-94331-747-1 08 1 1110-
79 RETAINER; MUD COVER
(B) 		8-98041-217-1 02 1 1110-
79 RETAINER; MUD COVER
(A) 		8-98103-144-0 01 1 1110-
79 RETAINER; MUD COVER
(A) 		8-98103-145-0 01 1 1110-
84 RIVET; MUD GUARD 5-09734-006-1 02 1 1301-
84 RIVET; MUD GUARD 5-09734-006-1 02 1 1301-
92 NUT; MUD COVER
M6 FLANGE 		0-91180-106-0 06 1 1110-
96 STAY; MUD GUARD 1-79931-523-2 01 1 1110-
96 STAY; MUD GUARD 1-79931-522-2 01 1 1110-
97 BOLT; STAY TO FRAME
M10X30 FLANGE 		0-28651-030-0 06 1 1110-
135 BRACKET; SIDE PANEL 8-98089-388-0 01 1 1110-
135 BRACKET; SIDE PANEL 8-98089-387-0 01 1 1110-
139 PANEL; SIDE
(B) 		1-53194-591-0 01 1 1110-
139 PANEL; SIDE
(A) 		8-98090-078-0 01 1 1110-
139 PANEL; SIDE
(B) 		1-53194-590-1 01 1 1110-
139 PANEL; SIDE
(A) 		8-98090-077-0 01 1 1110-
140 BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER 		1-09030-095-0 05 1 1110-
140 BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER 		1-09030-095-0 10 1 1110-
150 NUT; SIDE PANEL
M8 W/DISHED WASHER 		8-97329-625-0 04 1 1110-
153 BOLT; BRKT
M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1301-
153 BOLT; BRKT
M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1301-
225 NUT; MUD GUARD
(A) M8 FLANGE 		0-91180-108-0 02 1 1110-
225 NUT; MUD GUARD
(B) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1110-
306 BRACKET; MUD GUARD 8-98196-125-0 01 1 1301-
306 BRACKET; MUD GUARD 8-98196-127-0 01 1 1301-
683 PLATE; SIDE PANEL 8-98067-739-0 01 1 1110-1211
683 PLATE; SIDE PANEL 8-98199-233-0 01 1 1212-

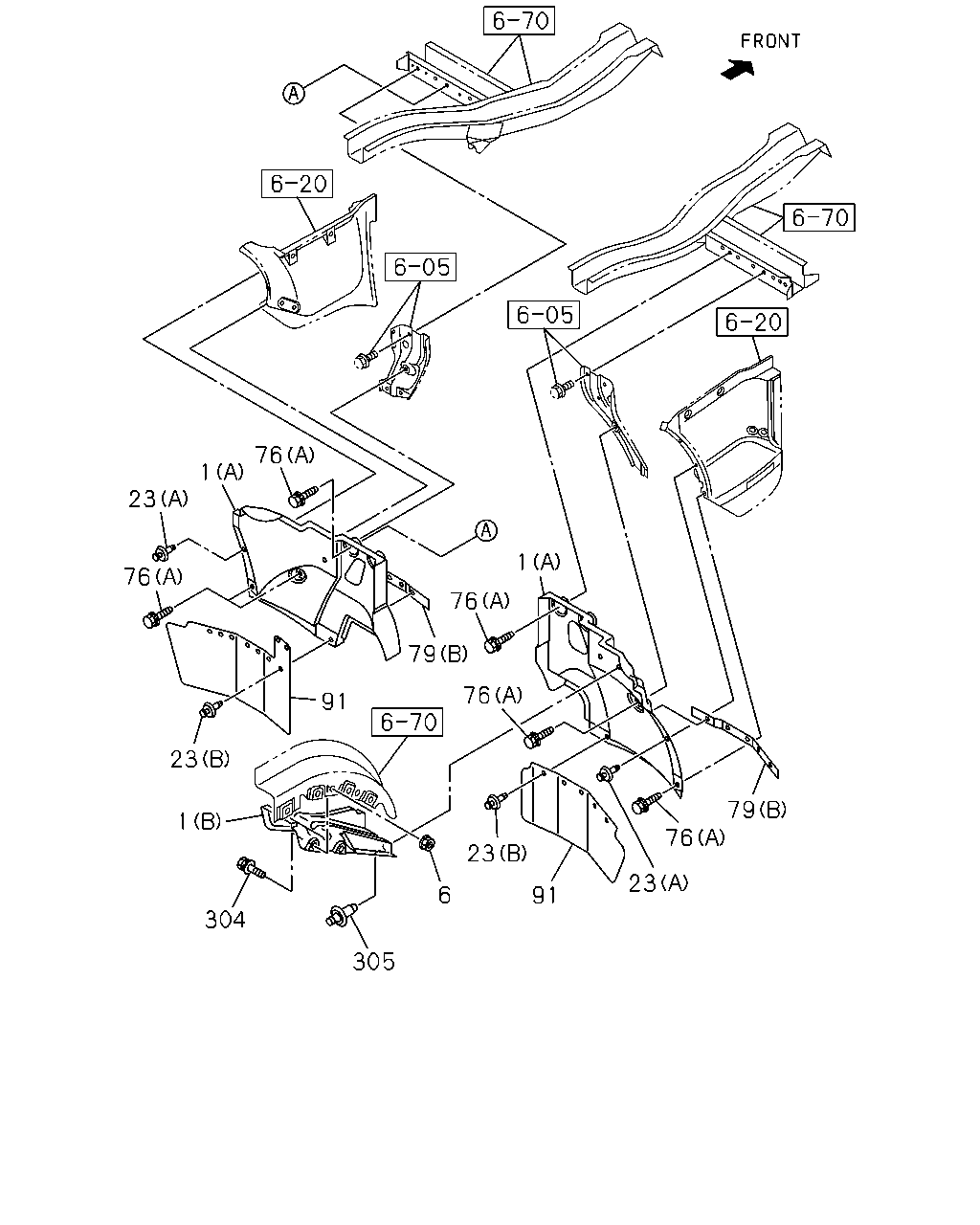

çizim 147595
76 1 23 1 76 76 79 76 91 23 79 1 76 23 23 6 91 304 305
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT
(A) 		8-98152-647-0 01 1 1110-
1 GUARD; MUD,FRT
(A) 		8-98152-646-0 01 1 1110-
1 GUARD; MUD,FRT
DUMP CONTROL LEVER<RC4> (B) 		8-98075-188-0 01 1 1110-
6 NUT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6 FLANGE 		8-94197-199-0 02 1 1110-
23 FASTENER; MUD COVER
(B) 		1-09470-001-0 08 1 1110-
23 FASTENER; MUD COVER
(A) D8X13.5 		1-09987-248-1 04 1 1110-
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 1110-1211
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 07 1 1212-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		8-94331-747-1 08 1 1110-
79 RETAINER; MUD COVER
(B) 		8-98041-217-1 02 1 1110-
79 RETAINER; MUD COVER
(A) 		8-98103-144-0 01 1 1110-
79 RETAINER; MUD COVER
(A) 		8-98103-145-0 01 1 1110-
91 COVER; MUD,FRT 8-98093-464-0 01 1 1110-
91 COVER; MUD,FRT 8-98093-463-0 01 1 1110-
304 BOLT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 1110-
305 FASTENER; SPLASH GUARD
DUMP CONTROL LEVER<RC4> D8X13.5 		1-09987-248-1 02 1 1110-

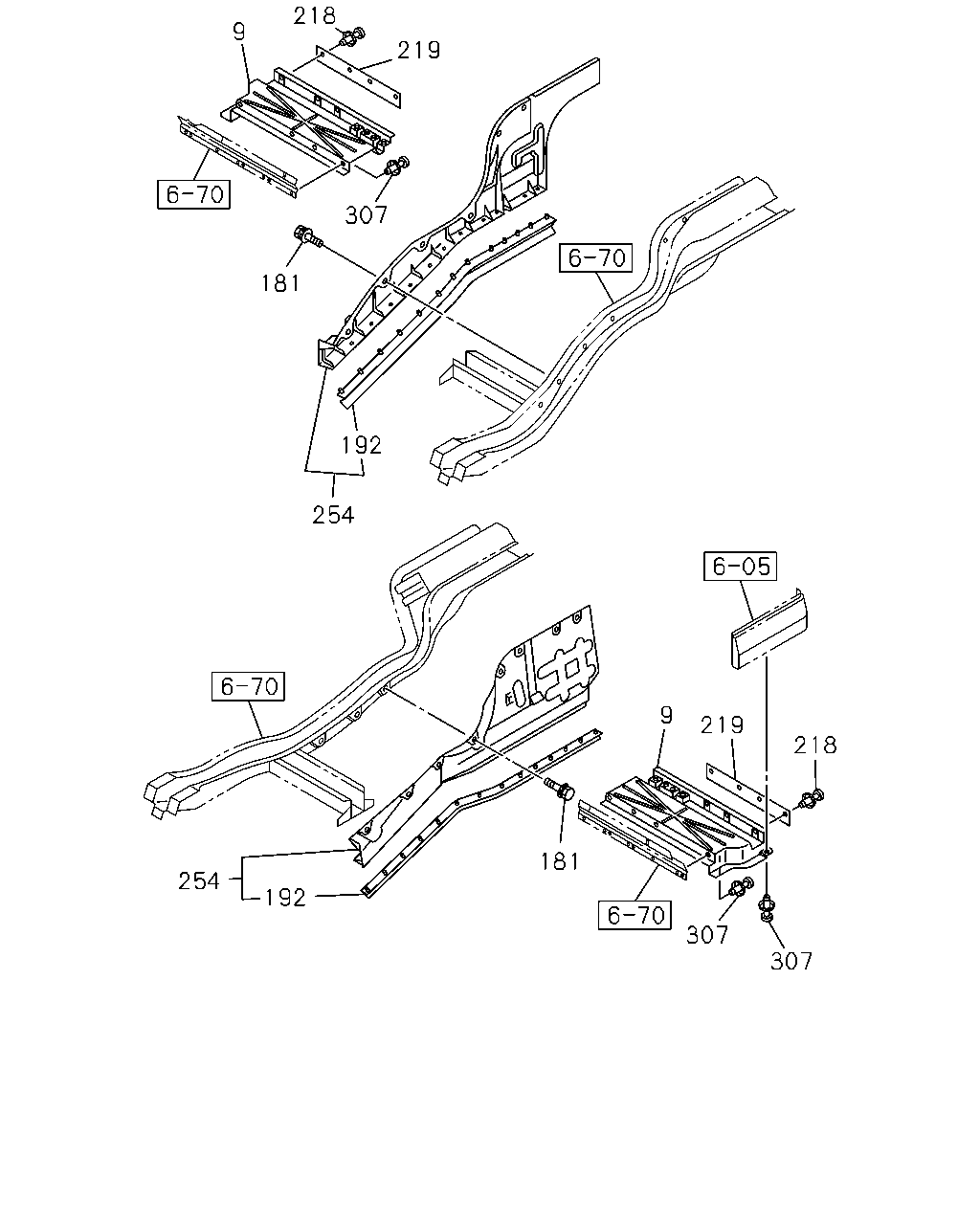

çizim 147613
218 9 219 307 181 192 254 9 219 218 181 254 192 307 307
BalonParca AdiParca NoAdetTipApplied Date
9 GUARD; SPLASH,WHEEL HOUSE 8-98040-122-0 01 1 1110-
9 GUARD; SPLASH,WHEEL HOUSE 8-98040-121-0 01 1 1110-
181 BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 16 1 1110-
192 SEAL; MUD COVER 8-98041-159-2 01 1 1110-
192 SEAL; MUD COVER 8-98041-158-1 01 1 1110-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1110-
219 FLAP; MUD GUARD 8-98041-148-1 02 1 1110-
254 COVER; MUD,VALANCE 8-98039-920-1 01 1 1110-
254 COVER; MUD,VALANCE 8-98039-919-2 01 1 1110-
307 RETAINER
D8X13.5 		1-09987-248-1 08 1 1110-
