Isuzu WW
▶
TRUCKS
▶
FSR
▶
10739 - FSR-LHD(BUS CHASSIS)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶

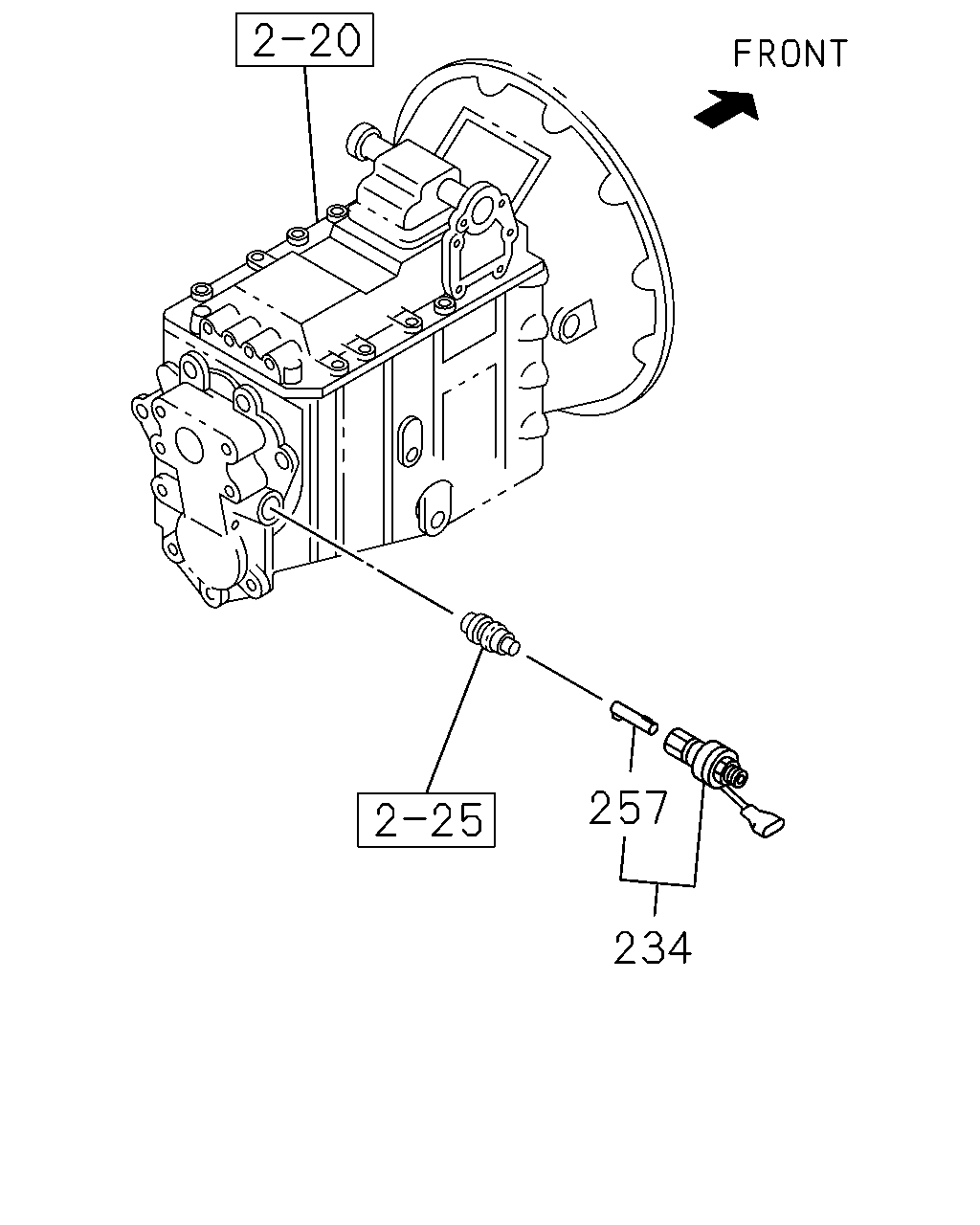

8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#6016) — 24 parça
◀
[826A] -'98/10 (11 parça)
[826A] '98/11- NO.2 (5 parça)
[826A] '98/11- NO.1 (8 parça)
▶
39
38
41
42
257
234
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
38
BRACKET; SW,STARTER SUB
1-82699-351-0
01
1
9606-
39
BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE
0-28680-820-0
02
1
9606-9810
39
BOLT; BRKT,STARTER SUB SW
M8X25 FLANGE
0-28680-825-0
02
1
9811-0512
39
BOLT; BRKT,STARTER SUB SW
M8X25 FLANGE
0-28650-825-0
02
1
0601-
41
NUT; SUB STARTER SW
9-82755-020-0
01
1
9606-9810
42
WASHER; LK,SUB STARTER SW
ID=14.2
9-09150-514-0
01
1
9606-9810
234
SENSOR; VEHICLE SPD
TACHOGRAPH 140KM/H 7DAYS<WC7>
1-83127-055-6
01
1
9606-9810
234
SENSOR; VEHICLE SPD
1-83127-241-3
01
1
9811-
234
SENSOR; VEHICLE SPD
EXC. TACHOGRAPH 140KM/H 7DAYS<WC7>
1-83127-115-0
01
1
9606-9810
257
KEY; SPEED SENSOR
TACHOGRAPH 140KM/H 7DAYS<WC7>
1-83129-126-0
01
1
9606-9810
257
KEY; SPEED SENSOR
1-83129-126-0
01
1
9811-
257
234
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
TACHOGRAPH 140KM/H 7DAYS<WC7>
1-83127-055-6
01
1
9606-9810
234
SENSOR; VEHICLE SPD
1-83127-241-3
01
1
9811-
234
SENSOR; VEHICLE SPD
EXC. TACHOGRAPH 140KM/H 7DAYS<WC7>
1-83127-115-0
01
1
9606-9810
257
KEY; SPEED SENSOR
TACHOGRAPH 140KM/H 7DAYS<WC7>
1-83129-126-0
01
1
9606-9810
257
KEY; SPEED SENSOR
1-83129-126-0
01
1
9811-
1
2
485
39
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-97064-970-1
01
1
9811-0108
1
LIGHTER; CIGAR
8-97320-325-0
01
1
0109-
2
BEZEL; CIGAR LIGHTER
1-73998-883-2
01
1
9811-
38
BRACKET; SW,STARTER SUB
1-82699-351-0
01
1
9606-
39
BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE
0-28680-820-0
02
1
9606-9810
39
BOLT; BRKT,STARTER SUB SW
M8X25 FLANGE
0-28680-825-0
02
1
9811-0512
39
BOLT; BRKT,STARTER SUB SW
M8X25 FLANGE
0-28650-825-0
02
1
0601-
485
CONTROL UNIT; SPEED SENSOR
1-82540-065-0
01
1
9811-
