Sayfa 7-70 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11328 - FTR AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶

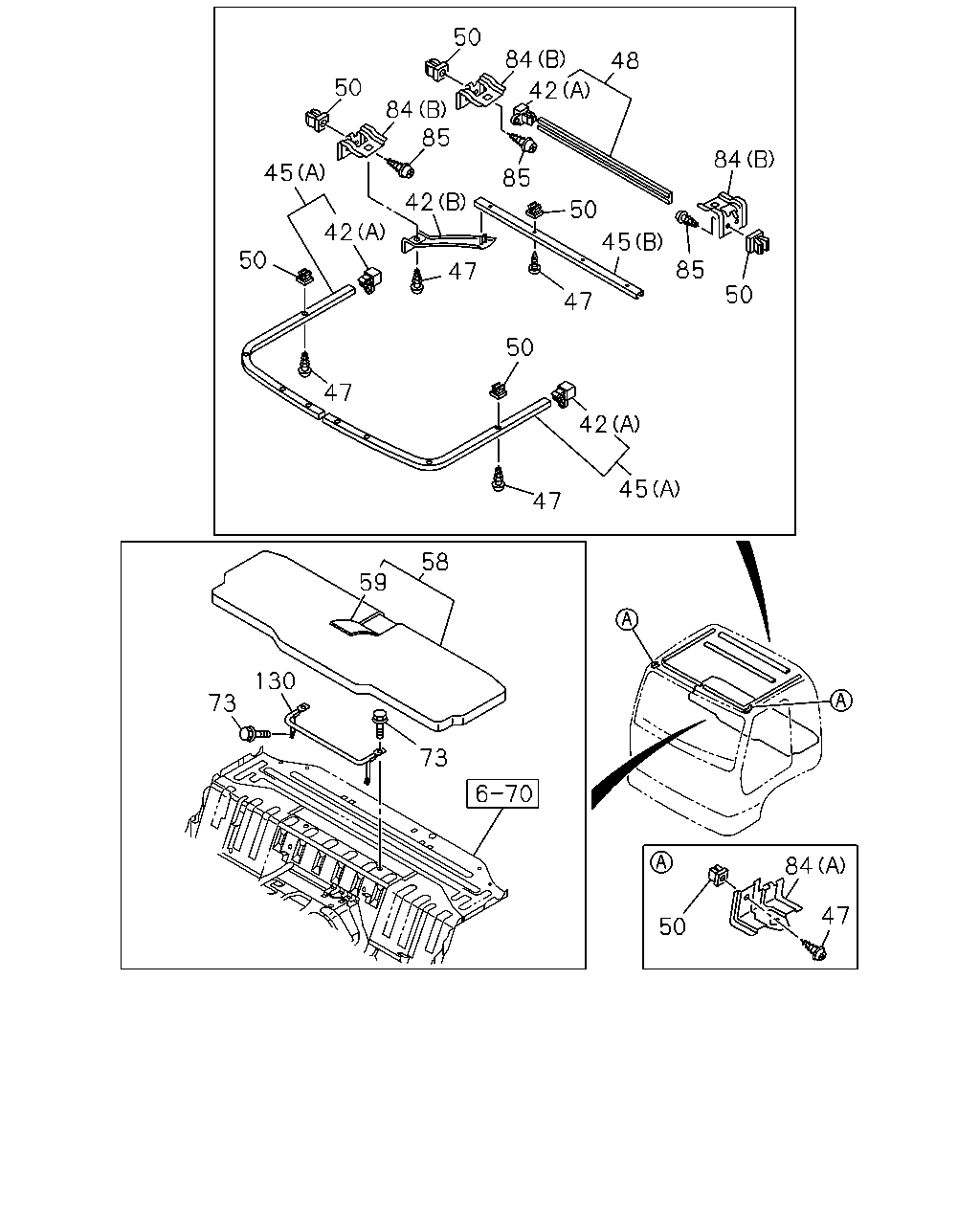

7-70 — SEPARATER AND BED (#60144) — 42 parça

50 84 85 45 47 42 47 50 50 85 48 42 84 50 84 42 42 45 50 50 47 45 85 58 59 73 130 73 47 84 50 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	01	1	1010-1306	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	03	1	1307-	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	02	1	1010-1306	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	1010-	●	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	1010-	●	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-676-0	01	1	1010-	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-675-0	01	1	1010-	●
45	RAIL; CURTAIN,FRT (B) DARK GRAY	8-97407-486-0	01	1	1010-	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	08	1	1010-1306	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	14	1	1307-	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	1010-1306	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	1010-1306	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	1307-	●	●
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-866-2	01	1	1010-	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1307-1405	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	1406-	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	02	1	1406-		●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	08	1	1010-1306	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	20	1	1307-	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1010-1306	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1010-1306	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1010-1306	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1307-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	02	1	1010-1405		●
58	BED; MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97407-384-2	01	1	1010-	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97412-043-1	01	1	1010-	●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	1010-	●
84	BRACKET; CURTAIN RAIL (A)	8-98028-326-1	02	1	1010-1405	●
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A)	8-98028-326-1	02	1	1406-	●
84	BRACKET; CURTAIN RAIL (B)	8-98042-152-0	04	1	1010-1306	●
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (B)	8-98042-152-0	04	1	1307-	●
84	BRACKET; CURTAIN RAIL (B)	8-98042-152-0	02	1	1010-1306		●
84	BRACKET; CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> (B)	8-98042-152-0	02	1	1307-	●
84	BRACKET; CURTAIN RAIL (B)	8-98042-152-0	02	1	1307-		●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X12 FLANGE	8-97108-669-0	02	1	1102-1306	●
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	04	1	1307-1405	●
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	02	1	1406-	●
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	1406-		●
85	SCREW; BRKT M5X20	5-09981-059-0	06	1	1010-1306	●
85	SCREW; BRKT ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	1307-	●
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	1010-1405		●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	1010-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
