◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11328 - FTR AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#60143) — 45 parça
çizim 171947
123 88 169
BalonParca AdiParca NoAdetTipApplied Date A B
88 PLUG; HOLE
DARK GRAY 		8-97411-466-0 01 1 1010- ●
123 BELT ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-971-0 01 1 1010-1306 ● ●
123 BELT ASM; SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98097-971-0 01 1 1307- ● ●
123 BELT ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-969-0 01 1 1010-1306 ● ●
169 SEAL
CENTER SEAT DELETE<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 1010-1201 ●
169 SEAL
CENTER SEAT DELETE<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 1010-1201 ●
169 SEAL
CENTER SEAT DELETE<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 1202-1306 ●
169 SEAL
EXC. SEAT ASM - WITH CENTER SEAT<7BC> (A) OD=25 BLACK 		1-76798-019-0 01 1 1307- ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1010-1404 ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR RMS ORANGE(550) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BO DY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1405- ●
169 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=36 WHITE 		8-94271-620-1 02 1 1010- ●

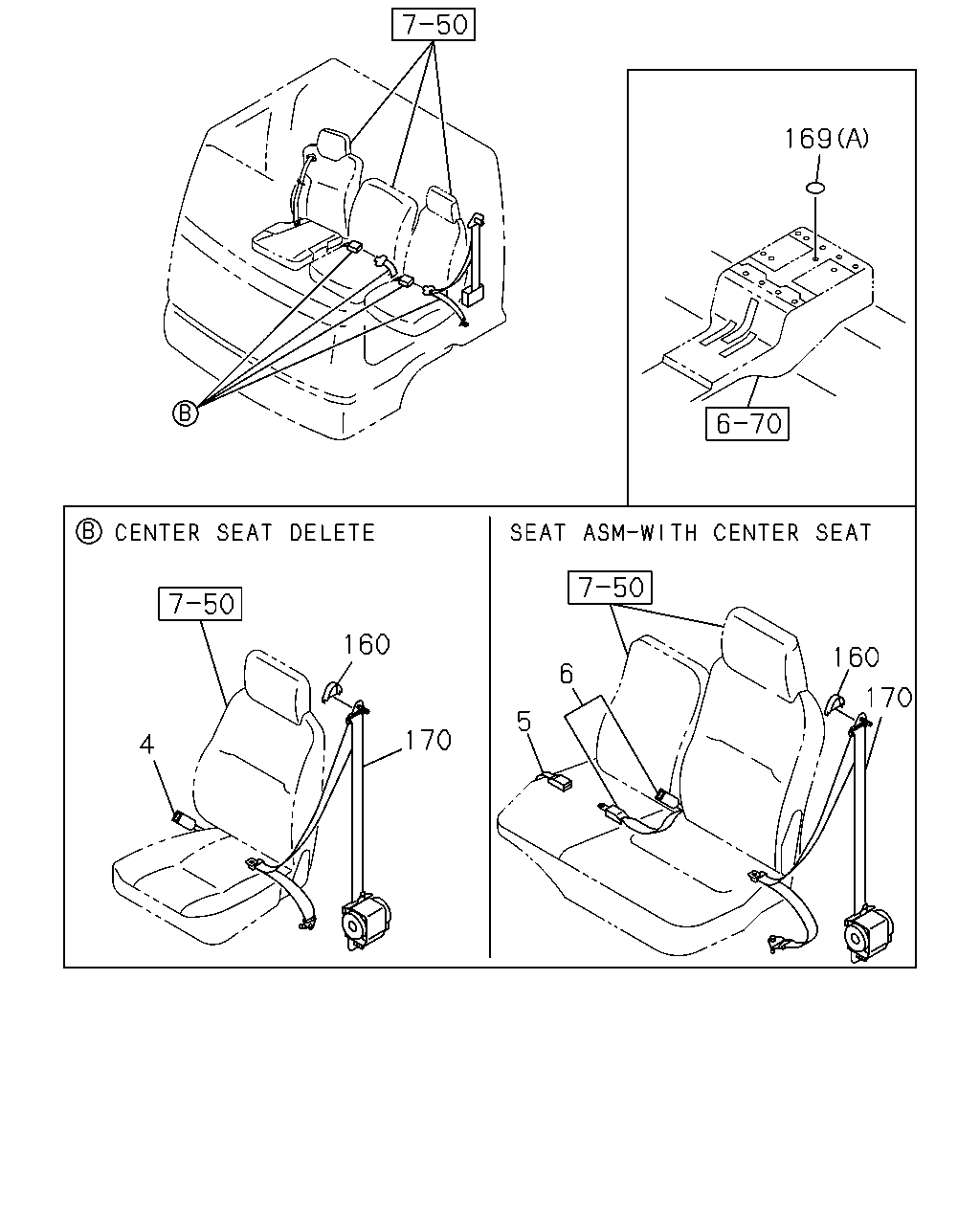

çizim 171959
4 160 170 6 5 160 170 169
BalonParca AdiParca NoAdetTipApplied Date A B
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE<SP9> GRAY 		8-97407-376-1 01 1 1010-1306 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
EXC. SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-376-1 01 1 1307- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 1010- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97407-377-1 01 1 1010- ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-768-3 01 1 1010-1209 ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97409-768-3 01 1 1010-1209 ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-515-1 01 1 1210- ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97423-515-1 01 1 1210- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1307- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1010- ● ●
169 SEAL
CENTER SEAT DELETE<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 1010-1201 ●
169 SEAL
CENTER SEAT DELETE<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 1010-1201 ●
169 SEAL
CENTER SEAT DELETE<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 1202-1306 ●
169 SEAL
EXC. SEAT ASM - WITH CENTER SEAT<7BC> (A) OD=25 BLACK 		1-76798-019-0 01 1 1307- ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1010-1404 ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR RMS ORANGE(550) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BO DY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1405- ●
169 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=36 WHITE 		8-94271-620-1 02 1 1010- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97407-771-5 01 1 1010-1209 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-521-2 01 1 1210-1407 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-394-0 01 1 1408- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97407-770-4 01 1 1010-1209 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-516-1 01 1 1210-1407 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-435-0 01 1 1408- ● ●
çizim 171967
12 18 19 20 21 21 20 19 160 18 12 160
BalonParca AdiParca NoAdetTipApplied Date A B
12 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 1010- ●
18 BELT; SEAT,RR
GRAY 		8-97405-185-8 02 1 1010- ●
19 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97407-379-0 02 1 1010- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97409-771-2 01 1 1010-1209 ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97423-710-1 01 1 1210- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97409-770-2 01 1 1010-1209 ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97423-709-1 01 1 1210- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-381-1 01 1 1010- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-380-0 01 1 1010- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1307- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
