◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11328 - FTR AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#60141) — 237 parça

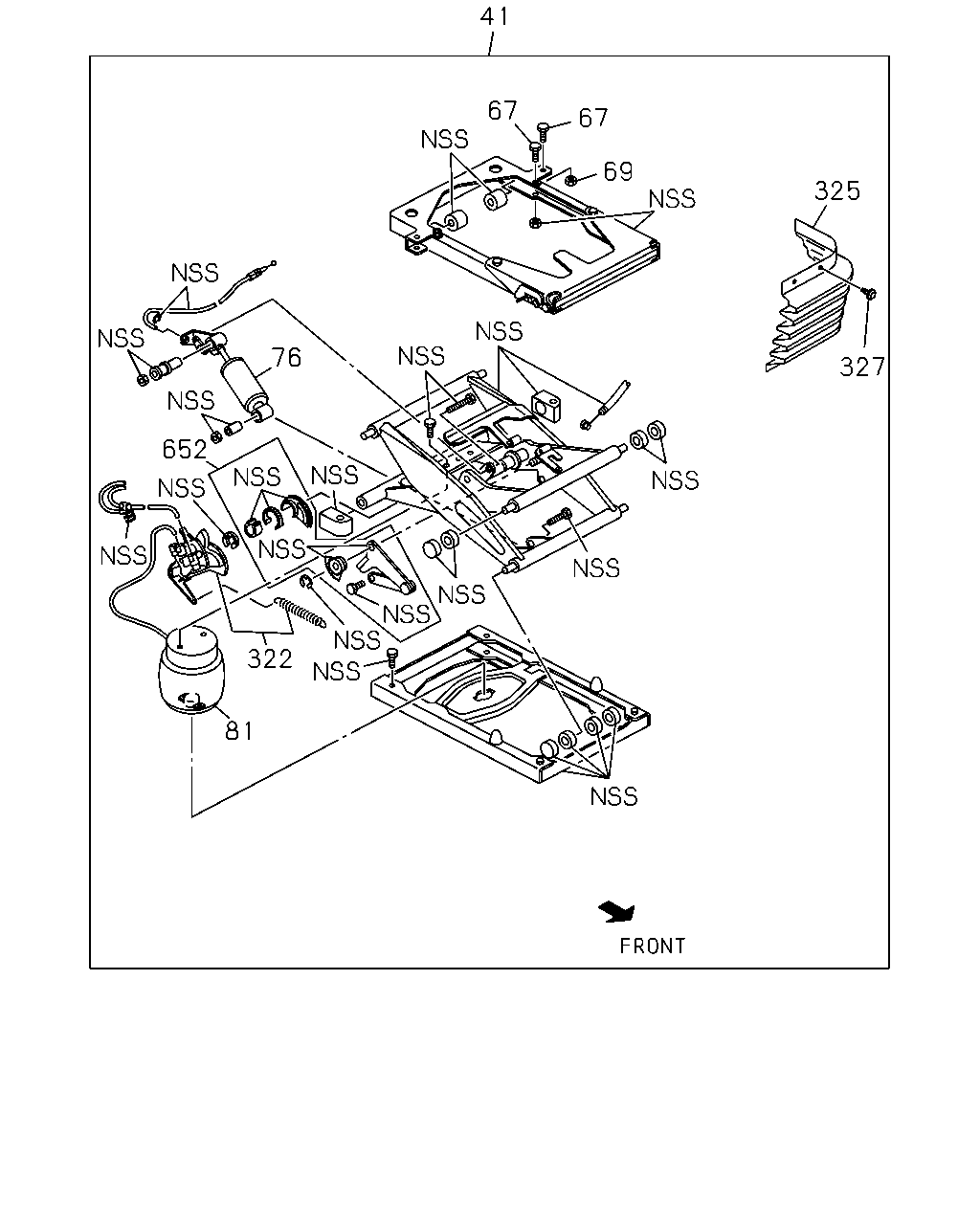

çizim 171819
81 322 652 76 327 325 41 67 69 67
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 1010-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301-1306 ● ●
41 SEAT ASM; DRIVER
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98195-063-1 01 1 1307- ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 1010-1212 ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301-1306 ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1010- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1010- ● ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1010-1306 ● ●
76 DAMPER; AIR SUSP
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98097-999-0 01 1 1307- ● ●
81 SPRING; AIR 8-98098-000-0 01 1 1010-1306 ● ●
81 SPRING; AIR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98098-000-0 01 1 1307- ● ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 1010-1306 ● ●
322 VALVE; AIR SPRING
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98098-001-0 01 1 1307-1508 ● ●
322 VALVE; AIR SPRING
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98331-314-0 01 1 1509- ● ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1010-1306 ● ●
325 COVER; SUSPENSION DEVICE
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98098-003-0 01 1 1307- ● ●
327 CLIP; COVER 8-98098-004-0 01 1 1010-1306 ● ●
327 CLIP; COVER
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98098-004-0 01 1 1307- ● ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1010-1306 ● ●
652 LOCK ASM; HEIGHT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98098-002-0 01 1 1307- ● ●

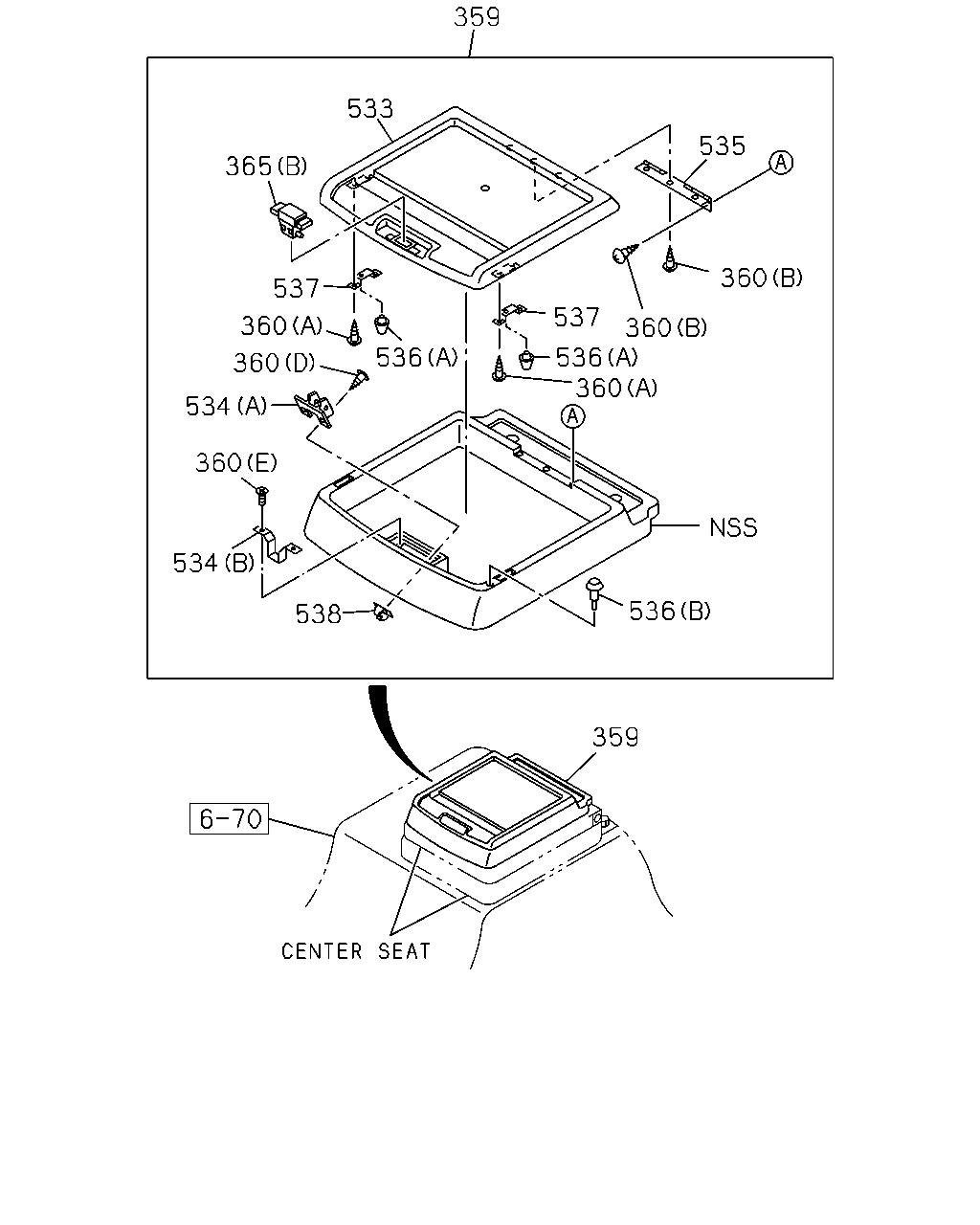

çizim 171829
360 360 537 535 536 360 536 359 538 534 360 534 360 360 537 365 533 359 536
BalonParca AdiParca NoAdetTipApplied Date A B
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1010- ●
359 BOX; PARCEL
GRAY 		8-97417-261-0 01 1 1010- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1010-1010 ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1010-1010 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010- ●
360 SCREW; PARCEL
(E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1010- ●
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 1010- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1010-1110 ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1010-1110 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111- ●
360 SCREW; PARCEL
(C) M5 		8-98062-663-0 04 1 1111- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 1010-1010 ●
360 SCREW; PARCEL
(D) M5X20 		9-09829-324-1 02 1 1010-1010 ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1010-1306 ● ●
365 LOCK ASM; SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98097-972-0 01 1 1307- ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1010- ●
365 LOCK ASM; SEAT
(B) 		1-72538-312-0 01 1 1010- ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1010- ●
533 LID; PARCEL BOX
GRAY 		8-97417-263-0 01 1 1010- ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		1-72538-181-0 01 1 1010-1010 ●
534 STRIKER; PARCEL BOX
(A) 		1-72538-181-0 01 1 1010-1010 ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-190-0 01 1 1010- ●
534 STRIKER; PARCEL BOX
(B) 		1-72538-190-0 01 1 1010- ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1010- ●
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 1010- ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		5-09983-002-1 02 1 1010-1010 ●
536 RUBBER; CUSHION
(A) 		5-09983-002-1 02 1 1010-1010 ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-187-0 02 1 1010- ●
536 RUBBER; CUSHION
(B) 		1-72538-187-0 02 1 1010- ●
537 BRACKET; RUBBER
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72548-057-1 02 1 1010-1010 ●
537 BRACKET; RUBBER 1-72548-057-1 02 1 1010-1010 ●
538 GROMMET; SCREW
SEAT ASM - WITH CENTER SEAT<7BC> 		1-09983-165-0 02 1 1010-1010 ●
538 GROMMET; SCREW 1-09983-165-0 02 1 1010-1010 ●

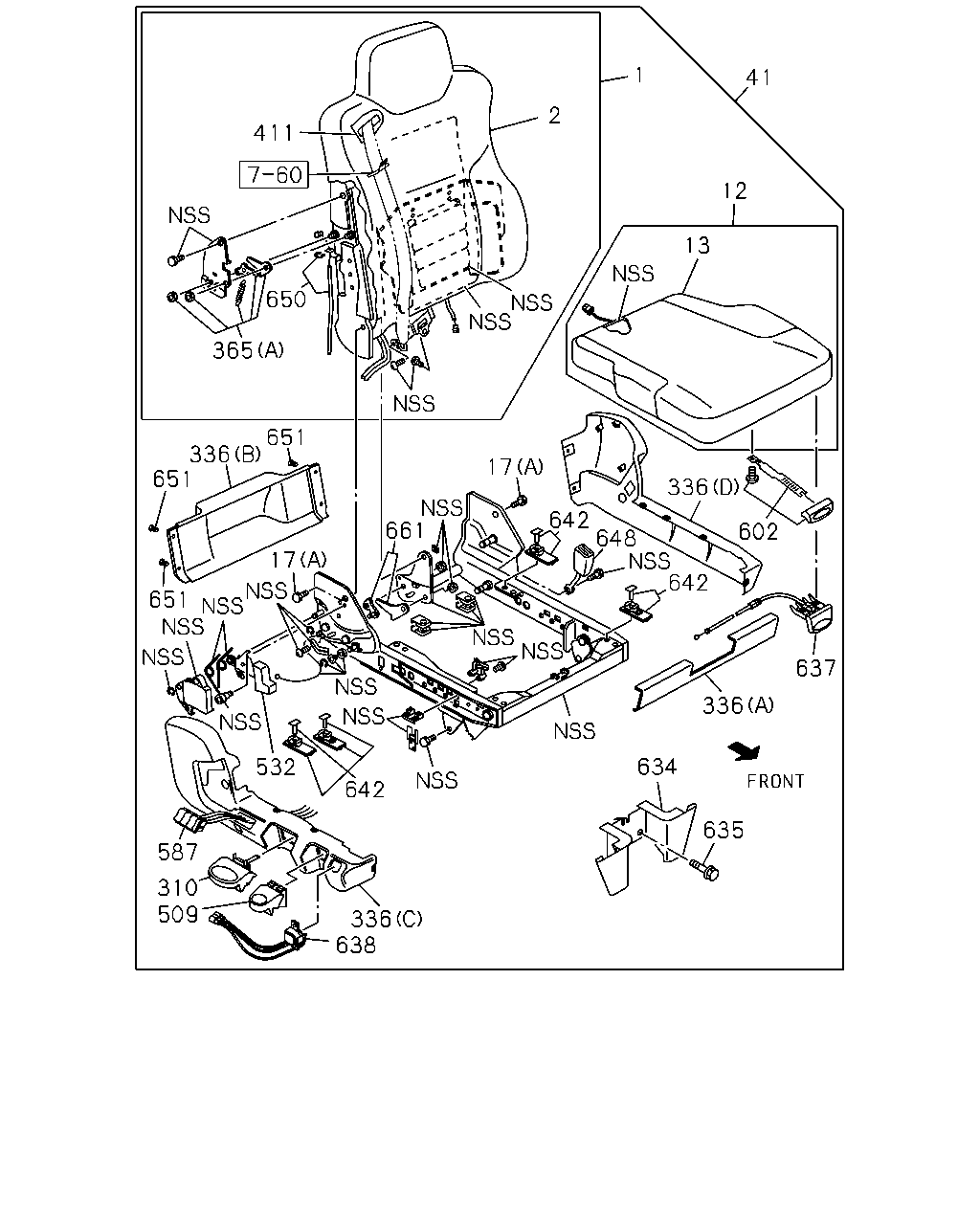

çizim 171943
635 634 336 637 642 602 336 648 642 642 336 638 509 310 587 532 651 17 661 17 13 12 41 2 1 651 336 411 650 365 651
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-964-0 01 1 1010-1306 ● ●
1 BACK ASM; SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98097-964-0 01 1 1307- ● ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-963-0 01 1 1010-1306 ● ●
2 COVER; TRIM,FRT SEAT,BACK 8-98097-966-0 01 1 1010-1212 ● ●
2 COVER; TRIM,FRT SEAT,BACK 8-98232-353-0 01 1 1301-1306 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98232-353-0 01 1 1307- ● ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1010-1306 ● ●
12 CUSHION; SEAT,FRT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98098-006-0 01 1 1307- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1010-1306 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98098-007-0 01 1 1307- ● ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1010-1306 ● ●
17 BOLT; RECLINING
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98097-974-0 02 1 1307- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1010- ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 1010-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301-1306 ● ●
41 SEAT ASM; DRIVER
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98195-063-1 01 1 1307- ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 1010-1212 ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301-1306 ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 1010-1306 ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98097-992-0 01 1 1307- ● ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 1010-1306 ● ●
336 COVER; DRIVER SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (D) 		8-98097-978-0 01 1 1307-1508 ● ●
336 COVER; DRIVER SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (D) 		8-98331-313-0 01 1 1509- ● ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 1010-1306 ● ●
336 COVER; DRIVER SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (C) 		8-98097-984-0 01 1 1307- ● ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 1010-1306 ● ●
336 COVER; DRIVER SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98097-995-0 01 1 1307- ● ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 1010-1306 ● ●
336 COVER; DRIVER SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98097-996-0 01 1 1307- ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1010-1306 ● ●
365 LOCK ASM; SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98097-972-0 01 1 1307- ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1010- ●
365 LOCK ASM; SEAT
(B) 		1-72538-312-0 01 1 1010- ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1010-1306 ● ●
411 GUIDE; SEAT BELT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98097-967-0 01 1 1307- ● ●
509 LEVER; DAMPER 8-98097-988-0 01 1 1010-1306 ● ●
509 LEVER; DAMPER
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98097-988-0 01 1 1307- ● ●
532 LEVER ASM; TILT 8-98097-982-0 01 1 1010-1306 ● ●
532 LEVER ASM; TILT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98097-982-0 01 1 1307- ● ●
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 1010-1306 ● ●
587 VALVE; LUMBAR SUPPORT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98097-986-0 01 1 1307- ● ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1010-1306 ● ●
602 KNOB; ADJ,SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98098-008-0 01 1 1307- ● ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 1010- ● ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 1010- ● ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1010-1306 ● ●
637 LEVER; SLOPE ADJ
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98097-989-0 01 1 1307- ● ●
638 VALVE; LOWERING 8-98097-994-0 01 1 1010-1306 ● ●
638 VALVE; LOWERING
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98097-994-0 01 1 1307- ● ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 1010-1306 ● ●
642 SLIDER; CUSHION
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98192-932-0 04 1 1307- ● ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1010-1306 ● ●
648 BUCKLE; SEAT BELT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98097-976-0 01 1 1307- ● ●
650 CABLE 8-98097-973-0 01 1 1010-1212 ● ●
650 CABLE 8-98232-354-0 01 1 1301-1306 ● ●
650 CABLE
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98232-354-0 01 1 1307- ● ●
651 RIVET 8-98194-075-0 04 1 1010-1306 ● ●
651 RIVET
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98194-075-0 04 1 1307- ● ●
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 1010-1306 ● ●
661 LOCK ASM; RECLINING
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98097-980-0 01 1 1307- ● ●
çizim 171950
175 176 16 188 360 506 359 126 403 179 182 403 188
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1010- ●
16 ADJUSTER ASM; RECLINING 1-75418-062-1 01 1 1010- ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		8-97854-900-0 01 1 1010- ●
126 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 1010- ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-233-0 01 1 1010-1010 ●
175 BACK ASM; PASSENGER CENTER SEAT
DARK GRAY 		8-97416-233-0 01 1 1010-1010 ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-434-1 01 1 1010- ●
175 BACK ASM; PASSENGER CENTER SEAT
DARK GRAY 		8-97421-434-1 01 1 1010- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-234-0 01 1 1010-1010 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
DARK GRAY 		8-97416-234-0 01 1 1010-1010 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-435-1 01 1 1010- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
DARK GRAY 		8-97421-435-1 01 1 1010- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-237-0 01 1 1010-1010 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DARK GRAY 		8-97416-237-0 01 1 1010-1010 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-432-1 01 1 1010- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DARK GRAY 		8-97421-432-1 01 1 1010- ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-235-0 01 1 1010-1010 ●
182 CUSHION ASM; CENTER SEAT
DARK GRAY 		8-97416-235-0 01 1 1010-1010 ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-430-3 01 1 1010- ●
182 CUSHION ASM; CENTER SEAT
DARK GRAY 		8-97421-430-3 01 1 1010- ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1010- ●
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 1010- ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1010- ●
359 BOX; PARCEL
GRAY 		8-97417-261-0 01 1 1010- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1010-1010 ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1010-1010 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010- ●
360 SCREW; PARCEL
(E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1010- ●
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 1010- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1010-1110 ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1010-1110 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111- ●
360 SCREW; PARCEL
(C) M5 		8-98062-663-0 04 1 1111- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 1010-1010 ●
360 SCREW; PARCEL
(D) M5X20 		9-09829-324-1 02 1 1010-1010 ●
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1010- ●
403 NUT; CENTER SEAT
M8 FLANGE 		0-91180-108-0 04 1 1010- ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1010- ●
506 CAP; PARCEL BOX
GRAY 		8-97409-980-1 02 1 1010- ●

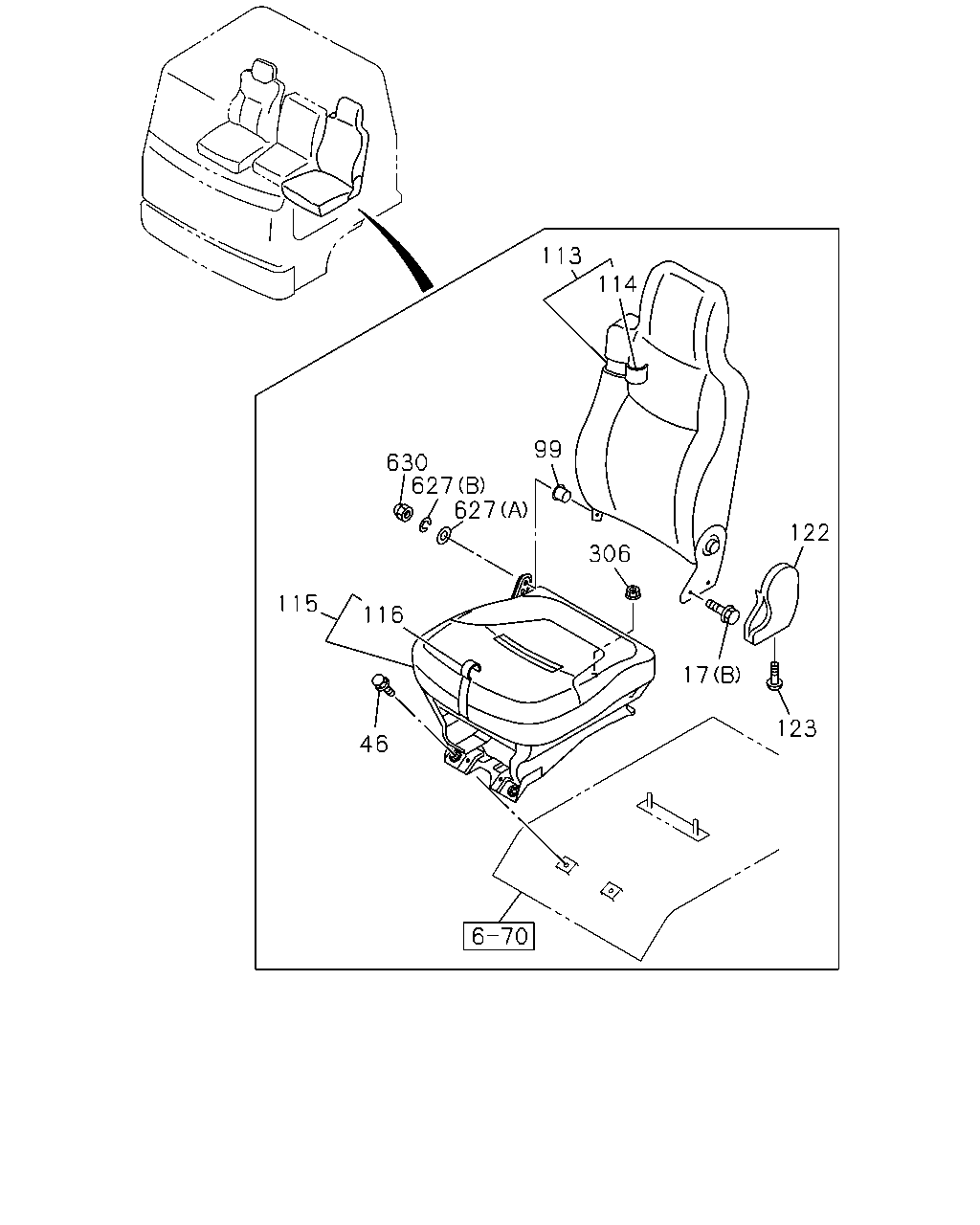

çizim 171962
122 113 99 630 306 627 116 115 46 627 114 17 123
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1010-1306 ● ●
17 BOLT; RECLINING
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98097-974-0 02 1 1307- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1010- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1010- ● ●
99 BUSHING; SEAT BACK 8-98063-219-0 01 1 1010-1010 ● ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1010- ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97416-221-0 01 1 1010-1010 ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1010- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97416-223-0 01 1 1010-1010 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1010- ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-225-0 01 1 1010-1010 ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-1 01 1 1010- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97416-227-0 01 1 1010-1010 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-0 01 1 1010- ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1010- ● ●
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1010- ● ●
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 1010- ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1010- ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1010- ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1010- ● ●

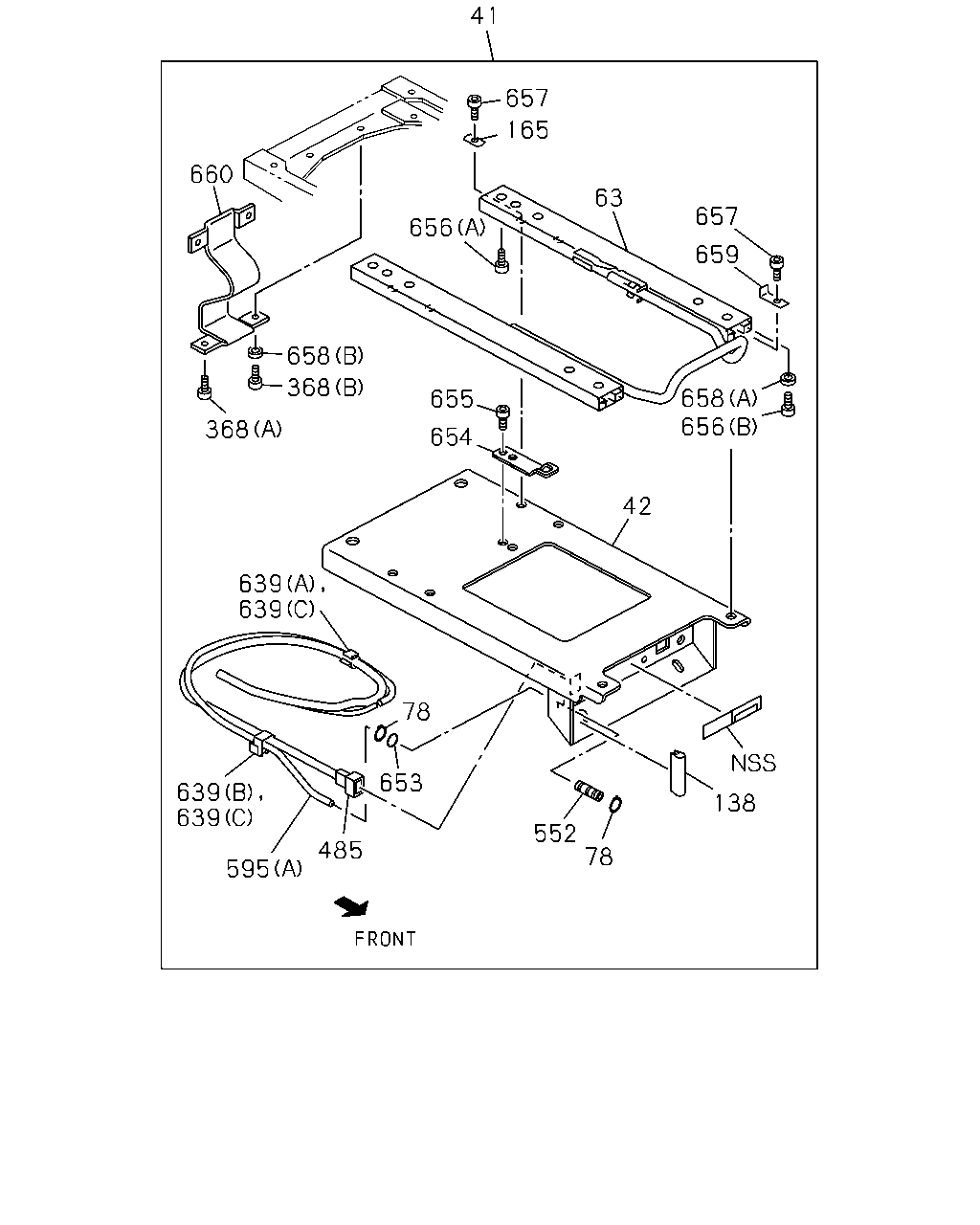

çizim 172016
41 657 63 657 659 658 655 656 654 658 660 368 368 639 639 78 78 552 138 653 485 595 639 639 42 165 656
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 1010-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301-1306 ● ●
41 SEAT ASM; DRIVER
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98195-063-1 01 1 1307- ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 1010-1212 ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301-1306 ● ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 1010-1306 ● ●
42 STAND; DRIVER SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98106-346-0 01 1 1307- ● ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1010-1306 ● ●
63 ADJUSTER; SEAT SLIDE
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98098-005-0 01 1 1307- ● ●
78 RING; SNAP 8-98101-900-0 02 1 1010-1306 ● ●
78 RING; SNAP
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98101-900-0 02 1 1307- ● ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1010-1306 ● ●
138 PROTECTOR; SEAT STAND
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98106-351-0 01 1 1307- ● ●
165 WASHER; PL 1-75590-086-0 04 1 1010-1306 ● ●
165 WASHER; PL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		1-75590-086-0 04 1 1307- ● ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 1010-1306 ● ●
368 BOLT; SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98106-353-0 03 1 1307- ● ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 1010-1306 ● ●
368 BOLT; SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98106-358-0 01 1 1307- ● ●
485 HARNESS; FRT SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-360-0 01 1 1010-1306 ● ●
485 HARNESS; FRT SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98106-360-0 01 1 1307- ● ●
485 HARNESS; FRT SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-361-0 01 1 1010-1306 ● ●
552 CONNECTOR 8-98101-902-0 01 1 1010-1306 ● ●
552 CONNECTOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98101-902-0 01 1 1307-1508 ● ●
552 CONNECTOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98308-101-0 01 1 1509- ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1010-1306 ● ●
595 TUBE; NYLON
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98106-348-0 01 1 1307- ● ●
595 TUBE; NYLON
(B) 		8-98041-300-0 01 1 1010- ● ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 1010-1306 ● ●
639 CLIP; SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98106-350-0 01 1 1307-1508 ● ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 1010-1306 ● ●
639 CLIP; SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98106-349-0 01 1 1307-1508 ● ●
639 CLIP; SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (C) 		8-98308-100-0 02 1 1509- ● ●
653 GASKET 8-98101-901-0 01 1 1010-1306 ● ●
653 GASKET
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98101-901-0 01 1 1307- ● ●
654 HOOK; STOPPER 8-98106-352-0 01 1 1010-1306 ● ●
654 HOOK; STOPPER
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98106-352-0 01 1 1307- ● ●
655 BOLT; HOOK 8-98106-353-0 02 1 1010-1306 ● ●
655 BOLT; HOOK
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98106-353-0 02 1 1307- ● ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1010-1306 ● ●
656 BOLT; SLIDER TO SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) 		1-75590-085-0 04 1 1307- ● ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1010-1306 ● ●
656 BOLT; SLIDER TO SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98106-354-0 02 1 1307- ● ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1010-1306 ● ●
657 BOLT; SLIDER TO STAND
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		1-75590-085-0 06 1 1307- ● ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 1010-1306 ● ●
658 SPACER; BOLT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98106-355-0 02 1 1307- ● ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 1010-1306 ● ●
658 SPACER; BOLT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98106-359-0 01 1 1307- ● ●
659 STOPPER 8-98106-356-0 02 1 1010-1306 ● ●
659 STOPPER
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98106-356-0 02 1 1307- ● ●
660 BELT; TETHER 8-98106-357-0 01 1 1010-1306 ● ●
660 BELT; TETHER
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98106-357-0 01 1 1307- ● ●

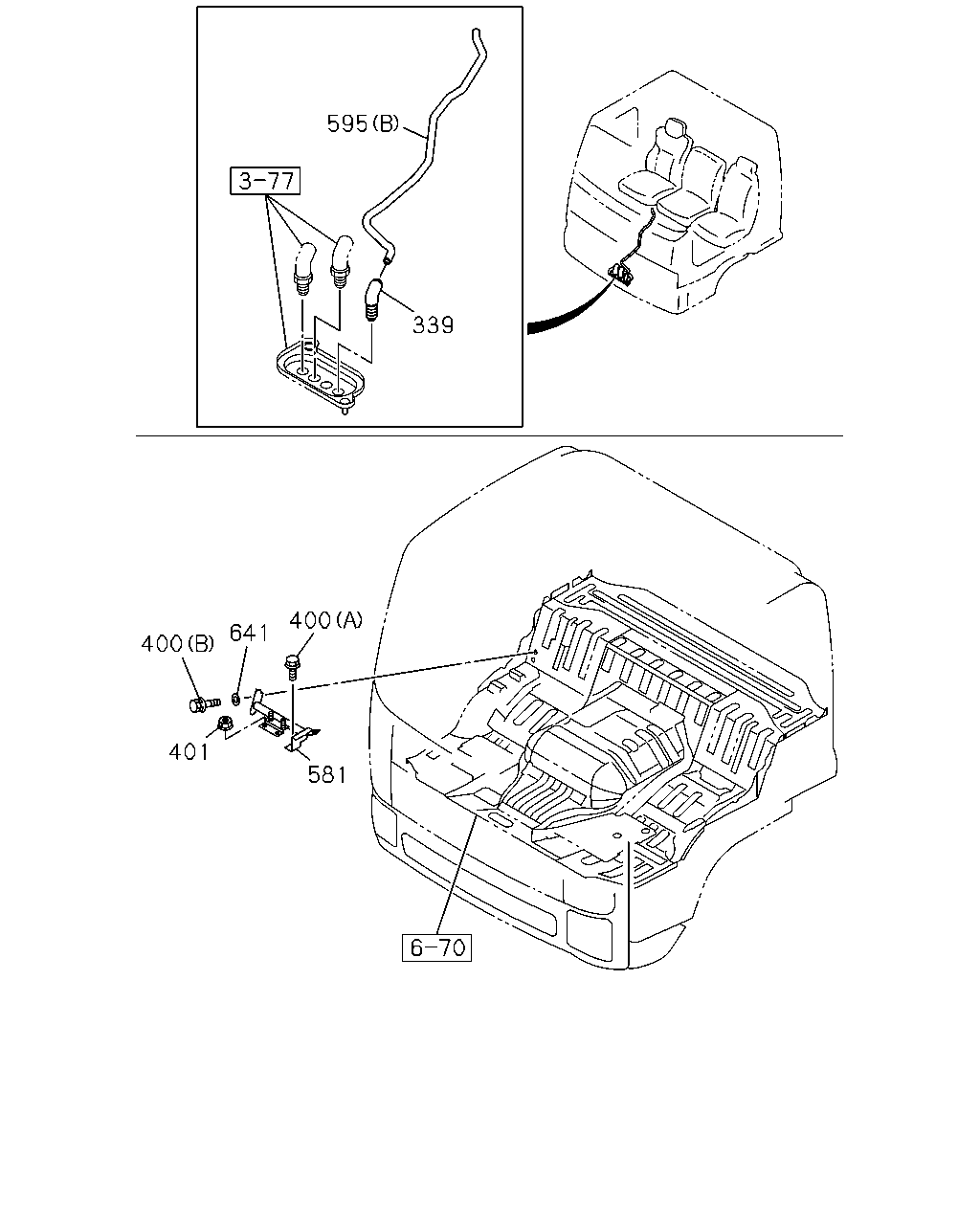

çizim 320074
595 339 400 641 400 401 581
BalonParca AdiParca NoAdetTipApplied Date A B
339 UNION; DRIVER SEAT 8-98014-971-0 01 1 1010- ● ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1010- ● ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 1010- ● ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 1010- ● ●
581 PIPE; SEAT 8-97589-693-3 01 1 1010- ●
581 PIPE; SEAT 8-98051-068-3 01 1 1010- ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1010-1306 ● ●
595 TUBE; NYLON
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98106-348-0 01 1 1307- ● ●
595 TUBE; NYLON
(B) 		8-98041-300-0 01 1 1010- ● ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
