◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11328 - FTR AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#60135) — 97 parça

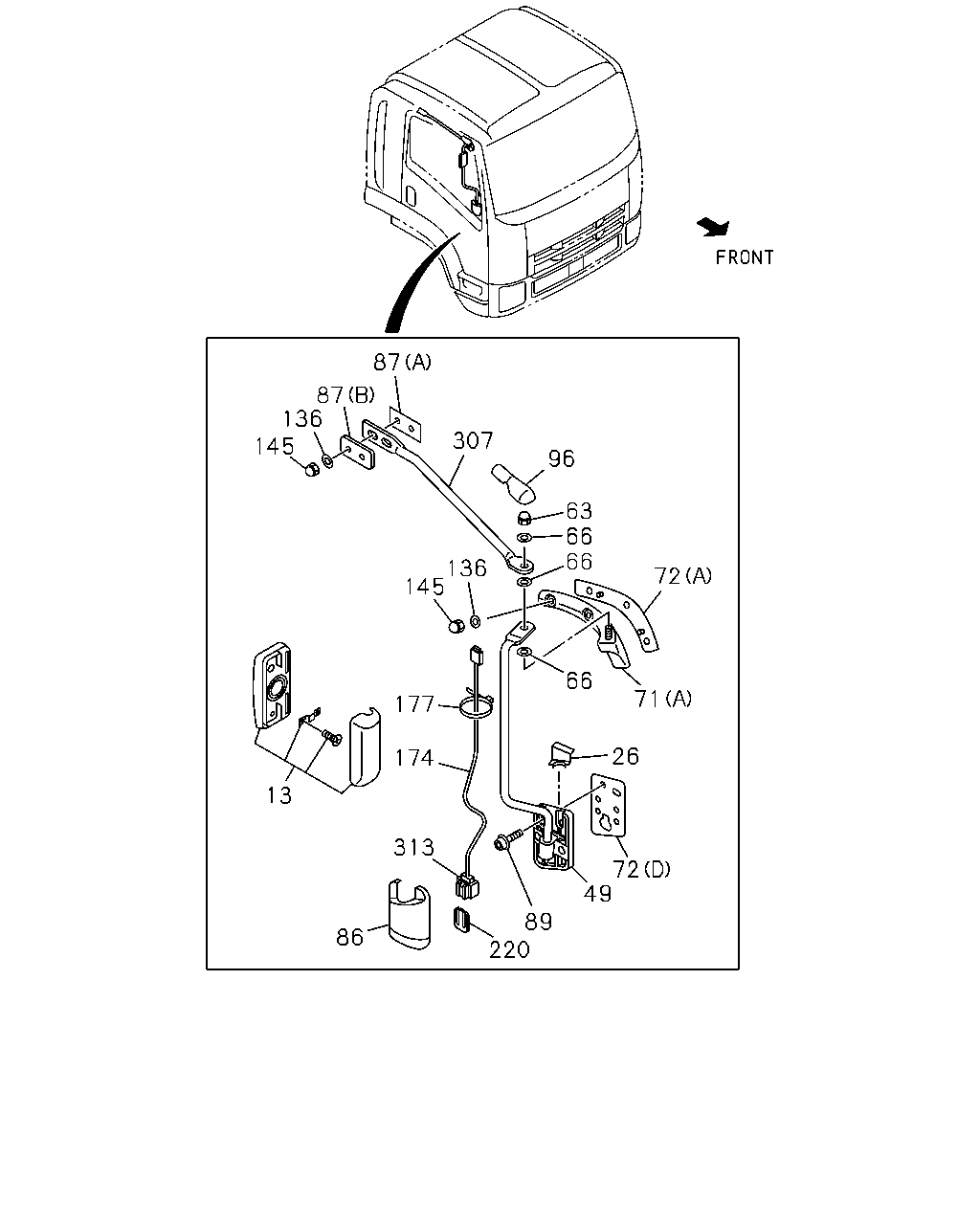

çizim 171953
145 136 87 87 307 96 63 66 66 136 145 72 66 71 26 72 49 89 220 86 13 313 174 177
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98055-991-1 01 1 1508- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98055-992-1 01 1 1508- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98055-992-1 01 1 1010-1306 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98055-991-1 01 1 1010-1306 ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1010- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1010- ● ●
49 STAY; MIRROR SIDE 8-98064-779-0 01 1 1010-1202 ● ●
49 STAY; MIRROR SIDE 8-98166-201-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE 8-98064-778-0 01 1 1010-1202 ● ●
49 STAY; MIRROR SIDE 8-98166-200-0 01 1 1203- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1010- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98039-277-2 02 1 1010-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (D) 		8-98039-277-2 02 1 1203- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98060-240-0 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98092-492-3 01 1 1010- ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 1010- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 1010- ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 1010- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 1010- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-245-1 01 1 1010- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98064-776-0 01 1 1010- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1010- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1010- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 1010- ● ●
87 SPACER
(B) 		8-98063-789-0 02 1 1010- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1010- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1010- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1010- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1010- ● ●
174 HARNESS; MIRROR 8-98137-139-0 02 1 1010- ● ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1010- ● ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 1010- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1010- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1010- ● ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 1010- ● ●

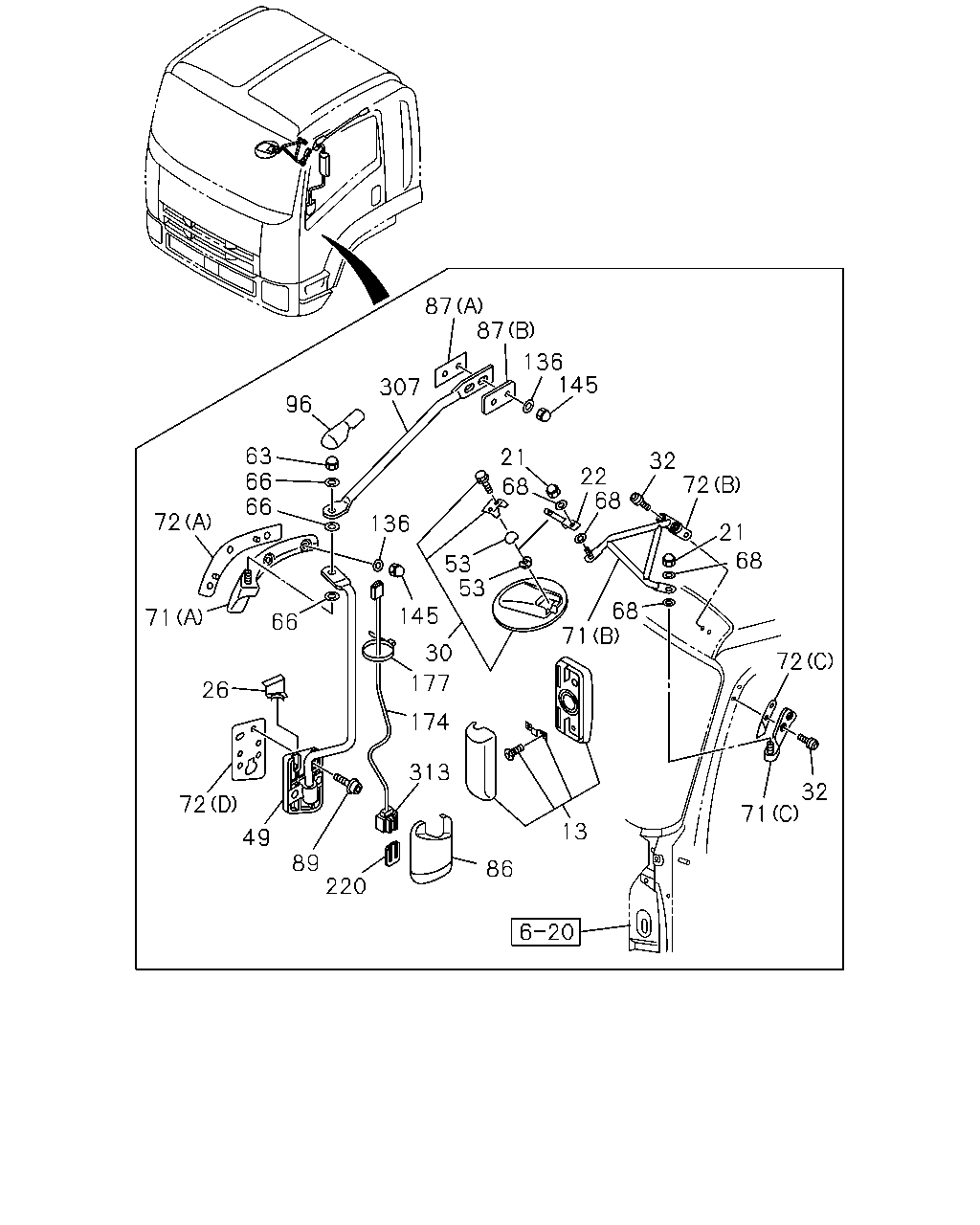

çizim 172006
220 89 49 72 26 313 86 71 32 72 13 174 177 30 145 66 71 72 66 66 63 96 136 53 71 68 21 145 136 87 87 22 32 68 68 68 21 72 307 53
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98055-991-1 01 1 1508- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98055-992-1 01 1 1508- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98055-992-1 01 1 1010-1306 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98055-991-1 01 1 1010-1306 ● ●
21 NUT; MIRROR
MIRROR O/S UNDER VIEW<RR9> M10 CAP NUT 		1-09984-134-0 02 1 1010- ● ●
22 STAY; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-493-0 01 1 1010- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1010- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1010- ● ●
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9> 		8-98055-994-0 01 1 1010-1504 ● ●
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9> 		8-98309-725-0 01 1 1505- ● ●
32 SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9> M8X26 W/PL WASHER 		8-98067-249-2 04 1 1010- ● ●
49 STAY; MIRROR SIDE 8-98064-779-0 01 1 1010-1202 ● ●
49 STAY; MIRROR SIDE 8-98166-201-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE 8-98064-778-0 01 1 1010-1202 ● ●
49 STAY; MIRROR SIDE 8-98166-200-0 01 1 1203- ● ●
53 PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> ID=19.1 		1-71737-633-2 02 1 1010- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1010- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1010- ● ●
68 WASHER; STAY
MIRROR O/S UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98039-277-2 02 1 1010-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (D) 		8-98039-277-2 02 1 1203- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98060-240-0 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98092-492-3 01 1 1010- ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 1010- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 1010- ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 1010- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 1010- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-245-1 01 1 1010- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98064-776-0 01 1 1010- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1010- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1010- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 1010- ● ●
87 SPACER
(B) 		8-98063-789-0 02 1 1010- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1010- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1010- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1010- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1010- ● ●
174 HARNESS; MIRROR 8-98137-139-0 02 1 1010- ● ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1010- ● ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 1010- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1010- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1010- ● ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 1010- ● ●

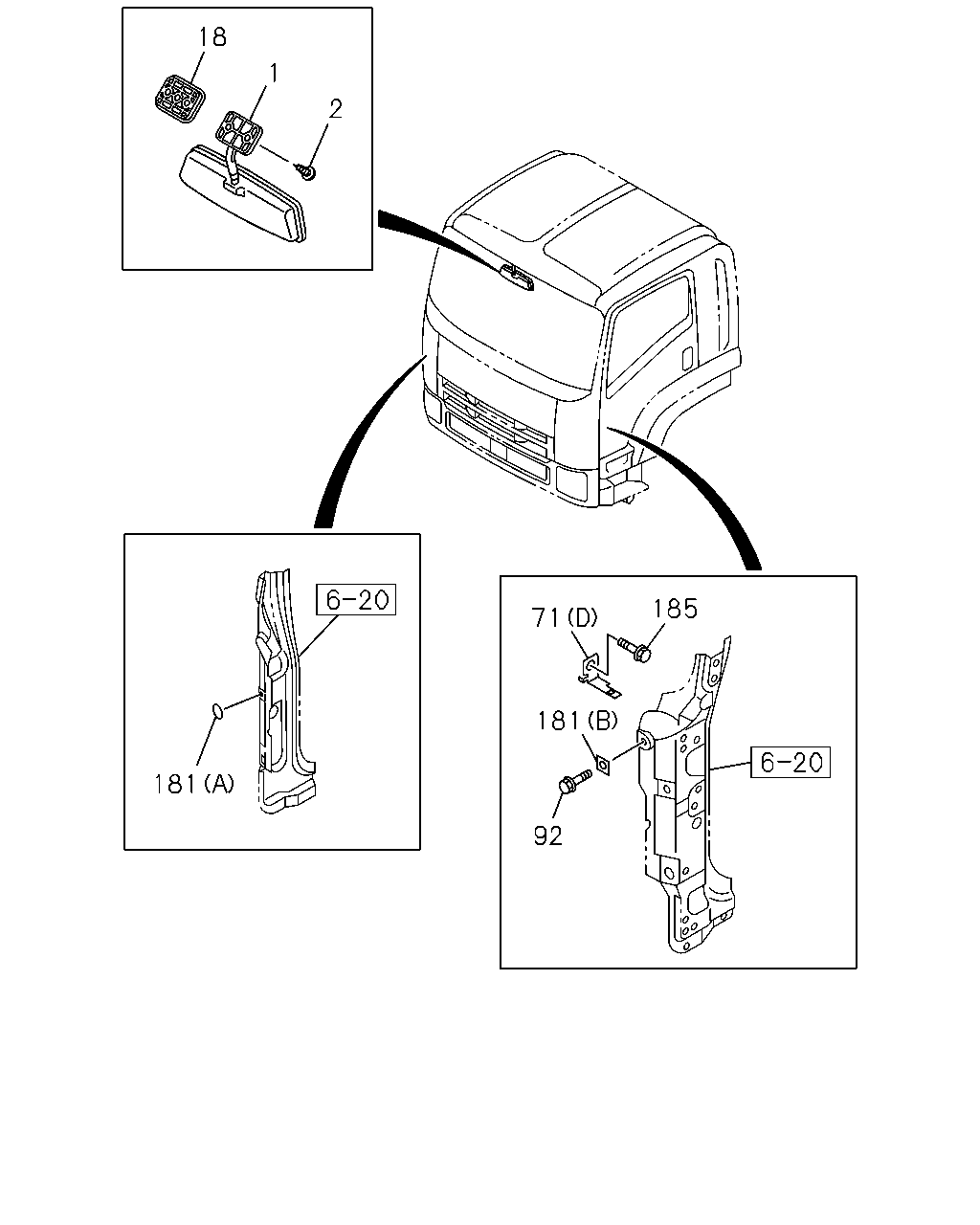

çizim 365872
18 1 2 181 71 185 181 92
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1010- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1010- ● ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98039-277-2 02 1 1010-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (D) 		8-98039-277-2 02 1 1203- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98060-240-0 01 1 1010- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98092-492-3 01 1 1010- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1010- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1010- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1010- ● ●
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1010-1202 ● ●
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> M8X16 FLANGE 		0-28050-816-0 02 1 1203- ● ●
