7-10 — CAUTION PLATE AND LABEL (#60134) — 10 parça

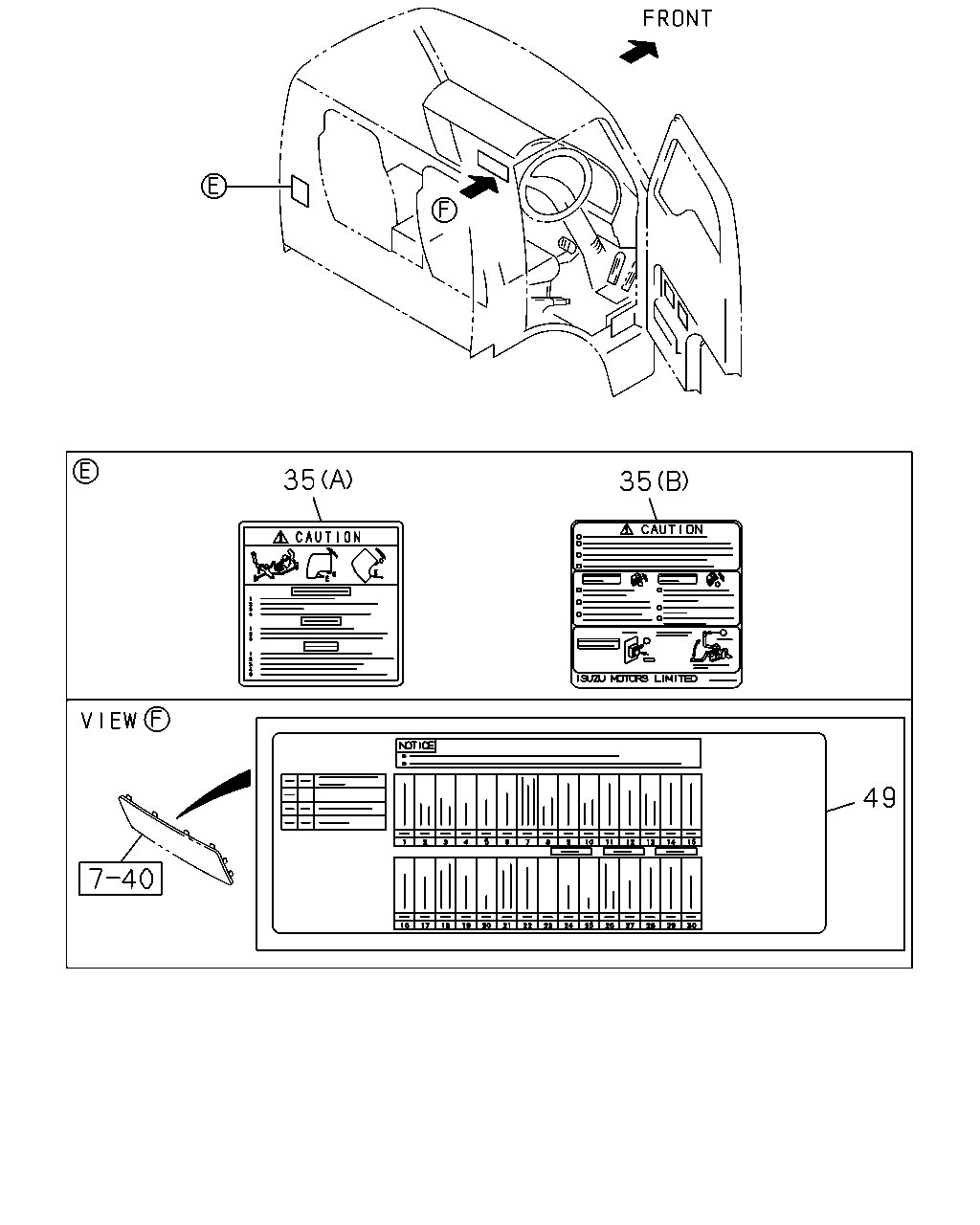

çizim 171971

35 35 49

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	35	PLATE; CAUTION,CAB (A)	8-98017-667-1	01	1	1010-	●
	35	PLATE; CAUTION,CAB (B)	8-98069-325-0	01	1	1010-		●
	49	PLATE; CAUTION,FUSE BOX	8-98122-353-0	01	1	1010-	●	●

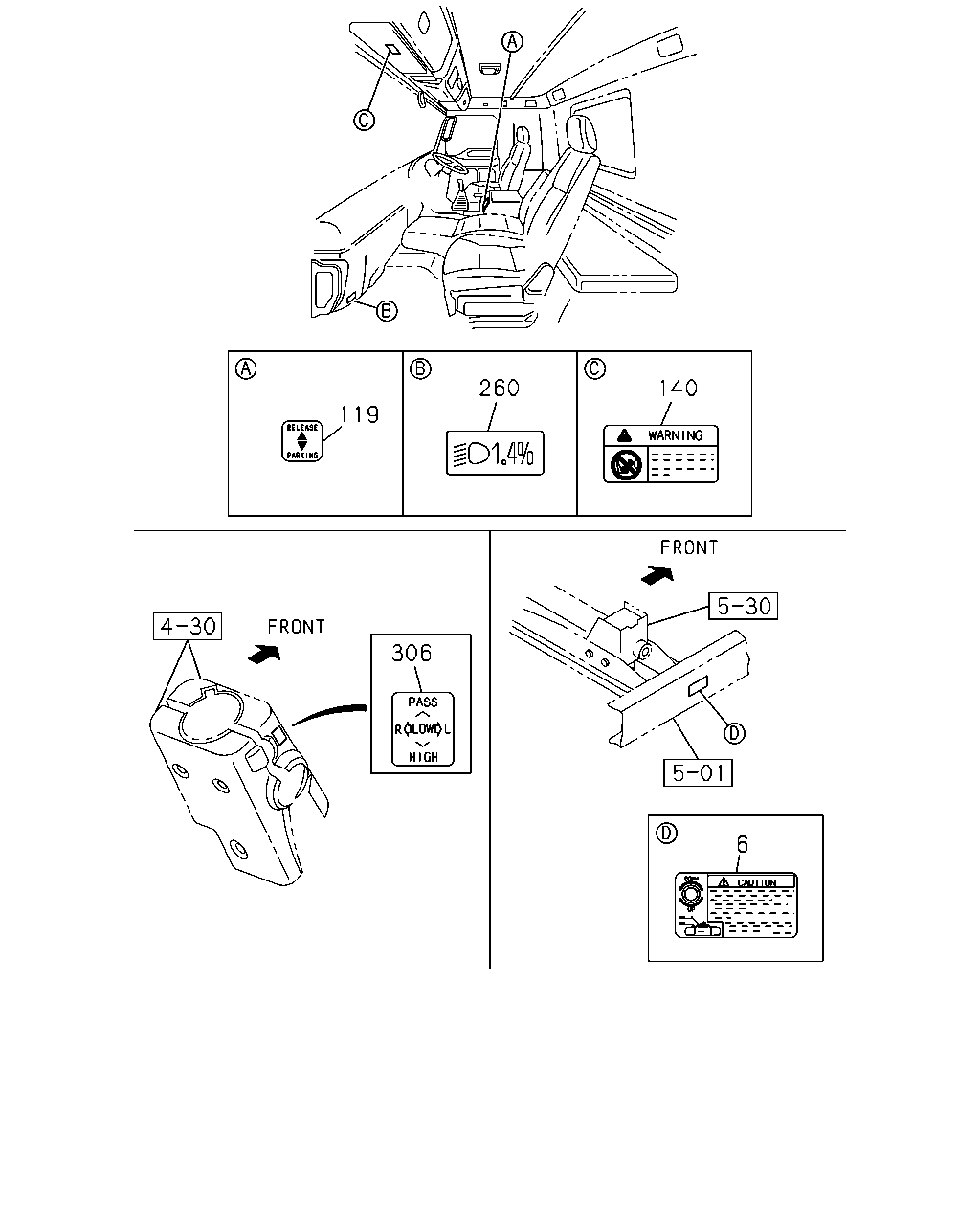

çizim 172018

140 6 306 119 260

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	8-98082-437-0	01	1	1010-	●
	6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	8-98082-437-0	01	1	1010-		●
	119	PLATE; CAUTION,HAND BRK LEVER	1-85881-759-0	01	1	1010-	●	●
	140	PLATE; CAUTION,SRS AIR BAG DRIVER & PASSENGER(AK5)	8-98080-839-0	02	1	1010-	●	●
	260	PLATE; CAUTION,HEAD LAMP LEVELING	8-98008-779-0	01	1	1010-1306	●	●
	260	PLATE; CAUTION,HEAD LAMP LEVELING	8-98008-779-0	01	1	1307-	●	●
	306	LABEL; BEAM & PASS	8-98070-239-0	01	1	1010-	●	●
