Isuzu WW
▶
TRUCKS
▶
FTR
▶
11328 - FTR AUST/NZ EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

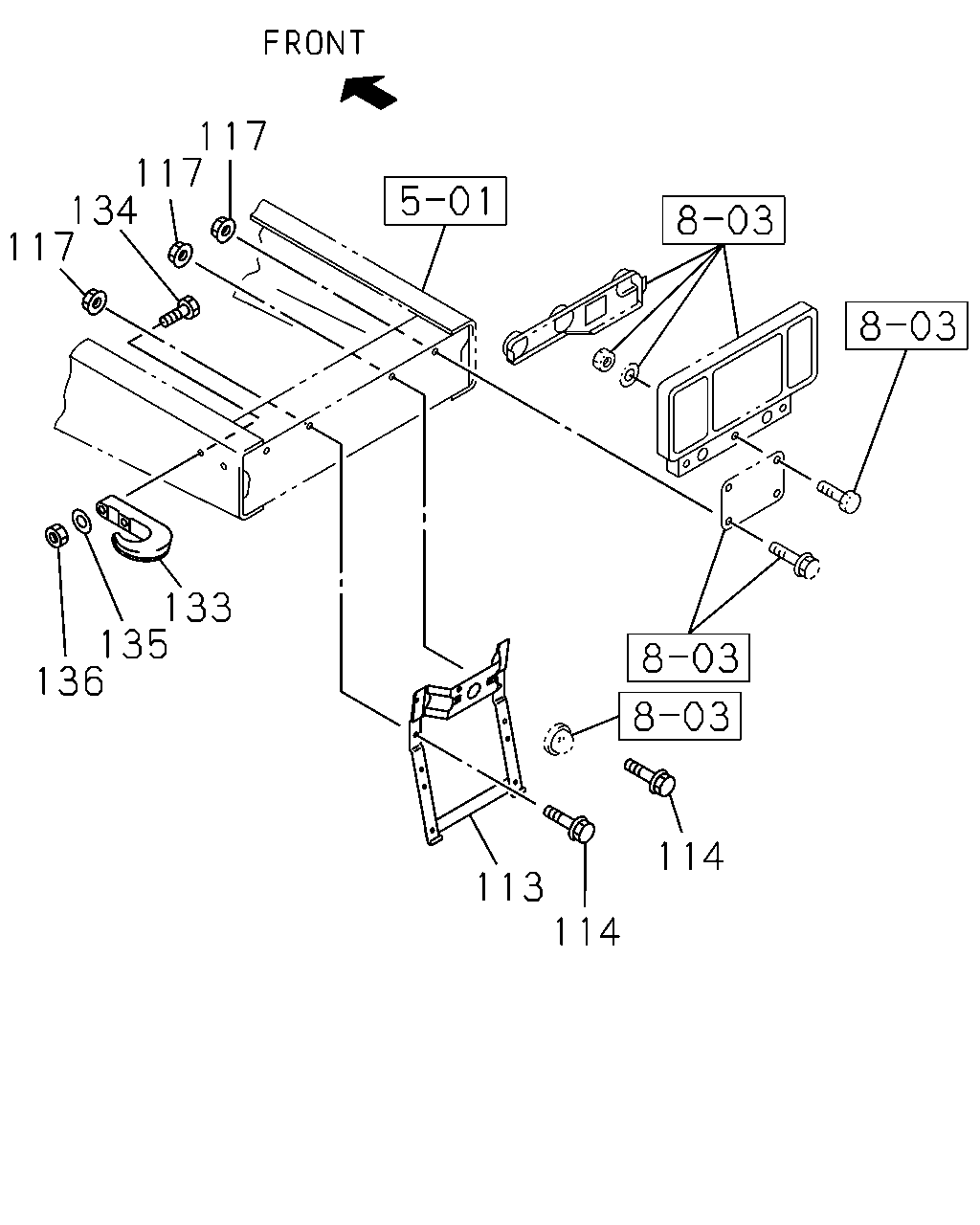

6-90 — REAR BUMPER
(#60132) — 17 parça
Tümü
A - FGR5MV
B - FGR5WV
114
114
113
133
135
136
117
134
117
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
113
BRACKET; LICENSE PLATE
1-53485-074-0
01
1
1010-1205
●
●
113
BRACKET; LICENSE PLATE
COUNTRY NEW ZEALAND(CX6)
1-53485-074-0
01
1
1206-
●
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28650-825-0
02
1
1010-1205
●
●
114
BOLT; BRKT,LICENSE PLATE
COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE
0-28650-825-0
02
1
1206-
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1010-1107
●
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1010-1107
●
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
1108-1205
●
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1206-1306
●
●
117
NUT; BRKT
COUNTRY NEW ZEALAND(CX6) M8 FLANGE
0-91180-108-0
02
1
1206-1306
●
117
NUT; BRKT
REVERSING WARNING BUZZER<YM9> M8 FLANGE
0-91180-108-0
02
1
1307-
●
117
NUT; BRKT
COUNTRY NEW ZEALAND(CX6) M8 FLANGE
0-91180-108-0
02
1
1307-
●
117
NUT; BRKT
WHEEL BASE 6000MM(60W) REVERSING WARNING BUZZER<YM9> M8 FLANGE
0-91180-108-0
02
1
1307-
●
133
HOOK
TOW HOOK<V76>
1-57181-027-1
01
1
1010-
●
●
134
BOLT; HOOK
TOW HOOK<V76> M16X50
0-20851-650-0
01
1
1010-
●
●
134
BOLT; HOOK
TOW HOOK<V76> M16X60
0-20851-660-0
01
1
1010-
●
●
135
WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2
0-91510-816-0
02
1
1010-
●
●
136
NUT; HOOK
TOW HOOK<V76> M16
0-91110-516-0
02
1
1010-
●
●
