◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11328 - FTR AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#60131) — 16 parça

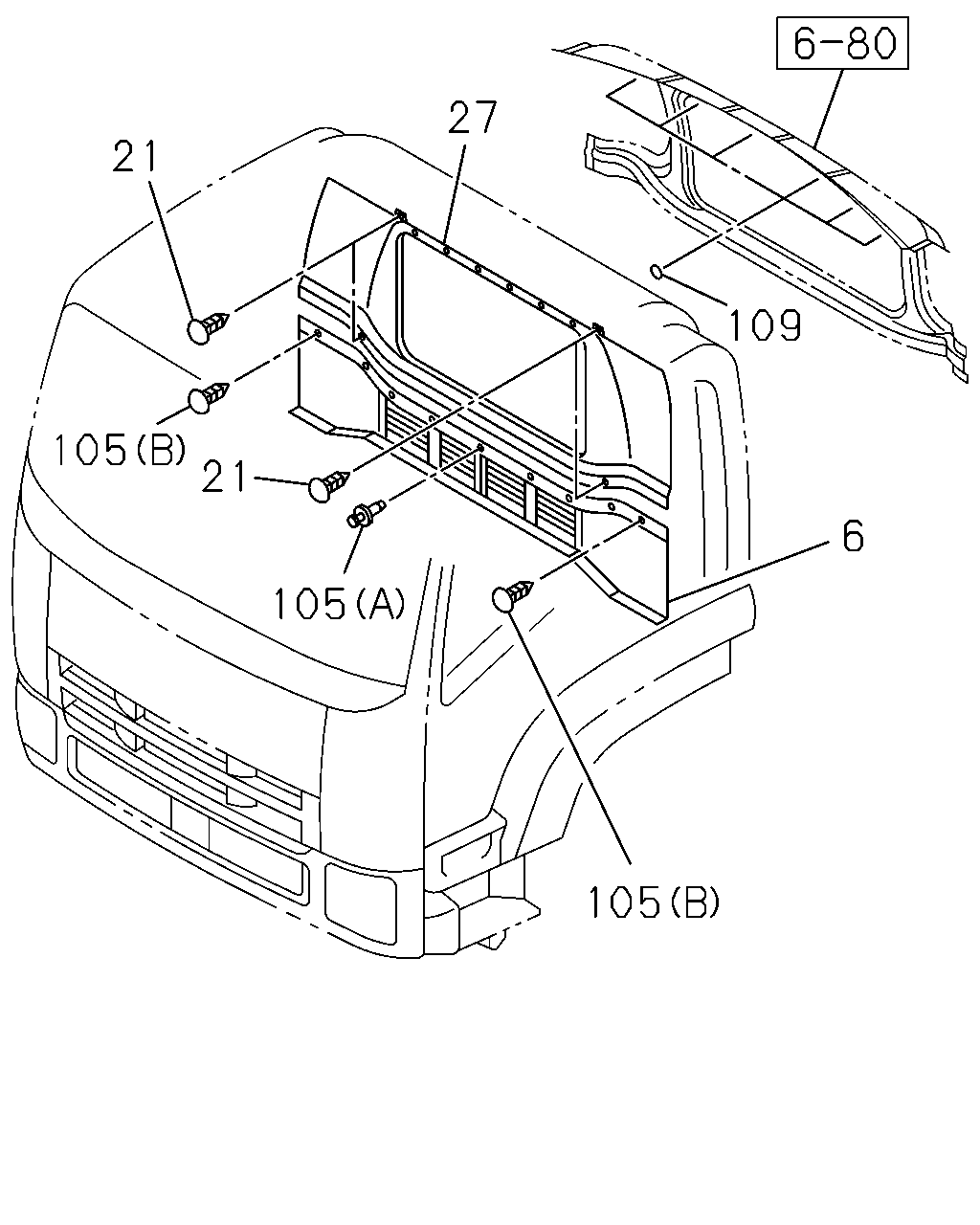

çizim 171975
27 109 6 105 105 105 21 21
BalonParca AdiParca NoAdetTipApplied Date A B
6 MAT; SILENCER,CAB BACK
GRAY 		8-97407-458-1 01 1 1010- ●
21 RETAINER; TRIM,BED ROOM
INTERIOR FULL TRIM<WM3> GRAY 		8-97407-467-0 04 1 1010- ●
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97407-464-2 01 1 1010- ●
27 COVER; TRIM,BACK
ROUND CURTAIN RAIL<EDH> INTERIOR FULL TRIM<WM3> DARK GRAY 		8-97407-466-2 01 1 1010- ●
105 CLIP; BACK TRIM
(B) GRAY 		8-97407-467-0 02 1 1010- ●
105 CLIP; BACK TRIM
(A) GRAY 		8-97408-022-0 07 1 1010- ●
109 SEAL; HOLE
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) EXC. ROUND CURTAIN RAIL<EDH>,INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1010-1202 ●
109 SEAL; HOLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BO DY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) EXC. ROUND CURTAIN RAIL<EDH>,INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1203-1306 ●
109 SEAL; HOLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BO DY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) EXC. ROUND CURTAIN RAIL<EDH>,INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1307-1312 ●
109 SEAL; HOLE
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1307-1312 ●
109 SEAL; HOLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORCARDINAL RED(736),BODY COLOR WOODLAND GREEN(807), BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARABEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989), BODY COLOR TRANS BLUE(999) EXC. ROUND CURTAIN RAIL<EDH>,INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1401-1404 ●
109 SEAL; HOLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR A P RED(549),BODY COLOR RMS ORANGE(550),BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807) ,BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),B ODY COLOR TRANS BLUE(999) EXC. ROUND CURTAIN RAIL<EDH>,INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1405- ●
109 SEAL; HOLE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) EXC. ROUND CURTAIN RAIL<EDH>,INTERIOR FULL TRIM<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 1010-1306 ●
109 SEAL; HOLE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) EXC. ROUND CURTAIN RAIL<EDH>,INTERIOR FULL TRIM<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 1307-1312 ●
109 SEAL; HOLE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 1307-1312 ●
109 SEAL; HOLE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) EXC. ROUND CURTAIN RAIL<EDH>,INTERIOR FULL TRIM<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 1401- ●
