Sayfa 6-75 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11328 - FTR AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶

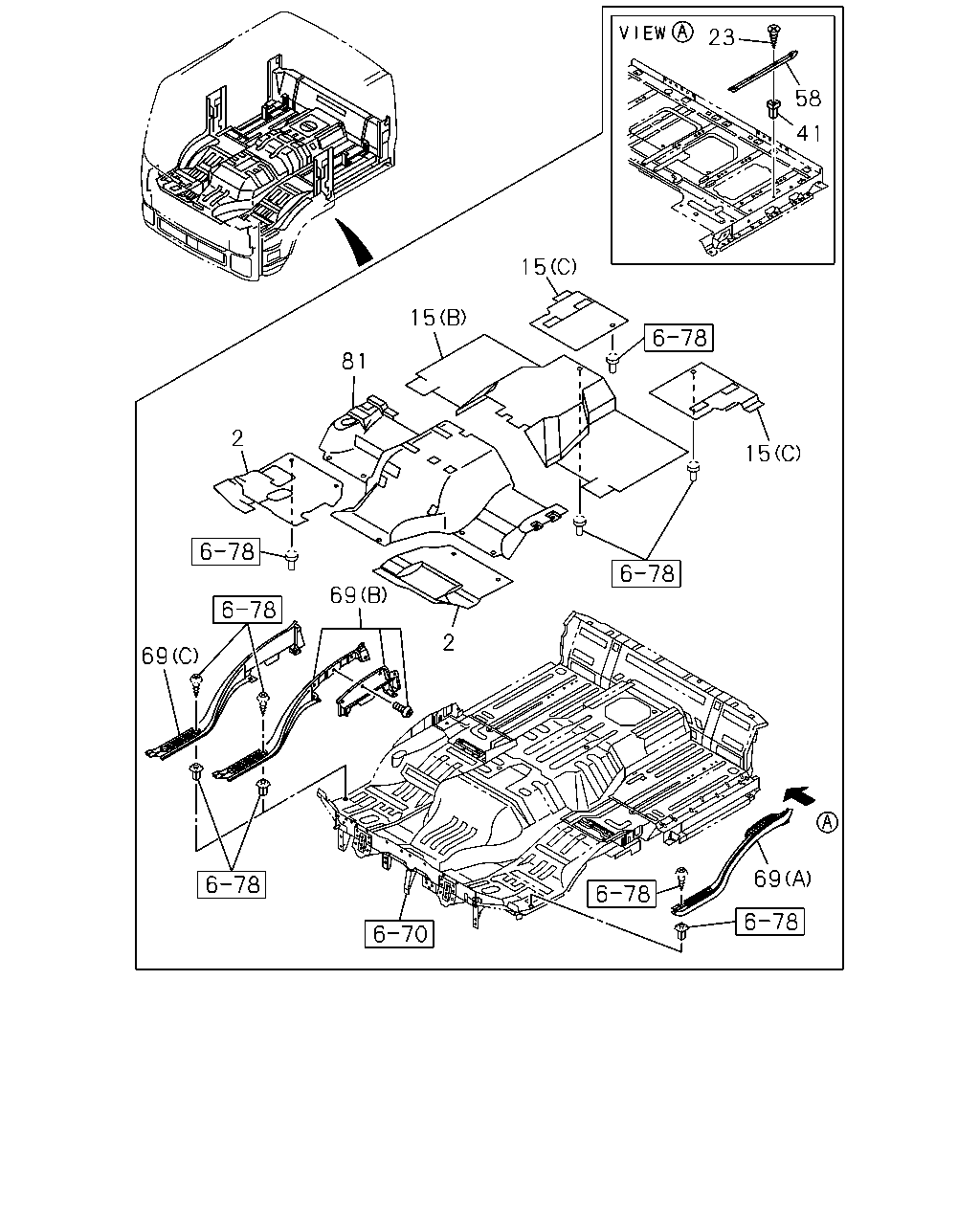

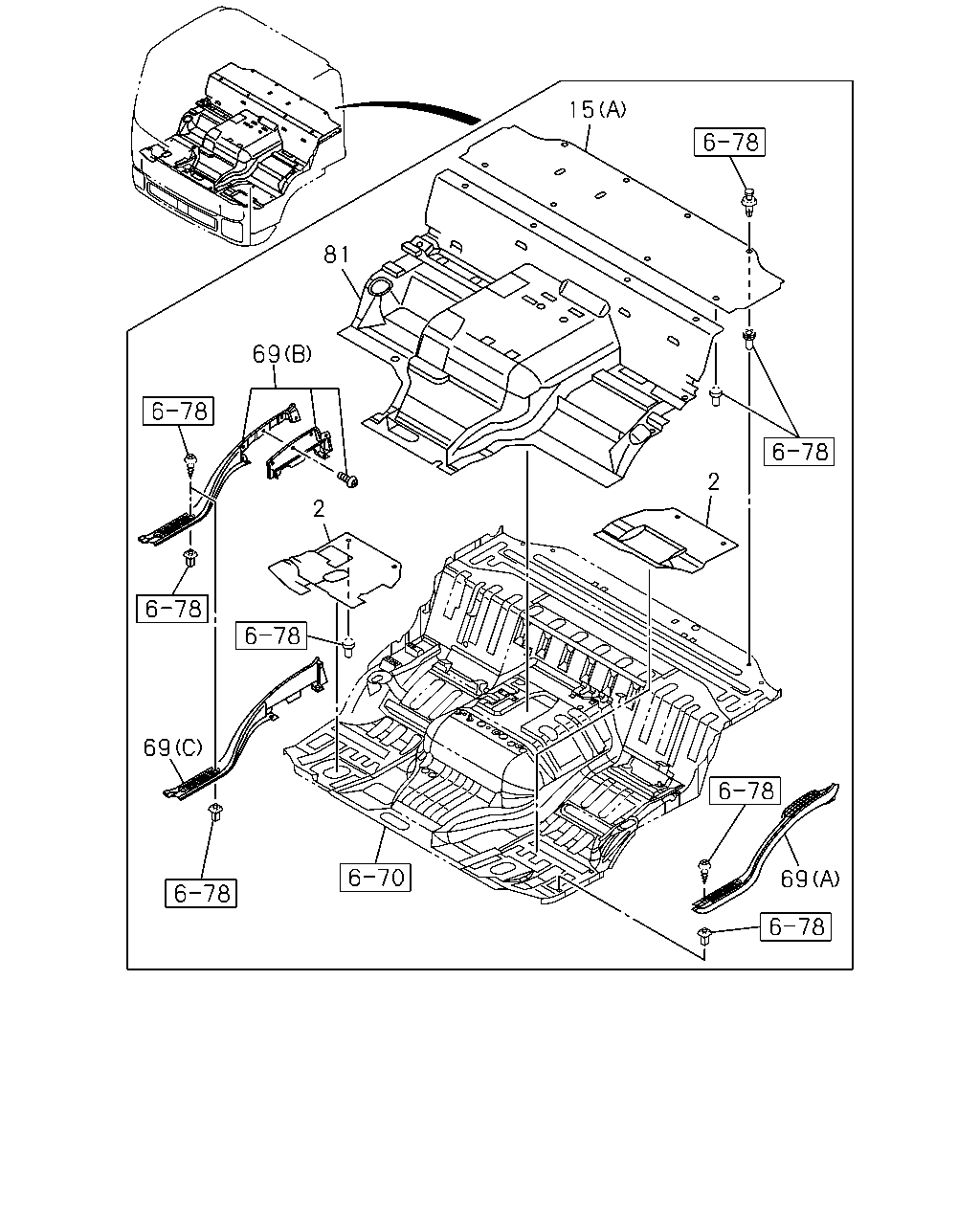

6-75 — MAT AND CARPET (#60126) — 47 parça

23 58 41 15 15 81 2 69 2 69 15 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-746-5	01	1	1010-1306	●
2	MAT; FLOOR GRAY	8-97407-746-5	01	1	1010-1306		●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-746-5	01	1	1307-	●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-746-5	01	1	1307-		●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-747-2	01	1	1010-1306	●
2	MAT; FLOOR GRAY	8-97407-747-2	01	1	1010-1306		●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-747-2	01	1	1307-	●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-747-2	01	1	1307-		●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-947-0	01	1	1010-1306	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-949-0	01	1	1010-1306	●
15	MAT; FLOOR REAR FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY	8-97418-951-0	01	1	1010-	●
15	MAT; FLOOR REAR FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> (A) GRAY	8-97407-404-1	01	1	1010-	●
15	MAT; FLOOR REAR (B) GRAY	8-97411-643-1	01	1	1010-		●
15	MAT; FLOOR REAR (C) GRAY	8-97411-642-1	01	1	1010-		●
15	MAT; FLOOR REAR (C) GRAY	8-97411-641-1	01	1	1010-		●
23	SCREW; SILL PLATE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	08	1	1010-		●
41	GROMMET; SCREW,SILL PLATE D=7.8X7.8 L=18 NATURAL	8-94279-043-0	08	1	1010-		●
58	PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	1010-		●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (A) GRAY	8-97407-413-1	01	1	1010-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (B) GRAY	8-97407-414-3	01	1	1010-1503	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (C) GRAY	8-97465-138-0	01	1	1504-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4> (A) GRAY	8-97407-412-1	01	1	1010-	●	●
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97411-647-3	01	1	1010-	●
81	MAT; FLOOR,CENTER GRAY	8-97411-645-1	01	1	1010-1306		●
81	MAT; FLOOR,CENTER FLOOR COVER<6WX> GRAY	8-97411-645-1	01	1	1307-		●

69 2 15 81 69 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-746-5	01	1	1010-1306	●
2	MAT; FLOOR GRAY	8-97407-746-5	01	1	1010-1306		●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-746-5	01	1	1307-	●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-746-5	01	1	1307-		●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-747-2	01	1	1010-1306	●
2	MAT; FLOOR GRAY	8-97407-747-2	01	1	1010-1306		●
2	MAT; FLOOR FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97407-747-2	01	1	1307-	●
2	MAT; FLOOR FLOOR COVER<6WX> GRAY	8-97407-747-2	01	1	1307-		●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-947-0	01	1	1010-1306	●
2	MAT; FLOOR EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY	8-97418-949-0	01	1	1010-1306	●
15	MAT; FLOOR REAR FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY	8-97418-951-0	01	1	1010-	●
15	MAT; FLOOR REAR FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> (A) GRAY	8-97407-404-1	01	1	1010-	●
15	MAT; FLOOR REAR (B) GRAY	8-97411-643-1	01	1	1010-		●
15	MAT; FLOOR REAR (C) GRAY	8-97411-642-1	01	1	1010-		●
15	MAT; FLOOR REAR (C) GRAY	8-97411-641-1	01	1	1010-		●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (A) GRAY	8-97407-413-1	01	1	1010-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (B) GRAY	8-97407-414-3	01	1	1010-1503	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (C) GRAY	8-97465-138-0	01	1	1504-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4> (A) GRAY	8-97407-412-1	01	1	1010-	●	●
81	MAT; FLOOR,CENTER FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY	8-97411-647-3	01	1	1010-	●
81	MAT; FLOOR,CENTER GRAY	8-97411-645-1	01	1	1010-1306		●
81	MAT; FLOOR,CENTER FLOOR COVER<6WX> GRAY	8-97411-645-1	01	1	1307-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
