◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11328 - FTR AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#60125) — 190 parça

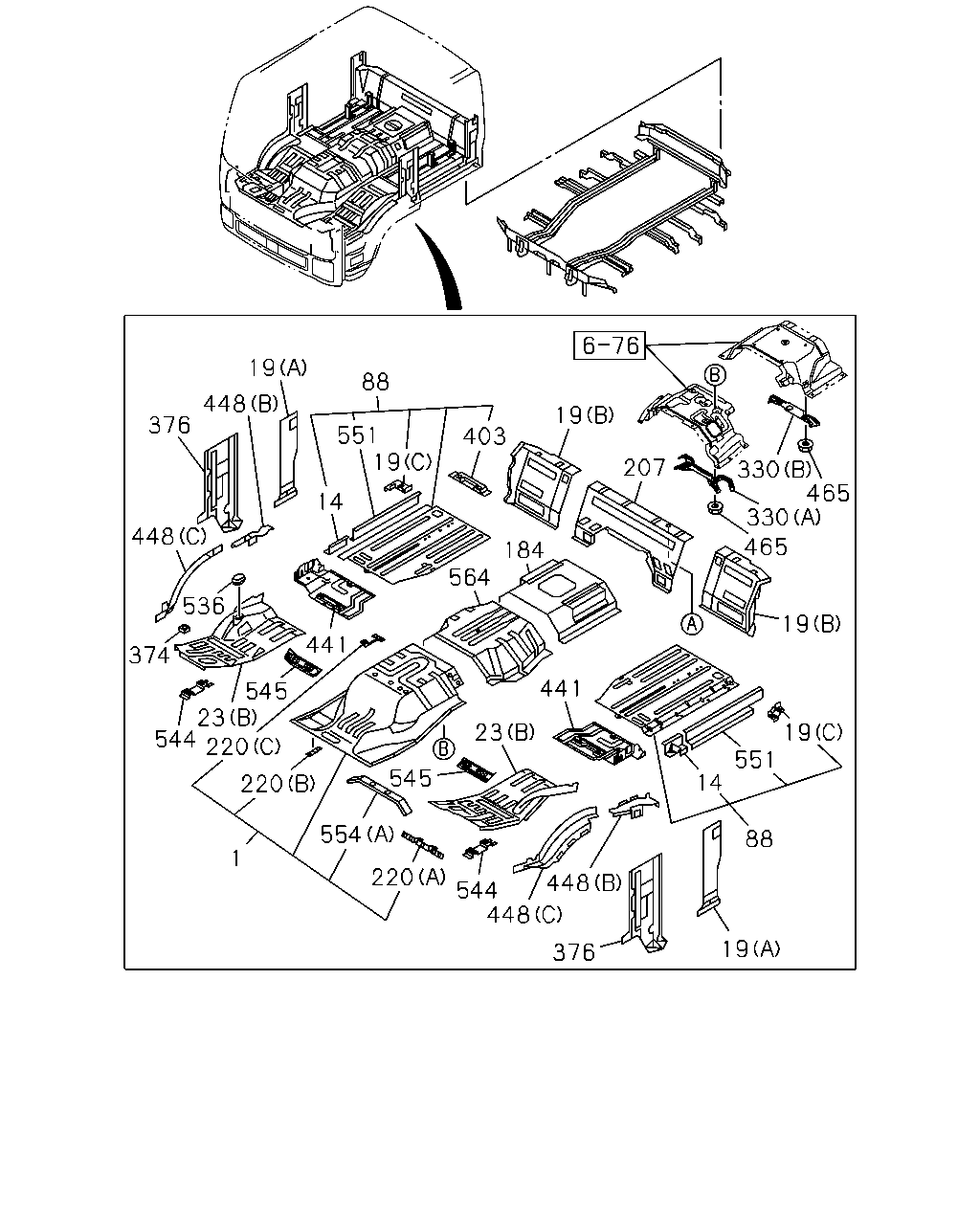

çizim 171977
19 88 19 403 207 330 465 465 330 19 19 551 14 88 19 448 448 376 544 441 184 19 551 14 448 564 23 545 554 1 220 220 220 544 374 448 376 536 545 23 441
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-815-5 01 1 1010-1306 ●
1 PANEL; FLOOR
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98066-815-5 01 1 1307- ●
1 PANEL; FLOOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97410-865-7 01 1 1010-1306 ●
1 PANEL; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97410-865-7 01 1 1307- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-047-0 01 1 1010- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-048-0 01 1 1010- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-051-1 01 1 1010- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-052-1 01 1 1010- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98067-477-3 01 1 1010- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98067-478-3 01 1 1010- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-963-1 01 1 1010- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-964-1 01 1 1010- ●
23 PANEL; FLOOR,SIDE
(B) 		8-98216-752-0 01 1 1010- ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-691-1 01 1 1010- ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-372-7 01 1 1010- ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-883-3 01 1 1010- ●
88 BOARD ASM; FLOOR 8-97410-918-2 01 1 1010- ●
88 BOARD ASM; FLOOR 8-97410-922-3 01 1 1010- ●
184 HOOD ASM; ENG RR 8-97410-869-1 01 1 1010- ●
207 PANEL; FLOOR,RR CTR 8-97410-927-3 01 1 1010- ●
220 PATCH
(A) 		8-97588-840-4 01 1 1010- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1010- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1010- ● ●
330 REINFORCEMENT; FLOOR
(A) 		8-98248-128-0 01 1 1010- ●
330 REINFORCEMENT; FLOOR
(B) 		8-98248-129-0 01 1 1010- ●
374 NUT; FLOOR
M6 		1-09984-110-0 04 1 1010- ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1010-1403 ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404- ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1010- ●
376 CLOSING; PILLAR,LWR 8-97612-015-5 01 1 1010- ●
376 CLOSING; PILLAR,LWR 8-97612-016-5 01 1 1010- ●
403 PATCH; FIRE EXTINGUSHER 1-62183-077-1 01 1 1010- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-97410-906-2 01 1 1010- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-97410-912-2 01 1 1010- ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 1010- ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 1010- ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 1010- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 1010- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 1010- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 1010- ●
465 NUT; REINFORCEMENT
M6 FLANGE 		0-91180-106-0 04 1 1010- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1010- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1010- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1010- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1010- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1010- ● ●
551 PANEL; FLOOR SIDE,CTR 8-98010-049-2 01 1 1010- ●
551 PANEL; FLOOR SIDE,CTR 8-98010-050-2 01 1 1010- ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1010- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1010- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1010- ●
564 PANEL; ENG HOOD EXT FRT 8-97610-271-1 01 1 1010- ●

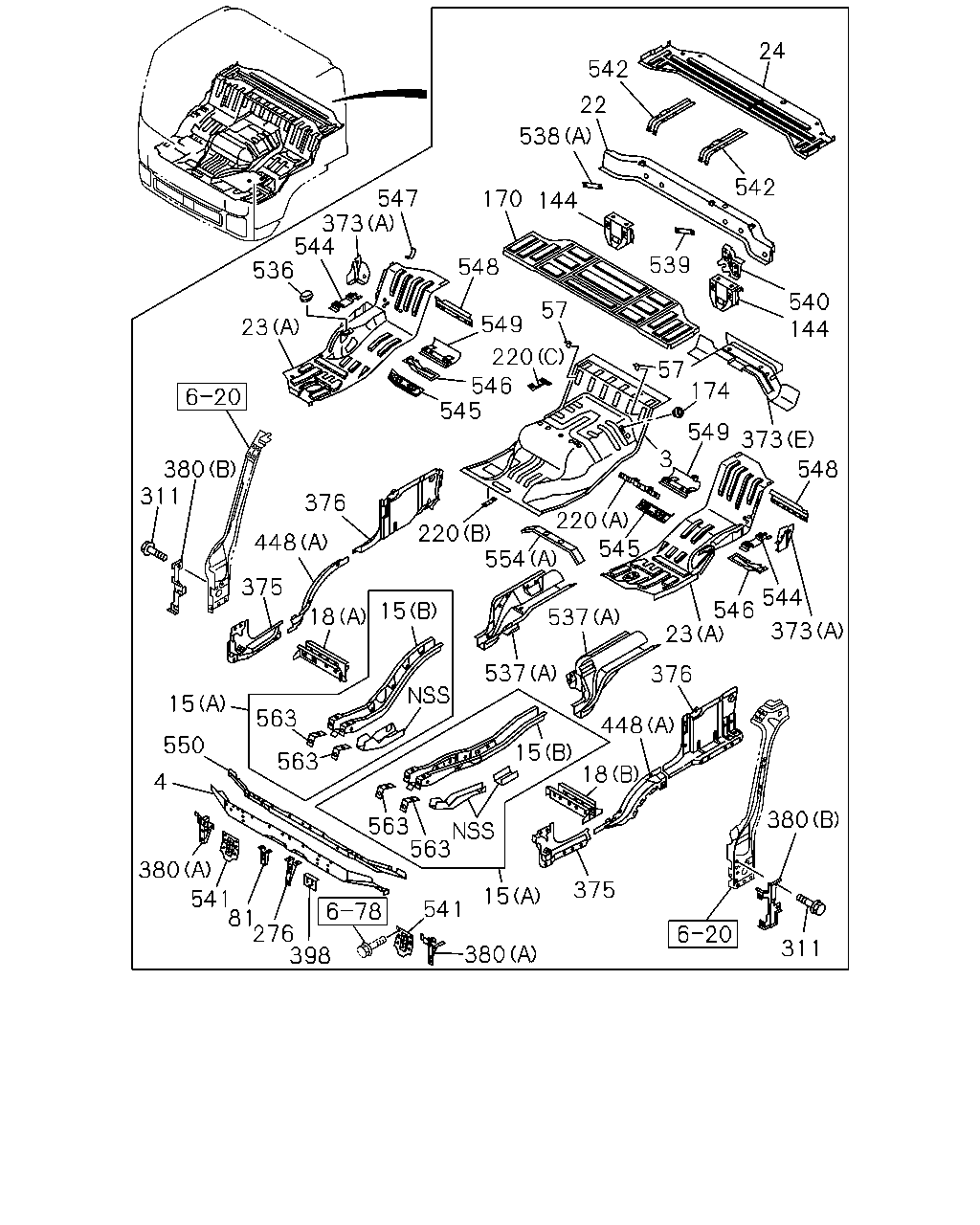

çizim 171982
24 542 542 22 538 144 539 540 144 170 57 57 548 547 373 544 536 23 549 220 546 545 380 311 376 448 375 18 15 550 4 380 541 81 276 398 541 380 15 563 563 563 563 15 375 18 448 311 380 376 23 373 544 546 537 537 15 220 554 220 545 3 548 373 549 174
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-357-4 01 1 1010- ●
3 HOOD ASM; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98167-037-0 01 1 1010- ●
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1010- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1010- ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1010- ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1010- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1010- ● ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-398-4 01 1 1010- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-421-4 01 1 1010- ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-540-1 01 1 1010- ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1010- ●
22 FRAME; FLOOR REAR 8-97410-960-1 01 1 1010- ●
23 PANEL; FLOOR,SIDE
(B) 		8-98216-752-0 01 1 1010- ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-691-1 01 1 1010- ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-372-7 01 1 1010- ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-883-3 01 1 1010- ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1010- ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1010- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1010- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1010- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1010- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1010- ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1010- ●
220 PATCH
(A) 		8-97588-840-4 01 1 1010- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1010- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1010- ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1010- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1010- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1010- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1010- ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-98081-349-3 01 1 1010-1507 ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-98228-266-0 01 1 1508- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 1010- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 1010- ●
373 REINFORCEMENT; SEAT BELT
(D) 		8-97410-963-1 01 1 1010- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-97410-965-0 02 1 1010- ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1010- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1010- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1010-1403 ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404- ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1010- ●
376 CLOSING; PILLAR,LWR 8-97612-015-5 01 1 1010- ●
376 CLOSING; PILLAR,LWR 8-97612-016-5 01 1 1010- ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1010- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1010- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1010- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1010- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1010- ● ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 1010- ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 1010- ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 1010- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 1010- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 1010- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 1010- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1010- ● ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-391-4 01 1 1010- ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-417-4 01 1 1010- ●
537 SUPPORT ASM; MTG RR
(B) 		8-97410-940-1 01 1 1010- ●
537 SUPPORT ASM; MTG RR
(B) 		8-97410-951-1 01 1 1010- ●
538 REINFORCEMENT ASM; AIR INT DUCT
(A) 		8-97610-207-2 01 1 1010- ●
538 REINFORCEMENT ASM; AIR INT DUCT
(B) 		8-97613-311-0 01 1 1010- ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1010- ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1010- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1010- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1010- ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1010- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1010- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1010- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1010- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1010- ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1010- ●
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1010- ●
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1010- ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1010- ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1010- ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1010- ● ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1010- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1010- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1010- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1010- ● ●

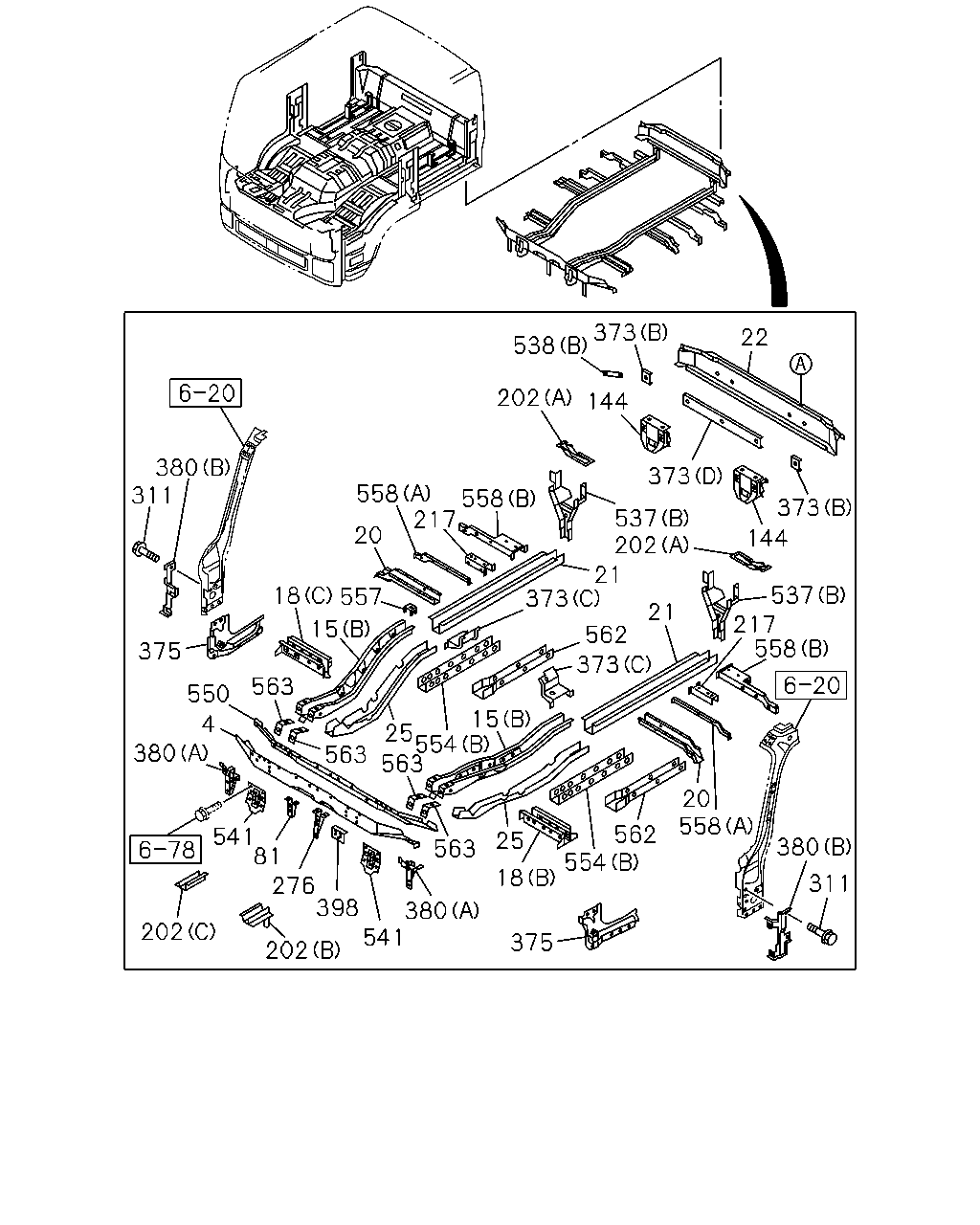

çizim 171983
311 380 558 554 375 562 18 20 25 563 380 541 398 202 202 276 558 217 144 21 373 22 81 541 380 550 4 375 563 563 563 373 15 554 25 562 537 21 373 537 202 373 15 18 20 558 558 217 202 144 373 538 311 380 557
BalonParca AdiParca NoAdetTipApplied Date A B
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1010- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1010- ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1010- ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1010- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1010- ● ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-398-4 01 1 1010- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-421-4 01 1 1010- ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-540-1 01 1 1010- ●
20 FRAME; FLOOR SIDE,REAR 8-97410-978-0 01 1 1010- ●
20 FRAME; FLOOR SIDE,REAR 8-97607-517-0 01 1 1010- ●
21 FRAME; FLOOR CENTER 8-97410-938-2 01 1 1010- ●
21 FRAME; FLOOR CENTER 8-97410-950-3 01 1 1010- ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1010- ●
22 FRAME; FLOOR REAR 8-97410-960-1 01 1 1010- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-225-4 01 1 1010- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-226-4 01 1 1010- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1010- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1010- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1010- ● ●
202 PANEL; CENTER MTG REINF
(A) 		8-97584-427-0 02 1 1010- ●
202 PANEL; CENTER MTG REINF
(C) 		8-97607-514-0 01 1 1010- ●
202 PANEL; CENTER MTG REINF
(B) 		8-97607-515-0 01 1 1010- ●
217 PANEL; SEAT STAND 8-97410-945-1 02 1 1010- ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1010- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1010- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1010- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1010- ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-98081-349-3 01 1 1010-1507 ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-98228-266-0 01 1 1508- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 1010- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 1010- ●
373 REINFORCEMENT; SEAT BELT
(D) 		8-97410-963-1 01 1 1010- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-97410-965-0 02 1 1010- ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1010- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1010- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1010- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1010- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1010- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1010- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1010- ● ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-391-4 01 1 1010- ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-417-4 01 1 1010- ●
537 SUPPORT ASM; MTG RR
(B) 		8-97410-940-1 01 1 1010- ●
537 SUPPORT ASM; MTG RR
(B) 		8-97410-951-1 01 1 1010- ●
538 REINFORCEMENT ASM; AIR INT DUCT
(A) 		8-97610-207-2 01 1 1010- ●
538 REINFORCEMENT ASM; AIR INT DUCT
(B) 		8-97613-311-0 01 1 1010- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1010- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1010- ● ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1010- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1010- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1010- ●
557 PATCH; SEAT 8-98074-333-0 01 1 1010- ●
558 REINFORCEMENT; STEP RR
(A) 		8-98057-202-0 01 1 1010- ●
558 REINFORCEMENT; STEP RR
(A) 		8-98057-203-0 01 1 1010- ●
558 REINFORCEMENT; STEP RR
(B) 		8-98057-207-1 01 1 1010- ●
558 REINFORCEMENT; STEP RR
(B) 		8-98057-210-1 01 1 1010- ●
562 REINFORCEMENT; FLOOR 8-97410-939-3 02 1 1010- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
