◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11328 - FTR AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶

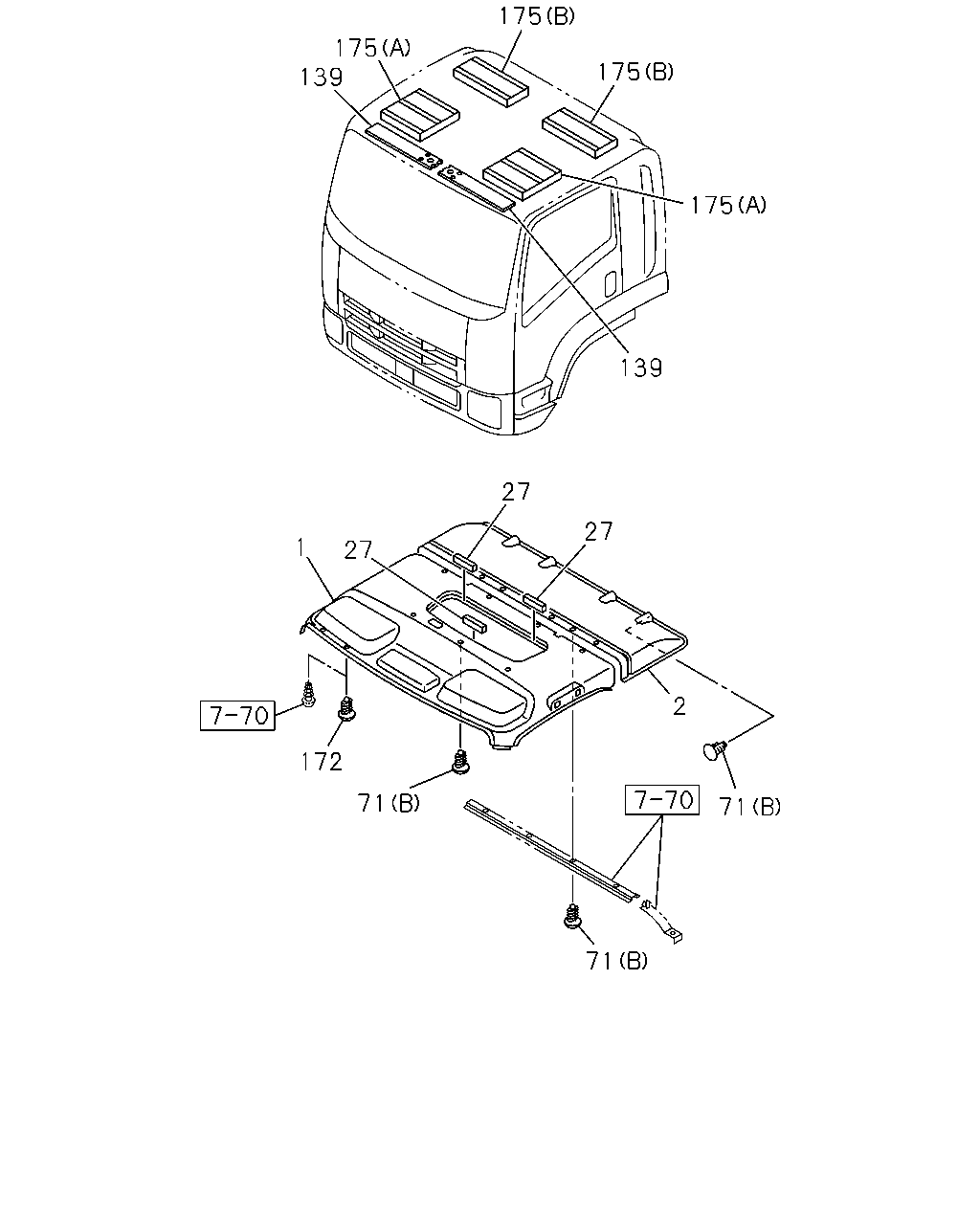

6-66 — HEAD LINING AND TRIM (#60124) — 53 parça

139 175 175 175 175 139 27 27 172 71 1 27 71 2 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97416-363-0	01	1	1010-1306	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97426-744-0	01	1	1307-1308	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97416-360-0	01	1	1010-1306	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97426-741-0	01	1	1307-1308	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97426-741-0	01	1	1309-	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97411-886-2	01	1	1010-1306		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97426-738-0	01	1	1307-1308		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97411-666-2	01	1	1010-1306		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97426-739-0	01	1	1307-1308		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97426-739-0	01	1	1309-		●
2	LINING; HD,ROOF RR EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-455-5	01	1	1307-	●
2	LINING; HD,ROOF RR DARK GRAY	8-97415-674-0	01	1	1010-1306	●
2	LINING; HD,ROOF RR ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97415-674-0	01	1	1307-1307	●
2	LINING; HD,ROOF RR ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97427-627-0	01	1	1307-	●
2	LINING; HD,ROOF RR DARK GRAY	8-97411-669-1	01	1	1010-		●
6	SPACER; HD LINING 1 SET=20 PIECE	8-98100-429-0	04	1	1010-		●
27	INSULATION; ROOF	8-98046-638-2	03	1	1010-	●	●
71	FASTENER; HD LINING (B) DARK GRAY	8-97405-282-0	03	1	1010-		●
71	FASTENER; HD LINING (B) DARK GRAY	8-97405-282-0	07	1	1010-	●
71	FASTENER; HD LINING (A) DARK GRAY	8-97411-797-0	14	1	1010-		●
139	SEAL; ROOF	8-98169-116-0	02	1	1010-	●	●
172	RETAINER; HEAD LINING DARK GRAY	8-97411-875-0	04	1	1010-		●
172	RETAINER; HEAD LINING EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97411-875-0	14	1	1010-1306	●
172	RETAINER; HEAD LINING DARK GRAY	8-97411-875-0	12	1	1307-1307	●
172	RETAINER; HEAD LINING EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97411-875-0	12	1	1308-	●
175	CUSHION; HEAD LINING (A)	8-98030-965-2	02	1	1010-	●	●
175	CUSHION; HEAD LINING (B)	8-98082-685-1	02	1	1010-	●	●

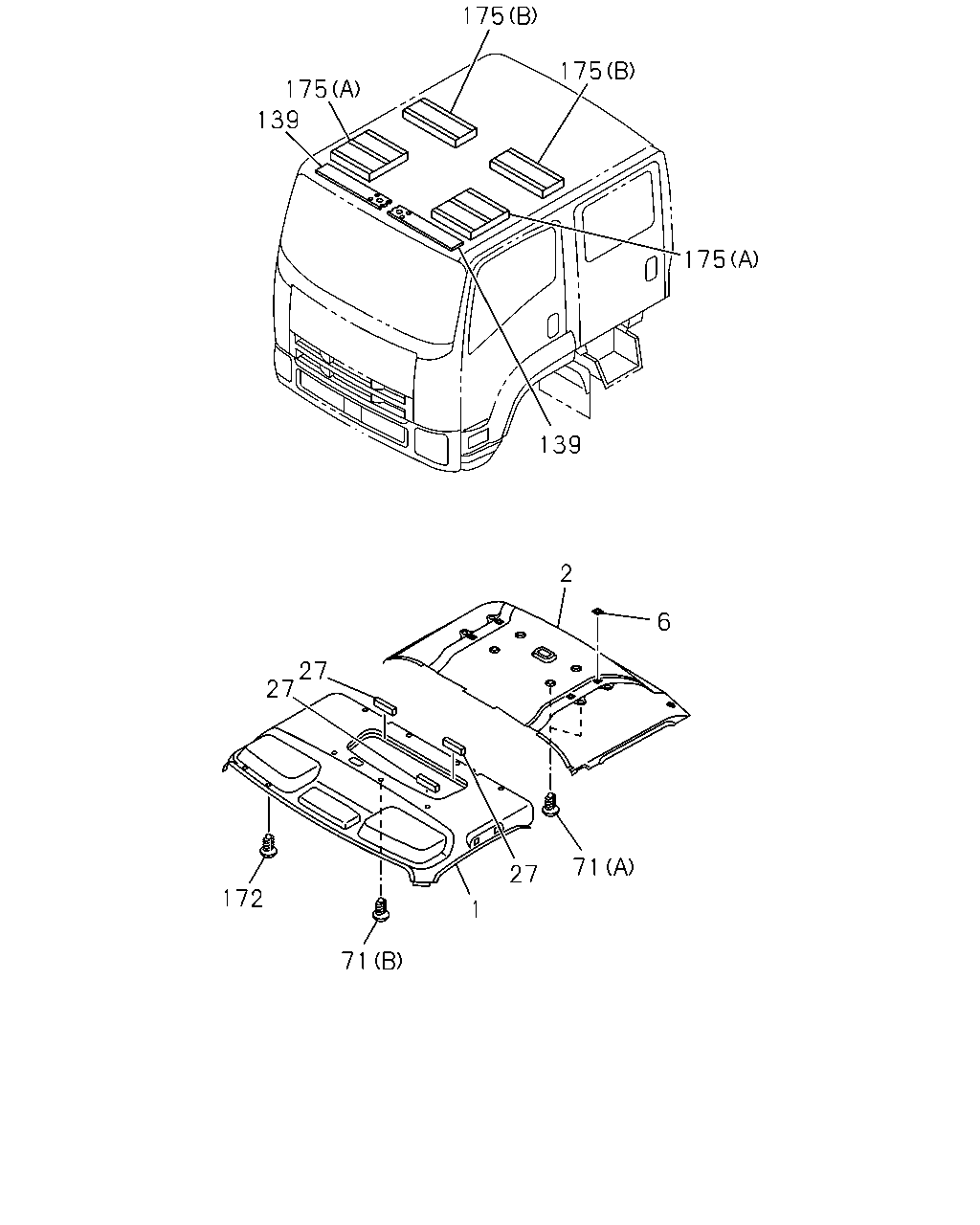

175 175 175 175 139 139 27 27 172 71 71 71 2 27 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97416-363-0	01	1	1010-1306	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97426-744-0	01	1	1307-1308	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97416-360-0	01	1	1010-1306	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97426-741-0	01	1	1307-1308	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97426-741-0	01	1	1309-	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97411-886-2	01	1	1010-1306		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97426-738-0	01	1	1307-1308		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97411-666-2	01	1	1010-1306		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY	8-97426-739-0	01	1	1307-1308		●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97426-739-0	01	1	1309-		●
2	LINING; HD,ROOF RR EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-455-5	01	1	1307-	●
2	LINING; HD,ROOF RR DARK GRAY	8-97415-674-0	01	1	1010-1306	●
2	LINING; HD,ROOF RR ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97415-674-0	01	1	1307-1307	●
2	LINING; HD,ROOF RR ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97427-627-0	01	1	1307-	●
2	LINING; HD,ROOF RR DARK GRAY	8-97411-669-1	01	1	1010-		●
27	INSULATION; ROOF	8-98046-638-2	03	1	1010-	●	●
71	FASTENER; HD LINING (B) DARK GRAY	8-97405-282-0	03	1	1010-		●
71	FASTENER; HD LINING (B) DARK GRAY	8-97405-282-0	07	1	1010-	●
71	FASTENER; HD LINING (A) DARK GRAY	8-97411-797-0	14	1	1010-		●
139	SEAL; ROOF	8-98169-116-0	02	1	1010-	●	●
172	RETAINER; HEAD LINING DARK GRAY	8-97411-875-0	04	1	1010-		●
172	RETAINER; HEAD LINING EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97411-875-0	14	1	1010-1306	●
172	RETAINER; HEAD LINING DARK GRAY	8-97411-875-0	12	1	1307-1307	●
172	RETAINER; HEAD LINING EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97411-875-0	12	1	1308-	●
175	CUSHION; HEAD LINING (A)	8-98030-965-2	02	1	1010-	●	●
175	CUSHION; HEAD LINING (B)	8-98082-685-1	02	1	1010-	●	●
