◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11328 - FTR AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#60123) — 41 parça

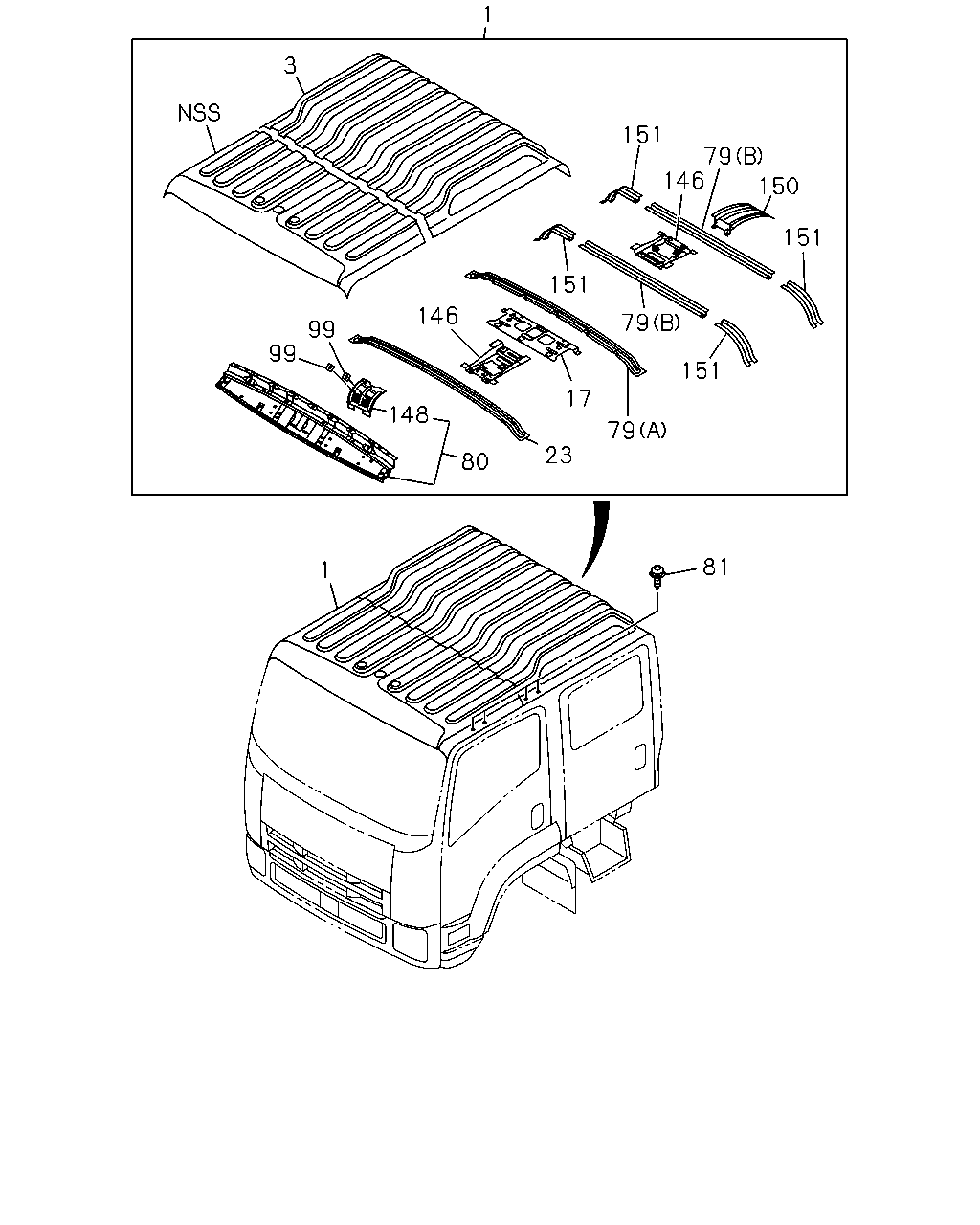

çizim 171923
1 3 99 99 148 146 80 151 151 150 79 146 79 151 79 17 23 81 151 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-177-6 01 1 1010-1308 ●
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98196-922-0 01 1 1309- ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97584-498-5 01 1 1010-1308 ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98246-475-0 01 1 1309- ●
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97411-038-5 01 1 1010-1308 ●
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98246-486-0 01 1 1309- ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97619-940-5 01 1 1010-1308 ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98246-487-0 01 1 1309- ●
3 PANEL; ROOF,RR 8-97618-730-0 01 1 1010- ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1010- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 1010- ● ●
79 REINFORCEMENT; ROOF PANEL,RR
(A) 		8-97584-200-1 01 1 1010- ● ●
79 REINFORCEMENT; ROOF PANEL,RR
(B) 		8-97411-041-1 02 1 1010- ●
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-192-3 01 1 1010-1308 ● ●
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98196-921-0 01 1 1309- ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1010- ● ●
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1010- ● ●
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 1010- ●
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 02 1 1010- ●
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-015-1 01 1 1010- ● ●
150 REINFORCEMENT; ROOF BACK 8-98085-374-0 01 1 1010- ●
151 REINFORCEMENT; ROOF PANEL,SIDE 8-98008-023-0 04 1 1010- ●

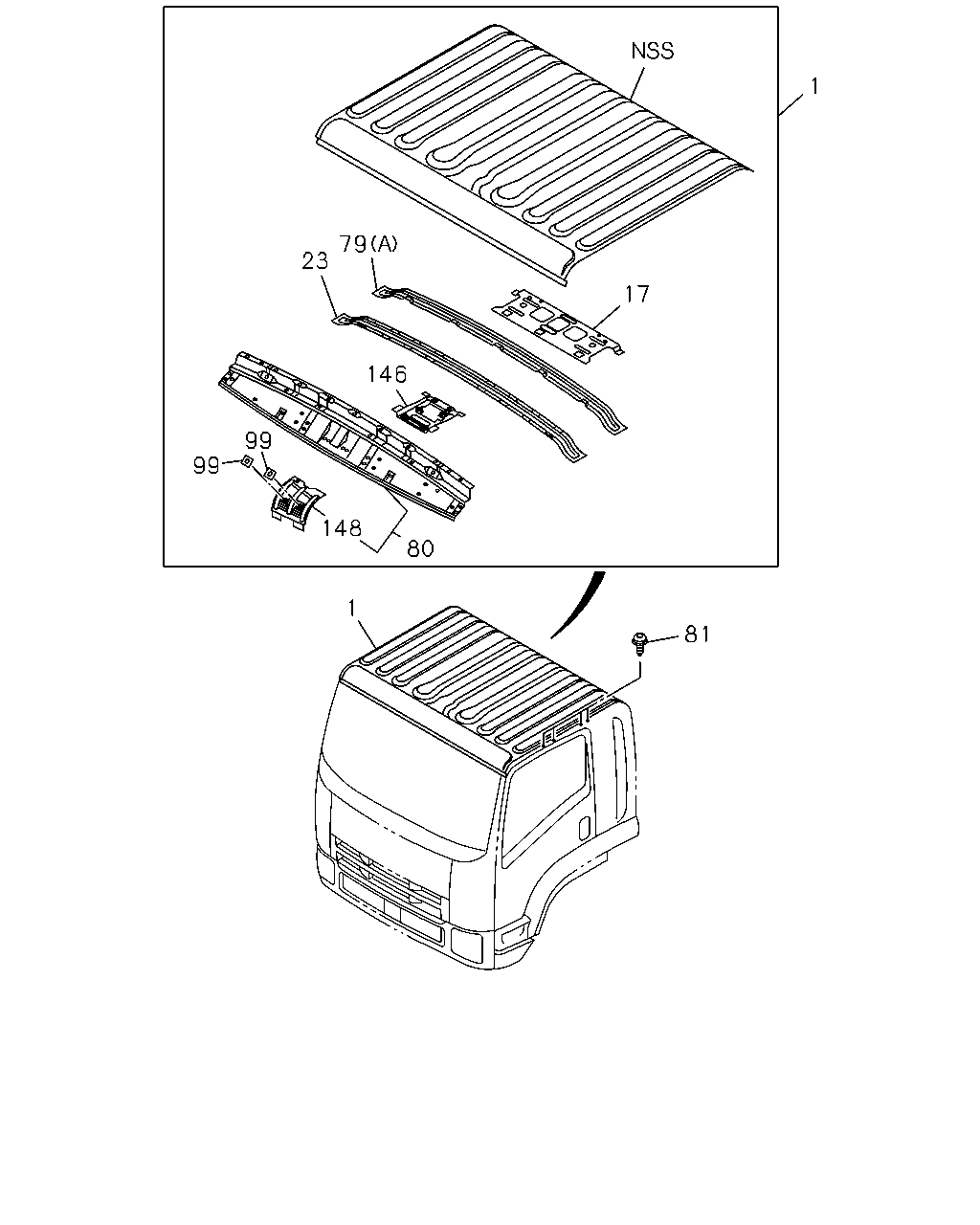

çizim 172002
1 17 146 79 23 99 99 148 80 1 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-177-6 01 1 1010-1308 ●
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98196-922-0 01 1 1309- ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97584-498-5 01 1 1010-1308 ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98246-475-0 01 1 1309- ●
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97411-038-5 01 1 1010-1308 ●
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98246-486-0 01 1 1309- ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97619-940-5 01 1 1010-1308 ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98246-487-0 01 1 1309- ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1010- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 1010- ● ●
79 REINFORCEMENT; ROOF PANEL,RR
(A) 		8-97584-200-1 01 1 1010- ● ●
79 REINFORCEMENT; ROOF PANEL,RR
(B) 		8-97411-041-1 02 1 1010- ●
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-192-3 01 1 1010-1308 ● ●
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98196-921-0 01 1 1309- ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1010- ● ●
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1010- ● ●
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 1010- ●
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 02 1 1010- ●
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-015-1 01 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
