8-15 — FIXING PARTS; WIRING HARNESS (#6012) — 310 parça

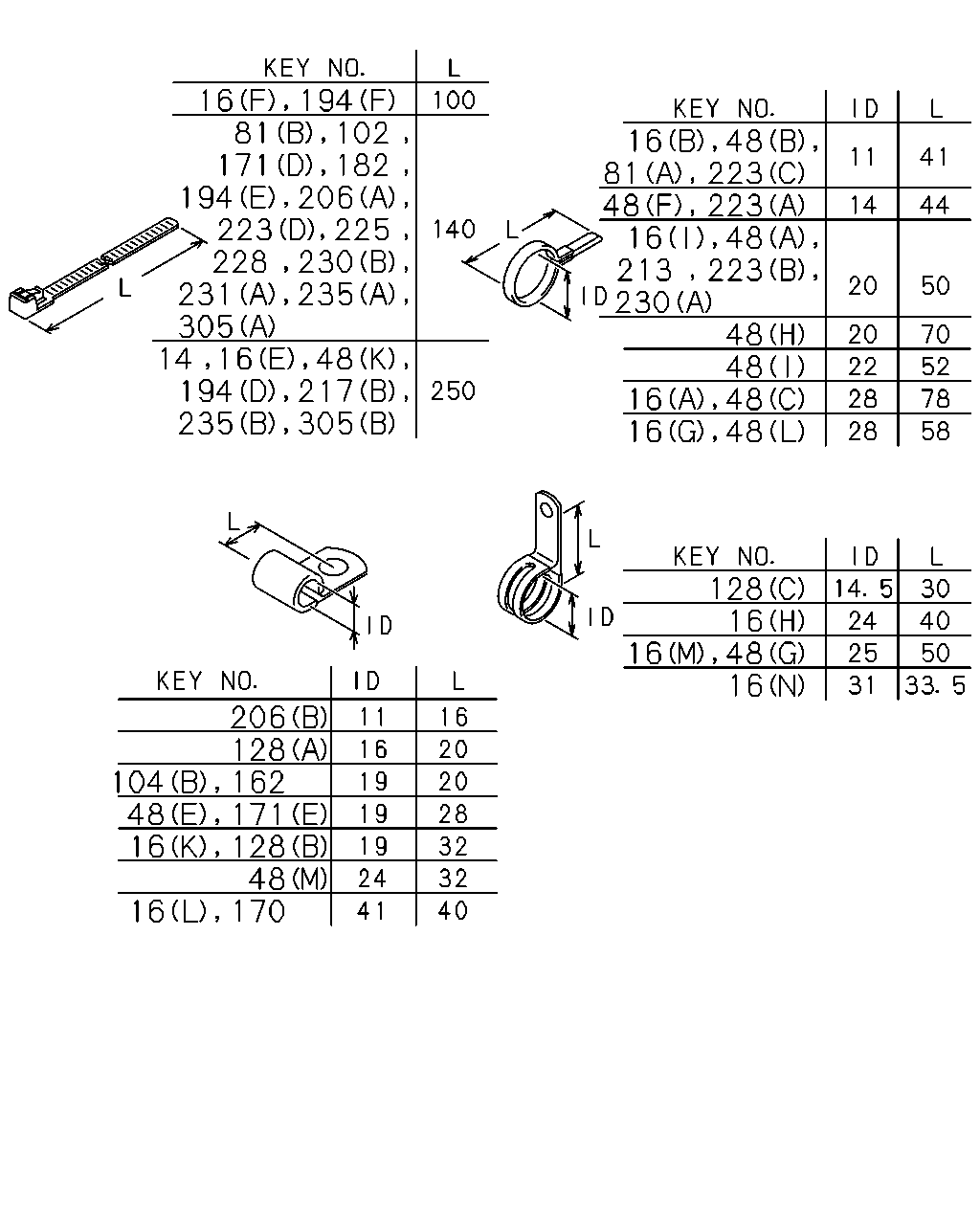

çizim 8780
16 194 81 102 171 182 230 228 305 230 48 48 48 48 16 16 128 16 16 206 128 162 171 128 48 170 104 48 16 16 194 206 223 225 231 235 48 16 14 217 194 305 235 16 48 81 223 48 223 213 223 48 16 48 16
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
SPEED LIMITER CABLE STROKE CONTROL<TDT> L=250 		5-09707-030-1 30 1 9906-
16 CLIP; HARNESS
(G) ID=28 L=58 		1-09700-400-0 01 1 9606-9810
16 CLIP; HARNESS
(J) L=300 		1-09707-001-1 01 1 9811-
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 9606-9810
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9811-
16 CLIP; HARNESS
(L) ID=41 L=40 		1-09700-596-0 01 1 9606-9810
16 CLIP; HARNESS
(M) ID=25 L=50 		1-09701-019-0 01 1 9811-9902
16 CLIP; HARNESS
(M) ID=25 L=50 		1-09701-019-0 01 1 9903-0203
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (M) ID=25 L=50 		1-09701-019-0 01 1 9903-0203
16 CLIP; HARNESS
(M) ID=25 L=50 		1-09701-019-0 01 1 0204-
16 CLIP; HARNESS
(C) ID=19 H=33 L=45 		1-09701-045-0 01 1 9606-9902
16 CLIP; HARNESS
6HE1 TC ENG(57L) (C) ID=19 H=33 L=45 		1-09701-045-0 01 1 9903-0203
16 CLIP; HARNESS
(J) L=300 		1-09707-001-0 02 1 9606-9810
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9811-
16 CLIP; HARNESS
(N) ID=31 L=33.5 		1-09987-165-0 01 1 9606-9810
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 9811-
16 CLIP; HARNESS
(K) ID=19 L=32 		9-09525-866-0 01 1 9606-9902
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (K) ID=19 L=32 		9-09525-866-0 01 1 9903-0203
16 CLIP; HARNESS
(K) ID=19 L=32 		9-09525-866-0 01 1 0204-0606
16 CLIP; HARNESS
(K) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 04 1 9606-9810
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9811-
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (H) ID=24 L=40 		1-09701-139-0 01 1 9903-0203
16 CLIP; HARNESS
(H) ID=24 L=40 		1-09701-139-0 01 1 0204-
16 CLIP; HARNESS
SAUDI ARABIA EQUIPMENT(WH1) (F) L=100 		5-09707-036-0 01 1 9606-9810
16 CLIP; HARNESS
6HE1 TCC ENG(76L) (D) ID=19 H=21 L=50 		1-09700-910-1 01 1 9903-0203
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 0204-
48 CLIP; FRAME HARNESS
(J) ID=12 H=24 L=20 		1-09700-605-0 01 1 9606-9810
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 9811-
48 CLIP; FRAME HARNESS
(D) L=250 		5-09707-030-0 02 1 9606-9810
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9811-
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 02 1 9606-9810
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 9811-0606
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 02 1 9606-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9606-9810
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 17 1 9811-
48 CLIP; FRAME HARNESS
(I) ID=22 L=52 		9-09917-431-0 01 1 9606-9810
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 04 1 9811-
48 CLIP; FRAME HARNESS
(L) ID=28 L=58 		1-09700-400-0 02 1 9606-9810
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9811-
48 CLIP; FRAME HARNESS
(L) ID=28 L=58 		1-09700-400-0 04 1 9606-9810
48 CLIP; FRAME HARNESS
(M) ID=24 L=32 		1-09700-766-1 01 1 9606-9810
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 07 1 9606-9810
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 9606-9810
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (D) ID=25 H=30 L=35 		1-09700-875-0 01 1 9903-0203
48 CLIP; FRAME HARNESS
(D) ID=25 H=30 L=35 		1-09700-875-0 01 1 0204-
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (G) ID=25 L=50 		1-09700-976-0 02 1 9903-0203
48 CLIP; FRAME HARNESS
(G) ID=25 L=50 		1-09700-976-0 02 1 0204-
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (D) ID=24 H=40 L=24 		1-09701-243-0 01 1 9903-0203
48 CLIP; FRAME HARNESS
(D) ID=24 H=40 L=24 		1-09701-243-1 01 1 0204-
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (K) L=250 		5-09707-030-1 01 1 9903-0203
48 CLIP; FRAME HARNESS
(K) L=250 		5-09707-030-1 01 1 0204-
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (A) ID=20 L=50 		9-09917-430-0 10 1 9606-9810
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9811-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (A) ID=20 L=50 		9-09917-430-0 14 1 9606-9810
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (A) ID=20 L=50 		9-09917-430-0 16 1 9606-9810
81 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 9606-9609
81 CLIP; HARNESS
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=11 L=41 		1-09700-403-0 02 1 9610-9810
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 9811-
102 CLIP; BAND
L=140 		5-09707-031-0 01 1 9606-9810
104 CLIP; HEADLAMP HARNESS
(C) L=85 		8-94232-611-0 03 1 9606-9810
104 CLIP; HEADLAMP HARNESS
(A) L=142 		8-94232-619-0 02 1 9606-9810
104 CLIP; HEADLAMP HARNESS
(A) L=142 		8-94232-619-0 07 1 9606-9810
104 CLIP; HEADLAMP HARNESS
(B) ID=19 L=20 		9-09525-832-0 01 1 9606-9810
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9811-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9811-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
162 CLIP; SW HARNESS
ID=19 L=20 		9-09525-832-0 01 1 9606-9810
170 CLIP; ELEC HARNESS
ID=41 L=40 		1-09700-596-0 01 1 9606-9810
171 CLIP; STARTER HARNESS
(A) ID=35 L=35 		1-09700-726-0 03 1 9606-9810
171 CLIP; STARTER HARNESS
(E) ID=19 L=28 		9-09525-856-0 04 1 9811-0606
171 CLIP; STARTER HARNESS
(E) ID=19 L=28 		0-95235-856-0 04 1 0607-
171 CLIP; STARTER HARNESS
(B) L=135 		1-09987-143-1 02 1 9606-9810
171 CLIP; STARTER HARNESS
(C) 		1-09987-193-0 01 1 9606-9810
171 CLIP; STARTER HARNESS
(D) L=140 		5-09707-031-0 01 1 9606-9810
171 CLIP; STARTER HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 9811-
182 CLIP; HARNESS,OIL FILTER
L=140 		5-09707-031-0 01 1 9606-9810
194 CLIP; BAND
(A) L=180 		1-09707-162-0 03 1 9606-9810
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 9811-
194 CLIP; BAND
(B) L=219.5 		1-09987-136-0 03 1 9606-9810
194 CLIP; BAND
(C) L=135 		1-09987-143-1 02 1 9606-9810
194 CLIP; BAND
(D) L=250 		5-09707-030-0 01 1 9606-9810
194 CLIP; BAND
HEATER & DEFROSTER<C41> (E) L=140 		5-09707-031-0 01 1 9606-9810
194 CLIP; BAND
HEATER & DEFROSTER<C41> (F) L=100 		5-09707-036-0 02 1 9606-9810
194 CLIP; BAND
EXC. HEATER & DEFROSTER<C41> (E) L=140 		5-09707-031-0 03 1 9606-9810
194 CLIP; BAND
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=180 		1-09707-162-0 01 1 9606-9810
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-1 02 1 9606-
206 CLIP; FUEL TANK HARNESS
FUEL TANK 200L FRAME SIDE<N20> (B) ID=11 L=16 		9-09525-022-0 01 1 9606-9810
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9606-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9606-
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9606-
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 9606-
223 CLIP; AIR TANK HARNESS
(A) ID=14 L=44 		9-09917-427-0 01 1 9606-9810
223 CLIP; AIR TANK HARNESS
(A) ID=14 L=44 		9-09917-427-0 02 1 9811-
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 9606-9810
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 03 1 9811-
223 CLIP; AIR TANK HARNESS
(E) OD=9 H=6 		1-09709-178-0 03 1 9811-
223 CLIP; AIR TANK HARNESS
(D) L=140 		5-09707-031-1 01 1 9811-
225 CLIP; AIR TANK HARNESS
L=140 		5-09707-031-0 01 1 9606-9810
228 CLIP; COOLER HARNESS
L=140 		5-09707-031-1 01 1 9811-
230 CLIP; C/MBR HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 9606-
230 CLIP; C/MBR HARNESS
HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=140 		5-09707-031-0 01 1 9610-9810
231 CLIP; BAND,OIL PRESS
(A) L=140 		5-09707-031-0 01 1 9606-9810
231 CLIP; BAND,OIL PRESS
(B) L=180 		1-09707-162-1 01 1 9811-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 9606-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=6 H=25 L=21 		1-09700-432-0 01 1 9811-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=140 		5-09707-031-1 01 1 9811-
305 CLIP; ENG HARNESS
(B) L=250 		5-09707-030-0 01 1 9606-9810
305 CLIP; ENG HARNESS
(C) L=180 		1-09707-162-1 01 1 9811-9902
305 CLIP; ENG HARNESS
EXC. EURO2 SPECIFICATION<THN> (C) L=180 		1-09707-162-1 01 1 9903-0203
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<THN> (A) L=140 		5-09707-031-1 02 1 9903-0203
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 02 1 0204-
çizim 38755
16 104 148 121 171 470 104 148 168 171 194 171 305 171 16 48 16 48 223 229 231 194 235 176
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(G) ID=28 L=58 		1-09700-400-0 01 1 9606-9810
16 CLIP; HARNESS
(J) L=300 		1-09707-001-1 01 1 9811-
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 9606-9810
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9811-
16 CLIP; HARNESS
(L) ID=41 L=40 		1-09700-596-0 01 1 9606-9810
16 CLIP; HARNESS
(M) ID=25 L=50 		1-09701-019-0 01 1 9811-9902
16 CLIP; HARNESS
(M) ID=25 L=50 		1-09701-019-0 01 1 9903-0203
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (M) ID=25 L=50 		1-09701-019-0 01 1 9903-0203
16 CLIP; HARNESS
(M) ID=25 L=50 		1-09701-019-0 01 1 0204-
16 CLIP; HARNESS
(C) ID=19 H=33 L=45 		1-09701-045-0 01 1 9606-9902
16 CLIP; HARNESS
6HE1 TC ENG(57L) (C) ID=19 H=33 L=45 		1-09701-045-0 01 1 9903-0203
16 CLIP; HARNESS
(J) L=300 		1-09707-001-0 02 1 9606-9810
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9811-
16 CLIP; HARNESS
(N) ID=31 L=33.5 		1-09987-165-0 01 1 9606-9810
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 9811-
16 CLIP; HARNESS
(K) ID=19 L=32 		9-09525-866-0 01 1 9606-9902
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (K) ID=19 L=32 		9-09525-866-0 01 1 9903-0203
16 CLIP; HARNESS
(K) ID=19 L=32 		9-09525-866-0 01 1 0204-0606
16 CLIP; HARNESS
(K) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 04 1 9606-9810
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9811-
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (H) ID=24 L=40 		1-09701-139-0 01 1 9903-0203
16 CLIP; HARNESS
(H) ID=24 L=40 		1-09701-139-0 01 1 0204-
16 CLIP; HARNESS
SAUDI ARABIA EQUIPMENT(WH1) (F) L=100 		5-09707-036-0 01 1 9606-9810
16 CLIP; HARNESS
6HE1 TCC ENG(76L) (D) ID=19 H=21 L=50 		1-09700-910-1 01 1 9903-0203
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 0204-
48 CLIP; FRAME HARNESS
(J) ID=12 H=24 L=20 		1-09700-605-0 01 1 9606-9810
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 9811-
48 CLIP; FRAME HARNESS
(D) L=250 		5-09707-030-0 02 1 9606-9810
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9811-
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 02 1 9606-9810
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 9811-0606
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 02 1 9606-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9606-9810
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 17 1 9811-
48 CLIP; FRAME HARNESS
(I) ID=22 L=52 		9-09917-431-0 01 1 9606-9810
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 04 1 9811-
48 CLIP; FRAME HARNESS
(L) ID=28 L=58 		1-09700-400-0 02 1 9606-9810
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9811-
48 CLIP; FRAME HARNESS
(L) ID=28 L=58 		1-09700-400-0 04 1 9606-9810
48 CLIP; FRAME HARNESS
(M) ID=24 L=32 		1-09700-766-1 01 1 9606-9810
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 07 1 9606-9810
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 9606-9810
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (D) ID=25 H=30 L=35 		1-09700-875-0 01 1 9903-0203
48 CLIP; FRAME HARNESS
(D) ID=25 H=30 L=35 		1-09700-875-0 01 1 0204-
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (G) ID=25 L=50 		1-09700-976-0 02 1 9903-0203
48 CLIP; FRAME HARNESS
(G) ID=25 L=50 		1-09700-976-0 02 1 0204-
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (D) ID=24 H=40 L=24 		1-09701-243-0 01 1 9903-0203
48 CLIP; FRAME HARNESS
(D) ID=24 H=40 L=24 		1-09701-243-1 01 1 0204-
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (K) L=250 		5-09707-030-1 01 1 9903-0203
48 CLIP; FRAME HARNESS
(K) L=250 		5-09707-030-1 01 1 0204-
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (A) ID=20 L=50 		9-09917-430-0 10 1 9606-9810
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9811-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (A) ID=20 L=50 		9-09917-430-0 14 1 9606-9810
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (A) ID=20 L=50 		9-09917-430-0 16 1 9606-9810
104 CLIP; HEADLAMP HARNESS
(C) L=85 		8-94232-611-0 03 1 9606-9810
104 CLIP; HEADLAMP HARNESS
(A) L=142 		8-94232-619-0 02 1 9606-9810
104 CLIP; HEADLAMP HARNESS
(A) L=142 		8-94232-619-0 07 1 9606-9810
104 CLIP; HEADLAMP HARNESS
(B) ID=19 L=20 		9-09525-832-0 01 1 9606-9810
121 CLIP; FACIA HARNESS
OD=6.8 H=5 		8-97082-051-0 02 1 9811-
148 CLIP; BAND,HEADLAMP HARNESS
(B) L=85 		8-94232-611-0 01 1 9811-
148 CLIP; BAND,HEADLAMP HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 01 1 9811-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 9811-
171 CLIP; STARTER HARNESS
(A) ID=35 L=35 		1-09700-726-0 03 1 9606-9810
171 CLIP; STARTER HARNESS
(E) ID=19 L=28 		9-09525-856-0 04 1 9811-0606
171 CLIP; STARTER HARNESS
(E) ID=19 L=28 		0-95235-856-0 04 1 0607-
171 CLIP; STARTER HARNESS
(B) L=135 		1-09987-143-1 02 1 9606-9810
171 CLIP; STARTER HARNESS
(C) 		1-09987-193-0 01 1 9606-9810
171 CLIP; STARTER HARNESS
(D) L=140 		5-09707-031-0 01 1 9606-9810
171 CLIP; STARTER HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 9811-
176 CLIP; BACK SW HARNESS
HEAVY DUTY PACKAGE TRUCK<RD2> MLD6 M/T<X9Y> ID=11 		1-09700-415-0 01 1 9610-9810
194 CLIP; BAND
(A) L=180 		1-09707-162-0 03 1 9606-9810
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 9811-
194 CLIP; BAND
(B) L=219.5 		1-09987-136-0 03 1 9606-9810
194 CLIP; BAND
(C) L=135 		1-09987-143-1 02 1 9606-9810
194 CLIP; BAND
(D) L=250 		5-09707-030-0 01 1 9606-9810
194 CLIP; BAND
HEATER & DEFROSTER<C41> (E) L=140 		5-09707-031-0 01 1 9606-9810
194 CLIP; BAND
HEATER & DEFROSTER<C41> (F) L=100 		5-09707-036-0 02 1 9606-9810
194 CLIP; BAND
EXC. HEATER & DEFROSTER<C41> (E) L=140 		5-09707-031-0 03 1 9606-9810
194 CLIP; BAND
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=180 		1-09707-162-0 01 1 9606-9810
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 9606-
223 CLIP; AIR TANK HARNESS
(A) ID=14 L=44 		9-09917-427-0 01 1 9606-9810
223 CLIP; AIR TANK HARNESS
(A) ID=14 L=44 		9-09917-427-0 02 1 9811-
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 9606-9810
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 03 1 9811-
223 CLIP; AIR TANK HARNESS
(E) OD=9 H=6 		1-09709-178-0 03 1 9811-
223 CLIP; AIR TANK HARNESS
(D) L=140 		5-09707-031-1 01 1 9811-
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 9811-
231 CLIP; BAND,OIL PRESS
(A) L=140 		5-09707-031-0 01 1 9606-9810
231 CLIP; BAND,OIL PRESS
(B) L=180 		1-09707-162-1 01 1 9811-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 9606-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=6 H=25 L=21 		1-09700-432-0 01 1 9811-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=140 		5-09707-031-1 01 1 9811-
305 CLIP; ENG HARNESS
(B) L=250 		5-09707-030-0 01 1 9606-9810
305 CLIP; ENG HARNESS
(C) L=180 		1-09707-162-1 01 1 9811-9902
305 CLIP; ENG HARNESS
EXC. EURO2 SPECIFICATION<THN> (C) L=180 		1-09707-162-1 01 1 9903-0203
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<THN> (A) L=140 		5-09707-031-1 02 1 9903-0203
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 02 1 0204-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 9811-
çizim 40931
252 217 194 59 421 53 312 154 103 335
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
EURO2 SPECIFICATION<THN> 		1-47476-812-1 01 1 9903-0203
53 BRACKET; HARNESS 1-47476-812-1 01 1 0204-
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 9811-
103 BRACKET; HD LAMP HARNESS 1-71998-471-0 02 1 9606-9810
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 9606-9810
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 9811-9902
154 BRACKET; STARTER EARTH CABLE
6HE1 TC ENG(57L) 		1-47465-518-0 01 1 9903-0203
194 CLIP; BAND
(A) L=180 		1-09707-162-0 03 1 9606-9810
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 9811-
194 CLIP; BAND
(B) L=219.5 		1-09987-136-0 03 1 9606-9810
194 CLIP; BAND
(C) L=135 		1-09987-143-1 02 1 9606-9810
194 CLIP; BAND
(D) L=250 		5-09707-030-0 01 1 9606-9810
194 CLIP; BAND
HEATER & DEFROSTER<C41> (E) L=140 		5-09707-031-0 01 1 9606-9810
194 CLIP; BAND
HEATER & DEFROSTER<C41> (F) L=100 		5-09707-036-0 02 1 9606-9810
194 CLIP; BAND
EXC. HEATER & DEFROSTER<C41> (E) L=140 		5-09707-031-0 03 1 9606-9810
194 CLIP; BAND
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=180 		1-09707-162-0 01 1 9606-9810
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9606-
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9606-
252 CLIP; CONNECTOR FIX
W/SPONGE RUBBER 		1-09709-150-0 01 1 9606-9810
312 BRACKET; CLIP HARNESS 1-82699-588-0 01 1 9811-
335 BRACKET; CONNECTOR 1-82699-517-0 01 1 9811-
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 9811-
çizim 40932
38 173 38 38 139 38 133 133 520 184 524 219 209 516 239 386 239 38 313 64 38 210 294 219
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28080-816-0 03 1 9606-9810
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28080-816-0 04 1 9811-0512
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 02 1 9606-0512
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 9606-9810
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 02 1 9811-0512
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 01 1 9606-9810
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 02 1 9811-0512
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(A) M6X20 W/LK&PL WASHER 		1-09980-493-0 03 1 9606-9810
38 BOLT; CLIP,HARNESS
(C) M10X16 FLANGE 		0-28081-016-0 01 1 9811-9811
38 BOLT; CLIP,HARNESS
(C) M10X16 FLANGE 		0-28181-016-0 01 1 9812-0512
38 BOLT; CLIP,HARNESS
(C) M10X16 FLANGE 		0-28151-016-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(E) M6X12 W/LK&PL WASHER 		9-03920-612-0 02 1 9606-9810
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9811-9902
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9903-0203
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9903-0203
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0204-
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (D) M8X20 FLANGE 		0-28680-820-0 04 1 9903-0203
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 04 1 0204-0512
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (D) M8X25 FLANGE 		0-28680-825-0 03 1 9903-0203
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 03 1 0204-0512
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 03 1 0601-
38 BOLT; CLIP,HARNESS
HEATER & DEFROSTER<C41> (D) M6X20 FLANGE 		0-28680-620-0 02 1 9606-9810
38 BOLT; CLIP,HARNESS
EXC. HEATER & DEFROSTER<C41> (F) M5X16 TAPPING W/PL WASHER 		0-74100-516-0 01 1 9606-9810
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9811-0512
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
64 SCREW; CLIP
FUEL TANK 200L FRAME SIDE<N20> M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 9606-9810
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 9811-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 9811-0512
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9606-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 9606-9810
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9606-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9606-9810
219 NUT
(A) M8 		9-09110-408-0 04 1 9606-9810
219 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9811-0602
219 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
(B) M8 FLANGE 		0-91150-108-0 04 1 9811-9902
219 NUT
(B) M8 FLANGE 		0-91150-108-0 04 1 9903-0203
219 NUT
EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 04 1 9903-0203
219 NUT
(B) M8 FLANGE 		0-91150-108-0 04 1 0204-0602
219 NUT
(B) M8 FLANGE 		0-91180-108-0 04 1 0603-
239 BOLT; GRAND
(B) M5X8 		0-20800-508-0 01 1 9606-
239 BOLT; GRAND
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9606-9810
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9811-
239 BOLT; GRAND
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9811-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9811-0602
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 9811-0602
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
313 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9811-0512
313 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
386 BOLT; GRAND HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9606-9810
386 BOLT; GRAND HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 03 1 9606-9810
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9811-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9606-9810
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 9811-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-
çizim 42183
178 503 185 513 224
BalonParca AdiParca NoAdetTipApplied Date
178 GROMMET; HARNESS
ID=15 OD=20 T=17.5 		9-09956-178-0 03 1 9606-9810
178 GROMMET; HARNESS
ID=19 OD=23 T=24 		1-09332-103-0 01 1 9811-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9606-9810
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 02 1 9811-
185 SLEEVE; RUBBER
ID=9 OD=14 L=35 		8-94127-043-0 01 1 9606-9810
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 01 1 9606-9810
503 CONNECTOR 1-82690-668-0 02 1 9811-
513 TAPE; SOFT,HARNESS
100X30 		1-72498-014-1 02 1 9811-9902
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 02 1 9903-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
