Sayfa 6-20 - Isuzu EPC

6-20 — SIDE PANEL AND STEP (#60112) — 210 parça

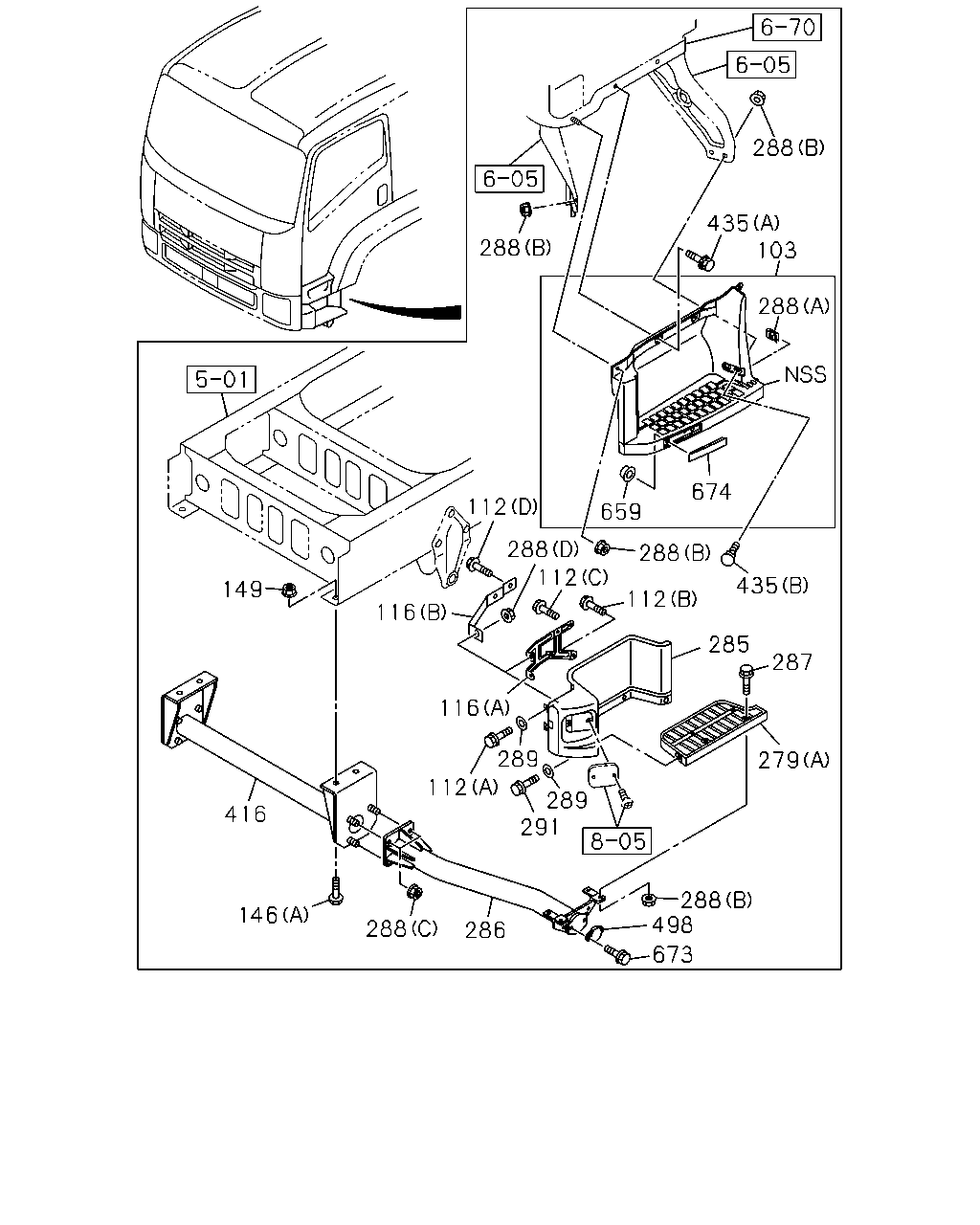

673 286 288 146 416 112 291 498 288 279 287 435 285 112 112 288 289 289 116 116 112 288 659 674 149 288 103 435 288 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
103	PLATE; STEP	8-98069-977-2	01	1	1010-	●	●
103	PLATE; STEP	8-98069-976-2	01	1	1010-	●	●
112	BOLT; 1ST STEP CORNERING LAMP<T87> (B) M6X25 FLANGE	0-28050-625-0	02	1	1210-1306	●	●
112	BOLT; 1ST STEP CORNERING LAMP<T87> (B) M6X25 FLANGE	0-28050-625-0	02	1	1307-	●
112	BOLT; 1ST STEP (B) M6X25 FLANGE	0-28050-625-0	02	1	1307-		●
112	BOLT; 1ST STEP CORNERING LAMP<T87> (C) M8X16 FLANGE	0-28050-816-0	04	1	1210-1306	●	●
112	BOLT; 1ST STEP CORNERING LAMP<T87> (C) M8X16 FLANGE	0-28050-816-0	04	1	1307-	●
112	BOLT; 1ST STEP (C) M8X16 FLANGE	0-28050-816-0	04	1	1307-		●
112	BOLT; 1ST STEP EXC. CORNERING LAMP<T87> (A) M6X16 FLANGE	0-28050-616-0	02	1	1210-1306	●	●
112	BOLT; 1ST STEP EXC. CORNERING LAMP<T87> (A) M6X16 FLANGE	0-28050-616-0	02	1	1307-	●
112	BOLT; 1ST STEP (A) M6X16 FLANGE	0-28050-616-0	04	1	1010-1112	●	●
112	BOLT; 1ST STEP (A) M6X16 FLANGE	0-28050-616-0	02	1	1201-1209	●	●
112	BOLT; 1ST STEP CORNERING LAMP<T87> (A) M6X16 FLANGE	0-28050-616-0	04	1	1210-1306	●	●
112	BOLT; 1ST STEP CORNERING LAMP<T87> (A) M6X16 FLANGE	0-28050-616-0	04	1	1307-	●
112	BOLT; 1ST STEP (A) M6X16 FLANGE	0-28050-616-0	04	1	1307-		●
112	BOLT; 1ST STEP (B) M6X25 FLANGE	0-28050-625-0	02	1	1010-1112	●	●
112	BOLT; 1ST STEP (D) M8X12 FLANGE	0-28050-812-0	04	1	1201-1209	●	●
112	BOLT; 1ST STEP EXC. CORNERING LAMP<T87> (D) M8X12 FLANGE	0-28050-812-0	04	1	1210-1306	●	●
112	BOLT; 1ST STEP EXC. CORNERING LAMP<T87> (D) M8X12 FLANGE	0-28050-812-0	04	1	1307-	●
112	BOLT; 1ST STEP (C) M8X16 FLANGE	0-28050-816-0	04	1	1010-1112	●	●
112	BOLT; 1ST STEP (B) M6X20 FLANGE	0-28050-620-0	02	1	1201-1209	●	●
112	BOLT; 1ST STEP EXC. CORNERING LAMP<T87> (B) M6X20 FLANGE	0-28050-620-0	02	1	1210-1306	●	●
112	BOLT; 1ST STEP EXC. CORNERING LAMP<T87> (B) M6X20 FLANGE	0-28050-620-0	02	1	1307-	●
116	STAY; 1ST STEP,FRT CORNERING LAMP<T87> (A)	8-98062-133-1	01	1	1210-1306	●	●
116	STAY; 1ST STEP,FRT CORNERING LAMP<T87> (A)	8-98062-133-1	01	1	1307-	●
116	STAY; 1ST STEP,FRT (A)	8-98062-133-1	01	1	1307-		●
116	STAY; 1ST STEP,FRT CORNERING LAMP<T87> (A)	8-98062-134-1	01	1	1210-1306	●	●
116	STAY; 1ST STEP,FRT CORNERING LAMP<T87> (A)	8-98062-134-1	01	1	1307-	●
116	STAY; 1ST STEP,FRT (A)	8-98062-134-1	01	1	1307-		●
116	STAY; 1ST STEP,FRT (A)	8-98062-133-1	01	1	1010-1112	●	●
116	STAY; 1ST STEP,FRT (B)	8-98196-756-0	02	1	1201-1209	●	●
116	STAY; 1ST STEP,FRT EXC. CORNERING LAMP<T87> (B)	8-98196-756-0	02	1	1210-1306	●	●
116	STAY; 1ST STEP,FRT EXC. CORNERING LAMP<T87> (B)	8-98196-756-0	02	1	1307-	●
116	STAY; 1ST STEP,FRT (A)	8-98062-134-1	01	1	1010-1112	●	●
146	BOLT; STEP BRKT (A) M14X45 FLANGE	0-28851-445-0	04	1	1010-1107	●	●
146	BOLT; STEP BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M14X45 FLANGE	0-28851-445-0	04	1	1108-1306	●	●
146	BOLT; STEP BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M14X45 FLANGE	0-28851-445-0	04	1	1307-	●
146	BOLT; STEP BRKT (B) M8X25 FLANGE	0-28650-825-0	08	1	1010-		●
149	NUT; STEP BRKT M14 FLANGE	0-91180-214-0	04	1	1010-1107	●	●
149	NUT; STEP BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE	0-91180-214-0	04	1	1108-1306	●	●
149	NUT; STEP BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE	0-91180-214-0	04	1	1307-	●
279	BOARD; STEP 1ST (A)	1-53414-181-0	01	1	1010-1306	●	●
279	BOARD; STEP 1ST (A)	1-53414-181-0	01	1	1010-	●	●
279	BOARD; STEP 1ST (A)	1-53414-180-0	01	1	1010-1306	●	●
279	BOARD; STEP 1ST (A)	1-53414-180-0	01	1	1010-	●	●

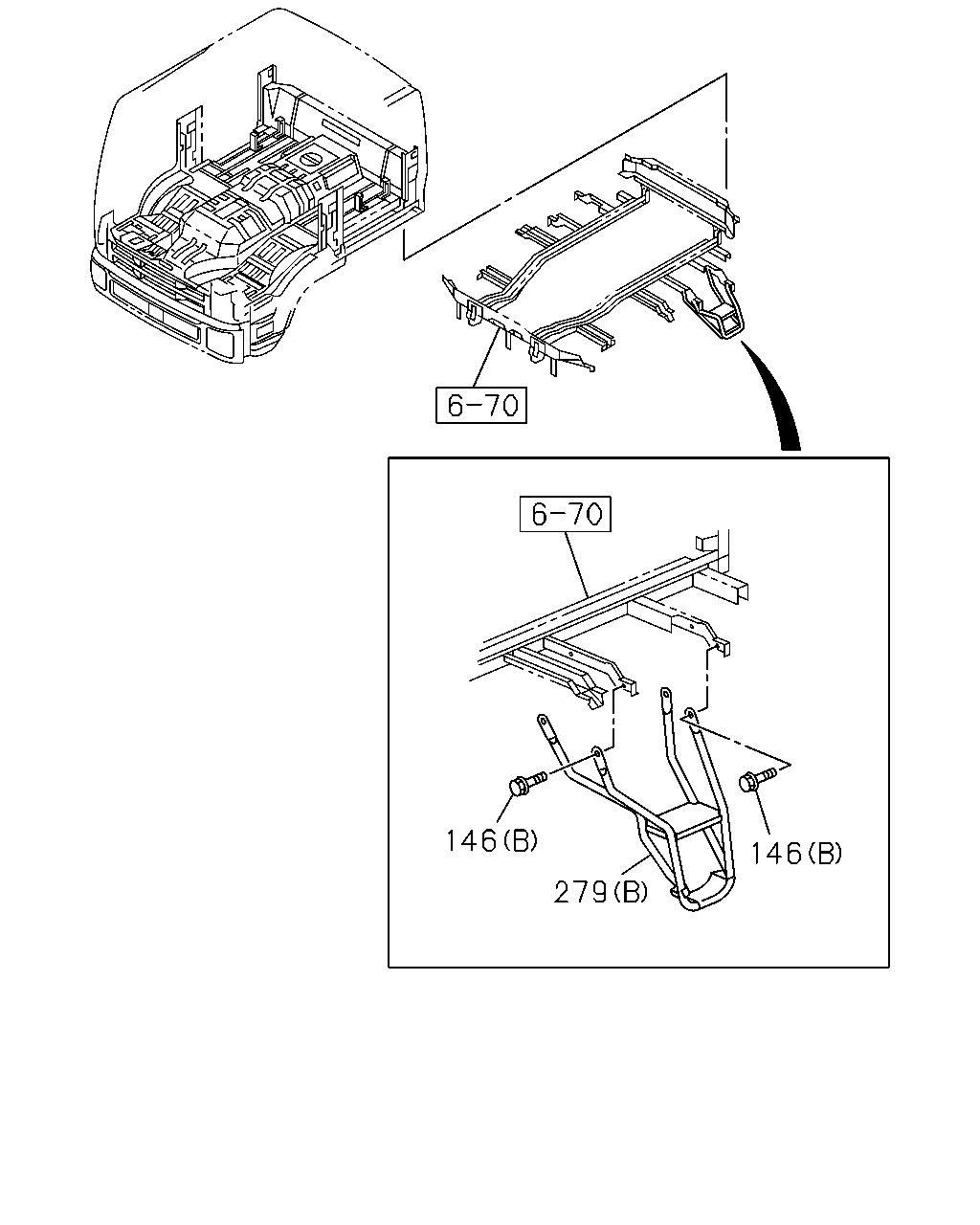

279	BOARD; STEP 1ST (B)	8-98058-394-3	01	1	1010-1306		●
279	BOARD; STEP 1ST (B)	8-98058-394-3	01	1	1010-		●
279	BOARD; STEP 1ST (B)	8-98058-389-3	01	1	1010-1306		●
279	BOARD; STEP 1ST (B)	8-98058-389-3	01	1	1010-		●
285	PLATE; STEP,1ST STEP	8-98017-535-3	01	1	1010-	●	●
285	PLATE; STEP,1ST STEP	8-98017-536-3	01	1	1010-	●	●
286	STEP ASM; 1ST	8-98082-430-2	01	1	1010-	●	●
286	STEP ASM; 1ST	8-98082-431-2	01	1	1010-	●	●
287	BOLT; BOARD STEP M8X40 FLANGE	0-28650-840-0	08	1	1010-1107	●	●
287	BOLT; BOARD STEP M8X35 FLANGE	0-28650-835-0	08	1	1108-	●	●
288	NUT; STEP (D) M6 FLANGE	0-91180-106-0	02	1	1201-1209	●	●
288	NUT; STEP EXC. CORNERING LAMP<T87> (D) M6 FLANGE	0-91180-106-0	02	1	1210-1306	●	●
288	NUT; STEP EXC. CORNERING LAMP<T87> (D) M6 FLANGE	0-91180-106-0	02	1	1307-	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	08	1	1106-1306	●	●
288	NUT; STEP M8 FLANGE	0-91180-108-0	08	1	1307-	●	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	18	1	1010-1105	●	●
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	10	1	1106-	●	●
288	NUT; STEP (C) M12 FLANGE	0-91180-212-0	06	1	1010-	●	●
288	NUT; STEP (A) M8	8-98040-792-0	02	1	1010-	●	●
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	10	1	1010-	●	●
291	BOLT; STEP PLATE M6X12 FLANGE	0-28050-612-0	06	1	1010-	●	●
416	BRACKET; ASSIST STEP	8-98053-542-4	01	1	1010-1107	●	●
416	BRACKET; ASSIST STEP EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98053-542-4	01	1	1108-1306	●	●
416	BRACKET; ASSIST STEP EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98053-542-4	01	1	1307-	●
435	BOLT; RR STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1010-	●	●
435	BOLT; RR STEP (B) M8X18	8-98146-670-0	08	1	1010-	●	●
498	REFLECTOR	1-82290-011-1	02	1	1010-	●	●
659	CLIP; SPRING NUT	8-97811-510-0	04	1	1010-	●	●
673	BOLT; REFLECTOR M5X16 W/LK&PL WASHER	8-94198-538-0	04	1	1010-	●	●
674	COVER; REFLECTOR	8-98092-734-0	01	1	1010-	●	●
674	COVER; REFLECTOR	8-98092-733-0	01	1	1010-	●	●

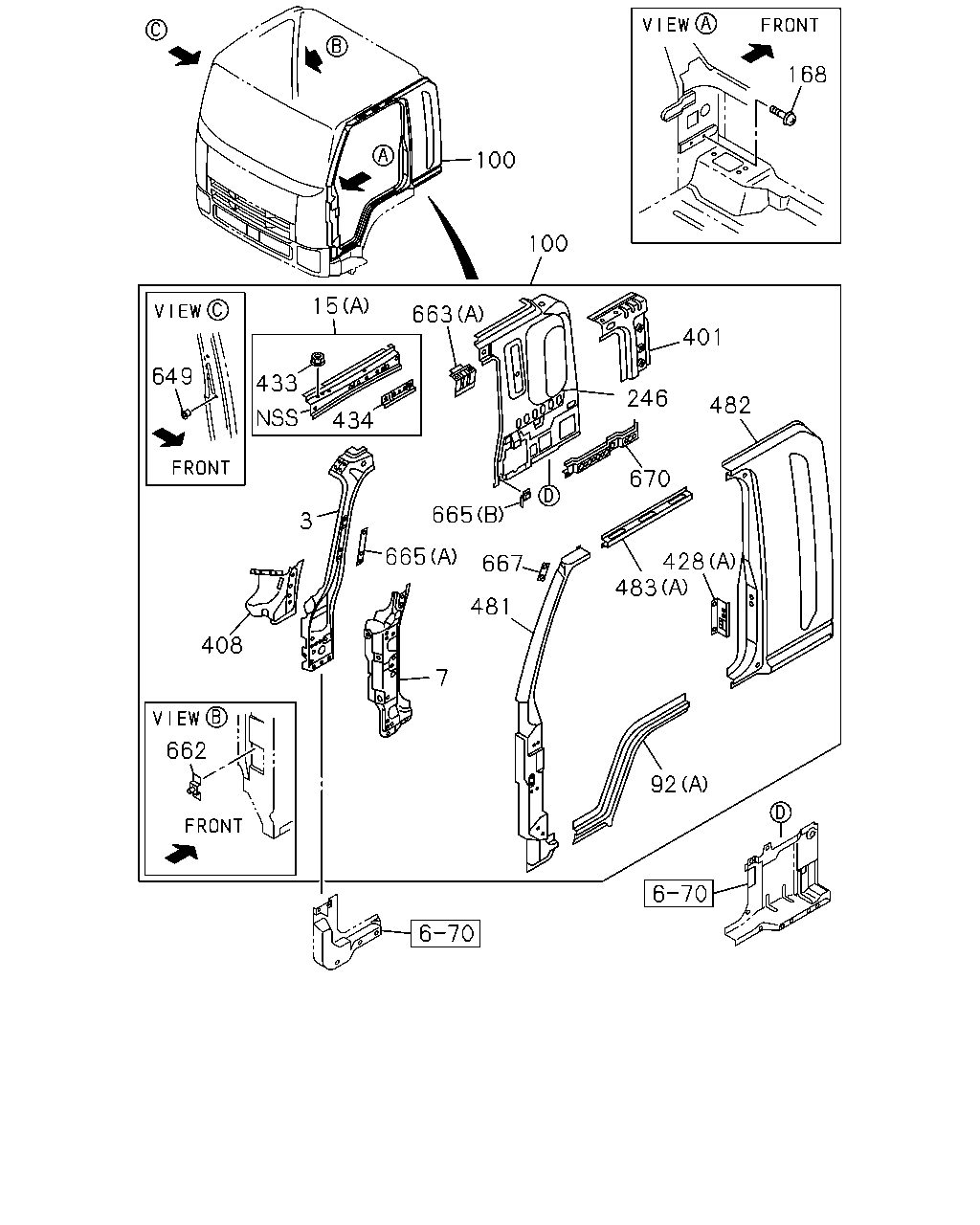

100 168 100 649 408 662 15 433 434 3 665 7 481 667 665 663 246 670 483 428 92 482 401

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PANEL; CLOSING,FRT PILLAR	8-98058-237-1	01	1	1010-	●	●
3	PANEL; CLOSING,FRT PILLAR	8-98058-236-1	01	1	1010-	●	●
7	REINFORCEMENT; HINGE	8-97585-244-4	01	1	1010-	●	●
7	REINFORCEMENT; HINGE	8-97585-240-3	01	1	1010-	●	●
15	PANEL; CANT RAIL SIDE (A)	8-97585-293-2	01	1	1010-	●
15	PANEL; CANT RAIL SIDE (A)	8-97585-292-2	01	1	1010-	●
15	PANEL; CANT RAIL SIDE (B)	8-97583-740-1	01	1	1010-		●
15	PANEL; CANT RAIL SIDE (B)	8-97583-739-1	01	1	1010-		●
92	PANEL; SIDE SILL,CAB (A)	8-98055-462-1	01	1	1010-	●	●
92	PANEL; SIDE SILL,CAB (A)	8-98055-461-1	01	1	1010-	●	●
92	PANEL; SIDE SILL,CAB (B)	8-98069-113-0	02	1	1010-		●
100	PANEL ASM; BODY SIDE	8-97586-063-5	01	1	1010-	●
100	PANEL ASM; BODY SIDE MIRROR O/S UNDER VIEW<RR9>	8-97586-079-7	01	1	1010-	●
100	PANEL ASM; BODY SIDE EXC. MIRROR O/S UNDER VIEW<RR9>	8-97586-071-6	01	1	1010-	●
168	BOLT; BODY SIDE PANEL T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	08	1	1010-	●	●
246	PANEL; RR PILLAR,INNER	8-97586-158-5	01	1	1010-	●
246	PANEL; RR PILLAR,INNER	8-97586-156-5	01	1	1010-	●
401	PATCH; CLOSING,FRT PILLAR	8-97586-161-2	01	1	1010-	●
401	PATCH; CLOSING,FRT PILLAR	8-97586-160-2	01	1	1010-	●
408	GUSSET; PILLAR	8-97586-194-2	01	1	1010-	●	●
408	GUSSET; PILLAR	8-97586-193-3	01	1	1010-	●	●
428	REINFORCEMENT; DOOR STRIKER (A)	8-97585-261-4	01	1	1010-	●
428	REINFORCEMENT; DOOR STRIKER (A)	8-97585-260-4	01	1	1010-	●
428	REINFORCEMENT; DOOR STRIKER (C)	8-97851-446-1	01	1	1010-		●
428	REINFORCEMENT; DOOR STRIKER (B)	8-98014-549-0	01	1	1010-		●
428	REINFORCEMENT; DOOR STRIKER (C)	8-97851-445-1	01	1	1010-		●
428	REINFORCEMENT; DOOR STRIKER (B)	8-98014-548-0	01	1	1010-		●
433	NUT; HEADER SHELF M6	9-09114-086-0	04	1	1010-1306	●	●
433	NUT; HEADER SHELF M6	9-09114-086-0	02	1	1307-	●	●
434	PATCH; ASSIST GRIP	8-98039-020-0	01	1	1010-	●	●
434	PATCH; ASSIST GRIP	8-98039-019-0	01	1	1010-	●	●
481	PANEL; SIDE FRT PILLAR	8-98093-579-0	01	1	1010-	●	●
481	PANEL; SIDE FRT PILLAR EXC. MIRROR O/S UNDER VIEW<RR9>	8-98072-714-1	01	1	1010-	●	●
481	PANEL; SIDE FRT PILLAR MIRROR O/S UNDER VIEW<RR9>	8-98092-915-0	01	1	1010-	●	●
482	PANEL; SIDE RR PILLAR	8-98055-469-0	01	1	1010-	●
482	PANEL; SIDE RR PILLAR	8-98055-468-0	01	1	1010-	●
482	PANEL; SIDE RR PILLAR	8-98097-238-0	01	1	1010-		●
482	PANEL; SIDE RR PILLAR	8-98097-237-0	01	1	1010-		●
483	PANEL; SIDE CANTRAIL (A)	8-98055-460-0	01	1	1010-	●
483	PANEL; SIDE CANTRAIL (A)	8-98055-458-0	01	1	1010-	●
483	PANEL; SIDE CANTRAIL (C)	8-98069-095-0	02	1	1010-		●
483	PANEL; SIDE CANTRAIL (B)	8-98056-609-0	01	1	1010-		●
483	PANEL; SIDE CANTRAIL (B)	8-98056-608-0	01	1	1010-		●
649	NUT; POP M5 POP NUT	8-97249-574-0	02	1	1010-	●	●
662	BRACKET; DUCT	8-97584-611-1	01	1	1010-	●
663	BRACKET; AIR (A)	8-97585-208-2	01	1	1010-	●	●
663	BRACKET; AIR (A)	8-97585-207-2	01	1	1010-	●	●
663	BRACKET; AIR (B)	8-98020-643-1	02	1	1010-		●
665	REINFORCEMENT; GRIP,ASSIST (B)	8-98012-287-1	02	1	1010-	●
665	REINFORCEMENT; GRIP,ASSIST (A)	8-97585-314-0	02	1	1010-	●	●
667	BRACKET; MIRROR MIRROR O/S UNDER VIEW<RR9>	8-98109-948-0	01	1	1010-	●	●
670	STIFFENER; PANEL,SIDE	8-98015-044-1	02	1	1010-	●

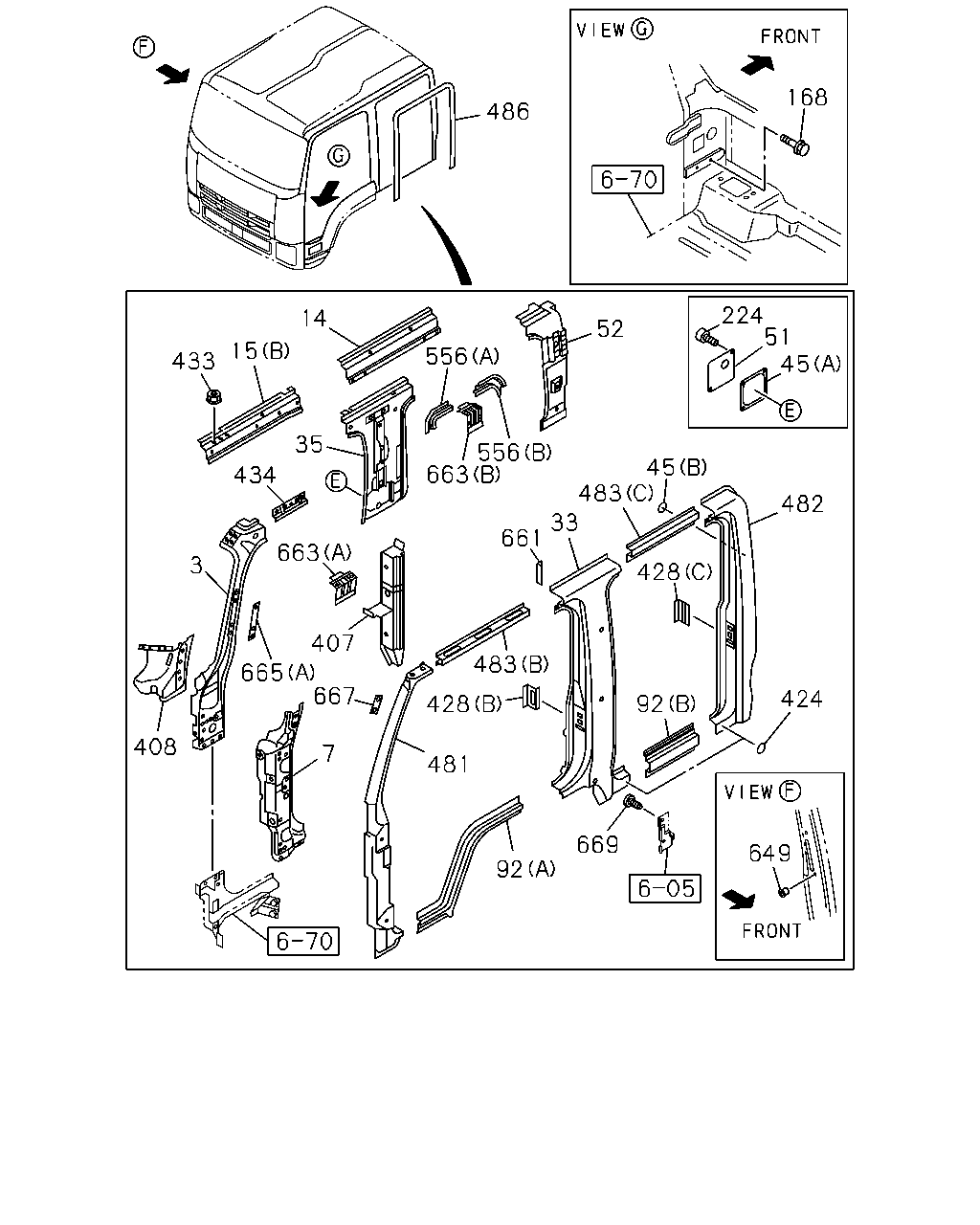

486 168 52 14 433 15 556 556 663 35 434 3 45 482 428 33 661 483 424 92 483 428 481 669 92 7 665 408 667 224 45 51 663 407 649

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PANEL; CLOSING,FRT PILLAR	8-98058-237-1	01	1	1010-	●	●
3	PANEL; CLOSING,FRT PILLAR	8-98058-236-1	01	1	1010-	●	●
7	REINFORCEMENT; HINGE	8-97585-244-4	01	1	1010-	●	●
7	REINFORCEMENT; HINGE	8-97585-240-3	01	1	1010-	●	●
14	PANEL; REINF,SIDE DRIP	8-97583-706-2	02	1	1010-		●
15	PANEL; CANT RAIL SIDE (A)	8-97585-293-2	01	1	1010-	●
15	PANEL; CANT RAIL SIDE (A)	8-97585-292-2	01	1	1010-	●
15	PANEL; CANT RAIL SIDE (B)	8-97583-740-1	01	1	1010-		●
15	PANEL; CANT RAIL SIDE (B)	8-97583-739-1	01	1	1010-		●
33	PANEL; CENTER PILLAR,OUTER	8-98069-091-0	01	1	1010-		●
33	PANEL; CENTER PILLAR,OUTER	8-98069-090-0	01	1	1010-		●
35	PANEL; CENTER PILLAR,INNER	8-98080-456-2	01	1	1010-		●
35	PANEL; CENTER PILLAR,INNER	8-98080-457-2	01	1	1010-		●
45	SEAL; B-C POST (A)	8-97853-731-2	02	1	1010-		●
45	SEAL; B-C POST BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	1010-1404		●
45	SEAL; B-C POST BODY COLOR AL GRAY(517),BODY COLOR RMS ORANGE(550) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BO DY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	1405-		●
45	SEAL; B-C POST BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=20 T=0.05 WHITE	8-98059-421-0	02	1	1010-		●
51	COVER; HOLE,B-C POST	8-94273-658-0	02	1	1010-		●
52	PANEL; D-POST UPR	8-98062-006-1	01	1	1010-		●
52	PANEL; D-POST UPR	8-98062-005-1	01	1	1010-		●
92	PANEL; SIDE SILL,CAB (A)	8-98055-462-1	01	1	1010-	●	●
92	PANEL; SIDE SILL,CAB (A)	8-98055-461-1	01	1	1010-	●	●
92	PANEL; SIDE SILL,CAB (B)	8-98069-113-0	02	1	1010-		●
168	BOLT; BODY SIDE PANEL T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	08	1	1010-	●	●
224	SCREW; COVER M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1010-		●
407	PILLAR; HINGE,RR DOOR	8-97410-824-2	01	1	1010-		●
407	PILLAR; HINGE,RR DOOR	8-97410-822-2	01	1	1010-		●
408	GUSSET; PILLAR	8-97586-194-2	01	1	1010-	●	●
408	GUSSET; PILLAR	8-97586-193-3	01	1	1010-	●	●
424	SEAL; CLOSING BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1010-1404		●
424	SEAL; CLOSING BODY COLOR AL GRAY(517),BODY COLOR RMS ORANGE(550) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BO DY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1405-		●
424	SEAL; CLOSING BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1010-		●
428	REINFORCEMENT; DOOR STRIKER (A)	8-97585-261-4	01	1	1010-	●
428	REINFORCEMENT; DOOR STRIKER (A)	8-97585-260-4	01	1	1010-	●
428	REINFORCEMENT; DOOR STRIKER (C)	8-97851-446-1	01	1	1010-		●
428	REINFORCEMENT; DOOR STRIKER (B)	8-98014-549-0	01	1	1010-		●
428	REINFORCEMENT; DOOR STRIKER (C)	8-97851-445-1	01	1	1010-		●
428	REINFORCEMENT; DOOR STRIKER (B)	8-98014-548-0	01	1	1010-		●
433	NUT; HEADER SHELF M6	9-09114-086-0	04	1	1010-1306	●	●
433	NUT; HEADER SHELF M6	9-09114-086-0	02	1	1307-	●	●
434	PATCH; ASSIST GRIP	8-98039-020-0	01	1	1010-	●	●
434	PATCH; ASSIST GRIP	8-98039-019-0	01	1	1010-	●	●
481	PANEL; SIDE FRT PILLAR	8-98093-579-0	01	1	1010-	●	●
481	PANEL; SIDE FRT PILLAR EXC. MIRROR O/S UNDER VIEW<RR9>	8-98072-714-1	01	1	1010-	●	●
481	PANEL; SIDE FRT PILLAR MIRROR O/S UNDER VIEW<RR9>	8-98092-915-0	01	1	1010-	●	●
482	PANEL; SIDE RR PILLAR	8-98055-469-0	01	1	1010-	●
482	PANEL; SIDE RR PILLAR	8-98055-468-0	01	1	1010-	●
482	PANEL; SIDE RR PILLAR	8-98097-238-0	01	1	1010-		●
482	PANEL; SIDE RR PILLAR	8-98097-237-0	01	1	1010-		●
483	PANEL; SIDE CANTRAIL (A)	8-98055-460-0	01	1	1010-	●
483	PANEL; SIDE CANTRAIL (A)	8-98055-458-0	01	1	1010-	●
483	PANEL; SIDE CANTRAIL (C)	8-98069-095-0	02	1	1010-		●
483	PANEL; SIDE CANTRAIL (B)	8-98056-609-0	01	1	1010-		●
483	PANEL; SIDE CANTRAIL (B)	8-98056-608-0	01	1	1010-		●
486	SEAL; BODY SIDE	8-98154-664-0	02	1	1010-1509		●
486	SEAL; BODY SIDE	8-98245-050-0	02	1	1510-		●
556	PATCH; ROOF SIDE (A)	8-98024-391-0	01	1	1010-		●
556	PATCH; ROOF SIDE (B)	8-98024-393-0	01	1	1010-		●
556	PATCH; ROOF SIDE (A)	8-98024-390-0	01	1	1010-		●
556	PATCH; ROOF SIDE (B)	8-98024-392-0	01	1	1010-		●
649	NUT; POP M5 POP NUT	8-97249-574-0	02	1	1010-	●	●
661	BRACKET; SIDE PANEL	8-98012-623-1	01	1	1010-		●
661	BRACKET; SIDE PANEL	8-98012-621-1	01	1	1010-		●
663	BRACKET; AIR (A)	8-97585-208-2	01	1	1010-	●	●
663	BRACKET; AIR (A)	8-97585-207-2	01	1	1010-	●	●
663	BRACKET; AIR (B)	8-98020-643-1	02	1	1010-		●
665	REINFORCEMENT; GRIP,ASSIST (B)	8-98012-287-1	02	1	1010-	●
665	REINFORCEMENT; GRIP,ASSIST (A)	8-97585-314-0	02	1	1010-	●	●
667	BRACKET; MIRROR MIRROR O/S UNDER VIEW<RR9>	8-98109-948-0	01	1	1010-	●	●
669	STUD; FENDER M6X12	8-98013-112-0	02	1	1010-		●

279 146 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
146	BOLT; STEP BRKT (A) M14X45 FLANGE	0-28851-445-0	04	1	1010-1107	●	●
146	BOLT; STEP BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M14X45 FLANGE	0-28851-445-0	04	1	1108-1306	●	●
146	BOLT; STEP BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M14X45 FLANGE	0-28851-445-0	04	1	1307-	●
146	BOLT; STEP BRKT (B) M8X25 FLANGE	0-28650-825-0	08	1	1010-		●
279	BOARD; STEP 1ST (A)	1-53414-181-0	01	1	1010-1306	●	●
279	BOARD; STEP 1ST (A)	1-53414-181-0	01	1	1010-	●	●
279	BOARD; STEP 1ST (A)	1-53414-180-0	01	1	1010-1306	●	●
279	BOARD; STEP 1ST (A)	1-53414-180-0	01	1	1010-	●	●
279	BOARD; STEP 1ST (B)	8-98058-394-3	01	1	1010-1306		●
279	BOARD; STEP 1ST (B)	8-98058-394-3	01	1	1010-		●
279	BOARD; STEP 1ST (B)	8-98058-389-3	01	1	1010-1306		●
279	BOARD; STEP 1ST (B)	8-98058-389-3	01	1	1010-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
