6-05 — FRONT PANEL (#60110) — 542 parça

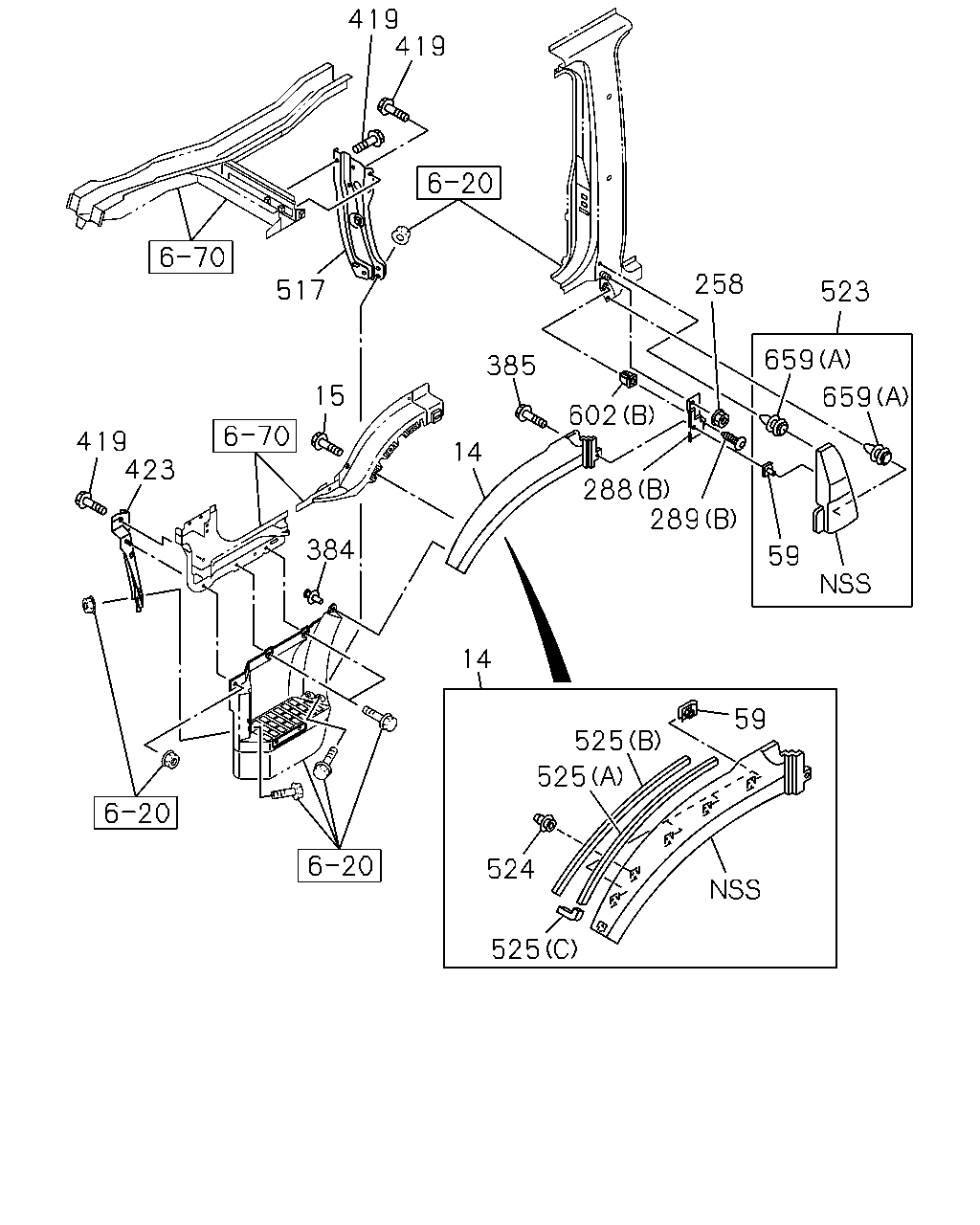

çizim 171883
419 517 419 258 523 659 59 659 289 288 14 602 385 15 384 423 419 14 525 525 524 525 59
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1010- ● ●
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1010- ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1010- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1010- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1010- ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1010- ● ●
258 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1010- ●
288 BRACKET; FENDER SKIRT
(A) 		8-98041-162-1 04 1 1010- ●
288 BRACKET; FENDER SKIRT
(B) 		8-98019-871-3 01 1 1010- ●
288 BRACKET; FENDER SKIRT
(B) 		8-98019-870-3 01 1 1010- ●
289 BOLT; FENDER SKIRT BRKT
(A) M6X16 FLANGE 		0-28650-616-0 08 1 1010- ●
289 BOLT; FENDER SKIRT BRKT
(B) M6X20 W/PL WASHER 		8-98059-504-0 02 1 1010- ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1010- ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1010- ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 02 1 1010- ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1010- ● ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1010- ● ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1010- ● ●
517 SUPPORT; STEP PANEL 8-98037-351-2 01 1 1010- ● ●
517 SUPPORT; STEP PANEL 8-98037-350-2 01 1 1010- ● ●
523 COVER; FENDER RR
BODY COLOR RMS ORANGE(550) ORANGE 		8-97427-987-1 01 1 1405- ●
523 COVER; FENDER RR
BODY COLOR RMS ORANGE(550) ORANGE 		8-97427-988-1 01 1 1405- ●
523 COVER; FENDER RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-447-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-679-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR ARC WHITE(729) WHITE 		8-97413-124-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR ARC WHITE(729) WHITE 		8-97413-117-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR CARDINAL RED(736) RED 		8-97413-121-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR CARDINAL RED(736) RED 		8-97413-114-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-450-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-682-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR FIRE RED(915) RED 		8-97413-122-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR FIRE RED(915) RED 		8-97413-115-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR FT ORANGE(609) BEIGE 		8-97413-123-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR FT ORANGE(609) BEIGE 		8-97413-116-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-449-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-681-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97413-125-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97413-118-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR GREEN(989) GREEN 		8-97413-456-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR GREEN(989) GREEN 		8-97413-688-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-454-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-686-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-453-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-685-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-739-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-738-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-448-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-680-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97413-126-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97413-119-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97413-120-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97413-113-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-452-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-684-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-451-1 01 1 1010- ●
523 COVER; FENDER RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-683-1 01 1 1010- ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1010- ● ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1010- ● ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1010- ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1010- ● ●
602 RETAINER; COVER
(A) ID=5.4 OD=6.8 		1-09989-021-0 06 1 1010-1302 ●
602 RETAINER; COVER
(A) ID=5.4 OD=6.8 		8-98241-984-0 06 1 1303- ●
602 RETAINER; COVER
(B) D=10X10 L=8 M6 		1-09983-119-0 02 1 1010- ●
659 CLIP; FENDER
(B) D5.4X8 		1-09983-154-0 08 1 1010- ● ●
659 CLIP; FENDER
(A) OD=8.5 GRAY 		8-97893-482-0 04 1 1010- ●

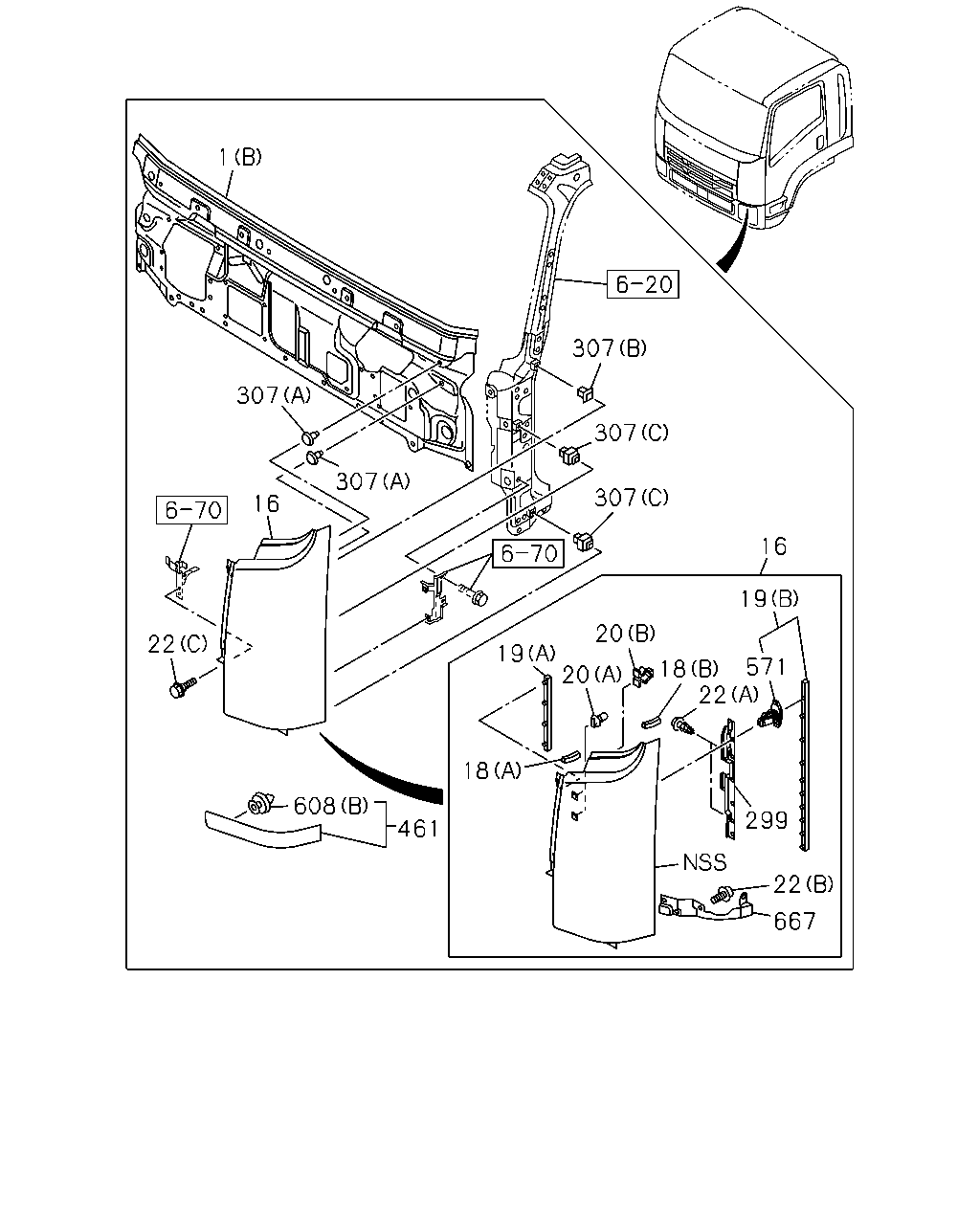

çizim 171889
1 307 307 307 16 19 571 22 18 20 19 20 18 299 22 667 461 608 22 16 307 307
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1010- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR A P RED(549) 		8-97427-973-4 01 1 1405- ●
16 PANEL; FRONT,SIDE
BODY COLOR A P RED(549) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-97427-974-4 01 1 1405- ●
16 PANEL; FRONT,SIDE
BODY COLOR RMS ORANGE(550) ORANGE 		8-97427-983-4 01 1 1405- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR RMS ORANGE(550) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> ORANGE 		8-97427-984-4 01 1 1405- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97427-965-4 01 1 1401- ●
16 PANEL; FRONT,SIDE
BODY COLOR HANSON BLUE(551) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> DARK BLUE 		8-97427-966-4 01 1 1401- ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-799-4 01 1 1203- ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-800-4 01 1 1203-1306 ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> GREEN 		8-97423-800-4 01 1 1307- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97417-664-4 01 1 1010-1306 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> GRAY 		8-97417-664-4 01 1 1307- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97413-769-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97409-902-4 01 1 1010-1306 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> WHITE 		8-97409-902-4 01 1 1307- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97408-246-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-739-4 01 1 1010-1306 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> RED 		8-97411-739-4 01 1 1307- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-734-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97417-667-4 01 1 1010-1306 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> BLUE 		8-97417-667-4 01 1 1307- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97413-772-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-742-4 01 1 1010-1306 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> RED 		8-97411-742-4 01 1 1307- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-737-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-835-4 01 1 1010-1306 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> BEIGE 		8-97411-835-4 01 1 1307- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-834-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97417-666-4 01 1 1010-1306 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> RED 		8-97417-666-4 01 1 1307- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97413-771-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-741-4 01 1 1010-1306 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> YELLOW 		8-97411-741-4 01 1 1307- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-736-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97417-673-4 01 1 1010-1306 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> GREEN 		8-97417-673-4 01 1 1307- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97413-778-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-671-4 01 1 1010-1306 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> ORANGE 		8-97417-671-4 01 1 1307- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-776-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-670-4 01 1 1010-1306 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> BLUE 		8-97417-670-4 01 1 1307- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-775-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-672-4 01 1 1010-1306 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> WHITE 		8-97417-672-4 01 1 1307- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-663-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-665-4 01 1 1010-1306 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> BLUE 		8-97417-665-4 01 1 1307- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-770-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-740-4 01 1 1010-1306 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> BEIGE 		8-97411-740-4 01 1 1307- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-735-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-743-4 01 1 1010-1306 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> BLUE 		8-97411-743-4 01 1 1307- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-738-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97417-669-4 01 1 1010-1306 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> YELLOW 		8-97417-669-4 01 1 1307- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-774-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97417-668-4 01 1 1010-1306 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> DARK GREEN 		8-97417-668-4 01 1 1307- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-773-4 01 1 1010- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 02 1 1010-1306 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1307- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1307- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 02 1 1010-1306 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1307- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1307- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 1010- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 1010- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 1010- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 1010- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 04 1 1010-1306 ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1307- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1307- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 02 1 1010-1306 ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1307- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1307- ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1010-1306 ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1307- ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1307- ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1010-1306 ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1307- ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1307- ● ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 1010-1306 ● ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 1307-1505 ● ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98314-627-0 06 1 1506- ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1010- ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1010- ● ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1010- ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1010- ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1010- ● ●
461 PANEL; FRT SIDE 8-98058-164-1 01 1 1010-1306 ● ●
461 PANEL; FRT SIDE 8-98058-164-2 01 1 1307- ● ●
461 PANEL; FRT SIDE 8-98058-163-1 01 1 1010-1306 ● ●
461 PANEL; FRT SIDE 8-98058-163-2 01 1 1307- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 1010-1306 ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1307- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1307- ● ●
608 CLIP
(B) 		8-98282-490-0 02 1 1408- ● ●
608 CLIP
(A) D5.4X8 		1-09983-154-0 06 1 1010-1306 ● ●
608 CLIP
(A) D5.4X8 		1-09983-154-0 06 1 1307- ●
667 STAY; EXT,SIDE PANEL 8-98063-344-0 01 1 1010- ● ●
667 STAY; EXT,SIDE PANEL 8-98063-343-0 01 1 1010- ● ●

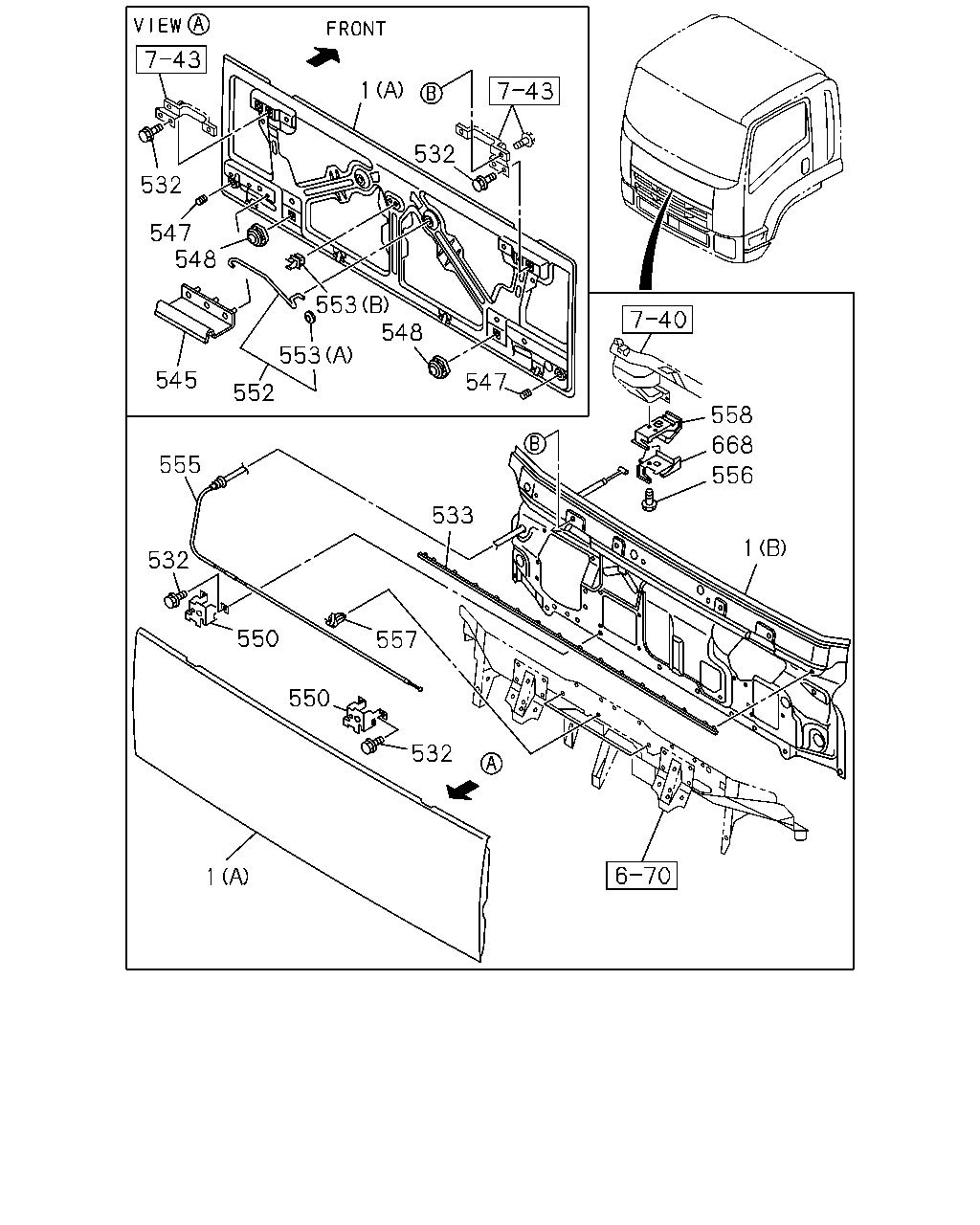

çizim 171905
1 532 547 548 553 553 552 545 548 547 532 555 532 533 550 550 557 532 1 1 556 668 558
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1010- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1010- ● ●
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1010- ● ●
533 SEAL; FRT PANEL 8-98096-289-0 01 1 1010- ● ●
545 SEAL; FRT LID 8-98123-265-0 01 1 1010- ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1010- ● ●
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1010- ● ●
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1010- ● ●
552 STAY; FRT LID 8-98089-838-0 01 1 1010- ● ●
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1010- ● ●
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 1010- ● ●
555 CABLE; FRT LID 8-98036-574-1 01 1 1010- ● ●
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1010- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1010- ● ●
558 LEVER; FRT LID 1-79338-007-1 01 1 1010- ● ●
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1010- ● ●

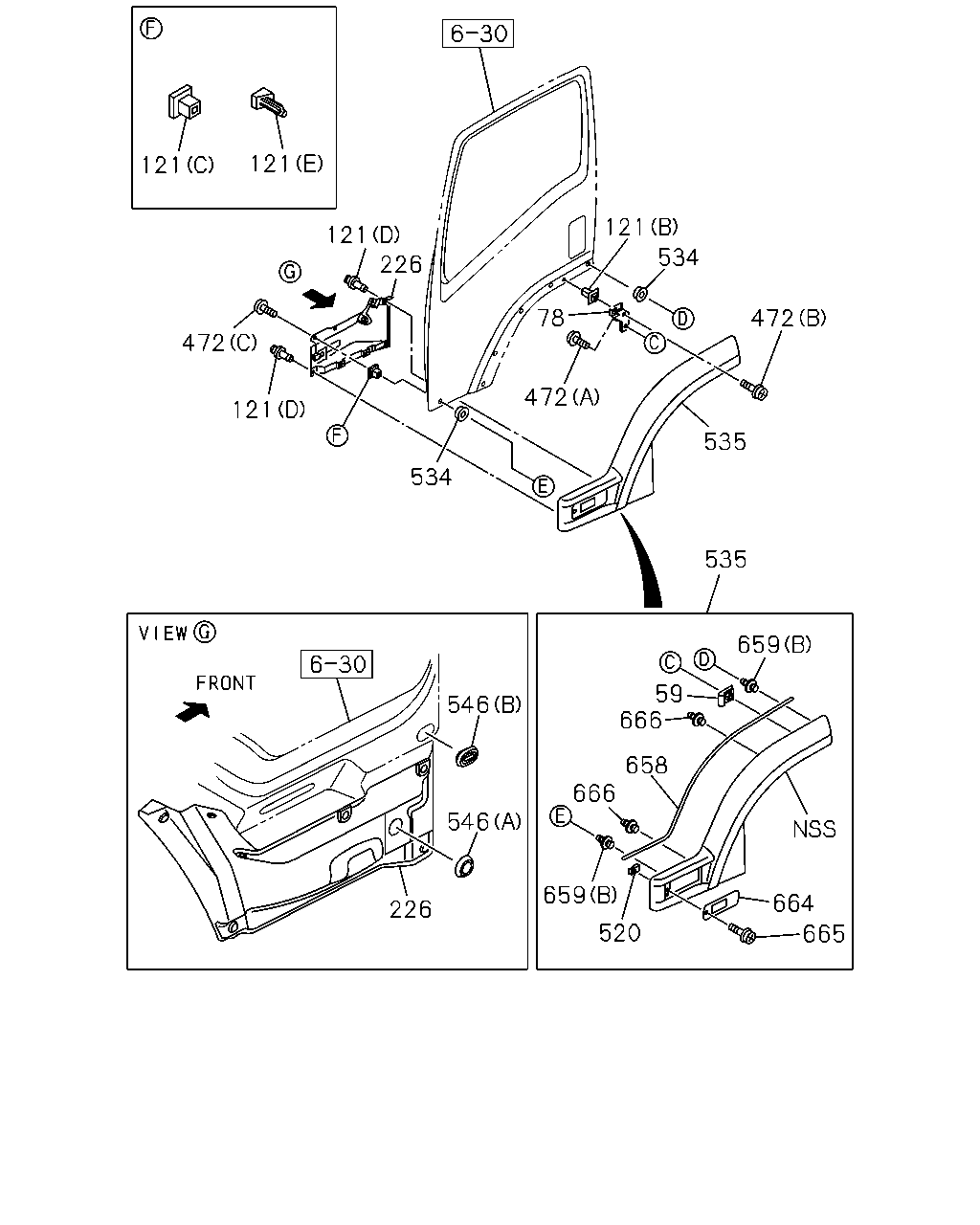

çizim 171906
121 121 121 121 226 472 534 472 78 121 472 534 535 535 659 59 666 658 666 664 665 659 520 226 546 546
BalonParca AdiParca NoAdetTipApplied Date A B
59 GROMMET; SCREW 8-94279-723-0 02 1 1010- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1010- ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1010- ● ●
78 BRACKET; FENDER 8-98041-166-1 01 1 1010- ● ●
78 BRACKET; FENDER 8-98041-165-1 01 1 1010- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1010-1306 ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1307- ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1010- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1010- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1010- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1010- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1010- ● ●
226 PROTECTOR; FRT 8-98037-715-2 01 1 1010- ● ●
226 PROTECTOR; FRT 8-98037-714-2 01 1 1010- ● ●
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1010- ● ●
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1010- ● ●
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1010- ● ●
520 NUT; FENDER 8-94279-501-0 02 1 1010- ● ●
534 FASTENER
ID=5.4 OD=6.8 		1-09989-021-0 12 1 1010-1302 ● ●
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1303- ● ●
535 FENDER; BLISTER
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> 		8-97427-975-1 01 1 1405- ●
535 FENDER; BLISTER
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> 		8-97427-976-1 01 1 1405- ●
535 FENDER; BLISTER
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> ORANGE 		8-97427-985-1 01 1 1405- ●
535 FENDER; BLISTER
BODY COLOR RMS ORANGE(550) ORANGE 		8-97427-985-1 01 1 1405- ●
535 FENDER; BLISTER
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> ORANGE 		8-97427-986-1 01 1 1405- ●
535 FENDER; BLISTER
BODY COLOR RMS ORANGE(550) ORANGE 		8-97427-986-1 01 1 1405- ●
535 FENDER; BLISTER
BODY COLOR HANSON BLUE(551) CAB ALL PAINTING<TFD> DARK BLUE 		8-97427-969-1 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR HANSON BLUE(551) CAB ALL PAINTING<TFD> DARK BLUE 		8-97427-970-1 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-795-1 01 1 1203- ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-805-1 01 1 1203- ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-379-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-379-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) GRAY 		8-97415-379-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-359-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-359-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) GRAY 		8-97415-359-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-384-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-384-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97415-384-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-364-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-364-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97415-364-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-381-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-381-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97415-381-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-361-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-361-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97415-361-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-374-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-374-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) BLUE 		8-97415-374-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-354-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-354-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) BLUE 		8-97415-354-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-382-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-382-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97415-382-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-362-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-362-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97415-362-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97415-383-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97415-383-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) BEIGE 		8-97415-383-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97415-363-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97415-363-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) BEIGE 		8-97415-363-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-380-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-380-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) RED 		8-97415-380-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-360-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-360-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) RED 		8-97415-360-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-387-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-387-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97415-387-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-367-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-367-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97415-367-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-376-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-376-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) GREEN 		8-97415-376-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-356-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-356-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) GREEN 		8-97415-356-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-389-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-389-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97415-389-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-369-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-369-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97415-369-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-392-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-392-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-392-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-372-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-372-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-372-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-745-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-745-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-745-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-744-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-744-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-744-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-373-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-373-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97415-373-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-353-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-353-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97415-353-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-391-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-391-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97415-391-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-371-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-371-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97415-371-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-375-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-375-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) BLUE 		8-97415-375-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-355-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-355-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) BLUE 		8-97415-355-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-390-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-390-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-390-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-370-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-370-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-370-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-377-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-377-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-377-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-357-1 01 1 1010-1306 ● ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-357-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-357-1 01 1 1307- ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> 		8-98106-503-0 01 1 1010-1306 ● ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> 		8-98106-503-0 01 1 1307- ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> 		8-98106-502-0 01 1 1010-1306 ● ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> 		8-98106-502-0 01 1 1307- ●
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1010- ● ●
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1010- ● ●
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1010- ● ●
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1010- ● ●
659 CLIP; FENDER
(B) D5.4X8 		1-09983-154-0 08 1 1010- ● ●
659 CLIP; FENDER
(A) OD=8.5 GRAY 		8-97893-482-0 04 1 1010- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> 		8-97428-022-0 01 1 1405- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> 		8-97428-025-0 01 1 1405- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> ORANGE 		8-97428-023-0 01 1 1405- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR RMS ORANGE(550) ORANGE 		8-97428-023-0 01 1 1405- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> ORANGE 		8-97428-026-0 01 1 1405- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR RMS ORANGE(550) ORANGE 		8-97428-026-0 01 1 1405- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HANSON BLUE(551) CAB ALL PAINTING<TFD> DARK BLUE 		8-97428-024-0 01 1 1401- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HANSON BLUE(551) CAB ALL PAINTING<TFD> DARK BLUE 		8-97428-027-0 01 1 1401- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-845-0 01 1 1203- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-846-0 01 1 1203- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-549-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-549-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) GRAY 		8-97421-549-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-521-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-521-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) GRAY 		8-97421-521-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-497-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-497-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97421-497-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-485-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-485-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97421-485-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-499-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-499-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97421-499-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-487-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-487-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97421-487-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-539-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-539-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97421-539-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-511-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-511-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97421-511-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-503-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-503-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97421-503-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-491-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-491-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97421-491-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97421-553-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97421-553-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FT ORANGE(609) BEIGE 		8-97421-553-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97421-525-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97421-525-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FT ORANGE(609) BEIGE 		8-97421-525-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-551-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-551-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) RED 		8-97421-551-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-523-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-523-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) RED 		8-97421-523-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-505-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-505-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97421-505-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-493-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-493-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97421-493-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-543-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-543-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) GREEN 		8-97421-543-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-515-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-515-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) GREEN 		8-97421-515-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-559-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-559-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97421-559-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-531-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-531-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97421-531-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-563-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-563-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97421-563-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-535-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-535-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97421-535-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-607-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-607-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97421-607-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-605-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-605-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97421-605-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-537-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-537-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97421-537-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-509-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-509-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97421-509-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-501-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-501-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97421-501-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-489-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-489-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97421-489-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-507-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-507-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97421-507-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-495-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-495-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97421-495-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-596-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-596-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97421-596-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-533-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-533-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97421-533-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-547-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-547-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97421-547-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-519-0 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-519-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97421-519-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-146-1 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-146-1 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-145-1 01 1 1010-1306 ● ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-145-1 01 1 1307- ●
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1010- ● ●
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1010- ● ●

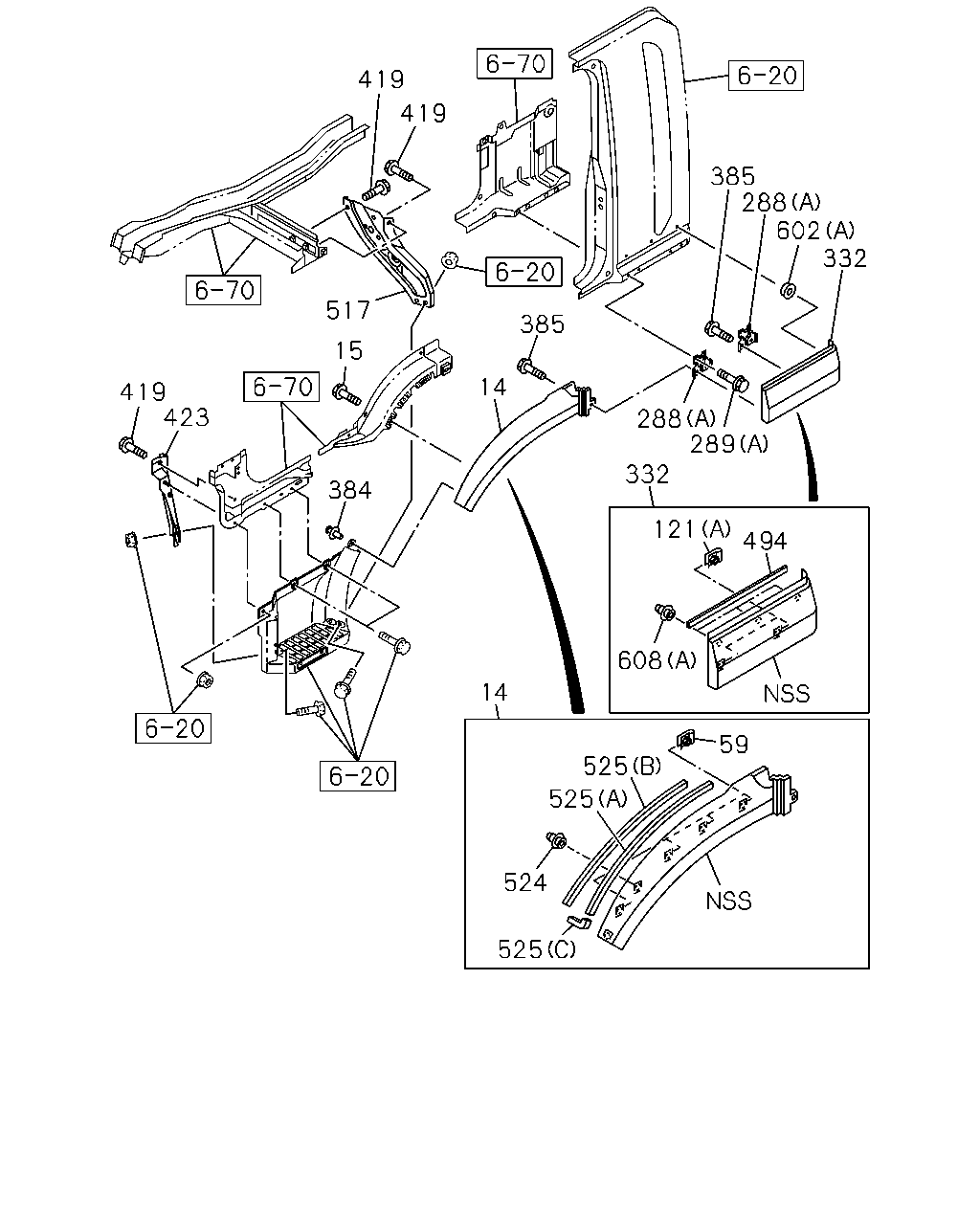

çizim 171937
525 524 525 59 525 608 121 332 494 14 289 288 332 602 288 385 385 14 384 423 419 15 517 419 419
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1010- ● ●
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1010- ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1010- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1010- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1010- ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1010- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1010-1306 ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1307- ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1010- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1010- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1010- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1010- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1010- ● ●
288 BRACKET; FENDER SKIRT
(A) 		8-98041-162-1 04 1 1010- ●
288 BRACKET; FENDER SKIRT
(B) 		8-98019-871-3 01 1 1010- ●
288 BRACKET; FENDER SKIRT
(B) 		8-98019-870-3 01 1 1010- ●
289 BOLT; FENDER SKIRT BRKT
(A) M6X16 FLANGE 		0-28650-616-0 08 1 1010- ●
289 BOLT; FENDER SKIRT BRKT
(B) M6X20 W/PL WASHER 		8-98059-504-0 02 1 1010- ●
332 FENDER; RR
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> 		8-97427-947-2 01 1 1405- ●
332 FENDER; RR
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> 		8-97427-948-2 01 1 1405- ●
332 FENDER; RR
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> ORANGE 		8-97427-957-2 01 1 1405- ●
332 FENDER; RR
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> ORANGE 		8-97427-958-2 01 1 1405- ●
332 FENDER; RR
BODY COLOR HANSON BLUE(551) CAB ALL PAINTING<TFD> DARK BLUE 		8-97427-967-2 01 1 1401- ●
332 FENDER; RR
BODY COLOR HANSON BLUE(551) CAB ALL PAINTING<TFD> DARK BLUE 		8-97427-968-2 01 1 1401- ●
332 FENDER; RR
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-768-2 01 1 1203- ●
332 FENDER; RR
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-769-2 01 1 1203- ●
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-606-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-596-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-507-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-506-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-310-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-304-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-609-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-599-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-313-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-307-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97411-819-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97411-818-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-608-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-598-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-314-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-308-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-615-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-605-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-613-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-603-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-612-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-602-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-675-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-674-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-607-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-597-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-311-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-305-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-315-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-309-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-611-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-601-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-610-2 01 1 1010- ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-600-2 01 1 1010- ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-435-2 01 1 1010- ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-434-2 01 1 1010- ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1010- ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1010- ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 02 1 1010- ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1010- ● ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1010- ● ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1010- ● ●
494 FINISHER; FENDER 8-98072-723-0 01 1 1010-1306 ● ●
494 FINISHER; FENDER 8-98072-723-0 01 1 1307- ●
494 FINISHER; FENDER 8-98041-172-1 01 1 1010-1306 ● ●
494 FINISHER; FENDER 8-98041-172-1 01 1 1307- ●
517 SUPPORT; STEP PANEL 8-98037-351-2 01 1 1010- ● ●
517 SUPPORT; STEP PANEL 8-98037-350-2 01 1 1010- ● ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1010- ● ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1010- ● ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1010- ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1010- ● ●
602 RETAINER; COVER
(A) ID=5.4 OD=6.8 		1-09989-021-0 06 1 1010-1302 ●
602 RETAINER; COVER
(A) ID=5.4 OD=6.8 		8-98241-984-0 06 1 1303- ●
602 RETAINER; COVER
(B) D=10X10 L=8 M6 		1-09983-119-0 02 1 1010- ●
608 CLIP
(B) 		8-98282-490-0 02 1 1408- ● ●
608 CLIP
(A) D5.4X8 		1-09983-154-0 06 1 1010-1306 ● ●
608 CLIP
(A) D5.4X8 		1-09983-154-0 06 1 1307- ●

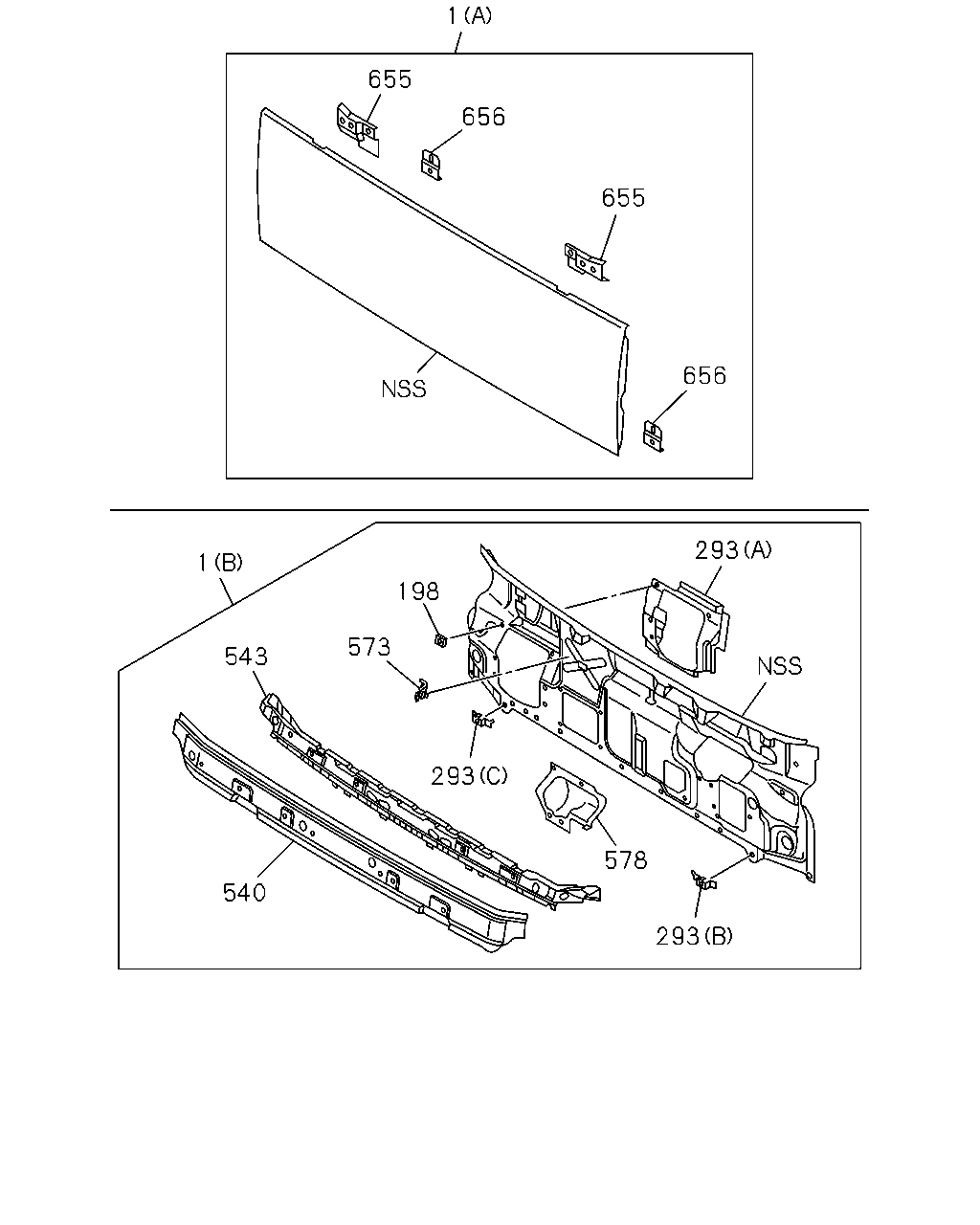

çizim 172000
1 543 540 573 198 293 578 293 293 656 655 656 655 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1010- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1010- ● ●
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1010- ● ●
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1010- ● ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1010- ● ●
293 BRACKET; PANEL
(C) 		8-98008-126-1 01 1 1010- ● ●
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 1010- ● ●
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 1010- ● ●
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1010- ● ●
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1010- ● ●
655 PATCH; HINGE 8-98031-263-0 01 1 1010- ● ●
655 PATCH; HINGE 8-98031-264-0 01 1 1010- ● ●
656 PATCH; STRIKER 8-98031-265-0 02 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
