◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11328 - FTR AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-04 - CAB ASM ▶
6-04 — CAB ASM (#60109) — 5 parça

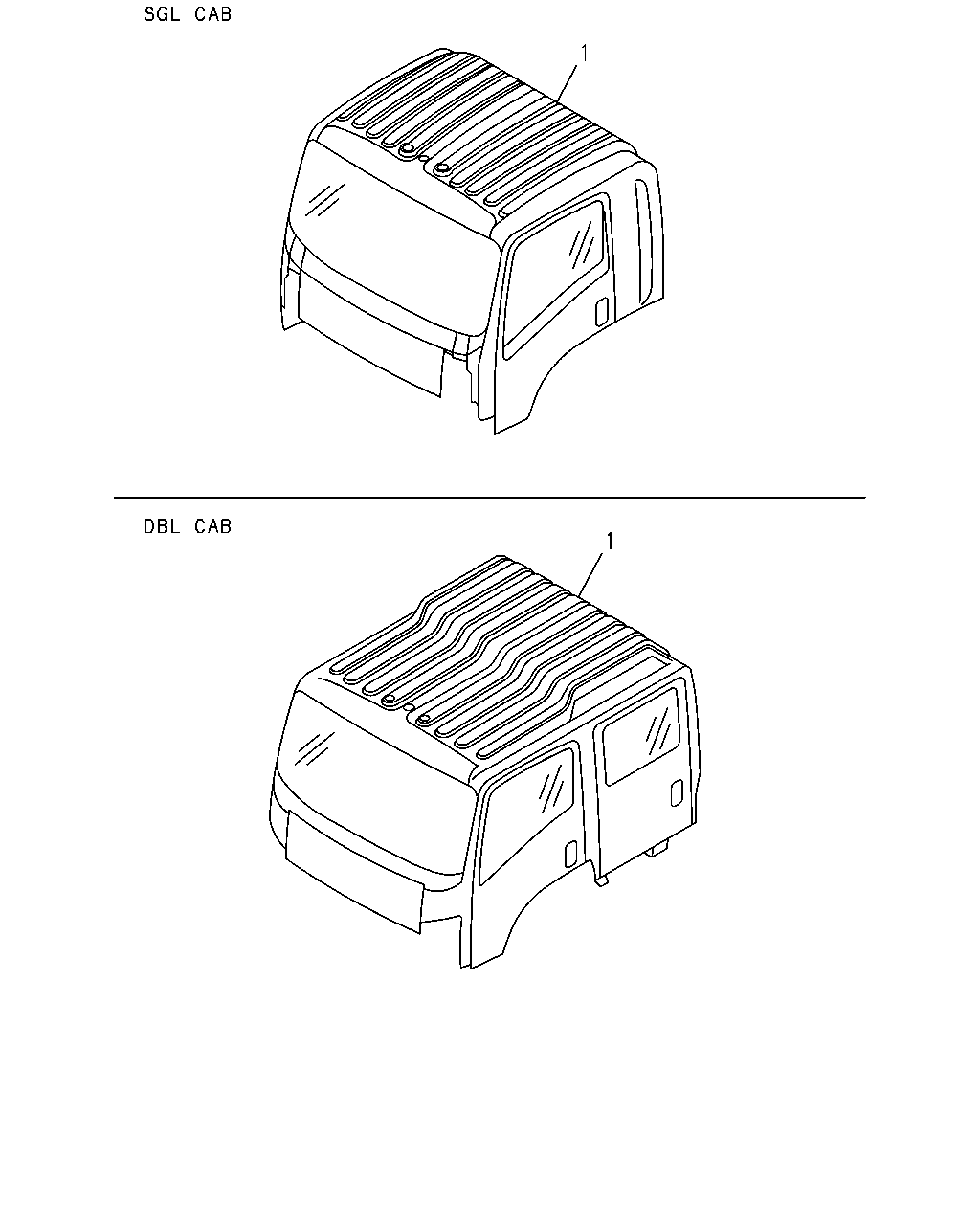

çizim 171930
1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) LAMPS TWO ROOF MARKER<TEC> DELUXE CAB(W14) 3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> FUEL TANK 200L FRAME SIDE<N20> EXC. ROUND CURTAIN RAIL<EDH>,MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGER DOOR<8LX> 		1-61088-731-0 01 1 1010-1306 ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) LAMPS TWO ROOF MARKER<TEC> 3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> FUEL TANK 200L FRAME SIDE<N20> EXC. MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGERDOOR<8LX> 		1-61088-732-0 01 1 1010-1306 ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) LAMPS TWO ROOF MARKER<TEC> CUSTOM PACKAGE(YM8) 2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> FUEL TANK 200L FRAME SIDE<N20> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. COUNTRY NEW ZEALAND(CX6),ROUND CURTAIN RAIL<EDH>,MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGERDOOR<8LX> 		1-61860-194-0 01 1 1307- ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) LAMPS TWO ROOF MARKER<TEC> CUSTOM PACKAGE(YM8) 2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> FUEL TANK 200L FRAME SIDE<N20> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. ROUND CURTAIN RAIL<EDH>,MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGER DOOR<8LX> 		1-61860-195-0 01 1 1307- ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) LAMPS TWO ROOF MARKER<TEC> CUSTOM PACKAGE(YM8) 2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> FUEL TANK 200L FRAME SIDE<N20> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGERDOOR<8LX> 		1-61860-197-0 01 1 1307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
