6-03 — RADIATOR GRILLE (#60108) — 276 parça

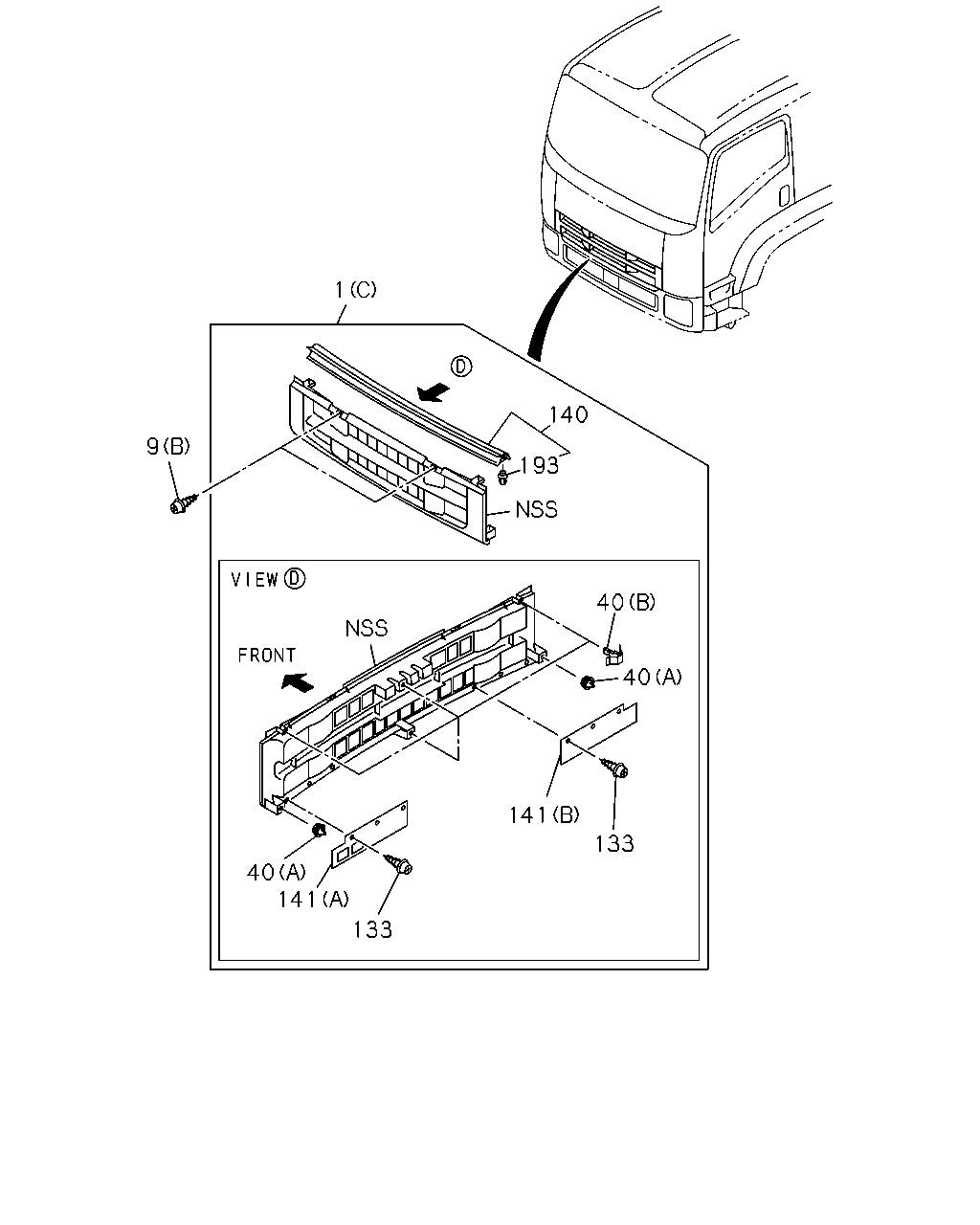

çizim 171890
140 1 40 40 133 141 133 141 40 193 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-013-6 01 1 1405- ●
1 GRILLE; RAD
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-014-6 01 1 1405- ●
1 GRILLE; RAD
BODY COLOR RMS ORANGE(550) EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-014-6 01 1 1405- ●
1 GRILLE; RAD
BODY COLOR HANSON BLUE(551) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-015-6 01 1 1401- ●
1 GRILLE; RAD
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97423-772-6 01 1 1203- ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE 		8-98078-847-2 01 1 1010- ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-840-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-840-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-840-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GREEN(989) EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 1307- ●
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY 		8-98040-997-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY 		8-98040-997-6 01 1 1307- ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (C) CHROMIUM PLATE 		8-98046-507-7 01 1 1010- ●
9 SCREW; RAD GRILLE
(A) 		0-38050-620-0 04 1 1010- ●
9 SCREW; RAD GRILLE
(B) M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 1010- ● ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1010- ● ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1010- ● ●
133 SCREW; COVER
T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 06 1 1010- ●
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 1010- ● ●
141 COVER; RAD GRILLE
(B) 		8-98041-013-1 01 1 1010- ●
141 COVER; RAD GRILLE
(A) 		8-98060-784-0 01 1 1010- ●
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 1010- ● ●

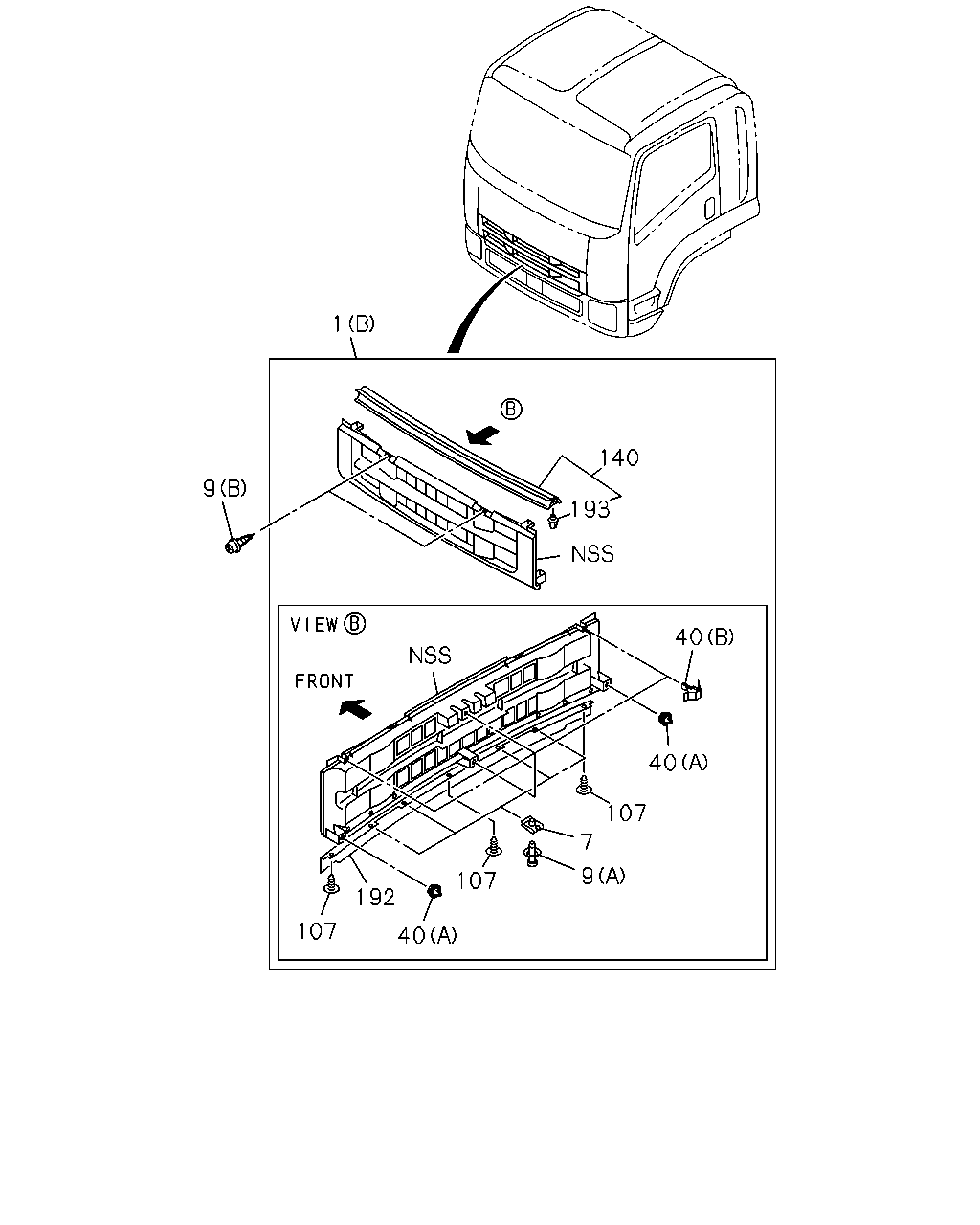

çizim 171924
140 193 40 1 9 40 107 7 9 107 40 192 107
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-013-6 01 1 1405- ●
1 GRILLE; RAD
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-014-6 01 1 1405- ●
1 GRILLE; RAD
BODY COLOR RMS ORANGE(550) EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-014-6 01 1 1405- ●
1 GRILLE; RAD
BODY COLOR HANSON BLUE(551) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-015-6 01 1 1401- ●
1 GRILLE; RAD
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97423-772-6 01 1 1203- ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE 		8-98078-847-2 01 1 1010- ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-840-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-840-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-840-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GREEN(989) EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 1307- ●
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY 		8-98040-997-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY 		8-98040-997-6 01 1 1307- ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (C) CHROMIUM PLATE 		8-98046-507-7 01 1 1010- ●
7 NUT; SPIRE,RAD GRILLE 8-94279-501-0 04 1 1010- ●
9 SCREW; RAD GRILLE
(A) 		0-38050-620-0 04 1 1010- ●
9 SCREW; RAD GRILLE
(B) M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 1010- ● ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1010- ● ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1010- ● ●
107 RIVET; ROCKER CVR
D8X13.5 		1-09987-248-1 03 1 1010- ●
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 1010- ● ●
192 EXTENSION; RAD GRILLE 8-98098-344-0 01 1 1010- ●
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 1010- ● ●

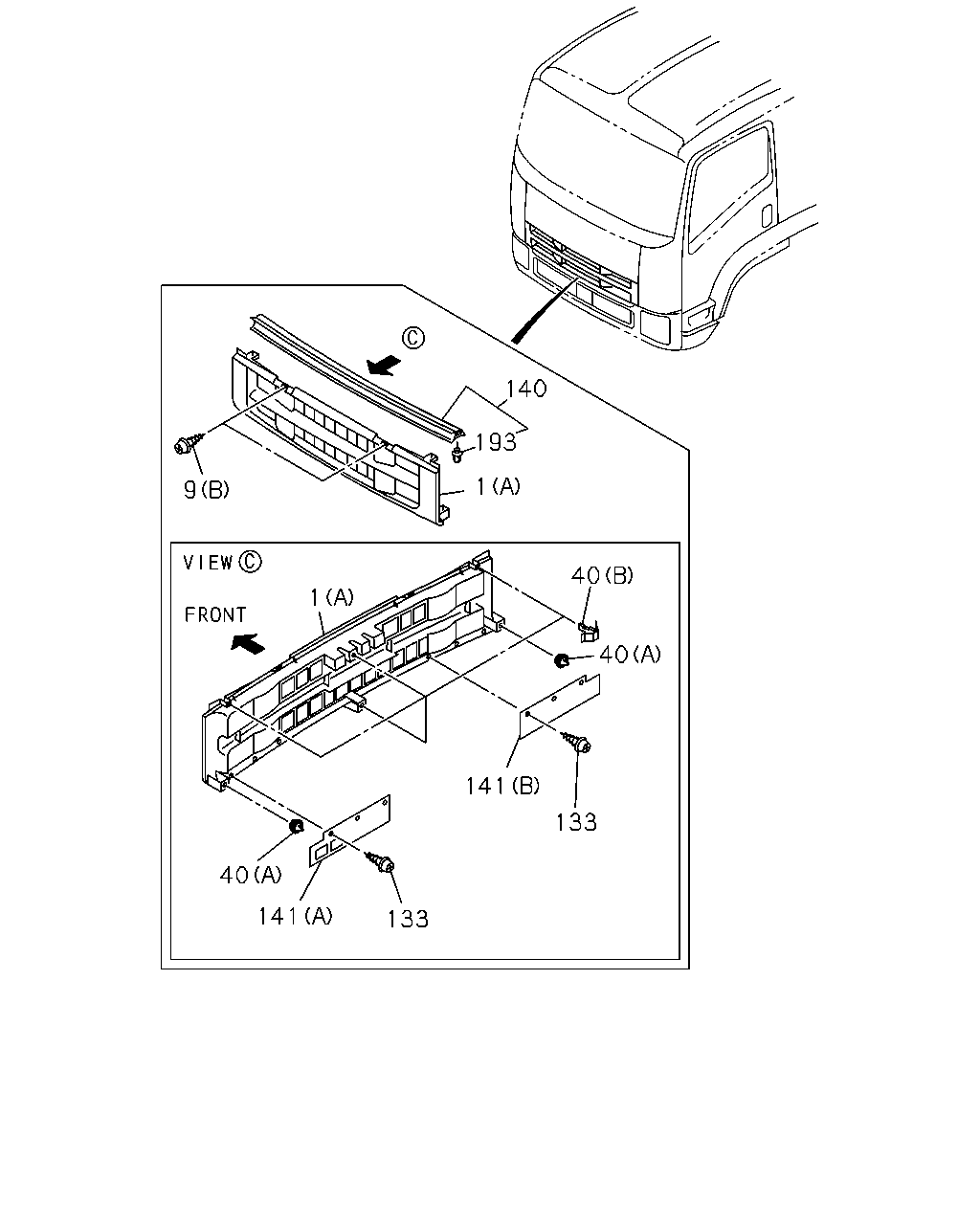

çizim 171957
140 193 40 40 133 141 133 141 40 1 1 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-013-6 01 1 1405- ●
1 GRILLE; RAD
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-014-6 01 1 1405- ●
1 GRILLE; RAD
BODY COLOR RMS ORANGE(550) EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-014-6 01 1 1405- ●
1 GRILLE; RAD
BODY COLOR HANSON BLUE(551) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-015-6 01 1 1401- ●
1 GRILLE; RAD
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97423-772-6 01 1 1203- ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE 		8-98078-847-2 01 1 1010- ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-840-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-840-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-840-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GREEN(989) EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 1307- ●
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY 		8-98040-997-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY 		8-98040-997-6 01 1 1307- ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (C) CHROMIUM PLATE 		8-98046-507-7 01 1 1010- ●
9 SCREW; RAD GRILLE
(A) 		0-38050-620-0 04 1 1010- ●
9 SCREW; RAD GRILLE
(B) M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 1010- ● ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1010- ● ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1010- ● ●
133 SCREW; COVER
T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 06 1 1010- ●
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 1010- ● ●
141 COVER; RAD GRILLE
(B) 		8-98041-013-1 01 1 1010- ●
141 COVER; RAD GRILLE
(A) 		8-98060-784-0 01 1 1010- ●
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 1010- ● ●

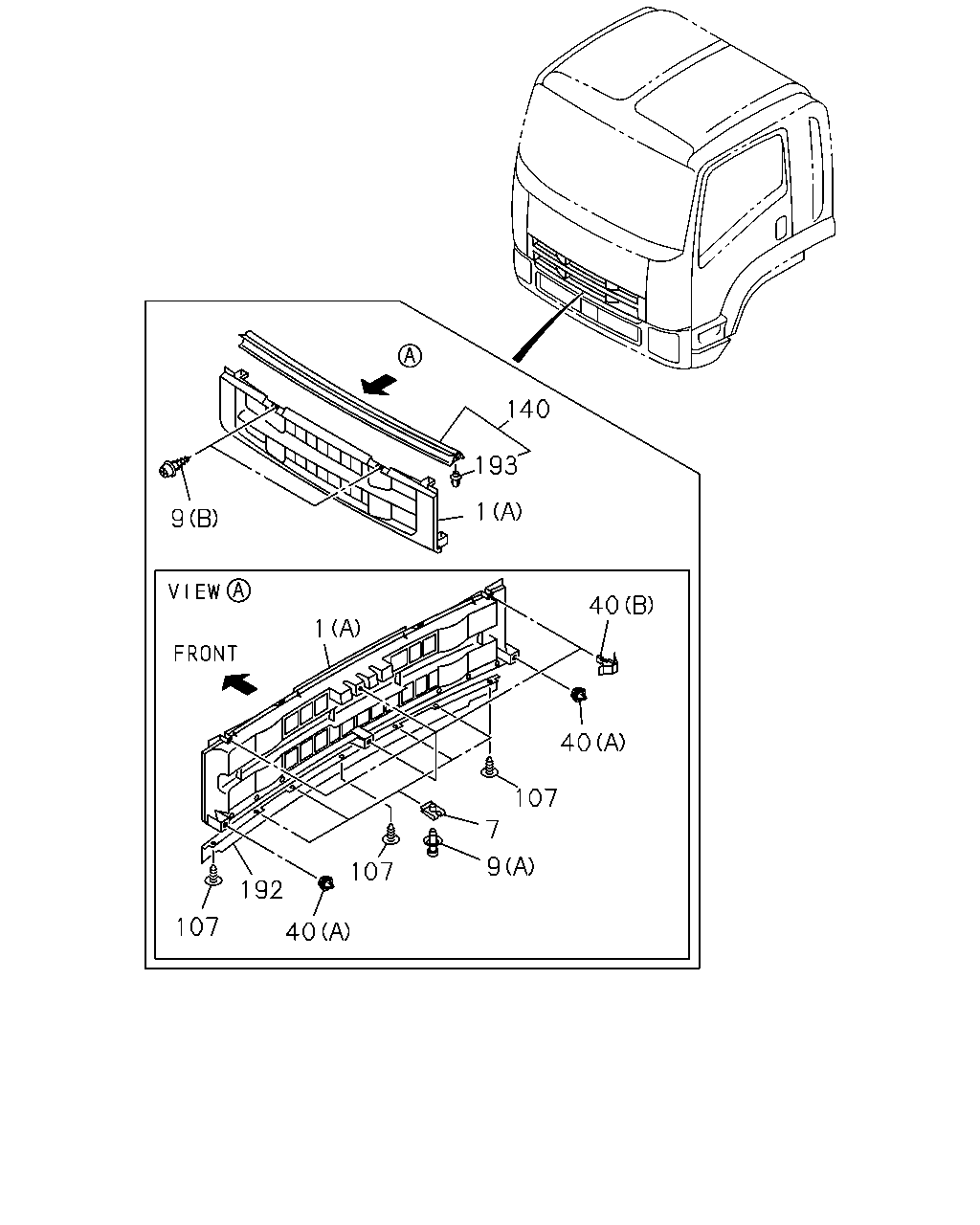

çizim 171988
140 193 40 40 107 7 9 107 40 192 107 1 1 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-013-6 01 1 1405- ●
1 GRILLE; RAD
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-014-6 01 1 1405- ●
1 GRILLE; RAD
BODY COLOR RMS ORANGE(550) EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-014-6 01 1 1405- ●
1 GRILLE; RAD
BODY COLOR HANSON BLUE(551) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-015-6 01 1 1401- ●
1 GRILLE; RAD
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97423-772-6 01 1 1203- ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE 		8-98078-847-2 01 1 1010- ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-840-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-840-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-840-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR GREEN(989) EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 1307- ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 1307- ●
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY 		8-98040-997-6 01 1 1010-1306 ● ●
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY 		8-98040-997-6 01 1 1307- ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (C) CHROMIUM PLATE 		8-98046-507-7 01 1 1010- ●
7 NUT; SPIRE,RAD GRILLE 8-94279-501-0 04 1 1010- ●
9 SCREW; RAD GRILLE
(A) 		0-38050-620-0 04 1 1010- ●
9 SCREW; RAD GRILLE
(B) M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 1010- ● ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1010- ● ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1010- ● ●
107 RIVET; ROCKER CVR
D8X13.5 		1-09987-248-1 03 1 1010- ●
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 1010- ● ●
192 EXTENSION; RAD GRILLE 8-98098-344-0 01 1 1010- ●
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
