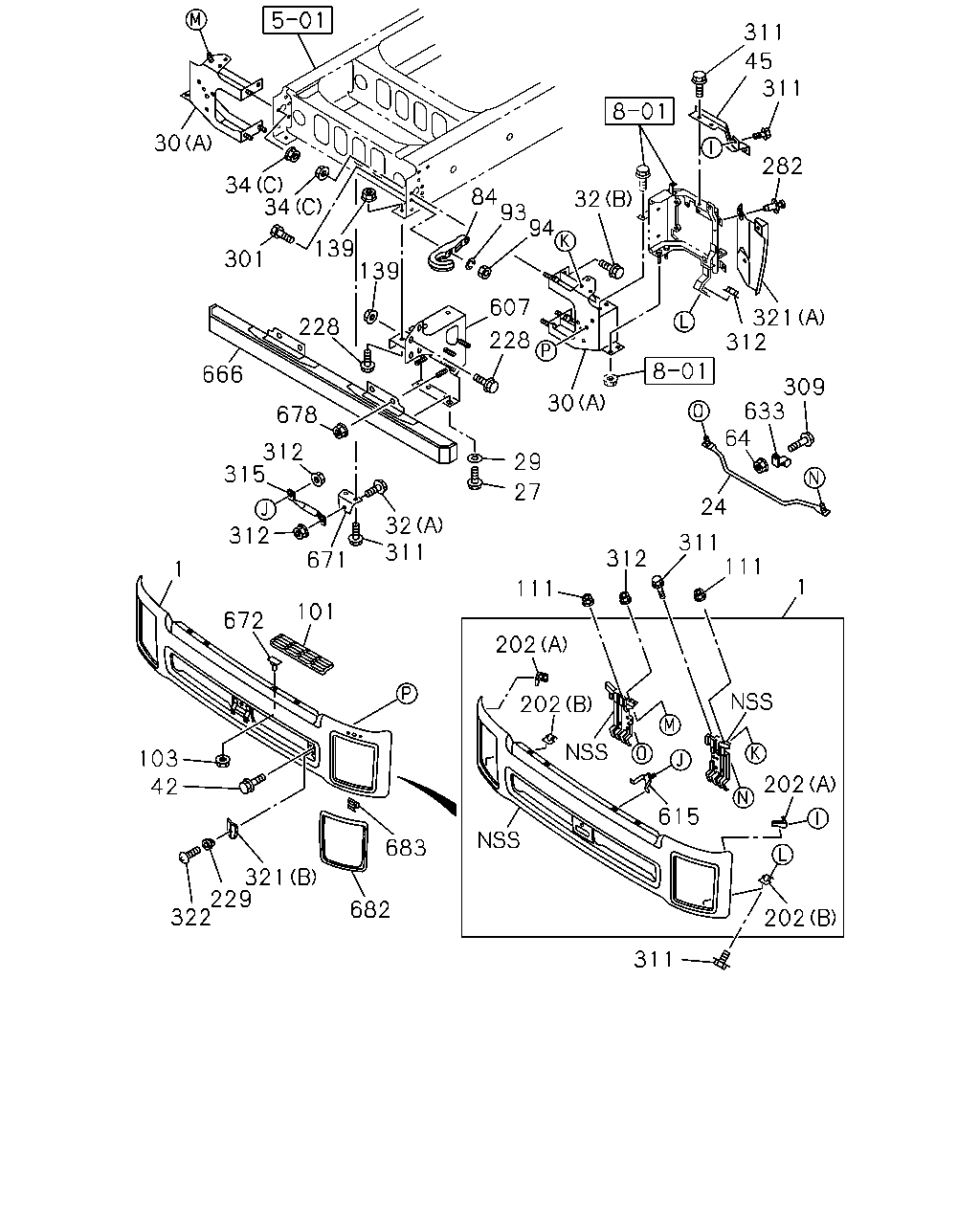

6-01 — FRONT BUMPER (#60107) — 195 parça

30 301 666 315 312 672 101 671 678 312 228 139 34 34 139 32 311 27 29 228 607 94 93 84 30 312 321 282 311 45 311 309 633 24 64 111 1 1 312 311 111 202 202 202 202 311 315 32 683 682 321 229 322 42 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT WHITE	8-97409-903-1	01	1	1010-	●	●
24	BAR; FRT BUMPER	8-97625-359-0	01	1	1010-1306	●	●
24	BAR; FRT BUMPER	8-97625-359-0	01	1	1307-	●	●
27	BOLT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12X35 FLANGE	0-28651-235-0	04	1	1108-	●	●
29	WASHER; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> ID=12.5 OD=32	0-91614-712-0	04	1	1108-1409	●	●
29	WASHER; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> ID=12.5 OD=32	0-91614-712-0	08	1	1410-	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-434-2	01	1	1010-1306	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-434-2	01	1	1307-	●	●
30	BRACKET; FRT BUMPER (B)	8-98053-546-1	01	1	1010-1107	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-546-1	01	1	1108-1306	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-546-1	01	1	1307-	●
30	BRACKET; FRT BUMPER (A)	8-98034-435-2	01	1	1010-1306	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-435-2	01	1	1307-	●	●
30	BRACKET; FRT BUMPER (B)	8-98053-547-1	01	1	1010-1107	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-547-1	01	1	1108-1306	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-547-1	01	1	1307-	●
32	BOLT; BRKT,BUMPER (B) M12X35 FLANGE	0-28051-235-0	02	1	1010-	●	●
32	BOLT; BRKT,BUMPER (A) M10X30	8-94324-205-0	01	1	1010-	●	●
34	NUT; BRKT,BUMPER (A) M16	0-91110-516-0	02	1	1010-1107	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16	0-91110-516-0	02	1	1108-1306	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16	0-91110-516-0	02	1	1307-	●
34	NUT; BRKT,BUMPER (C) M12 FLANGE	0-91180-212-0	06	1	1010-	●	●
34	NUT; BRKT,BUMPER (B) M14 FLANGE	0-91180-214-0	04	1	1010-1107	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1108-1306	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1307-	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1010-1306	●	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1307-	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-648-2	01	1	1010-1306	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-648-2	01	1	1307-	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-647-2	01	1	1010-1306	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-647-2	01	1	1307-	●	●
64	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	1010-1306	●	●
64	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	1307-	●	●
84	HOOK	1-57181-027-1	01	1	1010-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1010-1306	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1307-	●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	1010-1306	●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	1307-	●	●
101	STEP; BUMPER	8-97611-543-0	01	1	1010-1306	●	●
101	STEP; BUMPER	8-97611-543-0	01	1	1307-	●	●
101	STEP; BUMPER	8-97611-542-0	01	1	1010-1306	●	●
101	STEP; BUMPER	8-97611-542-0	01	1	1307-	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1010-1306	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1307-	●	●
111	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
111	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
139	NUT; BRKT FIX FRONT UNDER RUN PROTECTOR<EBE> M16	0-91110-516-0	02	1	1108-	●	●
139	NUT; BRKT FIX FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE	0-91180-214-0	06	1	1108-	●	●
202	BRACKET; BUMPER SIDE (A)	8-97613-636-0	01	1	1010-	●	●
202	BRACKET; BUMPER SIDE (A)	8-97613-637-0	01	1	1010-	●	●
202	BRACKET; BUMPER SIDE (B)	8-97613-640-1	01	1	1010-	●	●
202	BRACKET; BUMPER SIDE (B)	8-97613-641-1	01	1	1010-	●	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M16X40	0-20851-640-0	02	1	1108-	●	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	06	1	1108-	●	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1010-1306	●	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1307-	●	●
282	FASTENER; BUMPER FILLER D8X13.5	1-09987-248-1	08	1	1010-1306	●	●
282	FASTENER; BUMPER FILLER D8X13.5	1-09987-248-1	08	1	1307-	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	1010-1306	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	1307-	●	●
309	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	01	1	1010-1306	●	●
309	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	01	1	1307-	●	●
311	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	06	1	1010-1306	●	●
311	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	06	1	1307-	●	●
311	BOLT; BRKT M10X30	8-94324-205-0	07	1	1010-1306	●	●
311	BOLT; BRKT M10X30	8-94324-205-0	07	1	1307-	●	●
312	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	1010-1306	●	●
312	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	1307-	●	●
315	STAY; BUMPER	8-97613-645-1	01	1	1010-1306	●	●
315	STAY; BUMPER	8-97613-645-1	01	1	1307-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-297-1	01	1	1010-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-120-0	01	1	1010-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-296-1	01	1	1010-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-119-0	01	1	1010-	●	●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1010-1306	●	●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1307-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> VIN MODEL YEAR 2013<VZD>	8-98045-843-2	01	1	1210-1306	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE>	8-98045-843-2	01	1	1307-1409	●
607	BRACKET WHEEL BASE 6000MM(60W)	8-98045-843-2	01	1	1307-1409		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE>	8-98279-073-0	01	1	1410-	●
607	BRACKET WHEEL BASE 6000MM(60W)	8-98279-073-0	01	1	1410-		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> VIN MODEL YEAR 2013<VZD>	8-98045-844-2	01	1	1210-1306	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE>	8-98045-844-2	01	1	1307-1409	●
607	BRACKET WHEEL BASE 6000MM(60W)	8-98045-844-2	01	1	1307-1409		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE>	8-98279-074-0	01	1	1410-	●
607	BRACKET WHEEL BASE 6000MM(60W)	8-98279-074-0	01	1	1410-		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE>	8-98045-753-1	01	1	1108-1209	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> EXC. VIN MODEL YEAR 2013<VZD>	8-98045-753-1	01	1	1210-1306	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE>	8-98045-754-1	01	1	1108-1209	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> EXC. VIN MODEL YEAR 2013<VZD>	8-98045-754-1	01	1	1210-1306	●	●
633	CLIP; BUMPER ID=16 H=24 L=20	0-95207-315-0	01	1	1010-1306	●	●
633	CLIP; BUMPER ID=16 H=24 L=20	0-95207-315-0	01	1	1307-	●	●
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE>	8-98196-475-0	01	1	1108-	●	●
671	BRACKET; STAY	8-97620-889-0	01	1	1010-1306	●	●
671	BRACKET; STAY	8-97620-889-0	01	1	1307-	●	●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1010-1306	●	●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1307-	●	●
678	NUT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12 FLANGE	0-91180-212-0	04	1	1108-	●	●
682	BEZEL; BUMPER	8-97611-531-2	01	1	1010-1306	●	●
682	BEZEL; BUMPER	8-97611-531-2	01	1	1307-	●	●
682	BEZEL; BUMPER	8-97611-530-2	01	1	1010-1306	●	●
682	BEZEL; BUMPER	8-97611-530-2	01	1	1307-	●	●
683	CLIP; BEZEL,BUMPER	8-98084-293-0	08	1	1010-1306	●	●
683	CLIP; BEZEL,BUMPER	8-98084-293-0	08	1	1307-	●	●

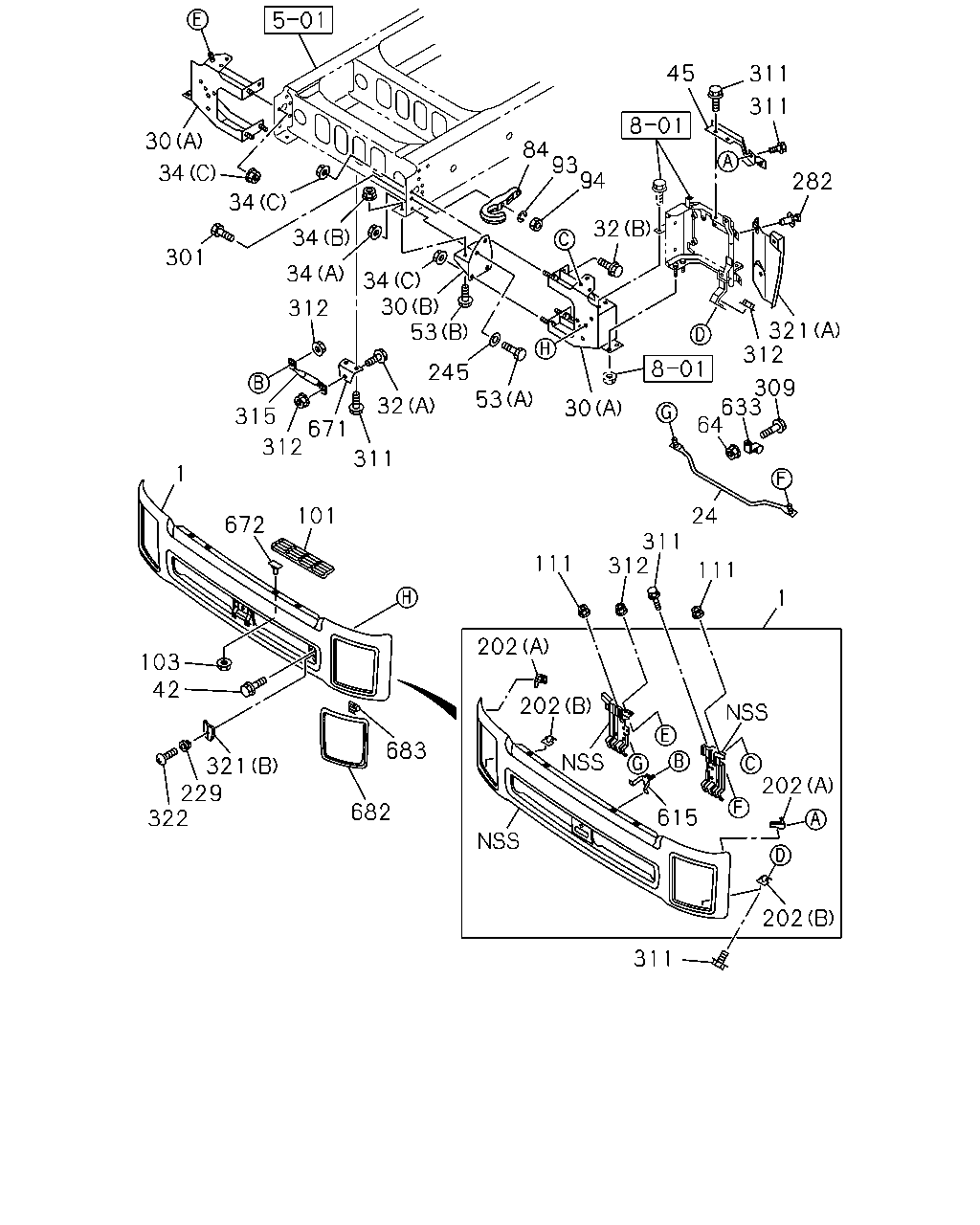

30 34 301 315 312 311 671 312 34 34 34 34 53 32 245 53 30 84 32 93 94 45 311 311 282 321 312 309 633 64 24 311 111 312 111 202 202 615 202 202 1 103 42 321 229 322 672 683 682 311 30 101 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT WHITE	8-97409-903-1	01	1	1010-	●	●
24	BAR; FRT BUMPER	8-97625-359-0	01	1	1010-1306	●	●
24	BAR; FRT BUMPER	8-97625-359-0	01	1	1307-	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-434-2	01	1	1010-1306	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-434-2	01	1	1307-	●	●
30	BRACKET; FRT BUMPER (B)	8-98053-546-1	01	1	1010-1107	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-546-1	01	1	1108-1306	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-546-1	01	1	1307-	●
30	BRACKET; FRT BUMPER (A)	8-98034-435-2	01	1	1010-1306	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-435-2	01	1	1307-	●	●
30	BRACKET; FRT BUMPER (B)	8-98053-547-1	01	1	1010-1107	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-547-1	01	1	1108-1306	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-547-1	01	1	1307-	●
32	BOLT; BRKT,BUMPER (B) M12X35 FLANGE	0-28051-235-0	02	1	1010-	●	●
32	BOLT; BRKT,BUMPER (A) M10X30	8-94324-205-0	01	1	1010-	●	●
34	NUT; BRKT,BUMPER (A) M16	0-91110-516-0	02	1	1010-1107	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16	0-91110-516-0	02	1	1108-1306	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16	0-91110-516-0	02	1	1307-	●
34	NUT; BRKT,BUMPER (C) M12 FLANGE	0-91180-212-0	06	1	1010-	●	●
34	NUT; BRKT,BUMPER (B) M14 FLANGE	0-91180-214-0	04	1	1010-1107	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1108-1306	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1307-	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1010-1306	●	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1307-	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-648-2	01	1	1010-1306	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-648-2	01	1	1307-	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-647-2	01	1	1010-1306	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-647-2	01	1	1307-	●	●
53	BOLT; BRKT TO FRAME (A) M16X40	0-20851-640-0	02	1	1010-1107	●	●
53	BOLT; BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16X40	0-20851-640-0	02	1	1108-1306	●	●
53	BOLT; BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16X40	0-20851-640-0	02	1	1307-	●
53	BOLT; BRKT TO FRAME (B) M14X45 FLANGE	0-28851-445-0	04	1	1010-1107	●	●
53	BOLT; BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X45 FLANGE	0-28851-445-0	04	1	1108-1306	●	●
53	BOLT; BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X45 FLANGE	0-28851-445-0	04	1	1307-	●
64	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	1010-1306	●	●
64	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	1307-	●	●
84	HOOK	1-57181-027-1	01	1	1010-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1010-1306	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1307-	●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	1010-1306	●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	1307-	●	●
101	STEP; BUMPER	8-97611-543-0	01	1	1010-1306	●	●
101	STEP; BUMPER	8-97611-543-0	01	1	1307-	●	●
101	STEP; BUMPER	8-97611-542-0	01	1	1010-1306	●	●
101	STEP; BUMPER	8-97611-542-0	01	1	1307-	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1010-1306	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1307-	●	●
111	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
111	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
202	BRACKET; BUMPER SIDE (A)	8-97613-636-0	01	1	1010-	●	●
202	BRACKET; BUMPER SIDE (A)	8-97613-637-0	01	1	1010-	●	●
202	BRACKET; BUMPER SIDE (B)	8-97613-640-1	01	1	1010-	●	●
202	BRACKET; BUMPER SIDE (B)	8-97613-641-1	01	1	1010-	●	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1010-1306	●	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1307-	●	●
245	WASHER; PL,BRKT TO FRAME ID=17 OD=30	0-91610-516-0	02	1	1010-1107	●	●
245	WASHER; PL,BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> ID=17 OD=30	0-91610-516-0	02	1	1108-1306	●	●
245	WASHER; PL,BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> ID=17 OD=30	0-91610-516-0	02	1	1307-	●
282	FASTENER; BUMPER FILLER D8X13.5	1-09987-248-1	08	1	1010-1306	●	●
282	FASTENER; BUMPER FILLER D8X13.5	1-09987-248-1	08	1	1307-	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	1010-1306	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	1307-	●	●
309	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	01	1	1010-1306	●	●
309	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	01	1	1307-	●	●
311	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	06	1	1010-1306	●	●
311	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	06	1	1307-	●	●
311	BOLT; BRKT M10X30	8-94324-205-0	07	1	1010-1306	●	●
311	BOLT; BRKT M10X30	8-94324-205-0	07	1	1307-	●	●
312	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	1010-1306	●	●
312	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	1307-	●	●
315	STAY; BUMPER	8-97613-645-1	01	1	1010-1306	●	●
315	STAY; BUMPER	8-97613-645-1	01	1	1307-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-297-1	01	1	1010-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-120-0	01	1	1010-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-296-1	01	1	1010-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-119-0	01	1	1010-	●	●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1010-1306	●	●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1307-	●	●
615	BRACKET; BUMPER CENTER	8-97613-643-1	01	1	1010-	●	●
633	CLIP; BUMPER ID=16 H=24 L=20	0-95207-315-0	01	1	1010-1306	●	●
633	CLIP; BUMPER ID=16 H=24 L=20	0-95207-315-0	01	1	1307-	●	●
671	BRACKET; STAY	8-97620-889-0	01	1	1010-1306	●	●
671	BRACKET; STAY	8-97620-889-0	01	1	1307-	●	●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1010-1306	●	●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1307-	●	●
682	BEZEL; BUMPER	8-97611-531-2	01	1	1010-1306	●	●
682	BEZEL; BUMPER	8-97611-531-2	01	1	1307-	●	●
682	BEZEL; BUMPER	8-97611-530-2	01	1	1010-1306	●	●
682	BEZEL; BUMPER	8-97611-530-2	01	1	1307-	●	●
683	CLIP; BEZEL,BUMPER	8-98084-293-0	08	1	1010-1306	●	●
683	CLIP; BEZEL,BUMPER	8-98084-293-0	08	1	1307-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
