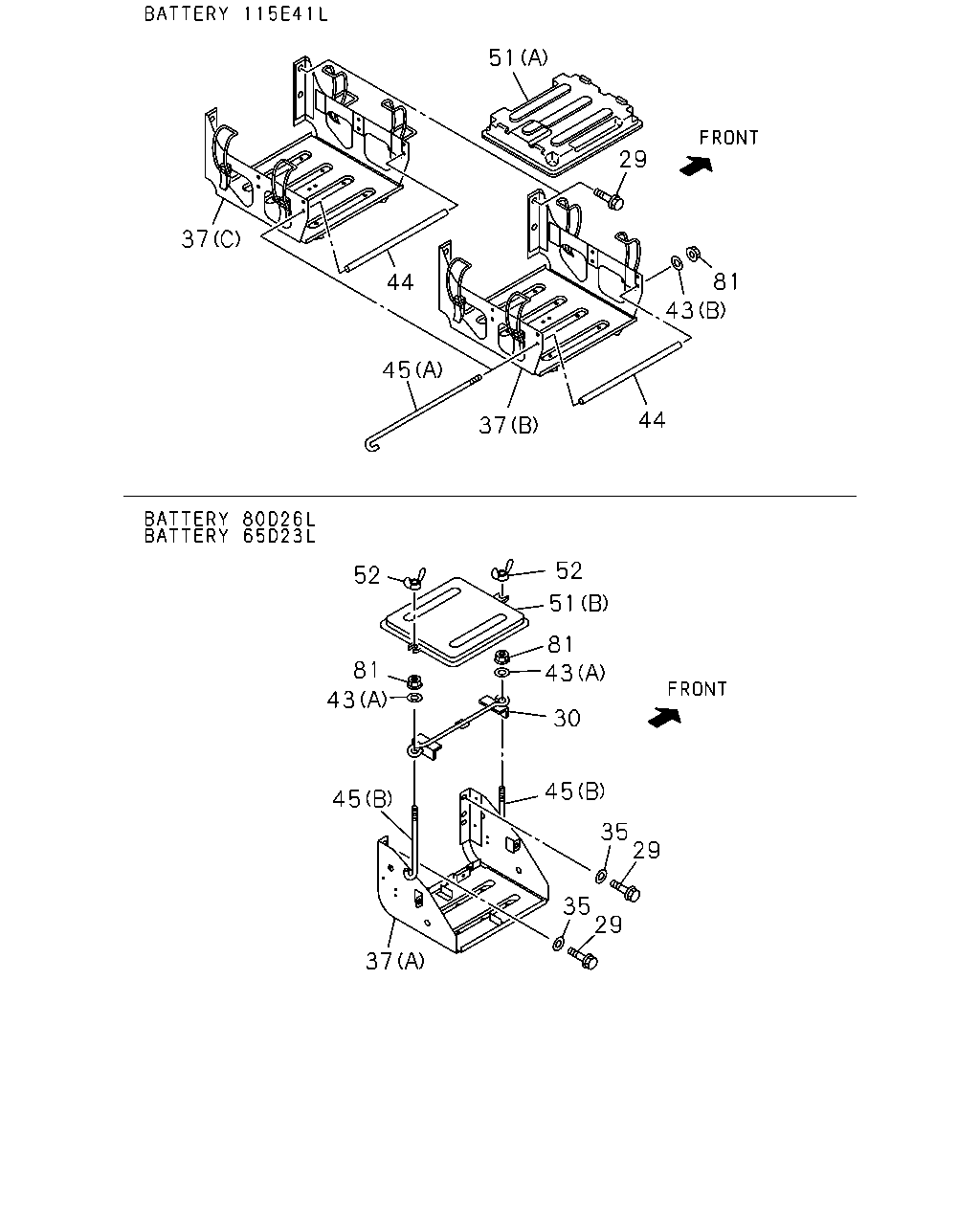

5-20 — BATTERY CARRIER (#60105) — 18 parça

37 44 51 29 81 43 44 37 52 52 51 81 43 30 45 35 29 35 29 81 43 45 37 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	1010-	●	●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	1010-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1010-	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (C)	8-98174-413-0	01	1	1010-1405	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (C)	8-98261-641-1	01	1	1406-	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	1010-	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1010-	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1010-1405	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98261-636-0	01	1	1406-	●	●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	02	1	1010-	●	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	1010-	●	●
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A) L=430	8-97134-740-0	02	1	1010-	●	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	1010-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	1010-	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1010-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1010-	●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
