◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11328 - FTR AUST/NZ EURO5 ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#60101) — 174 parça

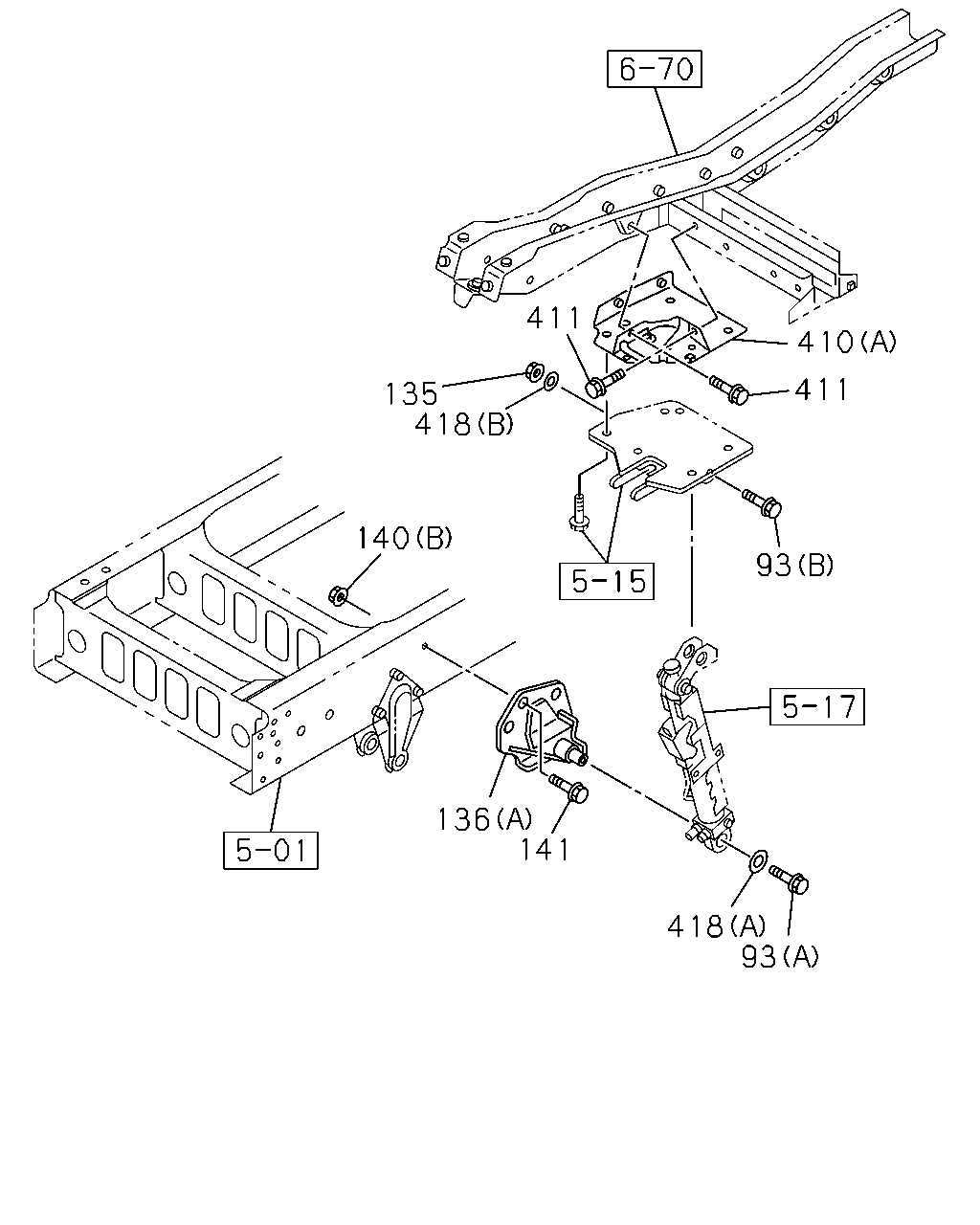

çizim 171869
93 418 141 136 140 135 418 411 411 410 93
BalonParca AdiParca NoAdetTipApplied Date A B
93 BOLT; PIN
(A) M10X20 FLANGE 		0-28651-020-0 01 1 1010- ●
93 BOLT; PIN
(B) M14X70 FLANGE 		0-29261-470-0 01 1 1010- ●
93 BOLT; PIN
(A) M10X20 FLANGE 		0-28651-020-0 02 1 1010- ●
93 BOLT; PIN
(B) M14X70 FLANGE 		0-29261-470-0 02 1 1010- ●
135 NUT; PIN
M14 		0-91110-514-0 01 1 1010- ● ●
136 BRACKET; OIL CYL
(A) 		8-98077-938-0 01 1 1010- ●
136 BRACKET; OIL CYL
(B) 		8-98077-942-1 01 1 1010- ●
136 BRACKET; OIL CYL
(B) 		8-98077-941-1 01 1 1010- ●
140 NUT; BRKT
(B) M14 FLANGE 		0-91180-214-0 04 1 1010- ●
140 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 04 1 1010- ●
140 NUT; BRKT
(B) M14 FLANGE 		0-91180-214-0 08 1 1010- ●
141 BOLT; BRKT
M14X40 FLANGE 		0-28661-440-0 04 1 1010- ●
141 BOLT; BRKT
M14X40 FLANGE 		0-28661-440-0 08 1 1010- ●
410 REINFORCEMENT; CAB TILT
(A) 		8-97588-837-5 01 1 1010- ● ●
410 REINFORCEMENT; CAB TILT
(B) 		8-97614-237-4 01 1 1010- ●
411 BOLT; REINFORCEMENT
M8X20 FLANGE 		0-28650-820-0 04 1 1010- ●
411 BOLT; REINFORCEMENT
M8X20 FLANGE 		0-28650-820-0 08 1 1010- ●
418 WASHER; PL,PIN
(B) ID=15 		0-91610-514-0 01 1 1010- ●
418 WASHER; PL,PIN
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 1010- ●
418 WASHER; PL,PIN
(B) ID=15 		0-91610-514-0 02 1 1010- ●
418 WASHER; PL,PIN
(A) ID=10.5 OD=32 		0-91614-810-0 02 1 1010- ●

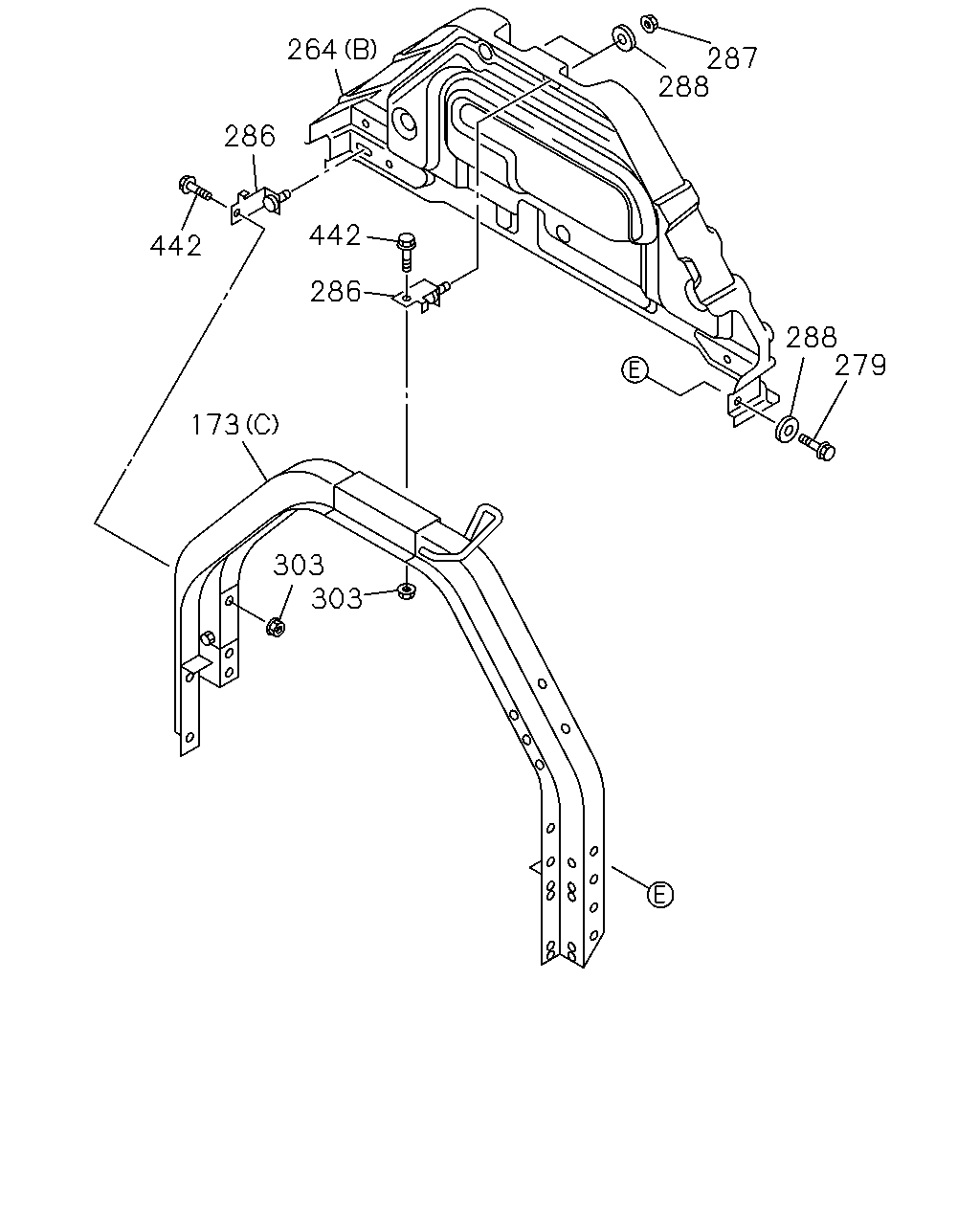

çizim 171870
264 286 442 442 286 173 303 303 288 279 288 287
BalonParca AdiParca NoAdetTipApplied Date A B
173 MEMBER; CAB MTG RR
(A) 		8-98022-592-8 01 1 1010- ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-568-1 01 1 1010- ●
173 MEMBER; CAB MTG RR
(C) 		8-98084-158-3 01 1 1010- ●
264 PANEL; BACK
(A) 		1-53194-609-2 01 1 1010- ●
264 PANEL; BACK
(B) 		8-98055-597-1 01 1 1010- ●
279 BOLT
M8X25 FLANGE 		0-28650-825-0 01 1 1010- ● ●
286 BRACKET; LOW 1-53457-187-0 02 1 1010- ● ●
287 NUT
M8 FLANGE 		0-91180-108-0 03 1 1010- ●
287 NUT
M8 FLANGE 		0-91180-108-0 02 1 1010- ●
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 03 1 1010- ● ●
303 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
442 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●

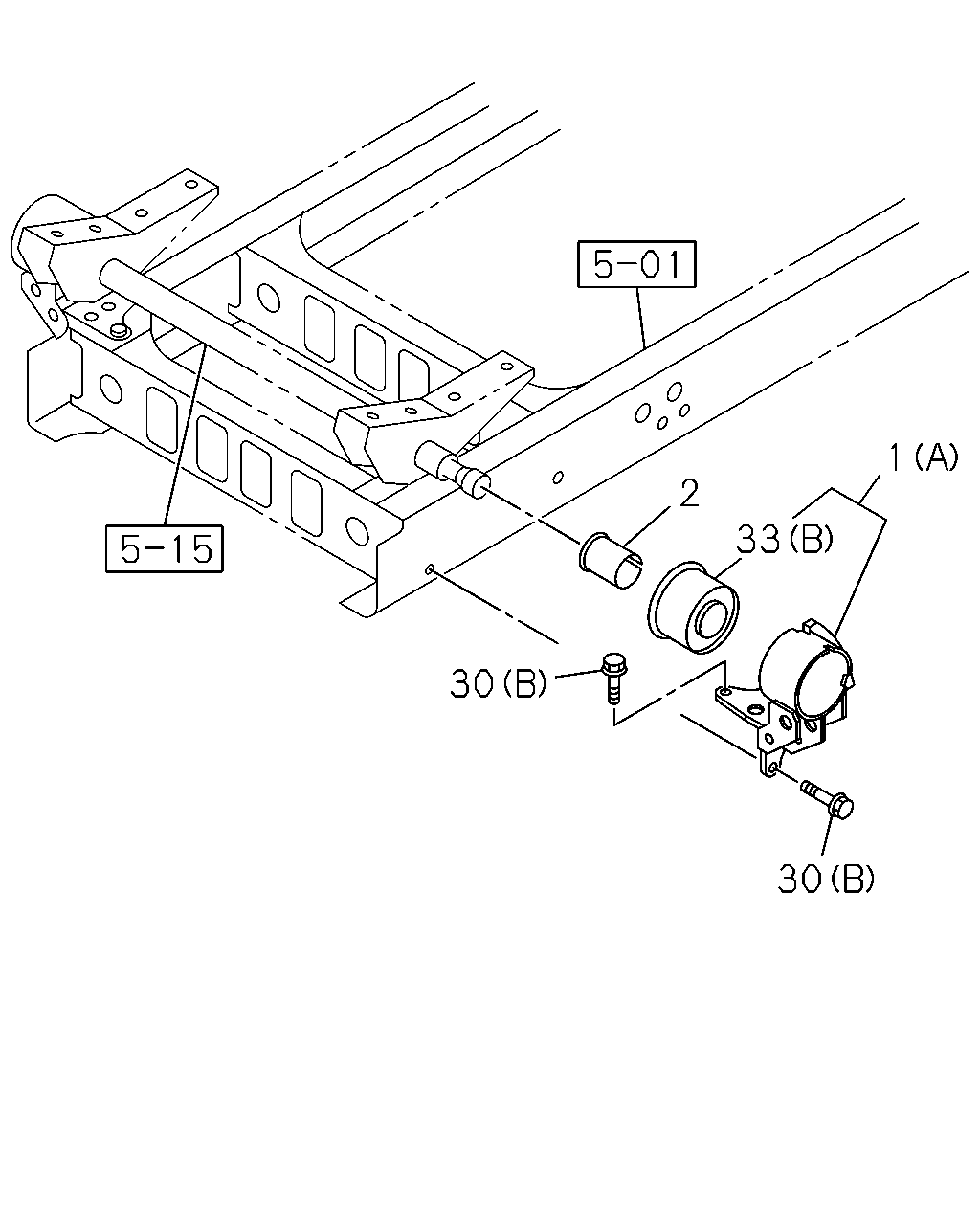

çizim 171874
30 2 1 30 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG
(C) 		8-98094-593-0 02 1 1010- ●
1 BRACKET; CAB MTG
(B) 		8-98120-623-0 02 1 1010- ●
1 BRACKET; CAB MTG
(A) 		8-98017-661-2 01 1 1010- ●
1 BRACKET; CAB MTG
(A) 		8-98017-660-2 01 1 1010- ●
2 BUSHING; TORSION BAR 8-98010-767-0 02 1 1010- ●
30 BOLT; CAB FRT FOOT
(A) M14X50 		0-20951-450-0 10 1 1010- ●
30 BOLT; CAB FRT FOOT
(B) M14X45 FLANGE 		0-28861-445-0 10 1 1010- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		8-98013-933-1 01 1 1010- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		8-98013-933-1 01 1 1010- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(C) 		1-53458-636-1 02 1 1010- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		8-98013-934-1 02 1 1010- ●

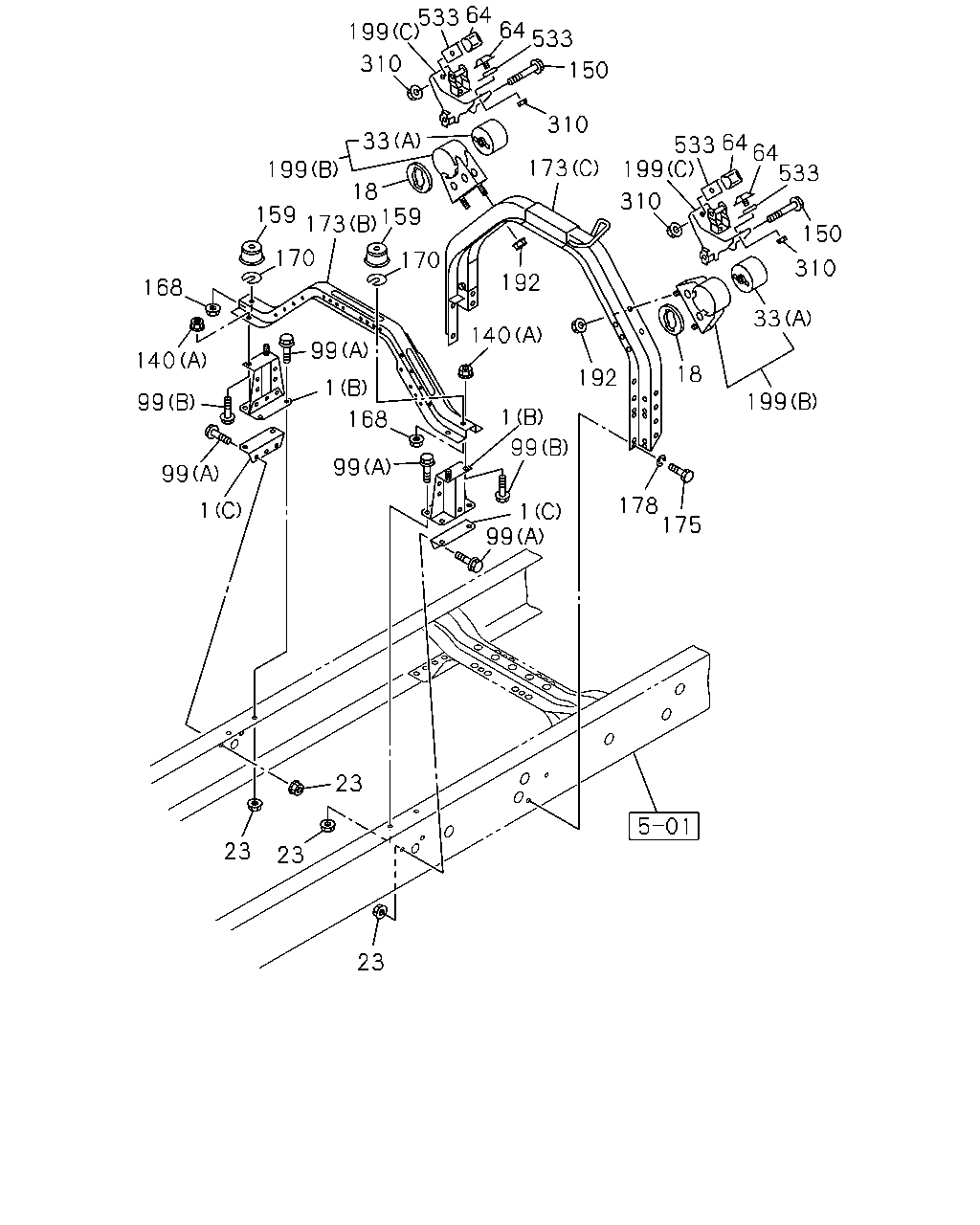

çizim 171885
199 310 533 64 64 533 150 310 173 33 199 159 18 173 159 170 192 140 1 99 170 168 140 99 99 1 1 168 99 23 23 23 23 99 99 192 178 1 175 18 310 199 533 64 64 533 150 310 33 199
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG
(C) 		8-98094-593-0 02 1 1010- ●
1 BRACKET; CAB MTG
(B) 		8-98120-623-0 02 1 1010- ●
1 BRACKET; CAB MTG
(A) 		8-98017-661-2 01 1 1010- ●
1 BRACKET; CAB MTG
(A) 		8-98017-660-2 01 1 1010- ●
18 PLATE; MTG BRKT FIX 8-98096-159-0 02 1 1010- ●
23 NUT; MTG BRKT
M12 FLANGE 		0-91180-212-0 12 1 1010- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		8-98013-933-1 01 1 1010- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		8-98013-933-1 01 1 1010- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(C) 		1-53458-636-1 02 1 1010- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		8-98013-934-1 02 1 1010- ●
64 RUBBER; CUSHION 8-97113-340-0 04 1 1010- ● ●
99 BOLT; BRKT
(B) M12X25 FLANGE 		0-28051-225-0 02 1 1010- ●
99 BOLT; BRKT
(A) M12X35 FLANGE 		0-28061-235-0 12 1 1010- ●
140 NUT; BRKT
(B) M14 FLANGE 		0-91180-214-0 04 1 1010- ●
140 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 04 1 1010- ●
140 NUT; BRKT
(B) M14 FLANGE 		0-91180-214-0 08 1 1010- ●
150 BOLT; CAB MTG RR
M14X100 		0-10956-400-0 02 1 1010- ●
159 RUBBER; CUSHION,CAB MTG 9-54347-160-1 02 1 1010- ●
168 NUT; CUSHION RUBBER,BODY MTG
M12 FLANGE 		0-91180-212-0 02 1 1010- ●
170 SHIM; CUSHION RUBBER
T=1.6 		9-54347-136-1 AR 1 1010- ●
173 MEMBER; CAB MTG RR
(A) 		8-98022-592-8 01 1 1010- ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-568-1 01 1 1010- ●
173 MEMBER; CAB MTG RR
(C) 		8-98084-158-3 01 1 1010- ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 1010-1306 ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 1307- ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 1010-1306 ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 1307- ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 1010- ●
199 BRACKET; CAB RR MTG
(A) 		8-98025-489-4 01 1 1010- ●
199 BRACKET; CAB RR MTG
(A) 		8-98025-488-4 01 1 1010- ●
199 BRACKET; CAB RR MTG
(B) 		8-98069-332-1 02 1 1010- ●
199 BRACKET; CAB RR MTG
(C) 		8-98095-166-0 02 1 1010- ●
310 NUT; CUSHION
M8 FLANGE 		0-91180-108-0 04 1 1010- ● ●
533 SPACER; MTG RUBBER 8-98077-323-0 04 1 1010- ● ●

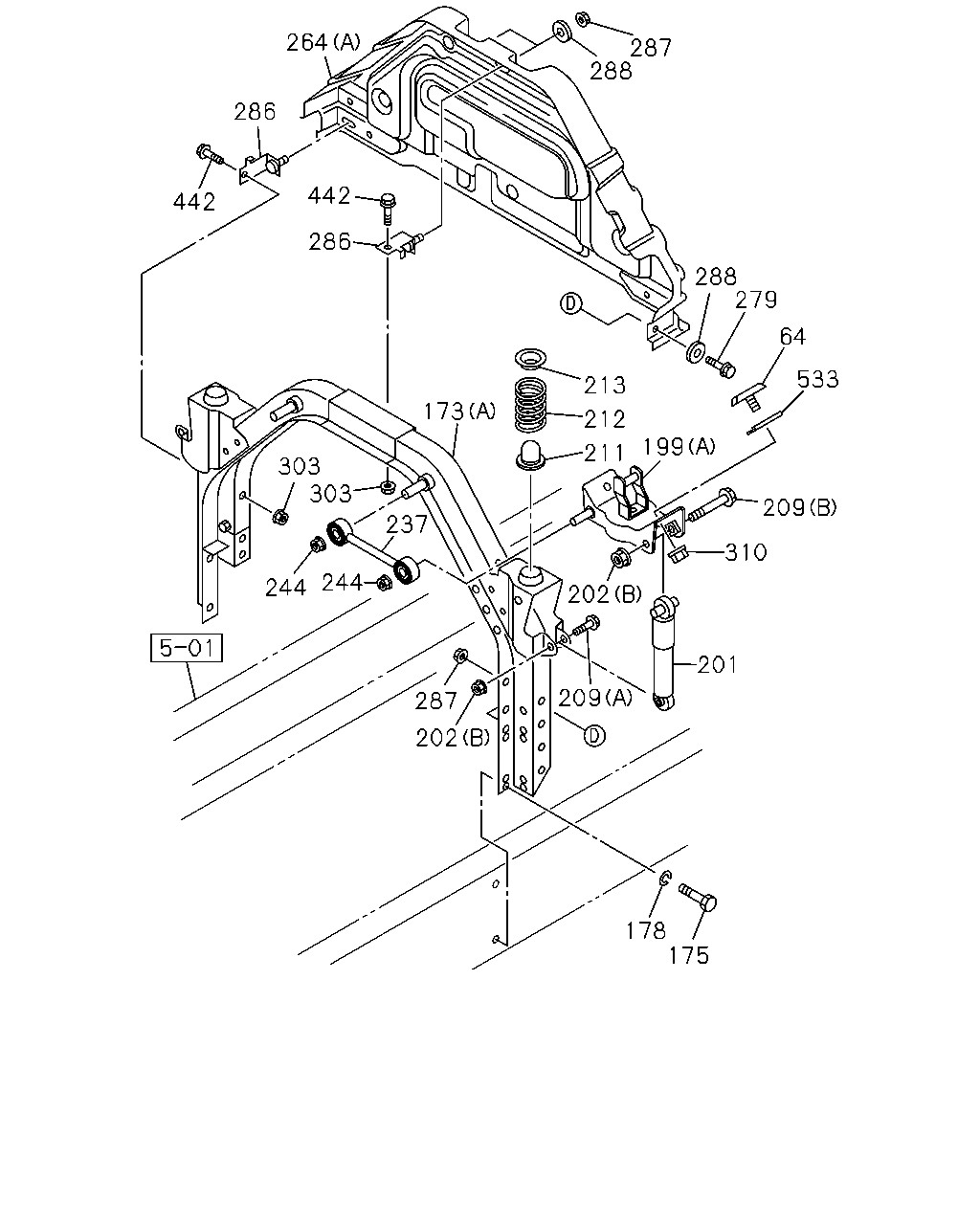

çizim 171911
287 288 264 286 442 442 286 173 288 279 64 533 209 310 201 209 178 175 202 199 211 212 213 202 287 244 237 303 303 244
BalonParca AdiParca NoAdetTipApplied Date A B
64 RUBBER; CUSHION 8-97113-340-0 04 1 1010- ● ●
173 MEMBER; CAB MTG RR
(A) 		8-98022-592-8 01 1 1010- ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-568-1 01 1 1010- ●
173 MEMBER; CAB MTG RR
(C) 		8-98084-158-3 01 1 1010- ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 1010-1306 ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 1307- ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 1010-1306 ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 1307- ● ●
199 BRACKET; CAB RR MTG
(A) 		8-98025-489-4 01 1 1010- ●
199 BRACKET; CAB RR MTG
(A) 		8-98025-488-4 01 1 1010- ●
199 BRACKET; CAB RR MTG
(B) 		8-98069-332-1 02 1 1010- ●
199 BRACKET; CAB RR MTG
(C) 		8-98095-166-0 02 1 1010- ●
201 ABSORBER ASM; SHOCK,RR MTG 8-98022-450-0 02 1 1010-1401 ●
201 ABSORBER ASM; SHOCK,RR MTG 8-98269-510-0 02 1 1402- ●
202 NUT; S/ABS
(B) M12 FLANGE 		0-91180-212-0 04 1 1010- ●
202 NUT; S/ABS
(A) M10 		9-09110-410-0 02 1 1010- ●
209 BOLT; S/ABS
(A) M12X60 FLANGE 		0-28051-260-0 02 1 1010- ●
209 BOLT; S/ABS
(B) M12X100 FLANGE 		0-28061-200-0 02 1 1010- ●
211 RUBBER; CUSHION,S/ABS 1-53366-144-0 02 1 1010- ●
212 SPRING; COIL 1-09580-398-1 02 1 1010- ●
213 SEAT; SPR,S/ABS 1-53366-062-2 02 1 1010- ●
237 ROD ASM; LATERAL 1-53459-585-2 02 1 1010- ●
244 NUT; LATERAL ROD
M16 FLANGE 		0-91180-216-0 04 1 1010- ●
264 PANEL; BACK
(A) 		1-53194-609-2 01 1 1010- ●
264 PANEL; BACK
(B) 		8-98055-597-1 01 1 1010- ●
279 BOLT
M8X25 FLANGE 		0-28650-825-0 01 1 1010- ● ●
286 BRACKET; LOW 1-53457-187-0 02 1 1010- ● ●
287 NUT
M8 FLANGE 		0-91180-108-0 03 1 1010- ●
287 NUT
M8 FLANGE 		0-91180-108-0 02 1 1010- ●
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 03 1 1010- ● ●
303 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
310 NUT; CUSHION
M8 FLANGE 		0-91180-108-0 04 1 1010- ● ●
442 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
533 SPACER; MTG RUBBER 8-98077-323-0 04 1 1010- ● ●

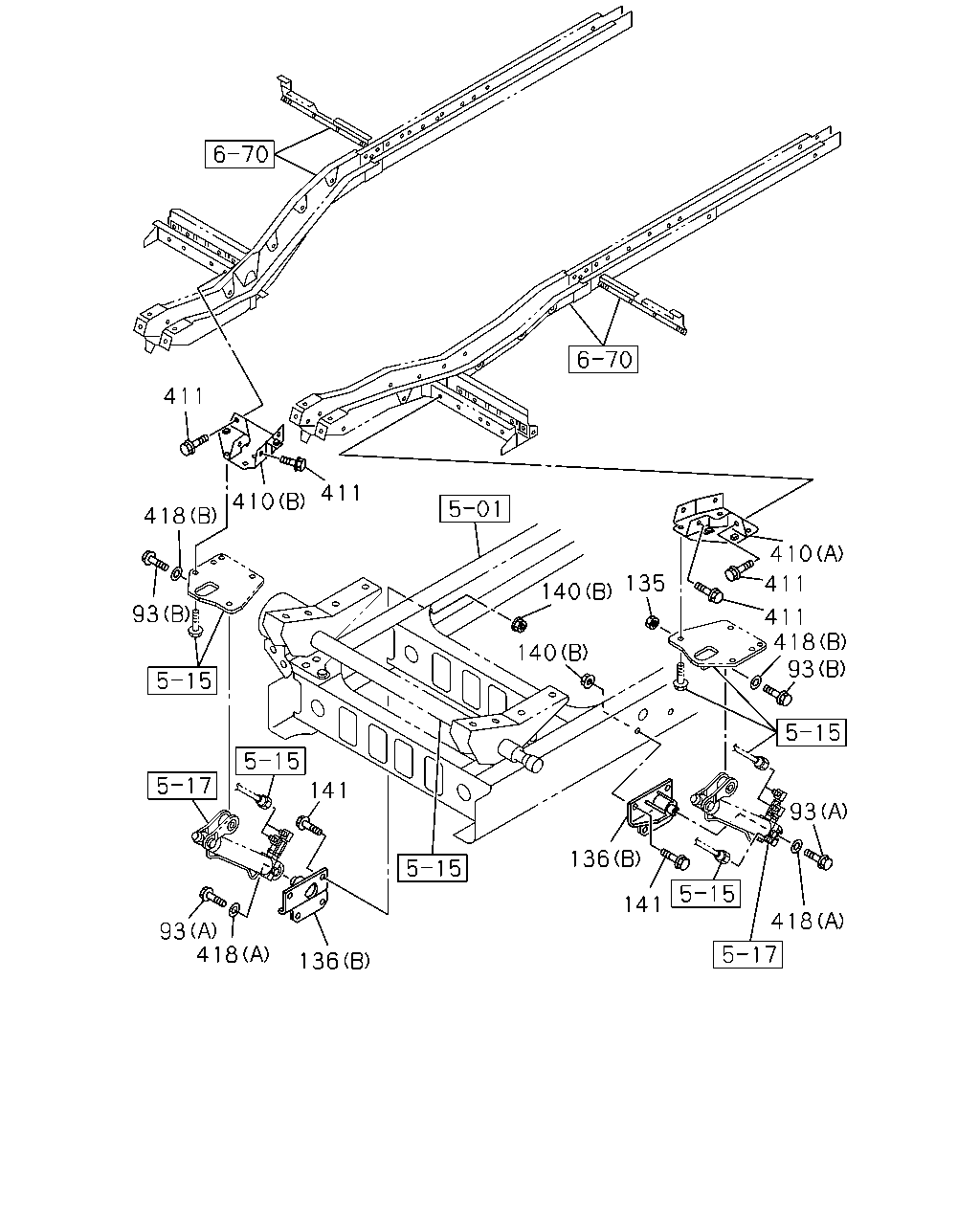

çizim 171922
411 411 410 418 93 141 93 418 140 140 135 410 411 411 418 93 93 141 418 136 136
BalonParca AdiParca NoAdetTipApplied Date A B
93 BOLT; PIN
(A) M10X20 FLANGE 		0-28651-020-0 01 1 1010- ●
93 BOLT; PIN
(B) M14X70 FLANGE 		0-29261-470-0 01 1 1010- ●
93 BOLT; PIN
(A) M10X20 FLANGE 		0-28651-020-0 02 1 1010- ●
93 BOLT; PIN
(B) M14X70 FLANGE 		0-29261-470-0 02 1 1010- ●
135 NUT; PIN
M14 		0-91110-514-0 01 1 1010- ● ●
136 BRACKET; OIL CYL
(A) 		8-98077-938-0 01 1 1010- ●
136 BRACKET; OIL CYL
(B) 		8-98077-942-1 01 1 1010- ●
136 BRACKET; OIL CYL
(B) 		8-98077-941-1 01 1 1010- ●
140 NUT; BRKT
(B) M14 FLANGE 		0-91180-214-0 04 1 1010- ●
140 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 04 1 1010- ●
140 NUT; BRKT
(B) M14 FLANGE 		0-91180-214-0 08 1 1010- ●
141 BOLT; BRKT
M14X40 FLANGE 		0-28661-440-0 04 1 1010- ●
141 BOLT; BRKT
M14X40 FLANGE 		0-28661-440-0 08 1 1010- ●
410 REINFORCEMENT; CAB TILT
(A) 		8-97588-837-5 01 1 1010- ● ●
410 REINFORCEMENT; CAB TILT
(B) 		8-97614-237-4 01 1 1010- ●
411 BOLT; REINFORCEMENT
M8X20 FLANGE 		0-28650-820-0 04 1 1010- ●
411 BOLT; REINFORCEMENT
M8X20 FLANGE 		0-28650-820-0 08 1 1010- ●
418 WASHER; PL,PIN
(B) ID=15 		0-91610-514-0 01 1 1010- ●
418 WASHER; PL,PIN
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 1010- ●
418 WASHER; PL,PIN
(B) ID=15 		0-91610-514-0 02 1 1010- ●
418 WASHER; PL,PIN
(A) ID=10.5 OD=32 		0-91614-810-0 02 1 1010- ●

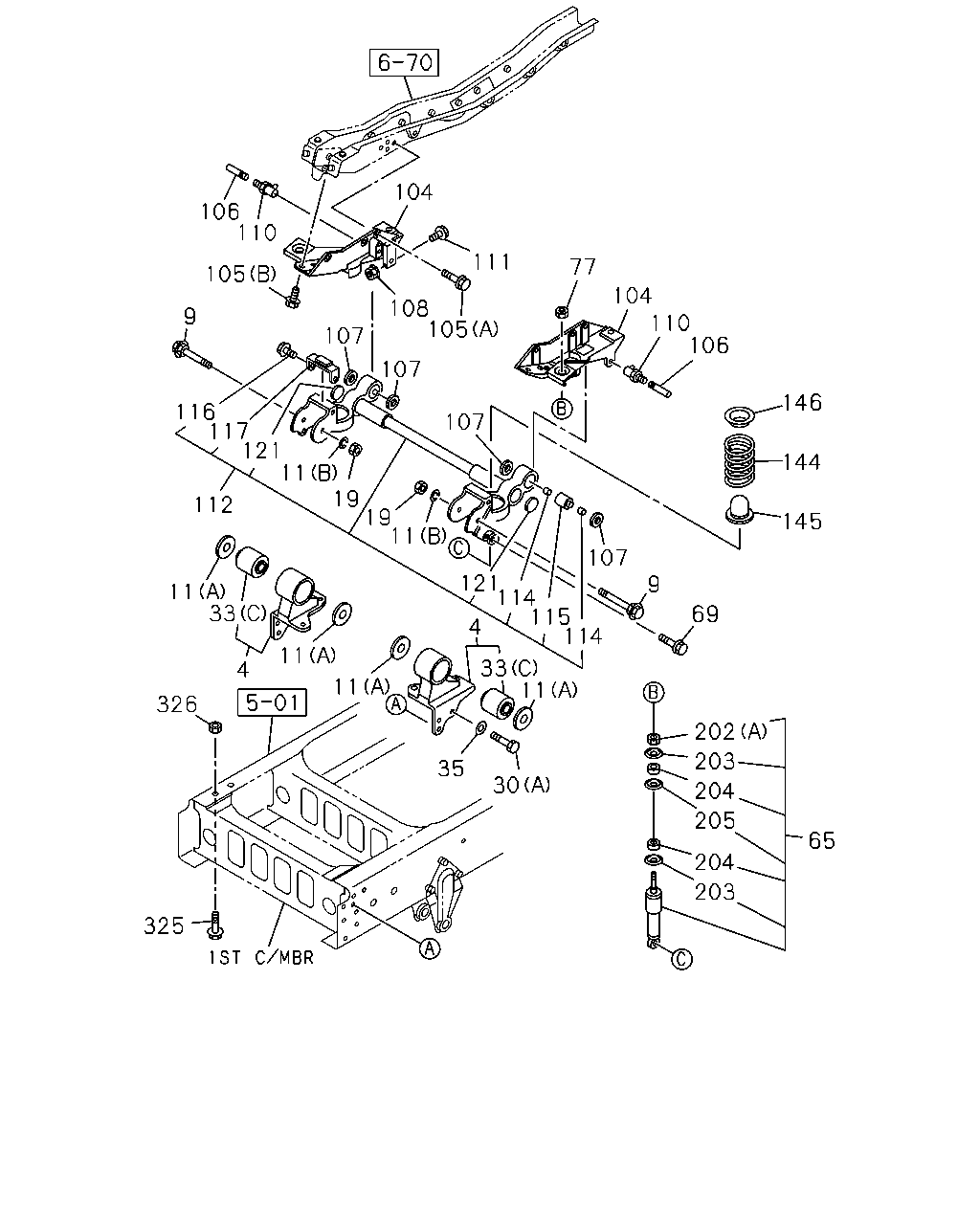

çizim 171935
77 146 106 110 124 111 108 110 107 107 107 4 35 33 202 203 203 204 204 205 30 145 114 115 114 121 11 19 116 105 107 117 112 121 11 326 33 325 11 19 11 11 9 69 4 106 105 11 144 104 65 9
BalonParca AdiParca NoAdetTipApplied Date A B
4 BRACKET; FRT MTG 1-53453-270-0 01 1 1010- ●
4 BRACKET; FRT MTG 1-53453-269-0 01 1 1010- ●
9 BOLT
M16X125 		1-51361-023-0 02 1 1010- ●
11 WASHER; LK
(B) ID=16.2 		0-91510-816-0 02 1 1010- ●
11 WASHER; LK
(A) ID=34.5 		1-53458-281-1 04 1 1010- ●
19 NUT
M16 		0-91110-516-0 02 1 1010- ●
30 BOLT; CAB FRT FOOT
(A) M14X50 		0-20951-450-0 10 1 1010- ●
30 BOLT; CAB FRT FOOT
(B) M14X45 FLANGE 		0-28861-445-0 10 1 1010- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		8-98013-933-1 01 1 1010- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		8-98013-933-1 01 1 1010- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(C) 		1-53458-636-1 02 1 1010- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		8-98013-934-1 02 1 1010- ●
35 WASHER; PL,CAB MTG BRKT
ID=15 		8-98010-627-1 10 1 1010- ●
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-345-0 02 1 1010- ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
M12X60 FLANGE 		0-28051-260-0 02 1 1010- ●
77 NUT 8-97359-039-0 02 1 1010- ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98022-421-2 01 1 1010- ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98022-420-2 01 1 1010- ●
105 BOLT; BRKT TO CAB FRAME
(B) M12X35 FLANGE 		0-28651-235-0 04 1 1010- ●
105 BOLT; BRKT TO CAB FRAME
(A) M10X30 FLANGE 		0-28661-030-0 08 1 1010- ●
106 PIN; BRKT TO LINK ARM 1-53459-642-1 02 1 1010- ●
107 WASHER; LINK ARM PIN,CAB FRT SUSPENSIO 1-53459-643-2 04 1 1010- ●
108 NUT; PIN LOCK BOLT
M8 FLANGE 		0-91180-108-0 02 1 1010- ●
110 NIPPLE; GREASE,LINK ARM PIN
PT1/8 ELBOW 		0-90301-610-0 02 1 1010- ●
111 BOLT; PIN LOCK,LINK ARM
M8X50 FLANGE 		0-28050-850-0 02 1 1010- ●
112 ARM ASM; LINK,CAB FRT SUSP 8-98148-517-0 01 1 1010- ●
114 BUSHING; FLOATING LINK PIN 1-09330-068-0 04 1 1010- ●
115 BUSHING; RUBBER,FLOATING LINK ARM 1-53459-315-2 02 1 1010- ●
116 BOLT; STOPPER RUBBER,LINK ARM
M8X20 FLANGE 		0-28050-820-0 04 1 1010- ●
117 RUBBER; STOPPER,LINK ARM,CAB FRT MTG 1-53458-321-1 02 1 1010- ●
121 PLUG; FLOATING LINK ARM 9-09860-031-0 02 1 1010- ●
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-518-1 02 1 1010- ●
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-144-0 02 1 1010- ●
146 SEAT; SPRING,CAB FRT SUSPENSION 1-53366-132-1 02 1 1010- ●
202 NUT; S/ABS
(B) M12 FLANGE 		0-91180-212-0 04 1 1010- ●
202 NUT; S/ABS
(A) M10 		9-09110-410-0 02 1 1010- ●
203 WASHER; RUBBER,SHOCK
ID=10.5 OD=38 		9-51631-062-0 04 1 1010- ●
204 RUBBER; CUSHION,SHOCK
TOKICO 		9-51631-603-0 04 1 1010- ●
205 WASHER; RUBBER,SHOCK
ID=13 OD=38 		9-51631-063-0 02 1 1010- ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28651-240-0 02 1 1010- ●
326 NUT; GUIDE NUT
M12 		0-91110-512-0 02 1 1010- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
