◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11328 - FTR AUST/NZ EURO5 ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#60100) — 97 parça

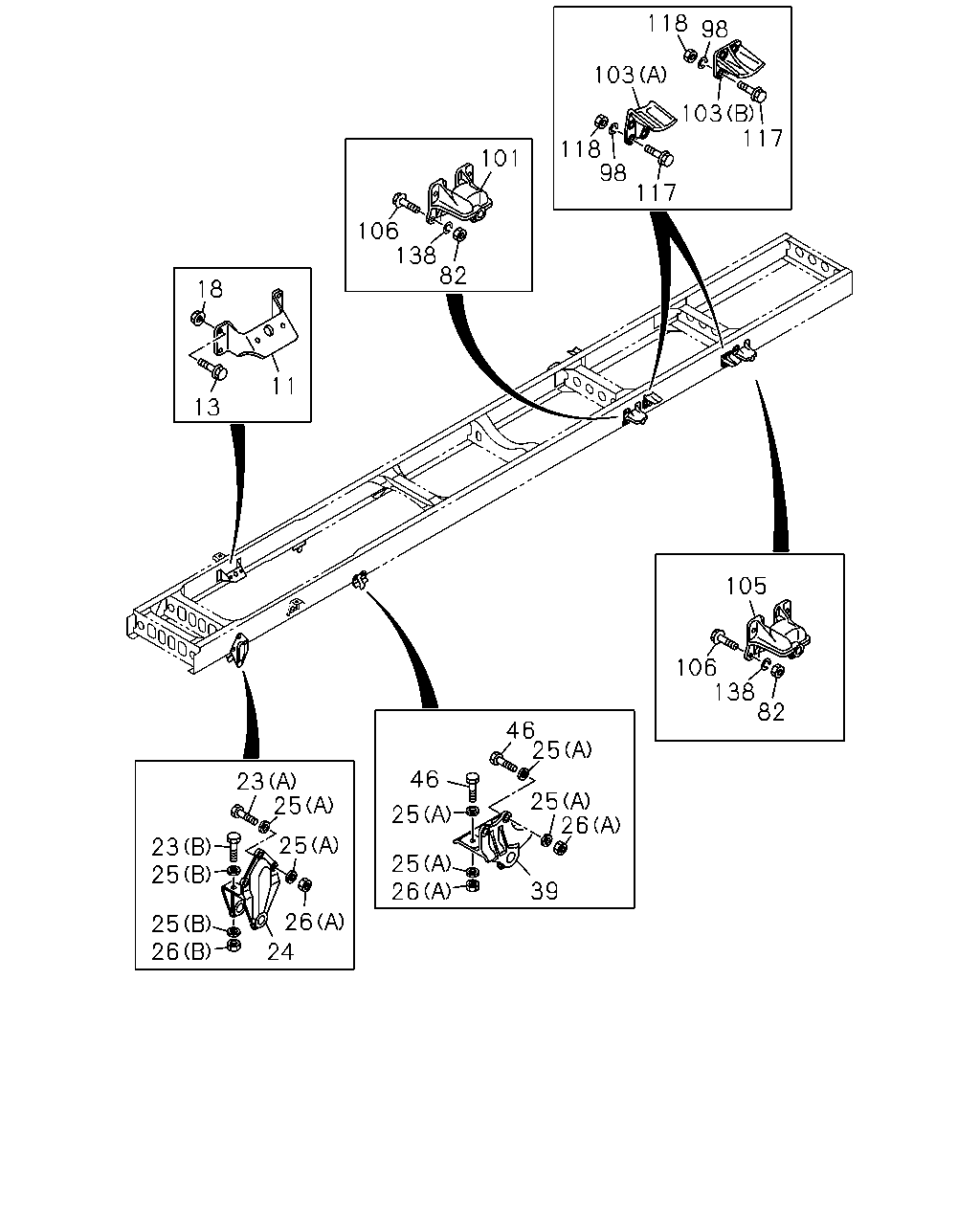

çizim 171878
105 106 138 82 25 25 26 39 26 25 25 46 46 23 25 25 26 24 26 25 25 23 13 11 18 106 138 82 101 118 98 117 103 118 98 103 117
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG 8-97619-549-0 02 1 1010-1109 ● ● ●
11 BRACKET; ENG MTG 8-97619-549-0 02 1 1110- ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1010-1109 ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1110- ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1010-1109 ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1110- ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1010-1109 ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1110- ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1010-1109 ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1110- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1010-1109 ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1110- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1010-1109 ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1110- ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1010-1109 ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1110- ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1010-1109 ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1110- ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1010-1109 ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1110- ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1010-1109 ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1110- ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 1010-1109 ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 1110- ● ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 1010-1109 ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 1110- ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1010-1109 ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1110- ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 1010-1109 ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 1110- ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1010-1109 ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1110- ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 1010-1109 ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 1110- ● ● ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 1010-1109 ● ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 1110- ● ● ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 1010-1109 ● ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 1110- ● ● ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 1010-1109 ● ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 1110- ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 20 1 1010-1109 ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 20 1 1110- ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1010-1109 ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1110- ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1010-1109 ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1110- ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 20 1 1010-1109 ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 20 1 1110- ● ● ● ●

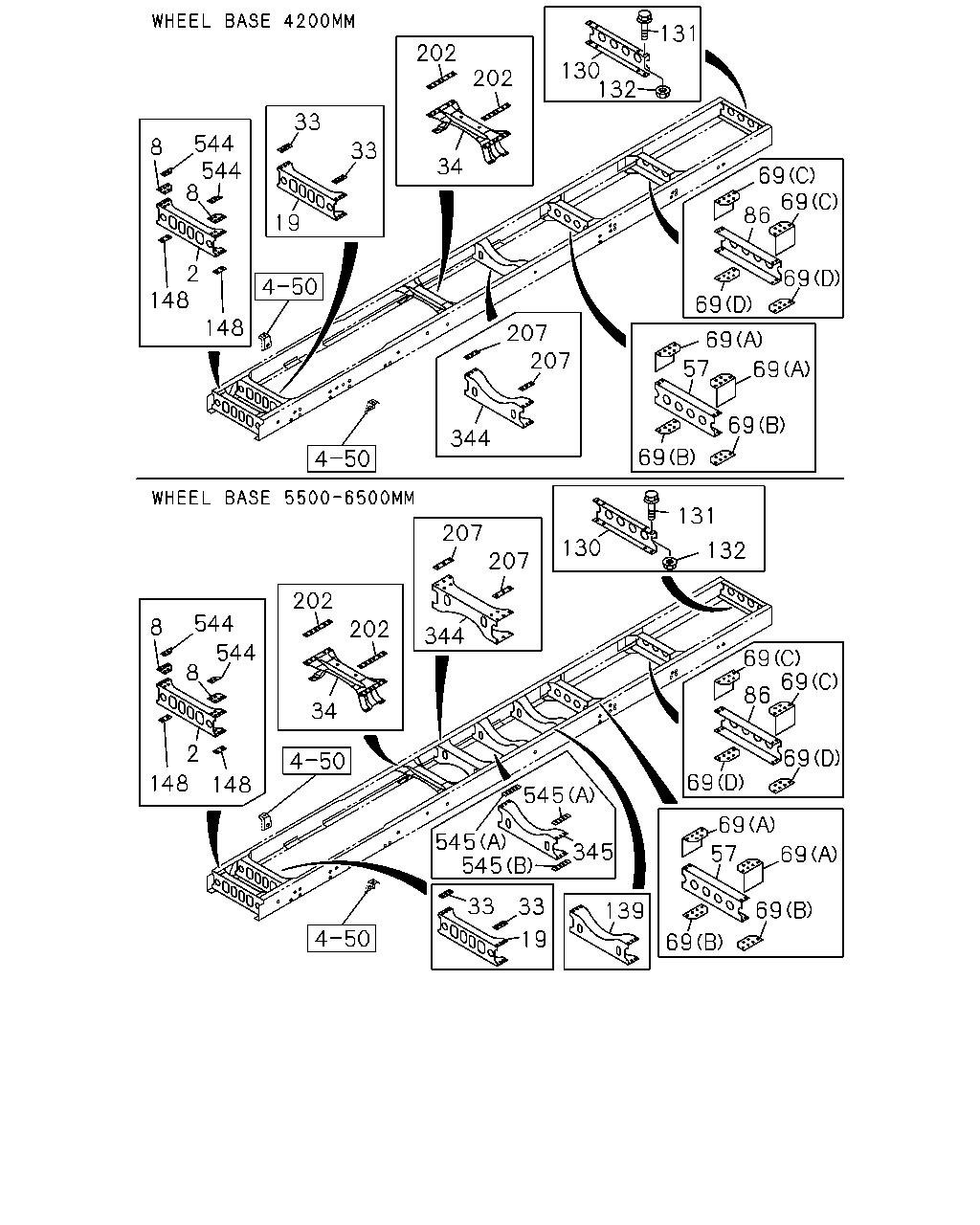

çizim 171888
69 57 69 69 139 345 545 545 545 33 33 19 69 69 69 69 86 132 131 130 207 207 344 202 202 34 544 544 8 8 148 148 2 69 69 69 69 57 69 69 69 69 86 132 131 130 202 34 202 33 33 19 544 8 8 544 2 148 148 207 207 344 69
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97610-852-6 01 1 1010-1109 ● ● ●
2 MEMBER; CROSS,1ST 8-97610-852-7 01 1 1110- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1010-1109 ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1110- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97610-853-4 01 1 1010-1109 ● ● ●
19 MEMBER; CROSS,2ND 8-97610-853-5 01 1 1110- ● ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 1010-1109 ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 1110- ● ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1010-1109 ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1110- ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-5 01 1 1010-1109 ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-5 01 1 1110- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-865-0 02 1 1010-1109 ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-865-0 02 1 1110- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-866-0 02 1 1010-1109 ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-866-0 02 1 1110- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-264-0 01 1 1010-1109 ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-264-0 01 1 1110- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-265-1 01 1 1010-1109 ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-265-1 01 1 1110- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-266-1 01 1 1010-1109 ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-266-1 01 1 1110- ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-267-1 01 1 1010-1109 ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-267-1 01 1 1110- ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-5 01 1 1010-1109 ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-5 01 1 1110- ● ● ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 1010-1109 ● ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 1110- ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1010-1109 ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1110- ● ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1010-1109 ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1110- ● ● ● ●
139 MEMBER; CROSS,6TH 8-97611-238-1 01 1 1010- ●
148 SPACER; C/MBR 8-97611-039-0 02 1 1010-1109 ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 1110- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1010-1109 ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1110- ● ● ● ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1010- ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1010-1109 ● ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1110- ● ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1010-1109 ● ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1110- ● ● ● ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 1010-1109 ● ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 1110- ● ● ●
544 PLATE; CAB FRT MTG 8-97611-030-0 02 1 1010-1109 ● ● ●
544 PLATE; CAB FRT MTG 8-97611-030-0 02 1 1110- ● ● ● ●
545 SPACER; 5TH C/MBR
(B) 0.25KG 		8-97611-244-0 02 1 1307- ●
545 SPACER; 5TH C/MBR
(A) 0.24KG 		8-97611-245-0 02 1 1010-1109 ● ●
545 SPACER; 5TH C/MBR
(A) 0.24KG 		8-97611-245-0 02 1 1110- ● ● ●
