4-60 — REAR SUSPENSION (#60097) — 65 parça

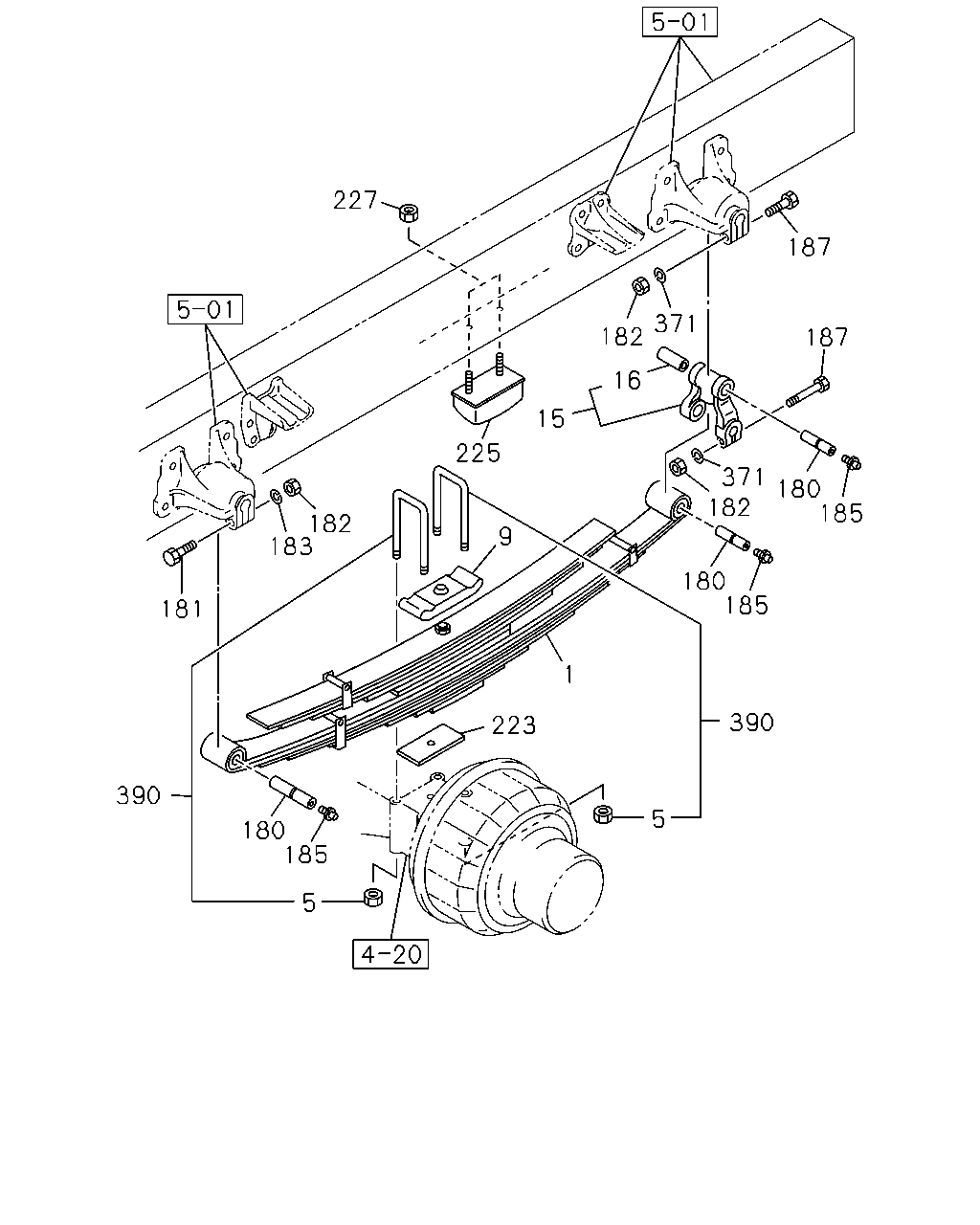

çizim 171871
183 182 181 390 180 185 5 5 390 223 1 9 225 15 16 182 371 371 180 185 182 180 187 187 185 227
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-98017-564-0 02 1 1010- ● ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 1010- ● ●
9 PAD; U BOLT,RR SPR 1-51372-048-1 02 1 1010- ● ●
15 SHACKLE; RR SPR 1-51362-049-2 02 1 1010- ● ●
16 BUSHING; SHACKLE,RR SPR 8-98081-830-0 02 1 1010- ● ●
16 BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS 		1-87610-163-0 02 1 1010- ● ●
180 PIN; RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 06 1 1010- ● ●
181 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 02 1 1010- ● ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 1010- ● ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 04 1 1010- ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 1010- ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1010- ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 1010- ● ●
187 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 04 1 1010- ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) 		1-51377-166-0 02 1 1010-1109 ●
223 SPACER; U BOLT,RR SPR 1-51377-166-0 02 1 1010-1109 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) 		1-51377-166-0 02 1 1110-1306 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6000MM(60W) 		1-51377-166-0 02 1 1110-1306 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) 		1-51377-166-0 02 1 1307-1307 ●
223 SPACER; U BOLT,RR SPR 1-51377-166-0 02 1 1307-1307 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) 		1-51377-166-0 02 1 1308- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6000MM(60W) 		1-51377-166-0 02 1 1308- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6500MM(65W) 		1-51377-372-0 02 1 1010-1306 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		1-51377-372-0 02 1 1307-1307 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6500MM(65W) 		1-51377-372-0 02 1 1308- ●
225 RUBBER; CUSHION,RR SPR 1-53366-067-4 02 1 1010- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 1010- ● ●
371 WASHER; LK,SHACKLE
ID=14.2 		0-91510-514-0 04 1 1010- ● ●
390 U-BOLT SET; RR SPRING
L=455 		1-87870-268-1 04 1 1010- ● ●

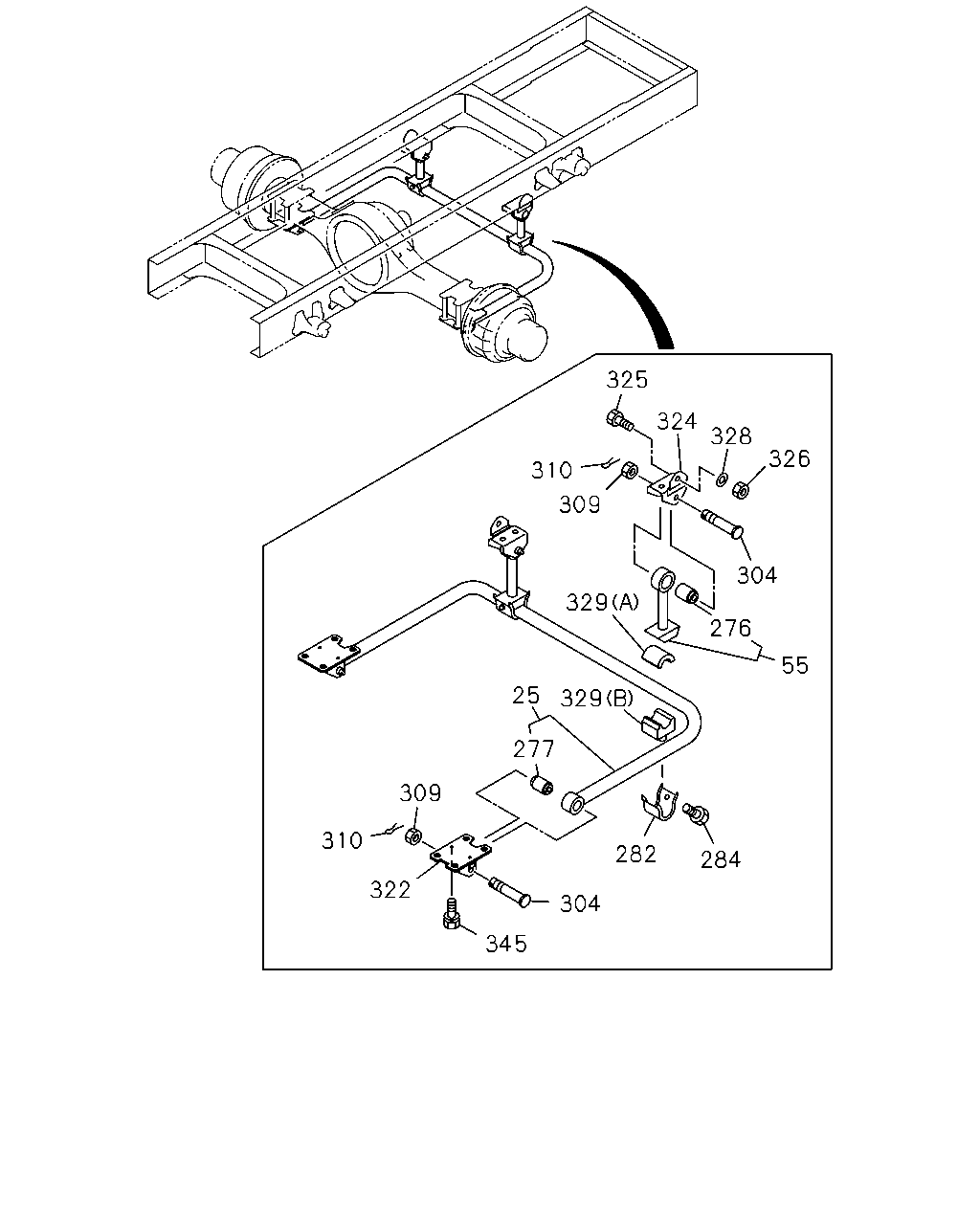

çizim 171901
325 326 328 324 310 329 304 309 329 25 276 55 284 282 304 345 309 277 310 322
BalonParca AdiParca NoAdetTipApplied Date A B
25 BAR ASM; STAB,RR SUSP
STABILIZER REAR LIGHT DUTY<GN1> 		1-51770-029-1 01 1 1010-1306 ● ●
25 BAR ASM; STAB,RR SUSP 1-51770-029-1 01 1 1307- ● ●
55 ROD; STAB
STABILIZER REAR LIGHT DUTY<GN1> 		1-51770-024-1 02 1 1010-1306 ● ●
55 ROD; STAB 1-51770-024-1 02 1 1307- ● ●
276 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		1-51779-019-0 02 1 1010-1306 ● ●
276 BUSHING; STAB ROD 1-51779-019-0 02 1 1307- ● ●
277 BUSHING; STAB,RR UPR
STABILIZER REAR LIGHT DUTY<GN1> 		1-51779-067-0 02 1 1010-1306 ● ●
277 BUSHING; STAB,RR UPR 1-51779-067-0 02 1 1307- ● ●
282 RETAINER; STAB BAR
STABILIZER REAR LIGHT DUTY<GN1> 		1-51789-015-2 02 1 1010-1306 ● ●
282 RETAINER; STAB BAR 1-51789-015-2 02 1 1307- ● ●
284 BOLT; RET TO RET
STABILIZER REAR LIGHT DUTY<GN1> M10X25 		8-94463-351-0 08 1 1010-1306 ● ●
284 BOLT; RET TO RET
M10X25 		8-94463-351-0 08 1 1307- ● ●
304 PIN; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		1-51789-020-2 04 1 1010-1306 ● ●
304 PIN; STAB ROD 1-51789-020-2 04 1 1307- ● ●
309 NUT; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> M24 		9-99116-424-0 04 1 1010-1306 ● ●
309 NUT; STAB ROD
M24 		9-99116-424-0 04 1 1307- ● ●
310 PIN; SPLIT,STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> OD=4.6 L=45 		0-81125-045-0 04 1 1010-1306 ● ●
310 PIN; SPLIT,STAB ROD
OD=4.6 L=45 		0-81125-045-0 04 1 1307- ● ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-128-0 01 1 1010-1306 ● ●
322 BRACKET; STAB BAR TO RR AXLE 1-51781-128-0 01 1 1307- ● ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-038-1 01 1 1010-1306 ● ●
322 BRACKET; STAB BAR TO RR AXLE 1-51781-038-1 01 1 1307- ● ●
324 BRACKET; STAB BAR TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-059-0 02 1 1010-1306 ● ●
324 BRACKET; STAB BAR TO FRAME 1-51781-059-0 02 1 1307- ● ●
325 BOLT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14X45 		9-92061-445-0 06 1 1010-1306 ● ●
325 BOLT; BRKT TO FRAME
M14X45 		9-92061-445-0 06 1 1307- ● ●
326 NUT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14 		0-91110-514-0 06 1 1010-1306 ● ●
326 NUT; BRKT TO FRAME
M14 		0-91110-514-0 06 1 1307- ● ●
328 WASHER; PL,BRKT
STABILIZER REAR LIGHT DUTY<GN1> ID=15 		8-98010-627-1 12 1 1010-1306 ● ●
328 WASHER; PL,BRKT
ID=15 		8-98010-627-1 12 1 1307- ● ●
329 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> (A) 		1-51789-051-1 02 1 1010-1306 ● ●
329 BUSHING; STAB ROD
(A) 		1-51789-051-1 02 1 1307- ● ●
329 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> (B) 		1-51789-052-0 02 1 1010-1306 ● ●
329 BUSHING; STAB ROD
(B) 		1-51789-052-0 02 1 1307- ● ●
345 BOLT; BRKT
STABILIZER REAR LIGHT DUTY<GN1> M10X16 FLANGE 		0-28051-016-0 04 1 1010-1306 ● ●
345 BOLT; BRKT
M10X16 FLANGE 		0-28051-016-0 04 1 1307- ● ●
