◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11328 - FTR AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#60087) — 74 parça

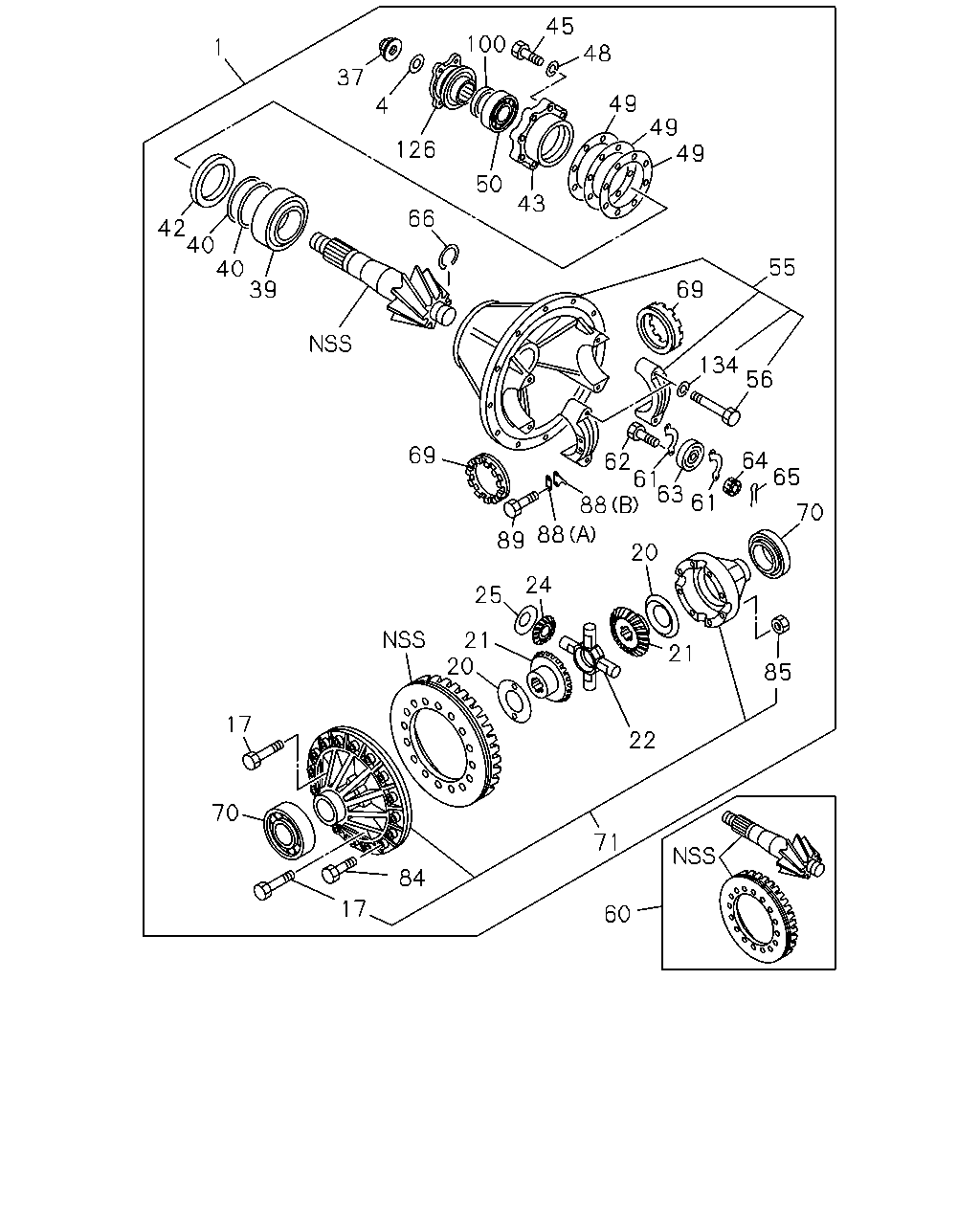

çizim 171804
1 37 4 100 45 48 49 49 49 55 69 134 56 65 70 64 85 60 71 22 21 17 84 70 17 20 21 25 24 20 89 88 88 62 61 63 61 69 39 40 40 42 126 66 50 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
39/7 		1-41001-257-0 01 1 1010- ●
1 DRIVE ASM; FINAL,RR
41/7 		1-41001-596-0 01 1 1010- ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		9-09921-116-0 01 1 1010- ● ●
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 12 1 1010- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.75 		1-41562-139-0 AR 1 1010- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-140-0 AR 1 1010- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.85 		1-41562-141-0 AR 1 1010- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-142-0 AR 1 1010- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.95 		1-41562-143-0 AR 1 1010- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-144-0 AR 1 1010- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.05 		1-41562-145-0 AR 1 1010- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-146-0 AR 1 1010- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.15 		1-41562-147-0 AR 1 1010- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-148-0 AR 1 1010- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.25 		1-41562-149-0 AR 1 1010- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-150-0 AR 1 1010- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.35 		1-41562-151-0 AR 1 1010- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-152-0 AR 1 1010- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.45 		1-41562-153-0 AR 1 1010- ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-159-1 02 1 1010- ● ●
22 SPIDER; DIFF PINION 1-41521-061-0 01 1 1010- ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-051-0 04 1 1010- ● ●
25 WASHER; THRUST,PINION 1-41552-012-0 04 1 1010- ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-067-0 01 1 1010- ● ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-218-0 01 1 1010- ● ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-256-0 AR 1 1010- ● ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-257-0 AR 1 1010- ● ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-258-0 AR 1 1010- ● ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-259-0 AR 1 1010- ● ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-260-0 AR 1 1010- ● ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-261-0 AR 1 1010- ● ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-262-0 AR 1 1010- ● ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-263-0 AR 1 1010- ● ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-264-0 AR 1 1010- ● ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-265-0 AR 1 1010- ● ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-266-0 AR 1 1010- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.40 		1-41229-267-0 AR 1 1010- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-268-0 AR 1 1010- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-269-0 AR 1 1010- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-270-0 AR 1 1010- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-271-0 AR 1 1010- ● ●
43 CAGE; FINAL PINION 1-41151-028-1 01 1 1010- ● ●
45 BOLT; FINAL PINION CAGE
M14X50 		0-16806-450-0 08 1 1010- ● ●
48 WASHER; LK,FINAL PINION
ID=14.2 		0-91510-514-0 08 1 1010- ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-063-0 AR 1 1010- ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-064-0 AR 1 1010- ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		9-41154-013-0 AR 1 1010- ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		9-41154-014-0 AR 1 1010- ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 1010- ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 1010- ● ●
55 CARRIER; DIFF 1-41110-052-0 01 1 1010- ● ●
56 BOLT; BRG CAP
M18X107 		1-09050-002-1 04 1 1010- ● ●
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-41210-280-3 01 1 1010- ●
60 GEAR SET; FINAL DRIVE,RR
41/7 		1-41210-278-3 01 1 1010- ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 1010- ● ●
62 BOLT; RET
M8X36 W/PIN HOLE 		1-09042-035-0 02 1 1010- ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-229-2 01 1 1010- ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 1010- ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1010- ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1010- ● ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 1010- ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=24 		1-41121-005-0 01 1 1010- ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=29 		1-41121-006-0 01 1 1010- ● ●
70 BEARING; DIFF CAGE
NSK 		1-09812-150-0 02 1 1010- ● ●
70 BEARING; DIFF CAGE
NACHI 		1-09812-151-0 02 1 1010- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-127-0 01 1 1010- ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 1010- ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 1010- ● ●
88 PLATE; LK,ADJ NUT
(B) T=2.3 		1-41124-002-0 02 1 1010- ● ●
88 PLATE; LK,ADJ NUT
(A) T=1.0 		9-41124-005-0 02 1 1010- ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1010- ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-017-0 01 1 1010- ● ●
126 COUPLING; DRIVING PINION 1-37245-388-0 01 1 1010- ● ●
134 WASHER; LK,BRG CAP
ID=18.2 		0-91510-518-0 04 1 1010- ● ●
