◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11328 - FTR AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#60084) — 128 parça

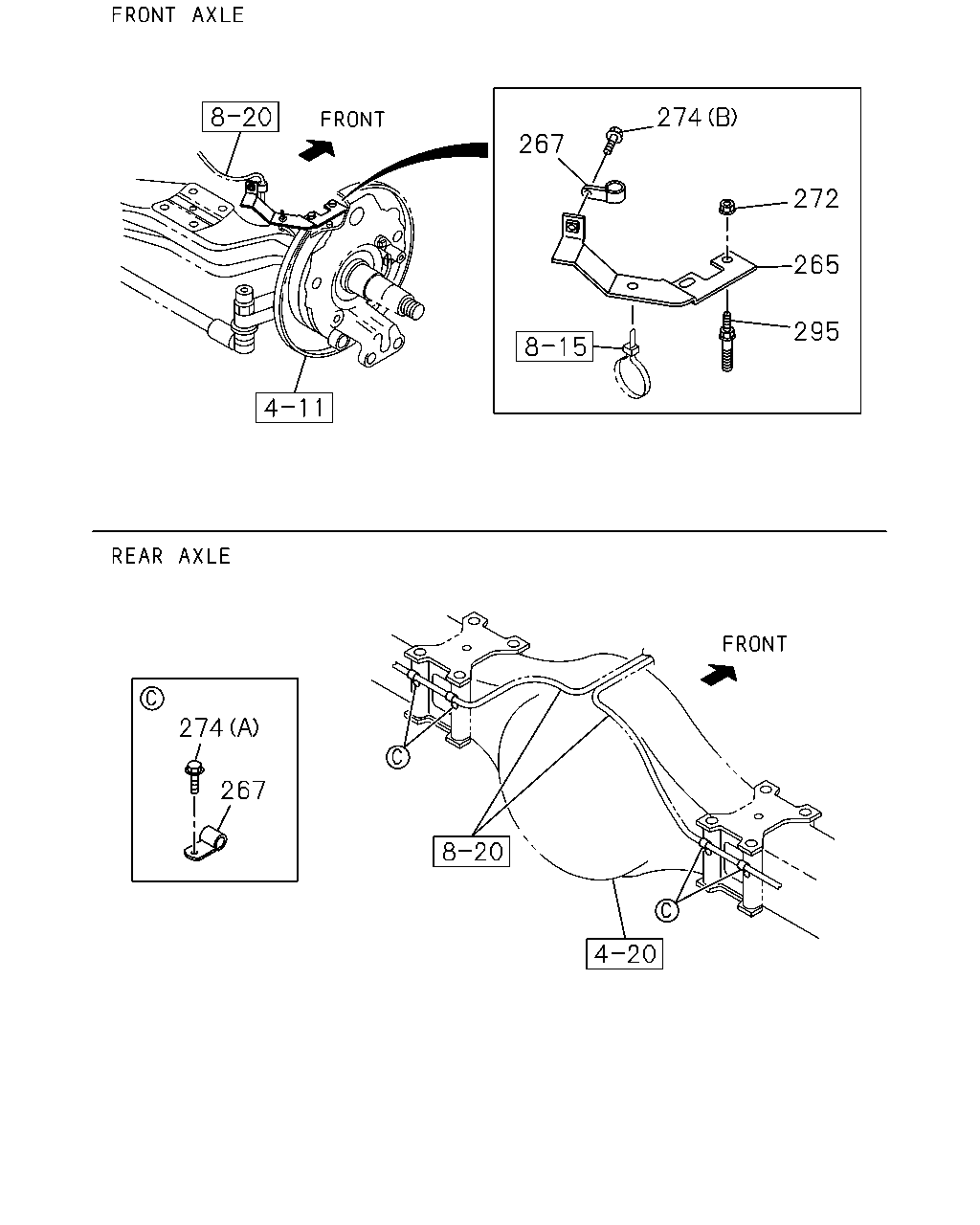

çizim 171784
267 274 272 265 295 274 267
BalonParca AdiParca NoAdetTipApplied Date A B
265 BRACKET; CLIP I BEAM 8-98073-525-0 01 1 1010- ● ●
265 BRACKET; CLIP I BEAM 8-98073-526-0 01 1 1010- ● ●
267 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 04 1 1010- ● ●
267 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 02 1 1010- ● ●
272 NUT; CLIP
M10 FLANGE 		0-91180-110-0 04 1 1010- ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 04 1 1010- ● ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1010- ● ●
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1010- ● ●

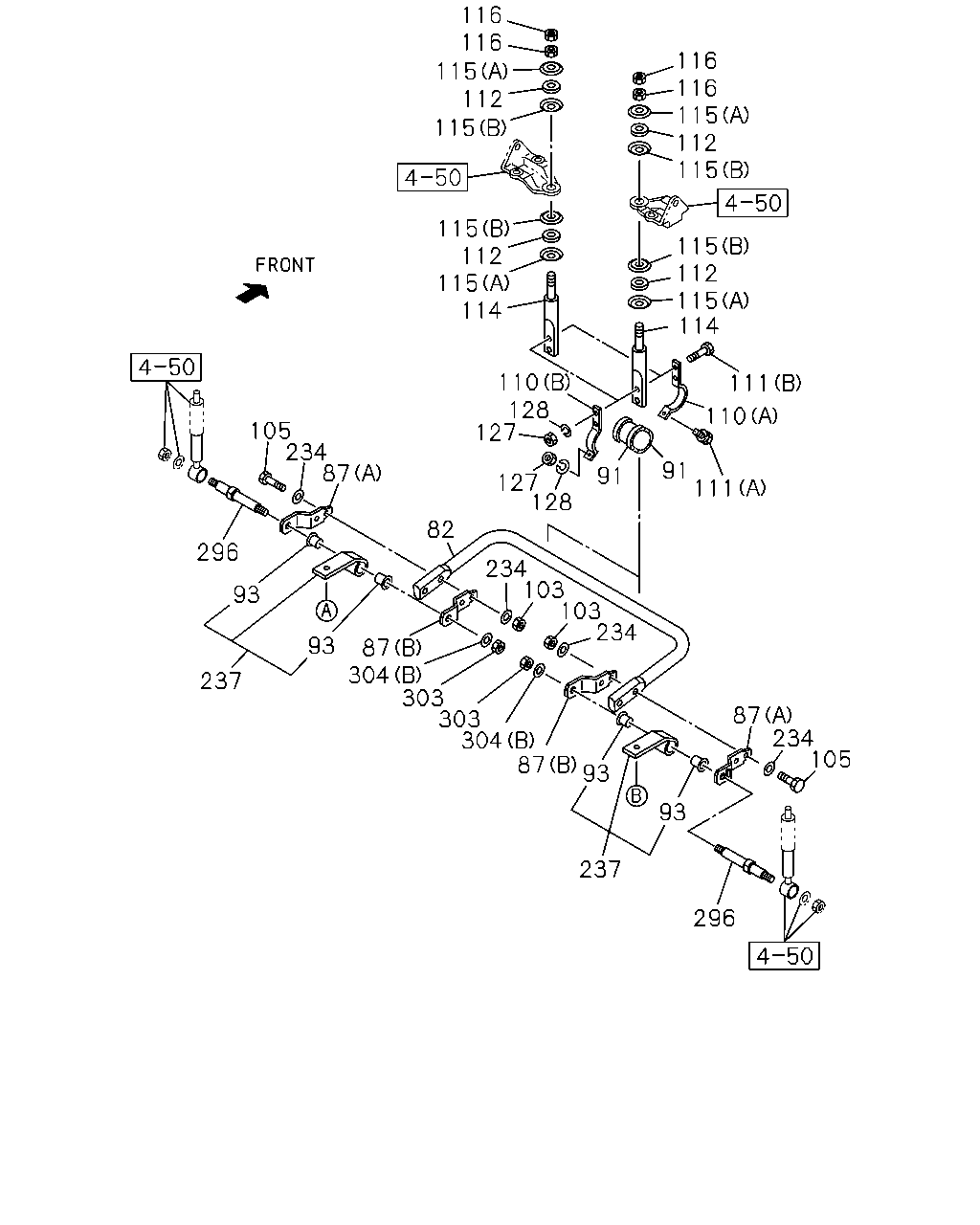

çizim 171894
296 105 234 87 93 237 93 87 304 303 303 304 87 93 93 237 296 105 234 87 82 234 103 103 234 128 127 127 128 110 114 115 112 115 115 112 115 116 116 116 116 115 112 115 115 112 115 114 111 110 111 91 91
BalonParca AdiParca NoAdetTipApplied Date A B
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-98012-961-1 01 1 1010-1306 ● ●
82 BAR; STAB,FRT SUSP 8-98012-961-1 01 1 1307- ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (A) 		8-98012-958-0 02 1 1010-1306 ● ●
87 BRACKET; STABILIZER
(A) 		8-98012-958-0 02 1 1307- ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (B) 		8-98012-959-0 02 1 1010-1306 ● ●
87 BRACKET; STABILIZER
(B) 		8-98012-959-0 02 1 1307- ● ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-079-1 04 1 1010-1306 ● ●
91 BUSHING; RUBBER,STAB BAR 1-51779-079-1 04 1 1307- ● ●
93 BUSHING; STABILIZER
FRONT STABILIZER SHAFT<F59> 		1-51689-015-3 04 1 1010-1306 ● ●
93 BUSHING; STABILIZER 1-51689-015-3 04 1 1307- ● ●
103 NUT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 04 1 1010-1306 ● ●
103 NUT; BRKT FIX
M14 		0-91110-514-0 04 1 1307- ● ●
105 BOLT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14X70 		0-10956-470-0 04 1 1010-1306 ● ●
105 BOLT; BRKT FIX
M14X70 		0-10956-470-0 04 1 1307- ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (A) 		1-51789-027-2 02 1 1010-1306 ● ●
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 1307- ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (B) 		1-51789-028-1 02 1 1010-1306 ● ●
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 1307- ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (A) M12X30 		0-20851-230-0 02 1 1010-1306 ● ●
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20851-230-0 02 1 1307- ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X50 		0-20851-250-0 04 1 1010-1306 ● ●
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20851-250-0 04 1 1307- ● ●
112 BUSHING; ROD
FRONT STABILIZER SHAFT<F59> 		9-51631-050-0 04 1 1010-1306 ● ●
112 BUSHING; ROD 9-51631-050-0 04 1 1307- ● ●
114 ROD; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51773-065-0 02 1 1010-1306 ● ●
114 ROD; STAB BAR 1-51773-065-0 02 1 1307- ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (B) ID=16.8 		1-51631-022-0 04 1 1010-1306 ● ●
115 WASHER; CENTER,STAB TO FRAME
(B) ID=16.8 		1-51631-022-0 04 1 1307- ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (A) ID=14.5 		9-51631-051-0 04 1 1010-1306 ● ●
115 WASHER; CENTER,STAB TO FRAME
(A) ID=14.5 		9-51631-051-0 04 1 1307- ● ●
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		0-91111-514-0 04 1 1010-1306 ● ●
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 1307- ● ●
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> M12 		0-91110-512-0 06 1 1010-1306 ● ●
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 1307- ● ●
128 WASHER; LK,CLAMP
FRONT STABILIZER SHAFT<F59> ID=12.2 		0-91510-812-0 06 1 1010-1306 ● ●
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-812-0 06 1 1307- ● ●
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 08 1 1010-1306 ● ●
234 WASHER; STAB
ID=15 		8-98010-627-1 08 1 1307- ● ●
237 SUPPORT; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51681-662-0 02 1 1010-1306 ● ●
237 SUPPORT; STAB BAR 1-51681-662-0 02 1 1307- ● ●
296 PIN; STAB
FRONT STABILIZER SHAFT<F59> 		8-98013-020-1 02 1 1010-1306 ● ●
296 PIN; STAB 8-98013-020-1 02 1 1307- ● ●
303 NUT; PIN
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1010-1306 ● ●
303 NUT; PIN
M20 		0-91110-520-0 02 1 1307- ● ●
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1010- ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		9-09164-520-0 02 1 1010-1306 ● ●
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 1307- ● ●

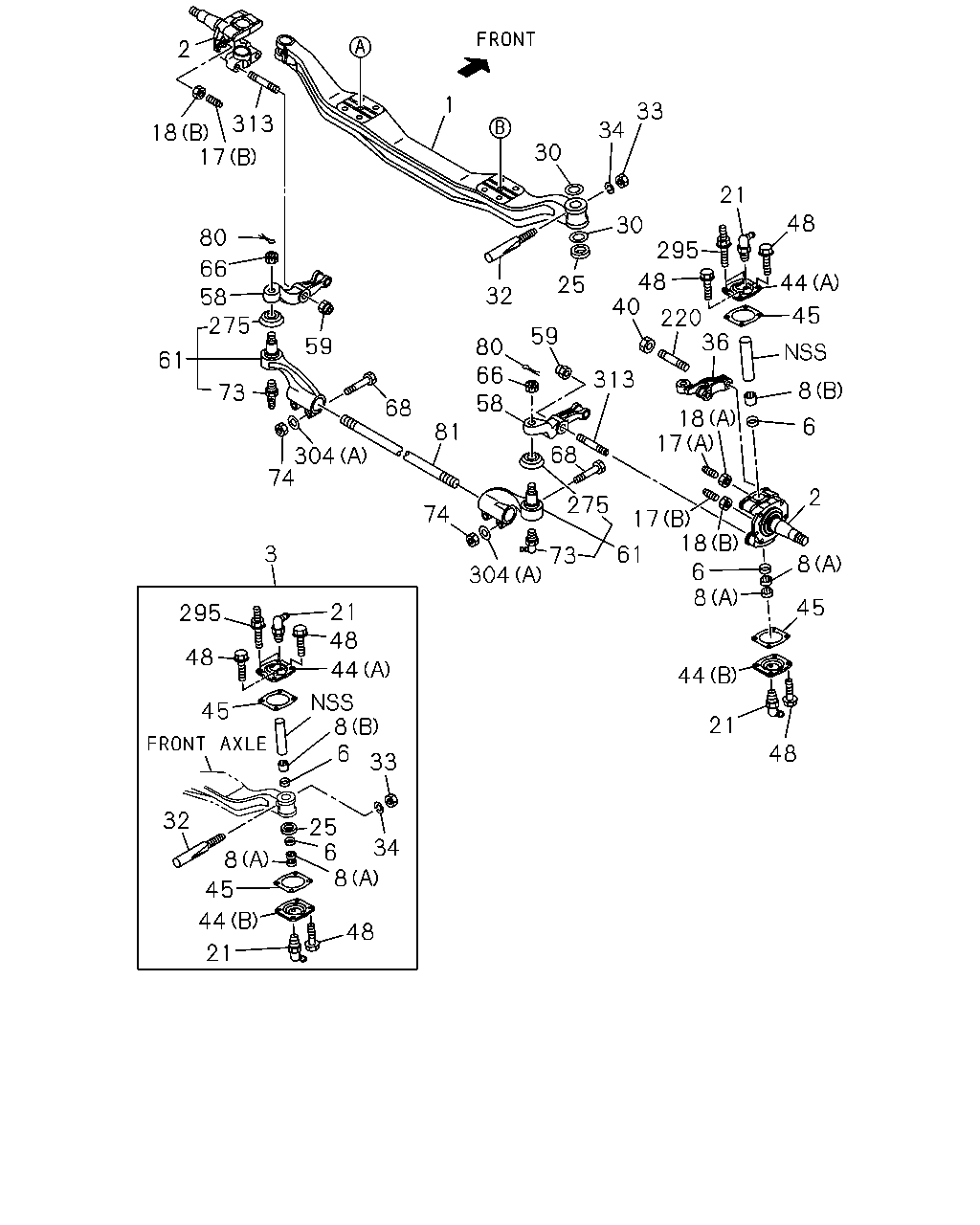

çizim 171895
2 18 313 17 1 30 34 33 21 295 30 25 32 80 48 21 44 45 8 2 8 6 18 17 61 73 304 74 81 68 58 66 59 40 313 68 275 17 18 36 220 78 48 44 8 6 45 304 74 73 61 275 58 66 80 59 48 8 6 25 33 34 6 8 44 8 21 3 295 48 45 32 8 45 44 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT
VIN MODEL YEAR 2011<VZB> 		8-98170-180-2 01 1 1012-1209 ● ●
1 AXLE; FRT
VIN MODEL YEAR 2011<VZB>,VIN MODEL YEAR 2013<VZD> 		8-98170-180-2 01 1 1210-1306 ● ●
1 AXLE; FRT 8-98170-180-2 01 1 1307- ● ●
1 AXLE; FRT 8-98061-842-2 01 1 1010-1011 ● ●
1 AXLE; FRT
EXC. VIN MODEL YEAR 2011<VZB> 		8-98061-842-3 01 1 1012-1209 ● ●
1 AXLE; FRT
EXC. VIN MODEL YEAR 2011<VZB>,VIN MODEL YEAR 2013<VZD> 		8-98061-842-3 01 1 1210-1306 ● ●
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 1010- ● ●
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 1010- ● ●
3 KING PIN SET
VIN MODEL YEAR 2011<VZB> 		1-87831-410-1 02 1 1012-1209 ● ●
3 KING PIN SET
VIN MODEL YEAR 2011<VZB>,VIN MODEL YEAR 2013<VZD> 		1-87831-410-2 02 1 1210-1306 ● ●
3 KING PIN SET 1-87831-410-2 02 1 1307- ● ●
3 KING PIN SET 1-87831-349-1 02 1 1010-1011 ● ●
3 KING PIN SET
EXC. VIN MODEL YEAR 2011<VZB> 		1-87831-349-2 02 1 1012-1209 ● ●
3 KING PIN SET
EXC. VIN MODEL YEAR 2011<VZB>,VIN MODEL YEAR 2013<VZD> 		1-87831-349-2 02 1 1210-1306 ● ●
6 SEAL; KING PIN 9-09926-024-0 04 1 1010- ● ●
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1010- ● ●
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1010- ● ●
17 BOLT; STOPPER KNUCKLE
(A) M18X53 		1-09009-066-0 01 1 1010- ● ●
17 BOLT; STOPPER KNUCKLE
(B) M18X43 		1-09009-190-0 02 1 1010- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 		0-91110-518-0 02 1 1010- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON M18 		1-09469-011-1 01 1 1010- ● ●
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1010- ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1010- ● ●
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1010- ● ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1010- ● ●
34 WASHER; LK,KEY BOLT
VIN MODEL YEAR 2011<VZB> ID=10.2 		0-91510-810-0 02 1 1012-1209 ● ●
34 WASHER; LK,KEY BOLT
VIN MODEL YEAR 2011<VZB>,VIN MODEL YEAR 2013<VZD> ID=10.2 		0-91510-810-0 02 1 1210-1302 ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1010-1011 ● ●
34 WASHER; LK,KEY BOLT
EXC. VIN MODEL YEAR 2011<VZB> ID=10.2 		0-91510-510-0 02 1 1012-1209 ● ●
34 WASHER; LK,KEY BOLT
EXC. VIN MODEL YEAR 2011<VZB>,VIN MODEL YEAR 2013<VZD> ID=10.2 		0-91510-510-0 02 1 1210-1302 ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1303- ● ●
36 ARM; KNUCKLE 1-43133-073-3 01 1 1010- ● ●
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1010- ● ●
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1010- ● ●
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1010- ● ●
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1010- ● ●
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 1010- ● ●
58 ARM; TIE ROD 1-43134-049-4 01 1 1010- ● ●
58 ARM; TIE ROD 1-43135-049-4 01 1 1010- ● ●
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1010- ● ●
61 ROD END; TIE ROD 8-98096-753-0 01 1 1010-1306 ● ●
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307- ● ●
61 ROD END; TIE ROD 8-98096-754-0 01 1 1010-1306 ● ●
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307- ● ●
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1010- ● ●
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1010- ● ●
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1010- ● ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1010- ● ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1010- ● ●
81 ROD; TIE 8-98171-947-0 01 1 1010- ● ●
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1010- ● ●
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1010-1306 ● ●
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307- ● ●
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1010- ● ●
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1010- ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		9-09164-520-0 02 1 1010-1306 ● ●
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 1307- ● ●
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1010- ● ●
