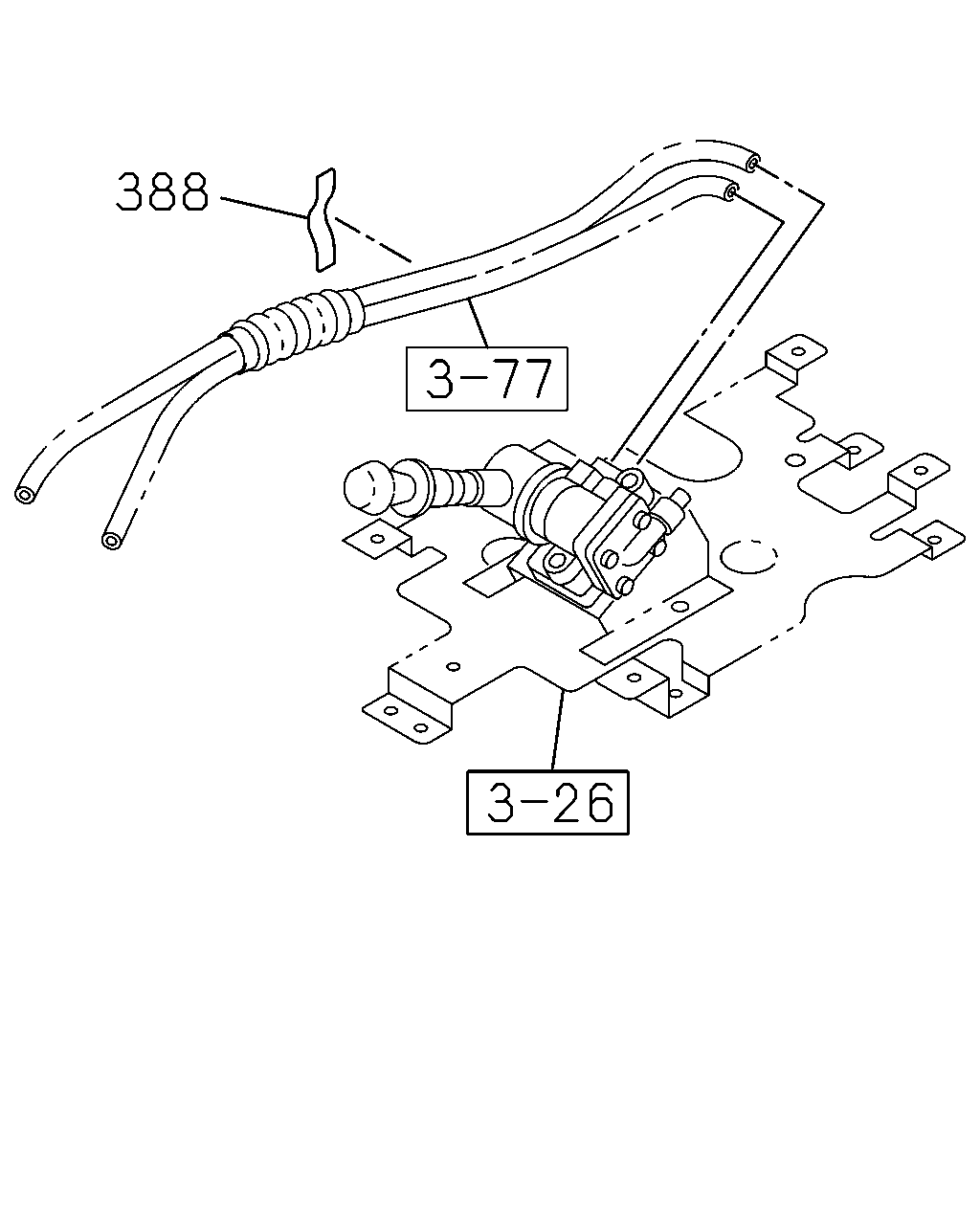

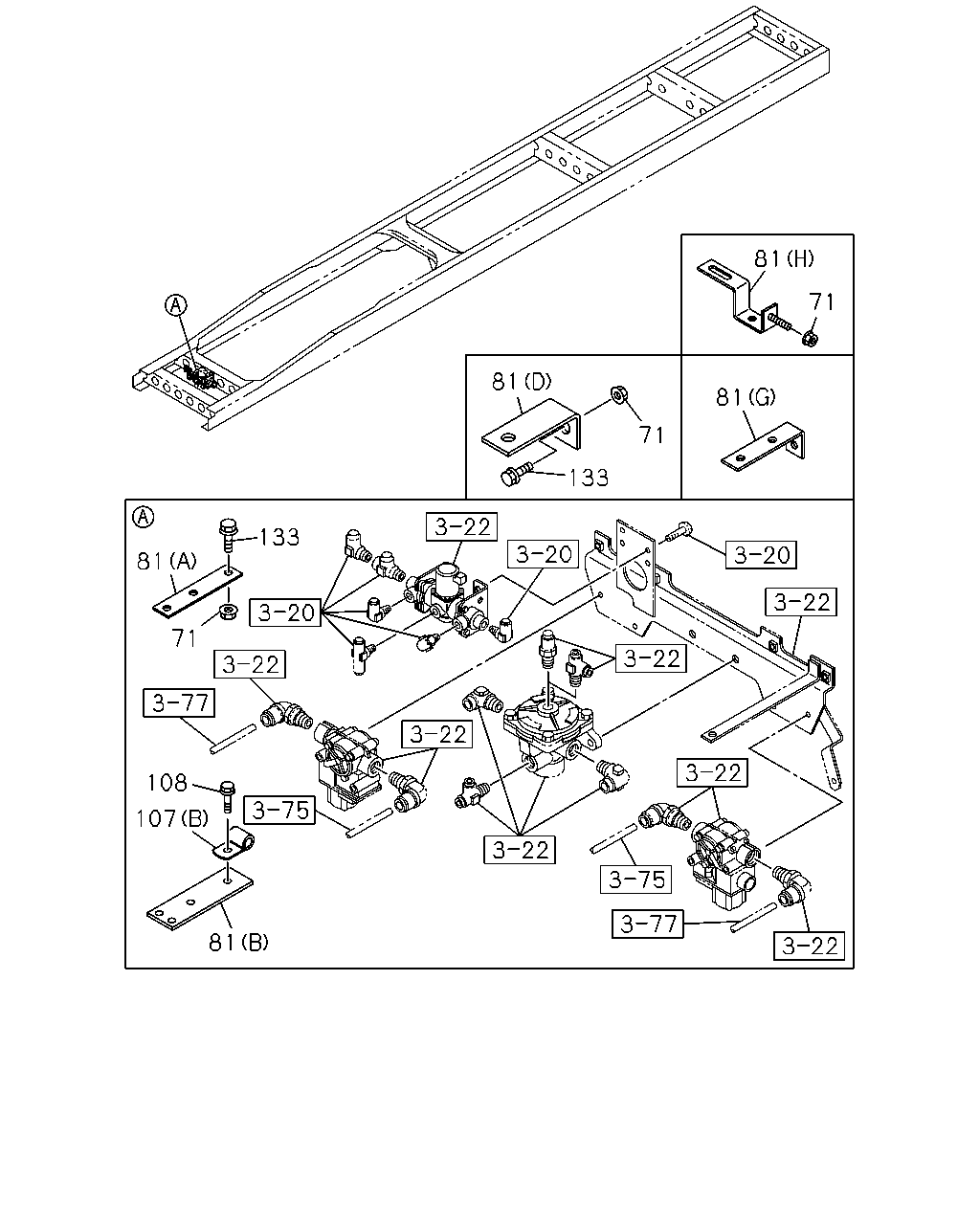

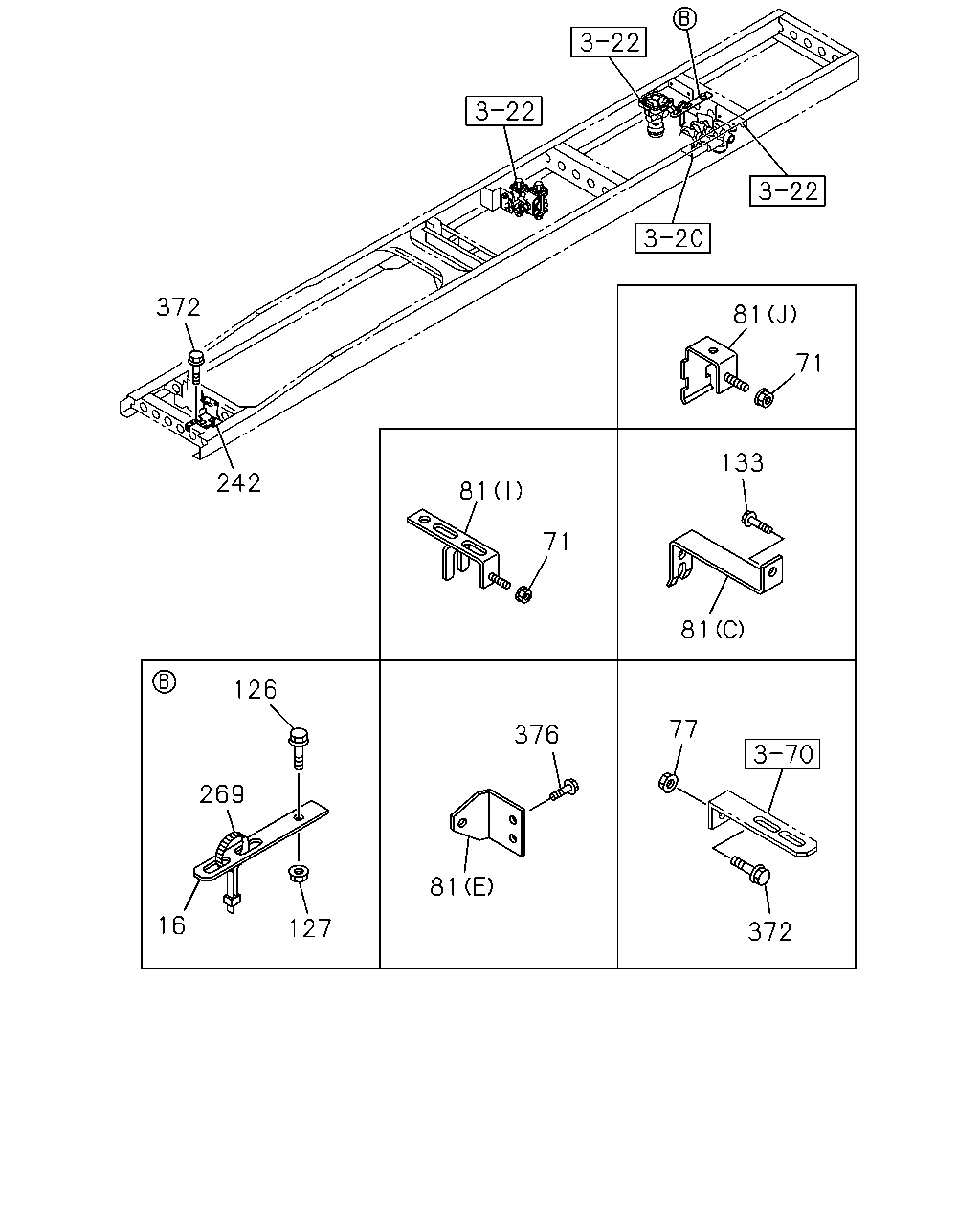

3-78 — FIXING PARTS; AIR PIPING (#60082) — 143 parça

372 77 376 81 127 16 269 126 242 81 71 81 133 71 81 372

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BRACKET; PIPE CLIP L=215	1-47479-288-0	01	1	1010-	●	●
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1010-	●	●
77	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
81	BRACKET; CLIP (K)	8-98182-760-0	01	1	1108-	●	●
81	BRACKET; CLIP (J)	8-98186-380-0	01	1	1106-	●	●
81	BRACKET; CLIP (C)	8-98169-434-0	01	1	1010-1107	●	●
81	BRACKET; CLIP (L)	8-98182-331-0	01	1	1108-	●	●
81	BRACKET; CLIP (E)	1-47476-699-2	01	1	1010-	●	●
81	BRACKET; CLIP (G) L=60 H=30	1-47477-716-1	02	1	1010-	●	●
81	BRACKET; CLIP (A) L=170	1-47479-380-0	01	1	1010-	●	●
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	1010-	●	●
81	BRACKET; CLIP (H)	8-98129-212-0	03	1	1010-1012	●	●
81	BRACKET; CLIP (I)	8-98177-873-0	03	1	1101-1107	●	●
81	BRACKET; CLIP (I)	8-98177-873-0	02	1	1108-	●	●
81	BRACKET; CLIP (D) L=65 B=25	8-98135-584-0	01	1	1010-	●	●
81	BRACKET; CLIP (F)	8-98119-184-1	01	1	1010-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1307-	●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1307-		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1010-	●	●
242	BRACKET; PIPE CLIP	8-98074-610-0	01	1	1010-	●
242	BRACKET; PIPE CLIP	8-98106-046-0	01	1	1010-		●
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	01	1	1010-	●	●
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	01	1	1010-	●	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
376	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●

388

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	388	SEAL 100X40	1-72498-022-1	03	1	1010-	●	●

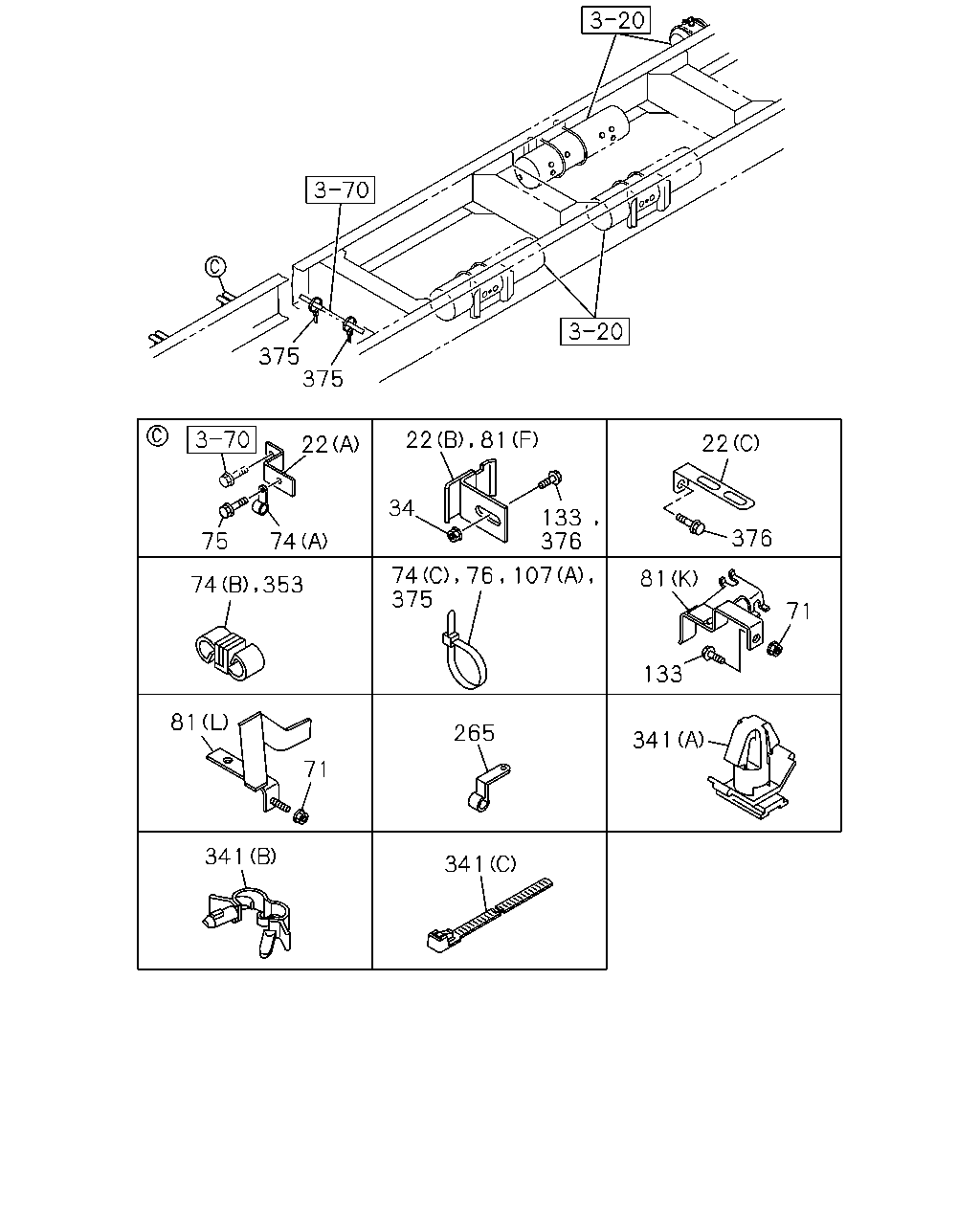

375 375 22 75 74 74 353 22 81 34 133 376 22 376 81 71 133 341 265 107 76 74 375 81 71 341 341

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	BRACKET; CLIP WHEEL BASE 4200MM(42W) (C) L=100 H=30	1-47477-645-2	02	1	1010-	●
22	BRACKET; CLIP (A)	1-47475-881-0	01	1	1010-	●	●
22	BRACKET; CLIP (B)	8-98119-184-1	01	1	1010-	●	●
34	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1010-	●	●
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (C) L=350	1-09707-183-0	09	1	1110-1306	●
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) L=350	1-09707-183-0	09	1	1307-	●
74	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (C) L=350	1-09707-183-0	06	1	1010-	●
74	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W) (C) L=350	1-09707-183-0	08	1	1010-1306	●
74	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W) (C) L=350	1-09707-183-0	08	1	1307-		●
74	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (C) L=350	1-09707-183-0	11	1	1010-	●
74	CLIP; NYLON TUBE (A) ID=16 L=28	1-09700-872-0	01	1	1010-	●	●
74	CLIP; NYLON TUBE (B) ID=12 & 15	1-09709-281-1	01	1	1010-	●	●
74	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	10	1	1010-1306		●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
76	CLIP; NYLON TUBE L=350	1-09707-183-0	02	1	1010-	●	●
81	BRACKET; CLIP (K)	8-98182-760-0	01	1	1108-	●	●
81	BRACKET; CLIP (J)	8-98186-380-0	01	1	1106-	●	●
81	BRACKET; CLIP (C)	8-98169-434-0	01	1	1010-1107	●	●
81	BRACKET; CLIP (L)	8-98182-331-0	01	1	1108-	●	●
81	BRACKET; CLIP (E)	1-47476-699-2	01	1	1010-	●	●
81	BRACKET; CLIP (G) L=60 H=30	1-47477-716-1	02	1	1010-	●	●
81	BRACKET; CLIP (A) L=170	1-47479-380-0	01	1	1010-	●	●
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	1010-	●	●
81	BRACKET; CLIP (H)	8-98129-212-0	03	1	1010-1012	●	●
81	BRACKET; CLIP (I)	8-98177-873-0	03	1	1101-1107	●	●
81	BRACKET; CLIP (I)	8-98177-873-0	02	1	1108-	●	●
81	BRACKET; CLIP (D) L=65 B=25	8-98135-584-0	01	1	1010-	●	●
81	BRACKET; CLIP (F)	8-98119-184-1	01	1	1010-	●	●
107	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W) (A) L=350	1-09707-183-0	06	1	1307-		●
107	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W) (A) L=350	1-09707-183-0	19	1	1307-		●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	39	1	1110-1306	●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=350	1-09707-183-0	07	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	35	1	1010-1306	●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	03	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W) (A) L=350	1-09707-183-0	40	1	1010-1306	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	20	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (A) L=350	1-09707-183-0	42	1	1010-1306	●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (A) L=350	1-09707-183-0	10	1	1307-	●
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	1010-1306	●	●
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W) H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	1307-		●
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	1010-1306	●	●
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W) EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	1307-		●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	36	1	1010-1306		●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	13	1	1307-	●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1307-	●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1307-		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1010-	●	●
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	1010-	●	●
341	CLIP; HARNESS (C) L=250	5-09707-030-1	01	1	1307-	●	●
341	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1307-	●	●
341	CLIP; HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	02	1	1307-	●	●
353	CLIP; AIR PIPE ID=18 & 18	8-94323-068-0	01	1	1010-	●	●
375	CLIP; AIR PIPE L=350	1-09707-183-0	02	1	1010-1306	●	●
376	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●

81 107 108 71 81 133 133 71 81 71 81 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1010-	●	●
81	BRACKET; CLIP (K)	8-98182-760-0	01	1	1108-	●	●
81	BRACKET; CLIP (J)	8-98186-380-0	01	1	1106-	●	●
81	BRACKET; CLIP (C)	8-98169-434-0	01	1	1010-1107	●	●
81	BRACKET; CLIP (L)	8-98182-331-0	01	1	1108-	●	●
81	BRACKET; CLIP (E)	1-47476-699-2	01	1	1010-	●	●
81	BRACKET; CLIP (G) L=60 H=30	1-47477-716-1	02	1	1010-	●	●
81	BRACKET; CLIP (A) L=170	1-47479-380-0	01	1	1010-	●	●
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	1010-	●	●
81	BRACKET; CLIP (H)	8-98129-212-0	03	1	1010-1012	●	●
81	BRACKET; CLIP (I)	8-98177-873-0	03	1	1101-1107	●	●
81	BRACKET; CLIP (I)	8-98177-873-0	02	1	1108-	●	●
81	BRACKET; CLIP (D) L=65 B=25	8-98135-584-0	01	1	1010-	●	●
81	BRACKET; CLIP (F)	8-98119-184-1	01	1	1010-	●	●
107	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W) (A) L=350	1-09707-183-0	06	1	1307-		●
107	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W) (A) L=350	1-09707-183-0	19	1	1307-		●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	39	1	1110-1306	●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=350	1-09707-183-0	07	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	35	1	1010-1306	●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	03	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W) (A) L=350	1-09707-183-0	40	1	1010-1306	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	20	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (A) L=350	1-09707-183-0	42	1	1010-1306	●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (A) L=350	1-09707-183-0	10	1	1307-	●
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	1010-1306	●	●
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W) H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	1307-		●
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	1010-1306	●	●
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W) EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	1307-		●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	36	1	1010-1306		●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	13	1	1307-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1307-	●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1307-		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1010-	●	●
