Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#6008) — 239 parça

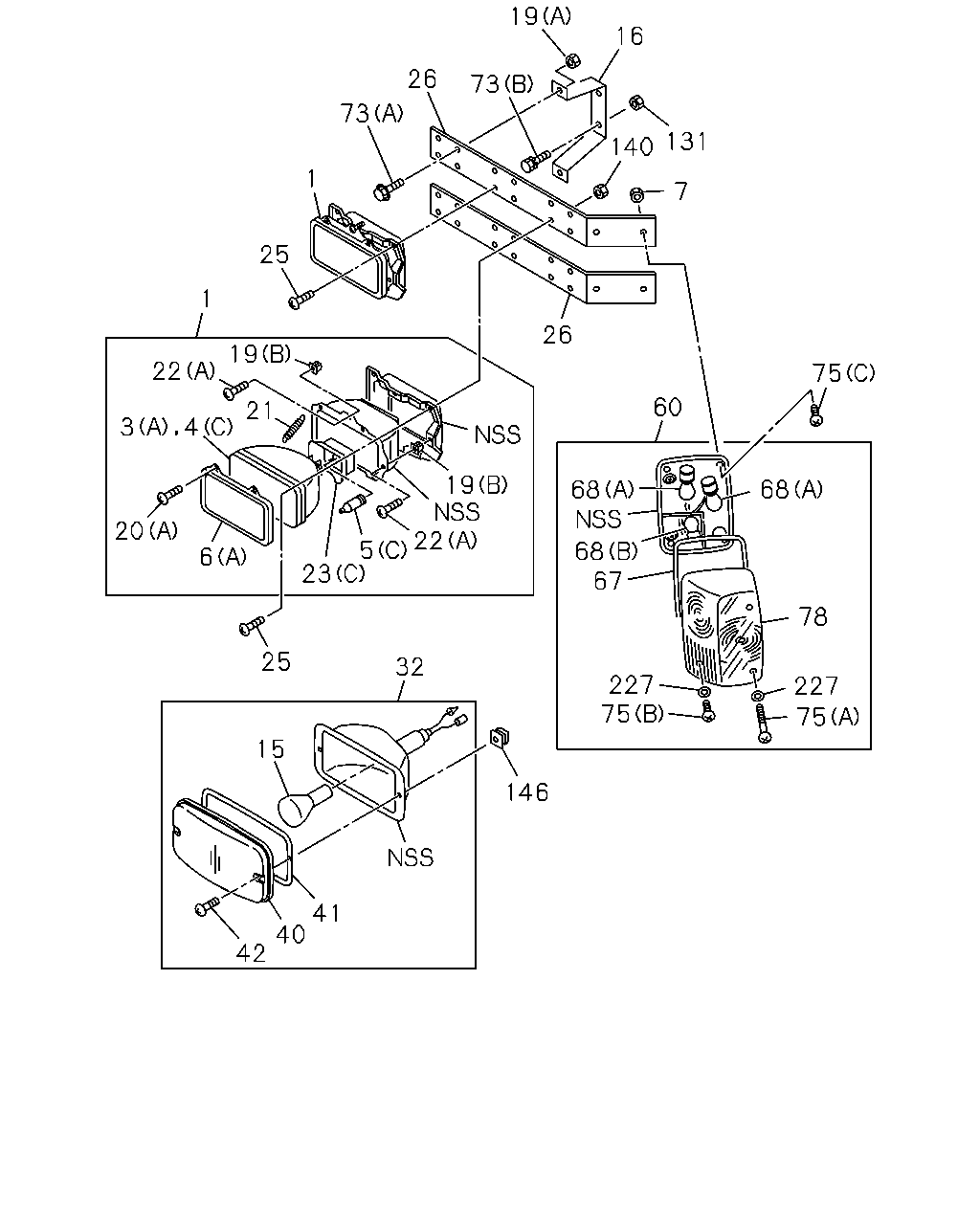

19 16 26 73 73 140 131 1 7 25 1 26 19 22 75 60 21 3 4 19 22 5 23 68 68 20 68 67 6 78 25 32 227 75 227 75 15 146 41 40 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD AMBER HEADLAMPS<T75> INNER 24V 55/50W	1-82110-263-2	01	1	9606-9810
1	LAMP ASM; HEAD AMBER HEADLAMPS<T75> OUTER 24V 55/50W	1-82110-265-2	01	1	9606-9810
1	LAMP ASM; HEAD AMBER HEADLAMPS<T75> INNER 24V 55/50W	1-82110-262-2	01	1	9606-9810
1	LAMP ASM; HEAD AMBER HEADLAMPS<T75> OUTER 24V 55/50W	1-82110-264-2	01	1	9606-9810
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> INNER TYPE 1 24V 70W	1-82110-257-2	01	1	9606-9810
1	LAMP ASM; HEAD 24V 50/65W	1-86830-174-1	01	1	9811-0411
1	LAMP ASM; HEAD	1-86830-397-1	01	1	0412-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> OUTER TYPE 2 24V 75/70W	1-82110-261-2	01	1	9606-9810
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> INNER TYPE 1 24V 70W	1-82110-256-2	01	1	9606-9810
1	LAMP ASM; HEAD 24V 50/65W	1-86830-173-1	01	1	9811-0411
1	LAMP ASM; HEAD	1-86830-396-1	01	1	0412-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> OUTER TYPE 2 24V 75/70W	1-82110-259-2	01	1	9606-9810
1	LAMP ASM; HEAD EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> INNER TYPE 1 24V 55W	1-82110-251-2	01	1	9606-9609
1	LAMP ASM; HEAD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> INNER TYPE 1 24V 55W	1-82110-251-3	01	1	9610-9810
1	LAMP ASM; HEAD EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> OUTER TYPE 2 24V 50/65W	1-82110-255-3	01	1	9606-9609
1	LAMP ASM; HEAD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> OUTER TYPE 2 24V 50/65W	1-82110-255-4	01	1	9610-9810
1	LAMP ASM; HEAD EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> INNER TYPE 1 24V 55W	1-82110-250-2	01	1	9606-9609
1	LAMP ASM; HEAD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> INNER TYPE 1 24V 55W	1-82110-250-3	01	1	9610-9810
1	LAMP ASM; HEAD EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> OUTER TYPE 2 24V 50/65W	1-82110-253-3	01	1	9606-9609
1	LAMP ASM; HEAD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> OUTER TYPE 2 24V 50/65W	1-82110-253-4	01	1	9610-9810
3	SEALED BEAM; HEADLAMP EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> (A) INNER 24V 55W	1-82191-023-0	02	1	9606-9609
3	SEALED BEAM; HEADLAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> (A) INNER 24V 55W	1-82191-023-0	02	1	9610-9810
3	SEALED BEAM; HEADLAMP (C) INNER 24V 55W	8-94111-276-0	02	1	9811-0411
3	SEALED BEAM; HEADLAMP EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> (A) OUTER 24V 50/65W	1-82191-024-0	02	1	9606-9609
3	SEALED BEAM; HEADLAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> (A) OUTER 24V 50/65W	1-82191-024-0	02	1	9610-9810
3	SEALED BEAM; HEADLAMP (B) OUTER 24V 50/65W	8-94111-275-0	02	1	9811-0411
4	HEADLAMP UNIT (A) TYPE 1 24V 70W	1-82191-032-0	02	1	0412-
4	HEADLAMP UNIT (B) TYPE 2 24V 75/70W	1-82191-037-0	02	1	0412-
4	HEADLAMP UNIT AMBER HEADLAMPS<T75> (C)OUTER TYPE 2 24V 55/50W	8-94101-736-0	02	1	9606-9810
4	HEADLAMP UNIT AMBER HEADLAMPS<T75> (C)INNER TYPE 1 24V 55W	8-94101-742-0	02	1	9606-9810
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> (C)INNER TYPE 1 24V 70W	1-82191-032-0	02	1	9606-9810
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> (C)OUTER TYPE 2 24V 75/70W	1-82191-037-0	02	1	9606-9810
5	BULB; HEADLAMP (B) 24V 75/70W	1-82194-063-0	02	1	0412-
5	BULB; HEADLAMP (A) 24V 70W	8-94405-658-0	02	1	0412-
5	BULB; HEADLAMP AMBER HEADLAMPS<T75> (C) 24V 55/50W	5-82193-004-0	04	1	9606-9810
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> (C)OUTER 24V 75/70W	1-82193-006-0	02	1	9606-9810
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> (C)INNER 24V 70W	1-82193-007-0	02	1	9606-9810
6	RIM; HEADLAMP (A) INNER	1-82114-018-0	02	1	9606-9810
6	RIM; HEADLAMP (A) OUTER	1-82114-019-0	02	1	9606-9810
6	RIM; HEADLAMP (B)	8-94165-573-0	04	1	9811-
7	NUT; FRT COMB LAMP M5	9-99110-405-0	08	1	9606-9609
7	NUT; FRT COMB LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M5	9-99110-405-0	08	1	9610-9810
15	BULB; FOG LAMP 24V 35W	1-82193-005-0	02	1	9606-9609
15	BULB; FOG LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 24V 35W	1-82193-005-0	02	1	9610-9810
16	BRACKET; HEADLAMP	9-82615-154-2	04	1	9606-9609
16	BRACKET; HEADLAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	9-82615-154-2	04	1	9610-9810
19	NUT; HEADLAMP (A) M6	9-09110-506-0	08	1	9606-9609
19	NUT; HEADLAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M6	9-09110-506-0	08	1	9610-9810
19	NUT; HEADLAMP (D)	8-97044-618-0	08	1	9811-
19	NUT; HEADLAMP AMBER HEADLAMPS<T75> (B)	1-82119-056-0	08	1	9606-9810
19	NUT; HEADLAMP (C)	1-82119-117-0	08	1	9811-
19	NUT; HEADLAMP EXC. AMBER HEADLAMPS<T75> (B)	1-82119-056-0	08	1	9606-9810
20	SCREW; HEADLAMP (A)	1-82119-104-0	16	1	9606-9609
20	SCREW; HEADLAMP EXC. AMBER HEADLAMPS<T75> (A)	1-82119-104-0	16	1	9610-9704
20	SCREW; HEADLAMP EXC. AMBER HEADLAMPS<T75> (A)	1-82119-023-0	08	1	9705-9810
20	SCREW; HEADLAMP AMBER HEADLAMPS<T75> (A)	1-82119-023-0	16	1	9705-9810
20	SCREW; HEADLAMP (B) M4X8	8-94165-886-0	16	1	9811-
21	SPRING; ADJ HEADLAMP	1-82119-021-0	04	1	9606-9609
21	SPRING; ADJ HEADLAMP EXC. AMBER HEADLAMPS<T75>	1-82119-021-0	04	1	9610-9704
21	SPRING; ADJ HEADLAMP EXC. AMBER HEADLAMPS<T75>	1-82119-105-0	02	1	9705-9810
21	SPRING; ADJ HEADLAMP AMBER HEADLAMPS<T75>	1-82119-105-0	04	1	9705-9810
21	SPRING; ADJ HEADLAMP	1-82119-120-0	04	1	9811-0411
21	SPRING; ADJ HEADLAMP	1-82119-158-0	04	1	0412-
22	SCREW; ADJ,HEADLAMP (A)	1-82119-095-0	08	1	9606-9609
22	SCREW; ADJ,HEADLAMP EXC. AMBER HEADLAMPS<T75> (A)	1-82119-095-0	08	1	9610-9810
22	SCREW; ADJ,HEADLAMP (B) LH INNER SIDE	1-82119-119-0	01	1	9811-
22	SCREW; ADJ,HEADLAMP (A) RH,LH UPPER & OUTER SIDE	1-82119-118-0	07	1	9811-
23	COVER; BULB,HEADLAMP (B)	1-82119-220-0	02	1	0412-
23	COVER; BULB,HEADLAMP (A)	1-82119-221-0	02	1	0412-
23	COVER; BULB,HEADLAMP EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> (C)	1-82119-013-0	04	1	9606-9810
25	SCREW; LAMP M5X16 W/LK WASHER	9-03910-516-0	16	1	9606-9609
25	SCREW; LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M5X16 W/LK WASHER	9-03910-516-0	16	1	9610-9810
26	BRACKET ASM; HEADLAMP	1-82117-098-0	04	1	9606-9609
26	BRACKET ASM; HEADLAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82117-098-0	04	1	9610-9810
32	LAMP ASM; FOG	1-82110-210-3	01	1	9606-9609
32	LAMP ASM; FOG EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82110-210-3	01	1	9610-9810
32	LAMP ASM; FOG	1-82110-209-3	01	1	9606-9609
32	LAMP ASM; FOG EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82110-209-3	01	1	9610-9810
40	LENS; FOG LAMP	1-82115-008-0	01	1	9606-9609
40	LENS; FOG LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82115-008-0	01	1	9610-9810
40	LENS; FOG LAMP	1-82115-007-0	01	1	9606-9609
40	LENS; FOG LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82115-007-0	01	1	9610-9810
41	GASKET; LENS,FOG LAMP	1-82116-007-0	02	1	9606-9609
41	GASKET; LENS,FOG LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82116-007-0	02	1	9610-9810
42	SCREW; LENS,FOG LAMP	1-82119-025-0	04	1	9606-9609
42	SCREW; LENS,FOG LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82119-025-0	04	1	9610-9810
60	LAMP ASM; FRT COMB	1-82210-028-0	01	1	9606-9609
60	LAMP ASM; FRT COMB EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82210-028-0	01	1	9610-9810
60	LAMP ASM; FRT COMB	1-82210-221-0	01	1	9811-
60	LAMP ASM; FRT COMB	1-82210-027-0	01	1	9606-9609
60	LAMP ASM; FRT COMB EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82210-027-0	01	1	9610-9810
60	LAMP ASM; FRT COMB	1-82210-220-0	01	1	9811-
67	GASKET; FRT COMB LAMP	1-82216-004-0	01	1	9606-9609
67	GASKET; FRT COMB LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82216-004-0	01	1	9610-9810
67	GASKET; FRT COMB LAMP	1-82216-003-0	01	1	9606-9609
67	GASKET; FRT COMB LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82216-003-0	01	1	9610-9810
67	GASKET; FRT COMB LAMP	1-82216-033-0	02	1	9811-
68	BULB; FRT COMB LAMP (A) 24V 25W	9-82691-347-0	04	1	9606-9609
68	BULB; FRT COMB LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 24V 25W	9-82691-347-0	04	1	9610-9810
68	BULB; FRT COMB LAMP (D) 24V 5W	8-94135-397-0	02	1	9811-
68	BULB; FRT COMB LAMP (B) 24V 10/4W	9-82691-607-0	02	1	9606-9609
68	BULB; FRT COMB LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 24V 10/4W	9-82691-607-0	02	1	9610-9810
68	BULB; FRT COMB LAMP (C) 24V 21W	1-82194-036-0	02	1	9811-
73	BOLT; BRKT,HEADLAMP (A) M6X16 FLANGE	0-28080-616-0	08	1	9606-9609
73	BOLT; BRKT,HEADLAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M6X16 FLANGE	0-28080-616-0	08	1	9610-9810
73	BOLT; BRKT,HEADLAMP (B) M10X25 FLANGE	0-28681-025-0	08	1	9606-9609
73	BOLT; BRKT,HEADLAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) M10X25 FLANGE	0-28681-025-0	08	1	9610-9810
75	SCREW; FRT COMB LAMP (A) M4X50	1-82219-015-0	04	1	9606-9609
75	SCREW; FRT COMB LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M4X50	1-82219-015-0	04	1	9610-9810
75	SCREW; FRT COMB LAMP (D)	1-82219-026-0	04	1	9811-
75	SCREW; FRT COMB LAMP (B) M4X16	1-82219-016-0	04	1	9606-9609
75	SCREW; FRT COMB LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) M4X16	1-82219-016-0	04	1	9610-9810
75	SCREW; FRT COMB LAMP (E)	1-82219-031-0	04	1	9811-
75	SCREW; FRT COMB LAMP (C) M5X16 W/LK WASHER	9-03910-516-0	08	1	9606-9609
75	SCREW; FRT COMB LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) M5X16 W/LK WASHER	9-03910-516-0	08	1	9610-9810
78	LENS ASM; FRT COMB	1-82215-009-0	01	1	9606-9609
78	LENS ASM; FRT COMB EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82215-009-0	01	1	9610-9810
78	LENS ASM; FRT COMB	1-82215-008-0	01	1	9606-9609
78	LENS ASM; FRT COMB EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82215-008-0	01	1	9610-9810
131	NUT; BRKT,HEADLAMP M10	9-09110-510-0	08	1	9606-9609
131	NUT; BRKT,HEADLAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10	9-09110-510-0	08	1	9610-9810
140	NUT M5	9-99110-405-0	16	1	9606-9609
140	NUT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M5	9-99110-405-0	16	1	9610-9810
146	GROMMET; FOG LAMP D=9.7X9.7 L=8	8-94222-314-0	04	1	9606-9609
146	GROMMET; FOG LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2> D=9.7X9.7 L=8	8-94222-314-0	04	1	9610-9810
227	SEAT; SET SCREW,FRT COMB LAMP	1-82219-017-0	08	1	9606-9609
227	SEAT; SET SCREW,FRT COMB LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82219-017-0	08	1	9610-9810
227	SEAT; SET SCREW,FRT COMB LAMP	1-82216-032-0	04	1	9811-

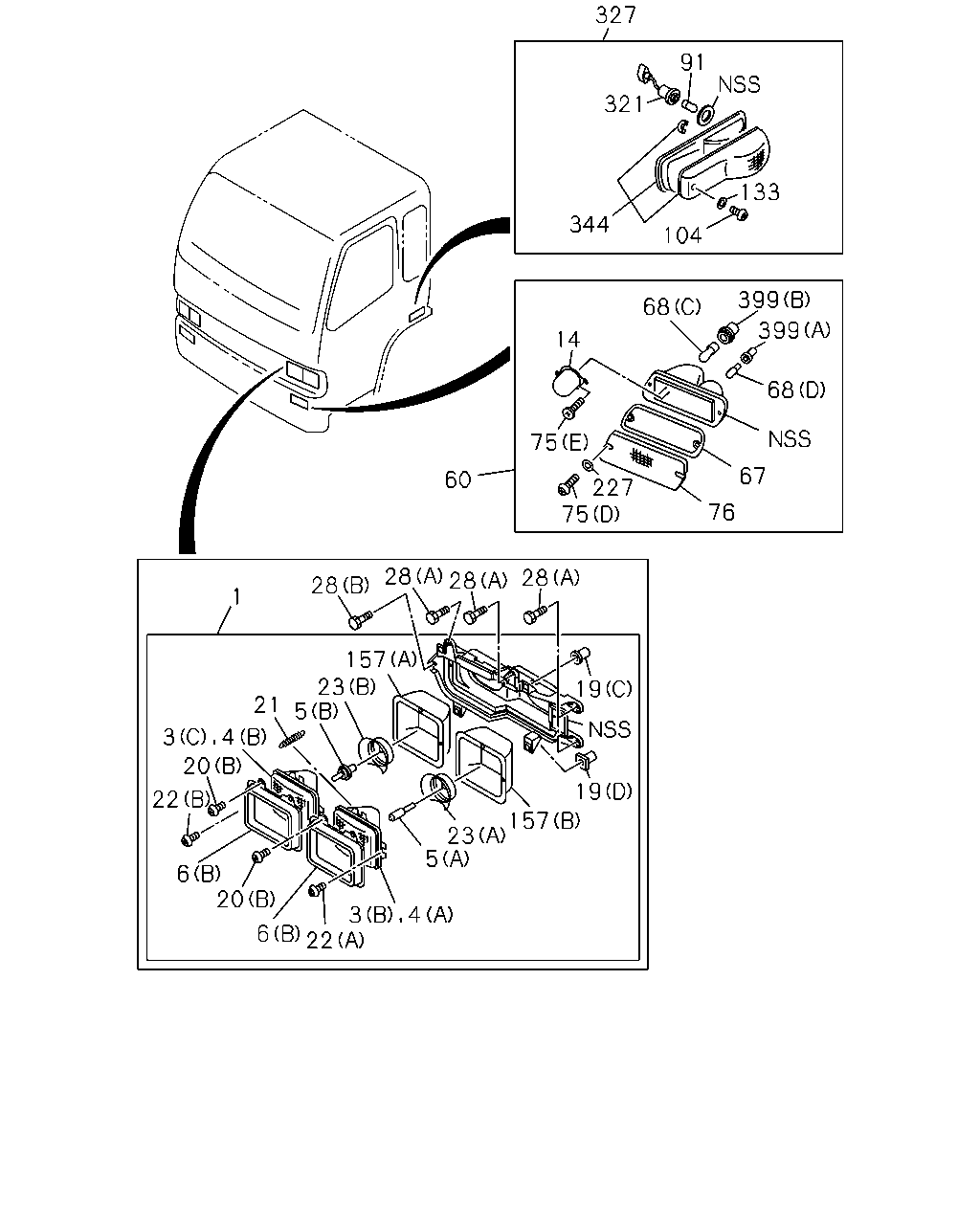

327 91 321 133 344 104 399 68 399 14 68 75 227 75 67 60 76 28 28 28 28 1 157 23 5 19 21 20 19 22 157 23 5 6 20 6 22 3 4 3 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD AMBER HEADLAMPS<T75> INNER 24V 55/50W	1-82110-263-2	01	1	9606-9810
1	LAMP ASM; HEAD AMBER HEADLAMPS<T75> OUTER 24V 55/50W	1-82110-265-2	01	1	9606-9810
1	LAMP ASM; HEAD AMBER HEADLAMPS<T75> INNER 24V 55/50W	1-82110-262-2	01	1	9606-9810
1	LAMP ASM; HEAD AMBER HEADLAMPS<T75> OUTER 24V 55/50W	1-82110-264-2	01	1	9606-9810
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> INNER TYPE 1 24V 70W	1-82110-257-2	01	1	9606-9810
1	LAMP ASM; HEAD 24V 50/65W	1-86830-174-1	01	1	9811-0411
1	LAMP ASM; HEAD	1-86830-397-1	01	1	0412-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> OUTER TYPE 2 24V 75/70W	1-82110-261-2	01	1	9606-9810
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> INNER TYPE 1 24V 70W	1-82110-256-2	01	1	9606-9810
1	LAMP ASM; HEAD 24V 50/65W	1-86830-173-1	01	1	9811-0411
1	LAMP ASM; HEAD	1-86830-396-1	01	1	0412-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> OUTER TYPE 2 24V 75/70W	1-82110-259-2	01	1	9606-9810
1	LAMP ASM; HEAD EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> INNER TYPE 1 24V 55W	1-82110-251-2	01	1	9606-9609
1	LAMP ASM; HEAD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> INNER TYPE 1 24V 55W	1-82110-251-3	01	1	9610-9810
1	LAMP ASM; HEAD EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> OUTER TYPE 2 24V 50/65W	1-82110-255-3	01	1	9606-9609
1	LAMP ASM; HEAD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> OUTER TYPE 2 24V 50/65W	1-82110-255-4	01	1	9610-9810
1	LAMP ASM; HEAD EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> INNER TYPE 1 24V 55W	1-82110-250-2	01	1	9606-9609
1	LAMP ASM; HEAD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> INNER TYPE 1 24V 55W	1-82110-250-3	01	1	9610-9810
1	LAMP ASM; HEAD EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> OUTER TYPE 2 24V 50/65W	1-82110-253-3	01	1	9606-9609
1	LAMP ASM; HEAD EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> OUTER TYPE 2 24V 50/65W	1-82110-253-4	01	1	9610-9810
3	SEALED BEAM; HEADLAMP EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> (A) INNER 24V 55W	1-82191-023-0	02	1	9606-9609
3	SEALED BEAM; HEADLAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> (A) INNER 24V 55W	1-82191-023-0	02	1	9610-9810
3	SEALED BEAM; HEADLAMP (C) INNER 24V 55W	8-94111-276-0	02	1	9811-0411
3	SEALED BEAM; HEADLAMP EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> (A) OUTER 24V 50/65W	1-82191-024-0	02	1	9606-9609
3	SEALED BEAM; HEADLAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> (A) OUTER 24V 50/65W	1-82191-024-0	02	1	9610-9810
3	SEALED BEAM; HEADLAMP (B) OUTER 24V 50/65W	8-94111-275-0	02	1	9811-0411
4	HEADLAMP UNIT (A) TYPE 1 24V 70W	1-82191-032-0	02	1	0412-
4	HEADLAMP UNIT (B) TYPE 2 24V 75/70W	1-82191-037-0	02	1	0412-
4	HEADLAMP UNIT AMBER HEADLAMPS<T75> (C)OUTER TYPE 2 24V 55/50W	8-94101-736-0	02	1	9606-9810
4	HEADLAMP UNIT AMBER HEADLAMPS<T75> (C)INNER TYPE 1 24V 55W	8-94101-742-0	02	1	9606-9810
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> (C)INNER TYPE 1 24V 70W	1-82191-032-0	02	1	9606-9810
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> (C)OUTER TYPE 2 24V 75/70W	1-82191-037-0	02	1	9606-9810
5	BULB; HEADLAMP (B) 24V 75/70W	1-82194-063-0	02	1	0412-
5	BULB; HEADLAMP (A) 24V 70W	8-94405-658-0	02	1	0412-
5	BULB; HEADLAMP AMBER HEADLAMPS<T75> (C) 24V 55/50W	5-82193-004-0	04	1	9606-9810
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> (C)OUTER 24V 75/70W	1-82193-006-0	02	1	9606-9810
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> (C)INNER 24V 70W	1-82193-007-0	02	1	9606-9810
6	RIM; HEADLAMP (A) INNER	1-82114-018-0	02	1	9606-9810
6	RIM; HEADLAMP (A) OUTER	1-82114-019-0	02	1	9606-9810
6	RIM; HEADLAMP (B)	8-94165-573-0	04	1	9811-
14	CAP; BULB,LAMP	1-82219-030-0	02	1	9811-
19	NUT; HEADLAMP (A) M6	9-09110-506-0	08	1	9606-9609
19	NUT; HEADLAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M6	9-09110-506-0	08	1	9610-9810
19	NUT; HEADLAMP (D)	8-97044-618-0	08	1	9811-
19	NUT; HEADLAMP AMBER HEADLAMPS<T75> (B)	1-82119-056-0	08	1	9606-9810
19	NUT; HEADLAMP (C)	1-82119-117-0	08	1	9811-
19	NUT; HEADLAMP EXC. AMBER HEADLAMPS<T75> (B)	1-82119-056-0	08	1	9606-9810
20	SCREW; HEADLAMP (A)	1-82119-104-0	16	1	9606-9609
20	SCREW; HEADLAMP EXC. AMBER HEADLAMPS<T75> (A)	1-82119-104-0	16	1	9610-9704
20	SCREW; HEADLAMP EXC. AMBER HEADLAMPS<T75> (A)	1-82119-023-0	08	1	9705-9810
20	SCREW; HEADLAMP AMBER HEADLAMPS<T75> (A)	1-82119-023-0	16	1	9705-9810
20	SCREW; HEADLAMP (B) M4X8	8-94165-886-0	16	1	9811-
21	SPRING; ADJ HEADLAMP	1-82119-021-0	04	1	9606-9609
21	SPRING; ADJ HEADLAMP EXC. AMBER HEADLAMPS<T75>	1-82119-021-0	04	1	9610-9704
21	SPRING; ADJ HEADLAMP EXC. AMBER HEADLAMPS<T75>	1-82119-105-0	02	1	9705-9810
21	SPRING; ADJ HEADLAMP AMBER HEADLAMPS<T75>	1-82119-105-0	04	1	9705-9810
21	SPRING; ADJ HEADLAMP	1-82119-120-0	04	1	9811-0411
21	SPRING; ADJ HEADLAMP	1-82119-158-0	04	1	0412-
22	SCREW; ADJ,HEADLAMP (A)	1-82119-095-0	08	1	9606-9609
22	SCREW; ADJ,HEADLAMP EXC. AMBER HEADLAMPS<T75> (A)	1-82119-095-0	08	1	9610-9810
22	SCREW; ADJ,HEADLAMP (B) LH INNER SIDE	1-82119-119-0	01	1	9811-
22	SCREW; ADJ,HEADLAMP (A) RH,LH UPPER & OUTER SIDE	1-82119-118-0	07	1	9811-
23	COVER; BULB,HEADLAMP (B)	1-82119-220-0	02	1	0412-
23	COVER; BULB,HEADLAMP (A)	1-82119-221-0	02	1	0412-
23	COVER; BULB,HEADLAMP EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> (C)	1-82119-013-0	04	1	9606-9810
28	BOLT; HEADLAMP (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9811-
28	BOLT; HEADLAMP (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9811-
60	LAMP ASM; FRT COMB	1-82210-028-0	01	1	9606-9609
60	LAMP ASM; FRT COMB EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82210-028-0	01	1	9610-9810
60	LAMP ASM; FRT COMB	1-82210-221-0	01	1	9811-
60	LAMP ASM; FRT COMB	1-82210-027-0	01	1	9606-9609
60	LAMP ASM; FRT COMB EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82210-027-0	01	1	9610-9810
60	LAMP ASM; FRT COMB	1-82210-220-0	01	1	9811-
67	GASKET; FRT COMB LAMP	1-82216-004-0	01	1	9606-9609
67	GASKET; FRT COMB LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82216-004-0	01	1	9610-9810
67	GASKET; FRT COMB LAMP	1-82216-003-0	01	1	9606-9609
67	GASKET; FRT COMB LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82216-003-0	01	1	9610-9810
67	GASKET; FRT COMB LAMP	1-82216-033-0	02	1	9811-
68	BULB; FRT COMB LAMP (A) 24V 25W	9-82691-347-0	04	1	9606-9609
68	BULB; FRT COMB LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 24V 25W	9-82691-347-0	04	1	9610-9810
68	BULB; FRT COMB LAMP (D) 24V 5W	8-94135-397-0	02	1	9811-
68	BULB; FRT COMB LAMP (B) 24V 10/4W	9-82691-607-0	02	1	9606-9609
68	BULB; FRT COMB LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 24V 10/4W	9-82691-607-0	02	1	9610-9810
68	BULB; FRT COMB LAMP (C) 24V 21W	1-82194-036-0	02	1	9811-
75	SCREW; FRT COMB LAMP (A) M4X50	1-82219-015-0	04	1	9606-9609
75	SCREW; FRT COMB LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M4X50	1-82219-015-0	04	1	9610-9810
75	SCREW; FRT COMB LAMP (D)	1-82219-026-0	04	1	9811-
75	SCREW; FRT COMB LAMP (B) M4X16	1-82219-016-0	04	1	9606-9609
75	SCREW; FRT COMB LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) M4X16	1-82219-016-0	04	1	9610-9810
75	SCREW; FRT COMB LAMP (E)	1-82219-031-0	04	1	9811-
75	SCREW; FRT COMB LAMP (C) M5X16 W/LK WASHER	9-03910-516-0	08	1	9606-9609
75	SCREW; FRT COMB LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) M5X16 W/LK WASHER	9-03910-516-0	08	1	9610-9810
76	LENS; FRT COMB LAMP	1-82215-071-0	01	1	9811-
76	LENS; FRT COMB LAMP	1-82215-070-0	01	1	9811-
91	BULB; SIDE TURN SIGNAL 24V 12W	1-82194-030-0	02	1	9811-
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	9811-
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	9811-0206
157	RING; MTG,HEADLAMP (B)	1-82119-032-0	01	1	9811-
157	RING; MTG,HEADLAMP (A)	1-82119-033-0	01	1	9811-
157	RING; MTG,HEADLAMP (A)	1-82119-031-0	01	1	9811-
157	RING; MTG,HEADLAMP (B)	1-82119-034-0	01	1	9811-
227	SEAT; SET SCREW,FRT COMB LAMP	1-82219-017-0	08	1	9606-9609
227	SEAT; SET SCREW,FRT COMB LAMP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-82219-017-0	08	1	9610-9810
227	SEAT; SET SCREW,FRT COMB LAMP	1-82216-032-0	04	1	9811-
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	9811-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-011-6	01	1	9811-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-007-6	01	1	9811-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-241-1	01	1	9811-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-240-1	01	1	9811-
399	SOCKET; TURN SIGNAL (A)	1-82219-033-0	02	1	9811-
399	SOCKET; TURN SIGNAL (B)	1-82219-034-0	02	1	9811-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
