◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11328 - FTR AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#60079) — 61 parça

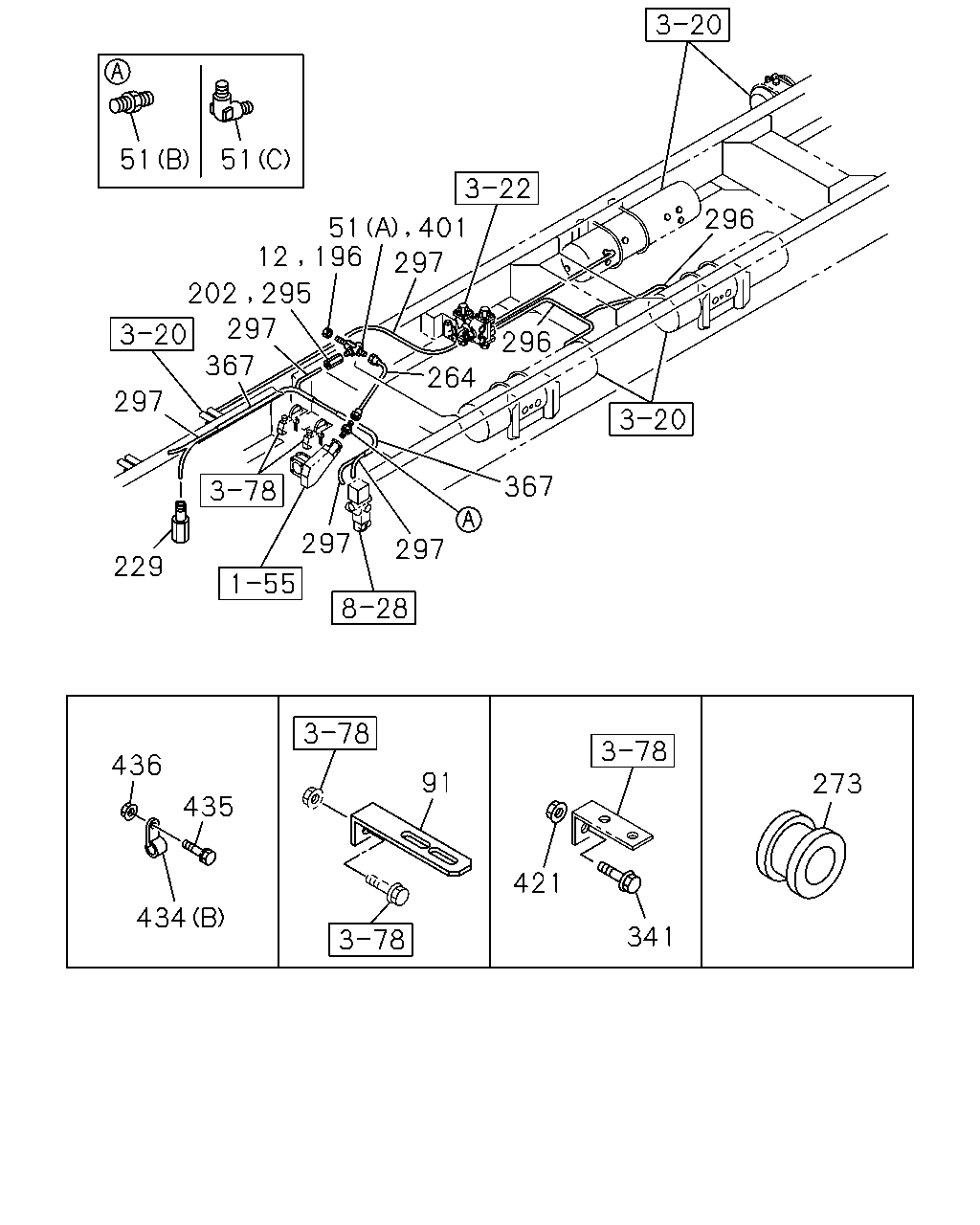

çizim 171775
296 296 264 367 297 297 297 229 367 297 202 295 12 196 51 401 297 436 435 434 91 421 341 273 51 51
BalonParca AdiParca NoAdetTipApplied Date A B
12 NUT; UNION
M12 		0-91111-512-0 01 1 1010-1306 ● ●
51 UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1010-1109 ●
51 UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1110- ●
51 UNION
(A) M12 2WAY 		1-09654-059-2 01 1 1010-1306 ● ●
51 UNION
WHEEL BASE 6000MM(60W) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1010-1306 ● ●
51 UNION
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1010-1306 ●
51 UNION
WHEEL BASE 6000MM(60W) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1307- ● ●
91 BRACKET; TUBE CLIP
L=150 H=30 		1-47477-629-2 01 1 1010- ● ●
196 NUT; FLEX HOSE
M12 		0-91111-512-0 01 1 1307- ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1010-1306 ● ●
229 ADAPTER; NYLON TUBE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1010-1306 ● ●
229 ADAPTER; NYLON TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1307- ● ●
264 HOSE; FLEX
WHEEL BASE 4200MM(42W) L=250 		1-09363-618-0 01 1 1010-1306 ●
264 HOSE; FLEX
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) L=280 		1-09363-672-0 01 1 1010-1109 ●
264 HOSE; FLEX
L=280 		1-09363-672-0 01 1 1010-1109 ●
264 HOSE; FLEX
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) L=280 		1-09363-672-0 01 1 1110-1306 ●
264 HOSE; FLEX
L=280 		1-09363-672-0 01 1 1110-1306 ●
273 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1307- ● ●
273 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1307- ● ●
295 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1307- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1010- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1010- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1010- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1010- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1010- ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1010- ● ●
341 BOLT; BRKT
WHEEL BASE 4200MM(42W) M8X30 FLANGE 		0-28650-830-0 02 1 1010- ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1010- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1010- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1010- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1010- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1010- ● ●
401 CONNECTOR; FLEX HOSE
M12 2WAY 		1-09654-059-2 01 1 1307- ● ●
421 NUT; BRKT
WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 02 1 1010- ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1010- ● ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1010- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1010- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●

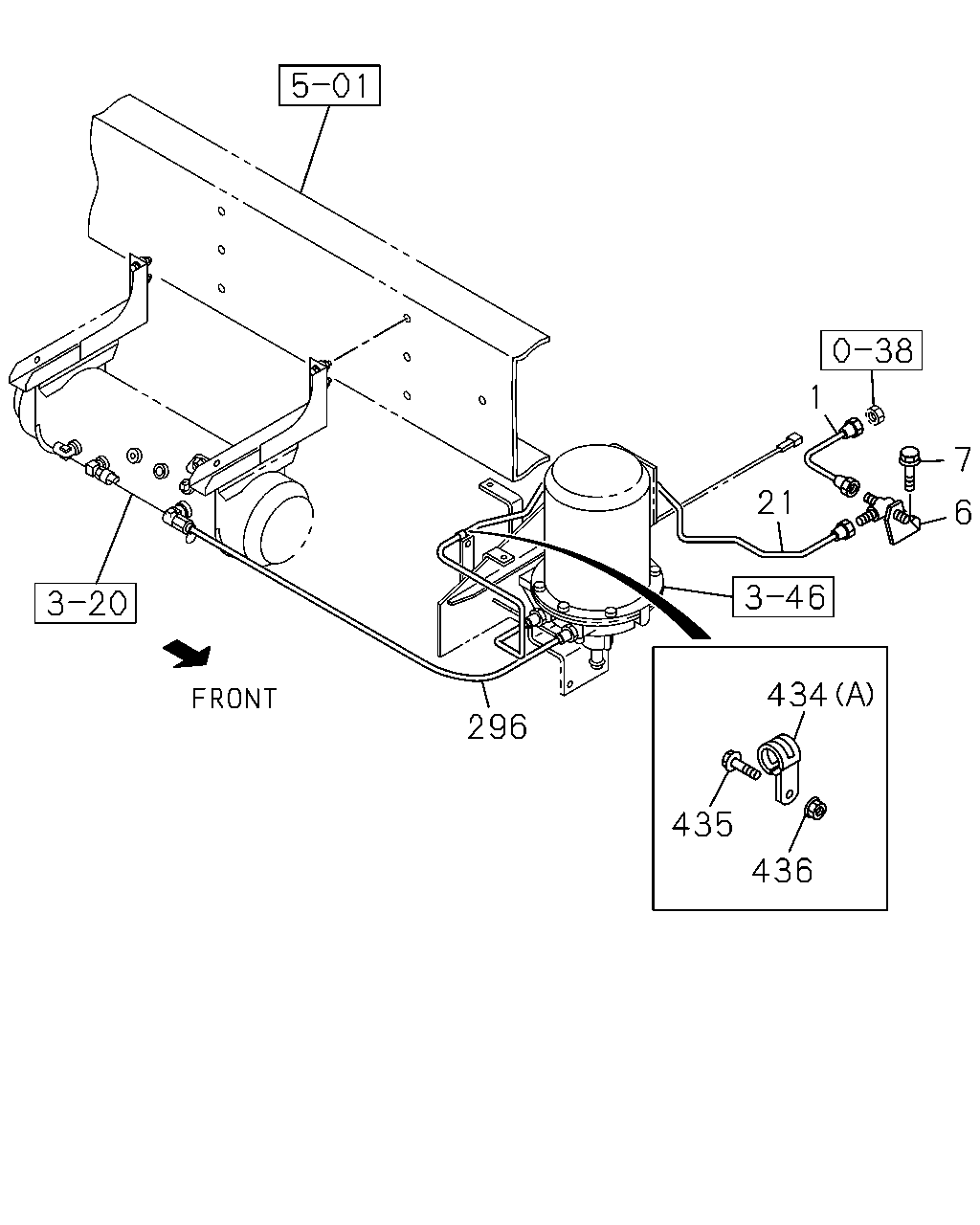

çizim 171793
436 435 434 6 7 21 1 296
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 1010- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98076-344-0 01 1 1010- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1010- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=2033 		8-98126-152-1 01 1 1010- ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1782 		8-98105-419-1 01 1 1010-1010 ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1772 		8-98181-782-0 01 1 1011-1306 ●
21 PIPE; AIR,UNION TO AIR DRYER
WHEEL BASE 6000MM(60W) L=1772 		8-98181-782-0 01 1 1307- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1010- ● ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1010- ● ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1010- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1010- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
