Isuzu WW
▶
TRUCKS
▶
FTR
▶
11328 - FTR AUST/NZ EURO5
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#60076) — 63 parça
Tümü
A - FGR5MV
B - FGR5WV
◀

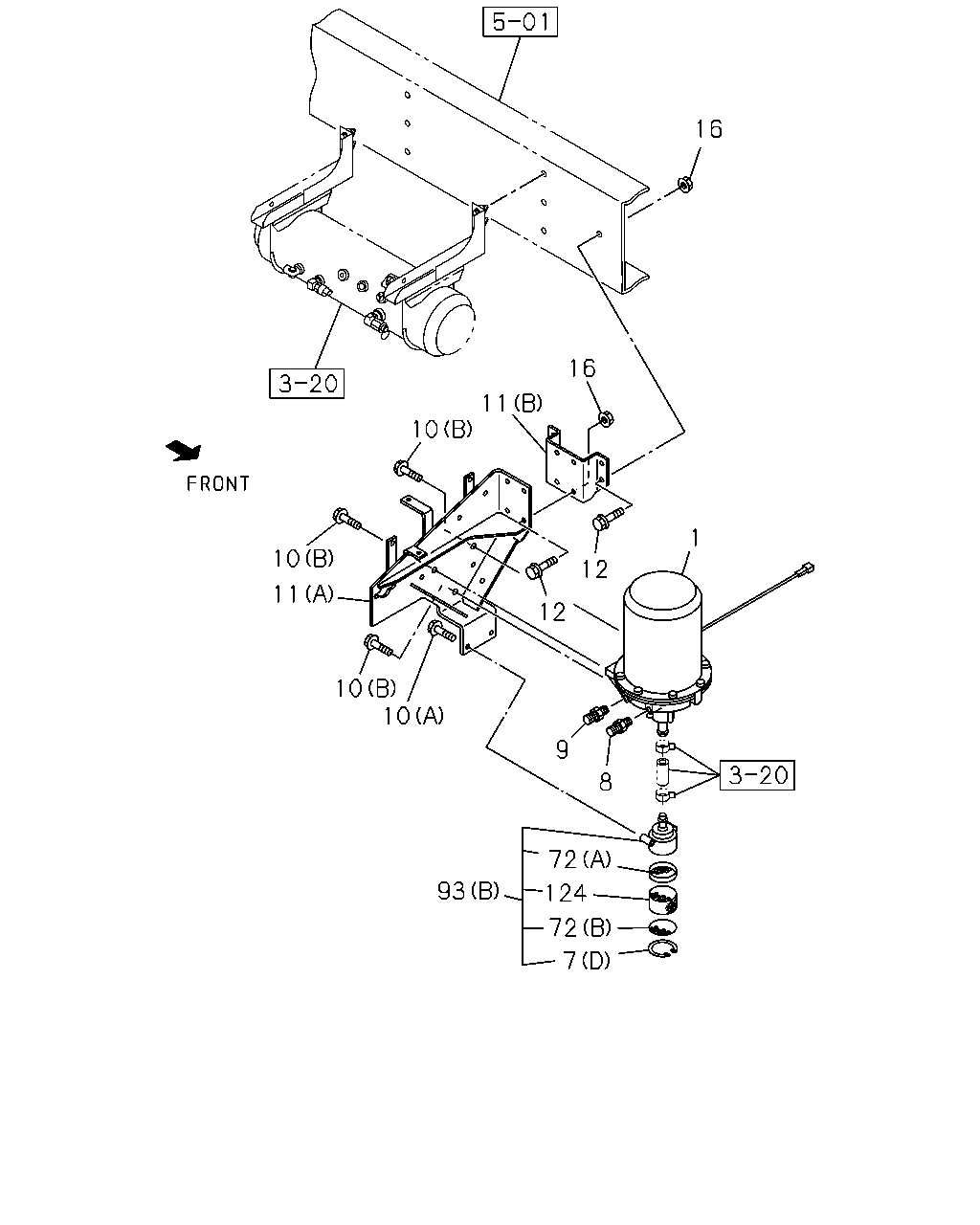

[346A] FIXING (23 parça)
[346A] THERMOSTAT,PISTON AND REPAIR KIT (12 parça)

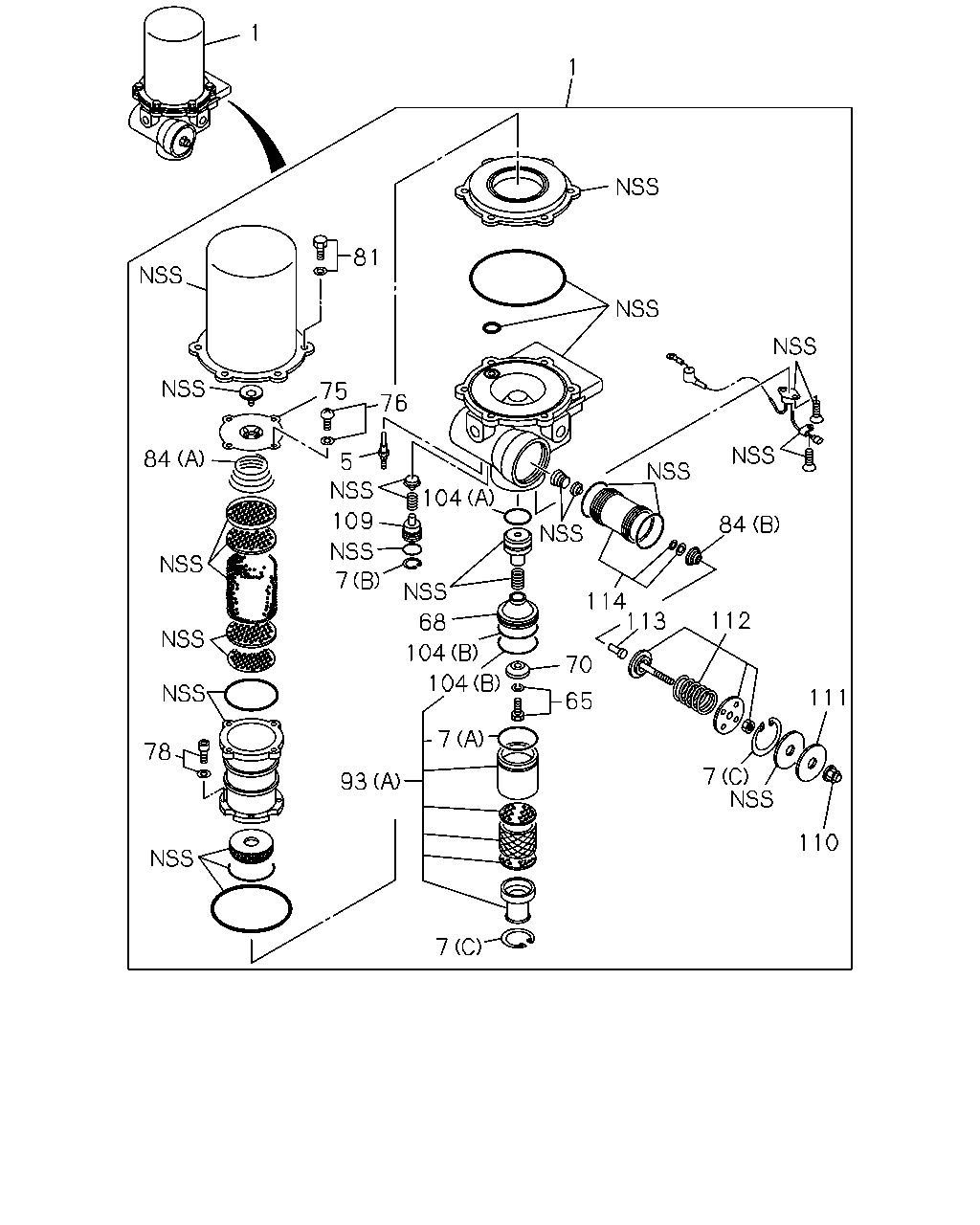

[346A] COMPONENT (28 parça)
▶
7
72
124
72
93
10
10
11
10
8
9
10
11
16
16
12
1
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRYER; AIR
1-48190-371-2
01
1
1010-1211
●
●
1
DRYER; AIR
8-98225-292-0
01
1
1212-
●
●
7
RING; SNAP,AIR DRYER
(D)
1-47769-017-0
01
1
1010-
●
●
7
RING; SNAP,AIR DRYER
(C)
1-48199-520-0
02
1
1010-
●
●
7
RING; SNAP,AIR DRYER
(B)
1-48199-529-0
01
1
1010-
●
●
7
RING; SNAP,AIR DRYER
(A)
1-48199-579-0
01
1
1010-
●
●
8
CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 STRAIGHT
1-09660-966-0
01
1
1010-
●
●
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 FLARE
0-92121-815-0
01
1
1010-
●
●
10
BOLT; AIR DRYER
(B) M12X25 FLANGE
0-28051-225-0
03
1
1010-
●
●
10
BOLT; AIR DRYER
(A) M8X20 FLANGE
0-28650-820-0
02
1
1010-
●
●
11
BRACKET; AIR DRYER
(A)
8-98173-266-0
01
1
1010-
●
●
11
BRACKET; AIR DRYER
(B)
8-98105-411-1
01
1
1010-1306
●
11
BRACKET; AIR DRYER
WHEEL BASE 6000MM(60W) (B)
8-98105-411-1
01
1
1307-
●
12
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
02
1
1010-
●
●
12
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
02
1
1010-
●
16
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1010-
●
●
16
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1010-1306
●
16
NUT; BRKT
WHEEL BASE 6000MM(60W) M10 FLANGE
0-91180-210-0
04
1
1307-
●
72
PLATE; FILTER,AIR DRYER
(A)
1-48199-585-0
01
1
1010-
●
●
72
PLATE; FILTER,AIR DRYER
(B)
1-48199-602-0
01
1
1010-
●
●
93
SILENCER; AIR DRYER
(B)
1-48199-581-0
01
1
1010-
●
●
93
SILENCER; AIR DRYER
(A)
1-48199-619-0
01
1
1010-
●
●
124
FILTER; SILENCER
1-48199-465-0
01
1
1010-
●
●
2
104
104
104
70
4
3
68
70
104
104
104
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; AIR DRYER
1-85576-448-0
01
1
1010-1211
●
●
2
REPAIR KIT; AIR DRYER
8-98226-328-0
01
1
1212-
●
●
3
PISTON KIT; AIR DRYER
1-85576-383-0
01
1
1010-1211
●
●
3
PISTON KIT; AIR DRYER
8-98226-322-0
01
1
1212-
●
●
4
THERMOSTAT KIT; AIR DRYER
1-85576-444-0
01
1
1010-
●
●
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1010-
●
●
68
BODY; VALVE
1-48199-515-0
01
1
1010-
●
●
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1010-
●
●
104
GASKET
(A)
1-48199-495-0
01
1
1010-1211
●
●
104
GASKET
(A)
8-98226-321-0
01
1
1212-
●
●
104
GASKET
(B)
1-48199-496-0
02
1
1010-1211
●
●
104
GASKET
(B)
1-48199-496-0
01
1
1212-
●
●
1
1
81
84
75
78
93
7
109
76
5
84
114
113
112
111
110
7
65
70
7
7
104
104
68
104
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRYER; AIR
1-48190-371-2
01
1
1010-1211
●
●
1
DRYER; AIR
8-98225-292-0
01
1
1212-
●
●
5
HEATER ASM; AIR DRYER
1-48199-530-0
01
1
1010-
●
●
7
RING; SNAP,AIR DRYER
(D)
1-47769-017-0
01
1
1010-
●
●
7
RING; SNAP,AIR DRYER
(C)
1-48199-520-0
02
1
1010-
●
●
7
RING; SNAP,AIR DRYER
(B)
1-48199-529-0
01
1
1010-
●
●
7
RING; SNAP,AIR DRYER
(A)
1-48199-579-0
01
1
1010-
●
●
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1010-
●
●
68
BODY; VALVE
1-48199-515-0
01
1
1010-
●
●
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1010-
●
●
75
COVER; CASE,AIR DRYER
1-48199-562-0
01
1
1010-
●
●
76
BOLT; COVER,AIR DRYER
1-48199-561-0
06
1
1010-
●
●
78
BOLT; OIL FILTER,AIR DRYER
1-48199-557-0
04
1
1010-
●
●
81
BOLT; CASE,AIR DRYER
1-48199-436-0
08
1
1010-
●
●
84
SPRING; AIR DRYER
(B)
1-48199-523-0
01
1
1010-
●
●
84
SPRING; AIR DRYER
(A)
1-48199-564-0
01
1
1010-
●
●
93
SILENCER; AIR DRYER
(B)
1-48199-581-0
01
1
1010-
●
●
93
SILENCER; AIR DRYER
(A)
1-48199-619-0
01
1
1010-
●
●
104
GASKET
(A)
1-48199-495-0
01
1
1010-1211
●
●
104
GASKET
(A)
8-98226-321-0
01
1
1212-
●
●
104
GASKET
(B)
1-48199-496-0
02
1
1010-1211
●
●
104
GASKET
(B)
1-48199-496-0
01
1
1212-
●
●
109
STOPPER; CHECK VALVE
1-48199-539-0
01
1
1010-
●
●
110
NUT; CAP
1-48199-527-0
01
1
1010-
●
●
111
PLATE; GOVERNOR
1-48199-526-0
01
1
1010-
●
●
112
SCREW & SPRING ASM; AIR DRYER
1-48199-524-0
01
1
1010-
●
●
113
STEM; EXHAUST
1-48199-522-0
01
1
1010-
●
●
114
PISTON ASM; GOVERNOR
1-48199-521-0
01
1
1010-
●
●
