3-22 — AIR CONTROL PARTS (#60071) — 141 parça

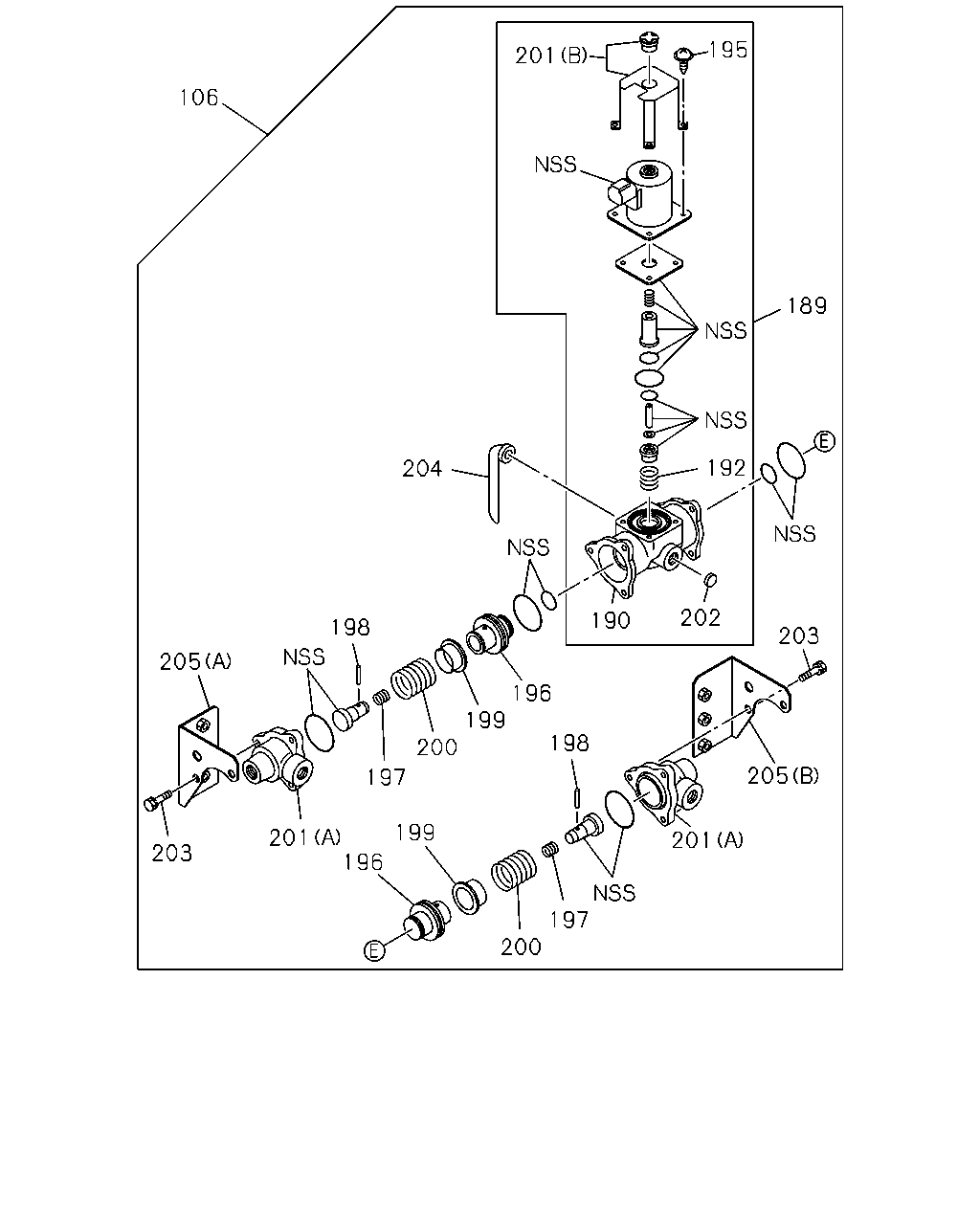

çizim 171725
203 205 198 204 106 201 195 189 192 190 202 203 205 201 197 200 196 199 198 201 197 200 199 196
BalonParca AdiParca NoAdetTipApplied Date A B
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1010- ● ●
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 1010- ● ●
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 1010- ● ●
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 1010- ● ●
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 1010- ● ●
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 1010- ● ●
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 1010- ● ●
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 1010- ● ●
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 1010- ● ●
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 1010- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 1010- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 1010- ● ●
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 1010- ● ●
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 1010- ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1010- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 1010- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 1010- ● ●

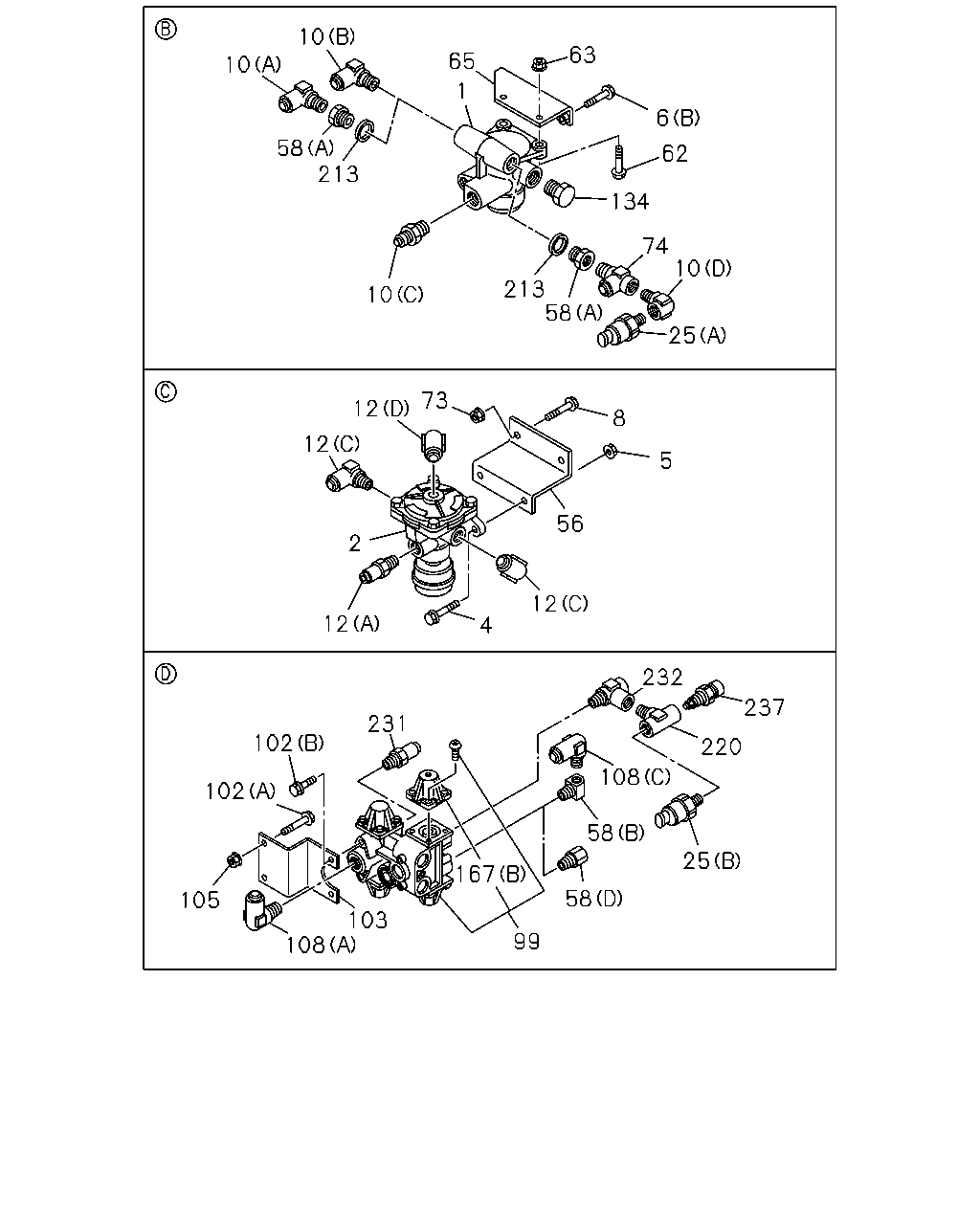

çizim 171746
213 58 10 10 65 1 63 6 62 134 74 10 25 58 213 10 73 12 12 2 12 4 56 12 5 8 232 237 220 108 58 25 58 99 167 103 108 105 102 102 231
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1010- ● ●
2 VALVE; RELAY 1-48210-997-0 01 1 1010- ● ●
2 VALVE; RELAY 1-48210-997-0 01 1 1010- ● ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1010- ● ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1010- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1010-1410 ● ●
6 BOLT; VLV
(A) M8X85 		1-09044-074-0 04 1 1411- ● ●
6 BOLT; VLV
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1010- ● ●
8 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1010- ● ●
10 CONNECTOR
(D) PT1/4 2WAY 		1-09660-693-0 01 1 1010- ● ●
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1010- ● ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1010- ● ●
10 CONNECTOR
(C) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 1010- ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1010-1306 ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1307- ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 6000MM(60W) (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1307- ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ● ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1010-1306 ● ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1307- ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 6000MM(60W) (A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1307- ●
12 CONNECTOR; RELAY VLV
(B) M12 & M8 & RC3/8 3WAY 		1-09661-207-0 01 1 1010- ● ●
25 SWITCH; PRESSURE
(B) STAMP 5.5 		8-97609-249-0 01 1 1010- ● ●
25 SWITCH; PRESSURE
(A) STAMP 2.0 		8-98010-856-2 01 1 1010- ● ●
56 BRACKET; RELAY VLV 1-47478-233-0 01 1 1010-1306 ● ●
56 BRACKET; RELAY VLV 1-47478-233-0 01 1 1307- ●
56 BRACKET; RELAY VLV
WHEEL BASE 6000MM(60W) 		1-47478-233-0 01 1 1307- ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 1010- ● ●
58 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 1010- ● ●
58 ADAPTER
(D) PT3/8 		1-09664-210-0 01 1 1010- ● ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 1010- ● ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 1010- ● ●
62 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1010- ● ●
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
65 BRACKET; RELAY VLV RR 1-47471-032-0 01 1 1010- ● ●
73 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
74 CONNECTOR; 3WAY
DIN8 & RC1/4 & R3/8 3WAY 		1-09661-536-0 01 1 1010- ● ●
99 VALVE; PROTECTION 1-48110-294-3 01 1 1010- ● ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1010- ● ●
102 BOLT; PROTECTION VALVE
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1010- ● ●
103 BRACKET; PROTECTION VALVE 8-98090-802-0 01 1 1010- ● ●
105 NUT; BRKT,VALVE
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ● ●
108 CONNECTOR; ELBOW
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 1010- ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 1010- ● ●
134 PLUG; RELAY VALVE
M22 		1-09661-502-0 01 1 1010- ● ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1307- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1010- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1010- ● ●
213 GASKET
ID=22.5 		9-09571-422-0 03 1 1010- ● ●
220 CONNECTOR; 3WAY
DIN8 & RC1/4 & R3/8 3WAY 		1-09660-988-1 01 1 1010- ● ●
231 CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1010- ● ●
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1010- ● ●
237 VALVE; SAFETY 1-48320-012-2 01 1 1010-1306 ● ●
237 VALVE; SAFETY 1-48320-012-2 01 1 1307- ● ●
çizim 171754
155 279
BalonParca AdiParca NoAdetTipApplied Date A B
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 1010- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 1010- ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 1010- ● ●
279 REPAIR KIT; SILENCER 1-85576-409-0 01 1 1010- ● ●
çizim 171764
188 204
BalonParca AdiParca NoAdetTipApplied Date A B
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-1 01 1 1010- ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1010- ● ●

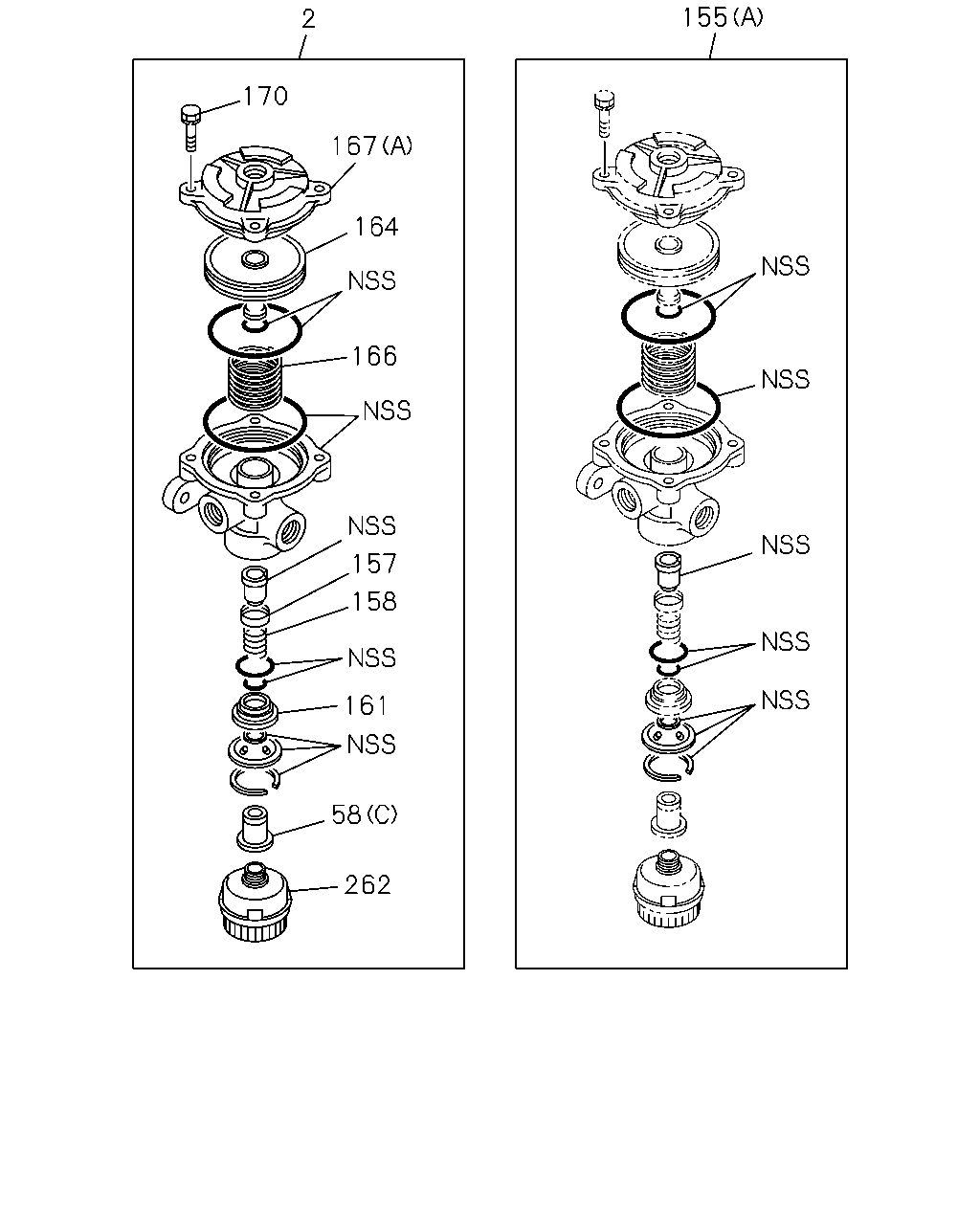

çizim 171767
2 155 170 167 164 166 157 158 161 58 262
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY 1-48210-997-0 01 1 1010- ● ●
2 VALVE; RELAY 1-48210-997-0 01 1 1010- ● ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 1010- ● ●
58 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 1010- ● ●
58 ADAPTER
(D) PT3/8 		1-09664-210-0 01 1 1010- ● ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 1010- ● ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 1010- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 1010- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 1010- ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 1010- ● ●
157 RETAINER; VALVE 1-48213-002-0 01 1 1010- ● ●
157 RETAINER; VALVE 1-48213-002-0 01 1 1010- ● ●
158 SPRING; VALVE 1-47819-089-0 01 1 1010- ● ●
158 SPRING; VALVE 1-47819-089-0 01 1 1010- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1010- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1010- ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 1010- ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 1010- ● ●
166 SPRING; PISTON 1-47819-090-0 01 1 1010- ● ●
166 SPRING; PISTON 1-47819-090-0 01 1 1010- ● ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1307- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1010- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1010- ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 1010- ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 1010- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1010- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1010- ● ●

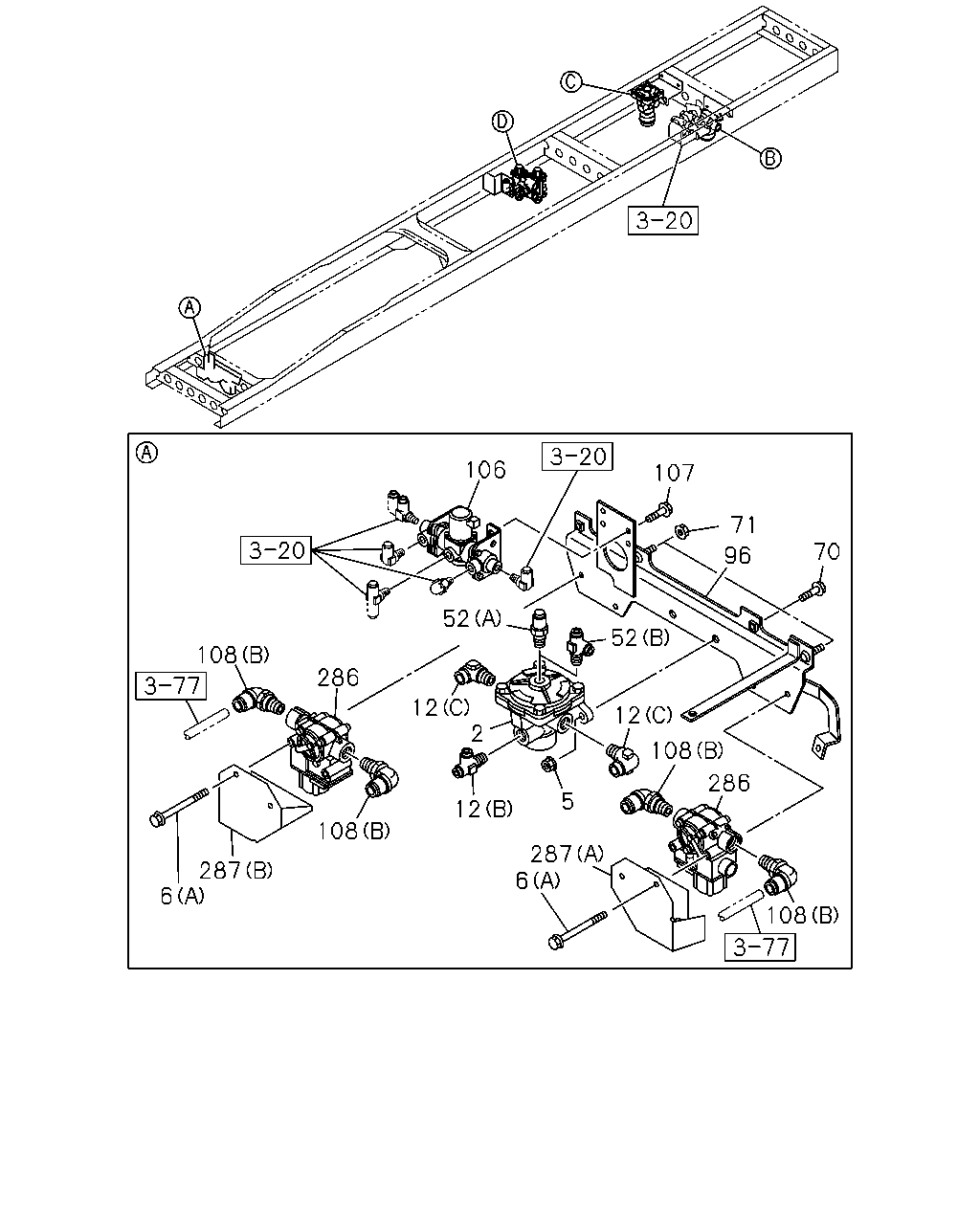

çizim 171783
106 107 71 96 70 52 52 12 108 286 108 6 287 5 12 2 12 286 108 287 6 108
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY 1-48210-997-0 01 1 1010- ● ●
2 VALVE; RELAY 1-48210-997-0 01 1 1010- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1010-1410 ● ●
6 BOLT; VLV
(A) M8X85 		1-09044-074-0 04 1 1411- ● ●
6 BOLT; VLV
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1010- ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1010-1306 ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1307- ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 6000MM(60W) (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1307- ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ● ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1010-1306 ● ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1307- ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 6000MM(60W) (A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1307- ●
12 CONNECTOR; RELAY VLV
(B) M12 & M8 & RC3/8 3WAY 		1-09661-207-0 01 1 1010- ● ●
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1010- ● ●
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 1010- ● ●
70 BOLT; AIR VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1010- ● ●
71 NUT; AIR VLV
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
96 BRACKET 8-98074-613-3 01 1 1010-1410 ● ●
96 BRACKET 8-98273-496-0 01 1 1411- ● ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1010- ● ●
107 BOLT; VLV
H.S.A SYSTEM<6EP> M8X25 FLANGE 		0-28650-825-0 04 1 1010- ● ●
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ● ●
108 CONNECTOR; ELBOW
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 1010- ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 1010- ● ●
286 MODULATOR; FRT 1-48240-115-0 02 1 1010-1410 ● ●
286 MODULATOR; FRT 8-98215-454-0 02 1 1411- ● ●
287 COVER; MODULATOR
(A) 		1-47479-611-1 01 1 1010-1410 ● ●
287 COVER; MODULATOR
(B) 		8-98273-493-0 01 1 1411- ● ●
287 COVER; MODULATOR
(B) 		8-98073-401-0 01 1 1010-1410 ● ●
287 COVER; MODULATOR
(A) 		8-98273-494-0 01 1 1411- ● ●
çizim 488167
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 REPAIR KIT; PROTECTION VALVE 1-85576-451-2 01 1 1307- ● ●
