◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11328 - FTR AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#60070) — 139 parça

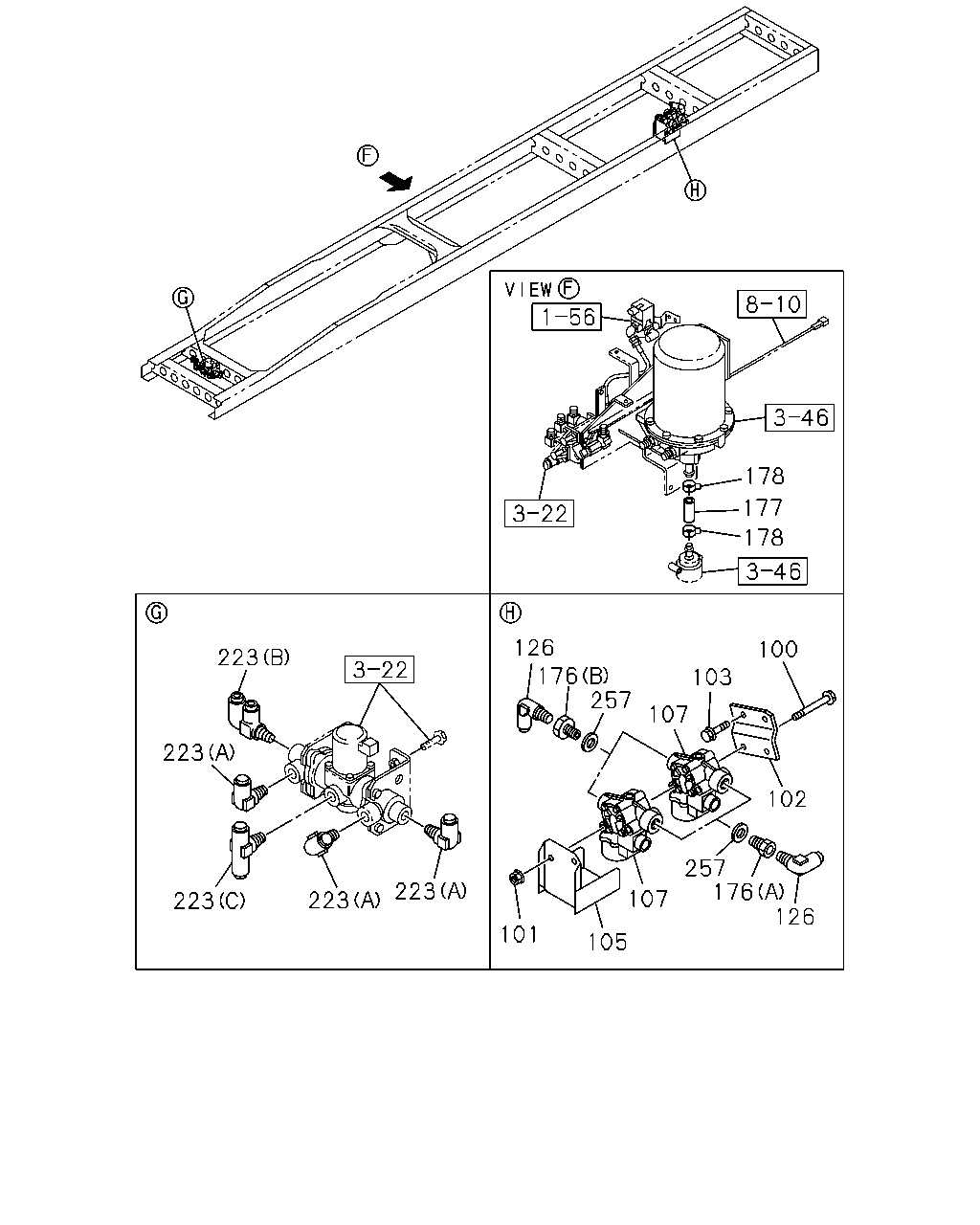

çizim 171748
178 177 178 100 103 102 107 257 176 126 257 176 126 107 105 101 223 223 223 223 223
BalonParca AdiParca NoAdetTipApplied Date A B
100 BOLT; MODULATOR
M8X140 FLANGE 		0-28055-814-0 02 1 1010- ● ●
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
102 BRACKET; MODULATOR 8-98075-781-0 01 1 1010-1410 ● ●
102 BRACKET; MODULATOR 8-98272-718-0 01 1 1411- ● ●
103 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
105 COVER; MODULATOR 1-47479-792-0 01 1 1010-1410 ● ●
105 COVER; MODULATOR 8-98272-749-0 01 1 1411- ● ●
107 MODULATOR; RR 1-48240-115-0 02 1 1010-1410 ● ●
107 MODULATOR; RR 8-98215-454-0 02 1 1411- ● ●
126 CONNECTOR; ELBOW
DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1010- ● ●
176 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1010- ● ●
176 ADAPTER
(A) PT3/8 		1-09664-210-0 02 1 1010- ● ●
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 1010- ● ●
178 CLIP; HOSE
ID=21 		8-94242-034-0 02 1 1010- ● ●
223 UNION
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 03 1 1010- ● ●
223 UNION
H.S.A SYSTEM<6EP> (B) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1010- ● ●
223 UNION
H.S.A SYSTEM<6EP> (C) 		1-09661-073-0 01 1 1010- ● ●
257 GASKET; PLUG
ID=22.5 		9-09571-422-0 04 1 1010- ● ●

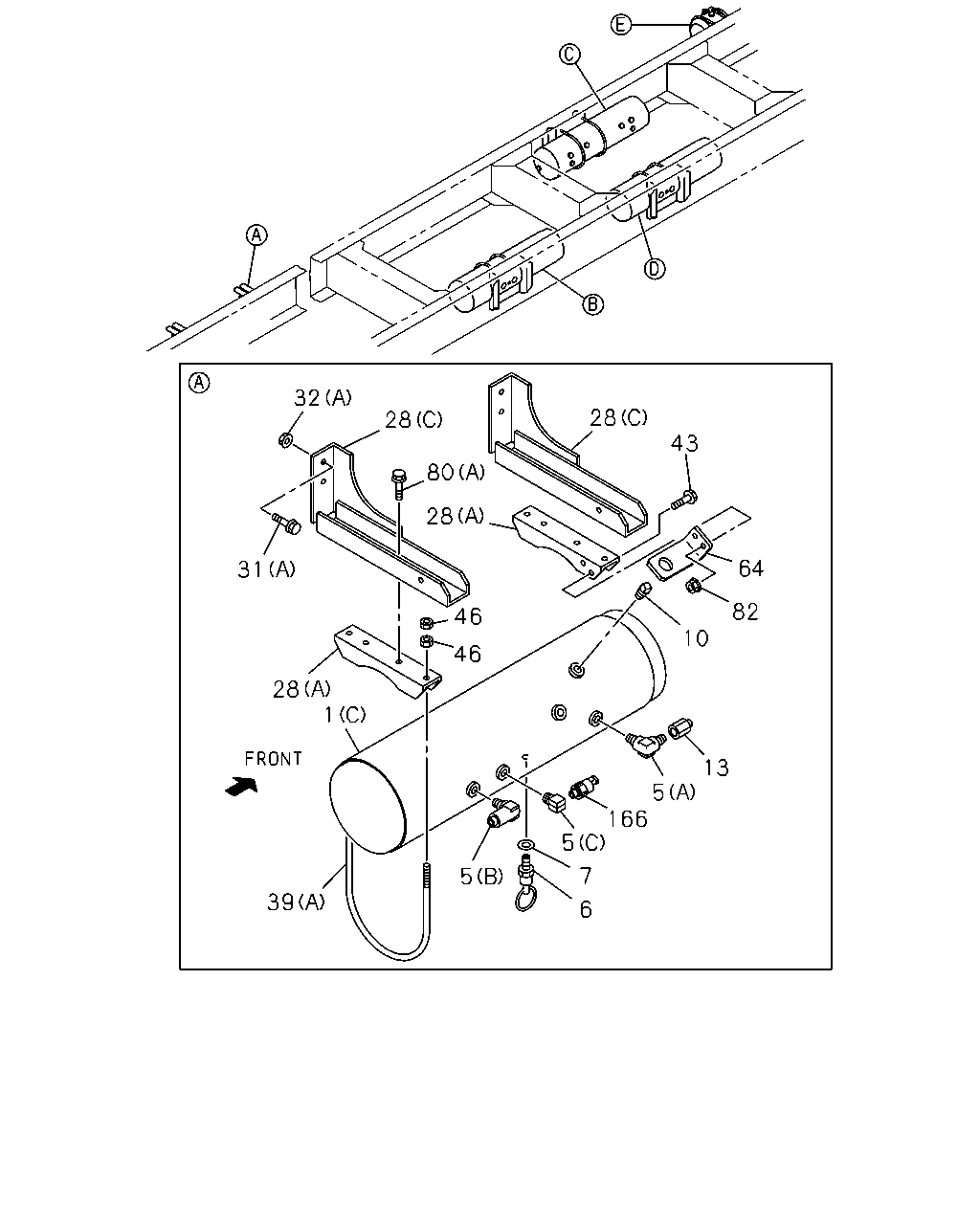

çizim 171768
43 64 82 10 13 5 166 5 7 6 5 39 1 28 31 32 80 28 46 46 28 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(B) 		8-98166-855-0 02 1 1010- ● ●
1 TANK ASM; AIR
(A) 		8-98081-870-1 01 1 1010- ● ●
1 TANK ASM; AIR
(C) 		8-98166-854-0 01 1 1010- ● ●
1 TANK ASM; AIR
(B) 		8-98166-855-0 01 1 1010- ● ●
5 UNION; AIR TANK
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1010- ● ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1010- ● ●
5 UNION; AIR TANK
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1010- ● ●
5 UNION; AIR TANK
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1010- ● ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1010-1306 ● ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1010-1306 ● ●
5 UNION; AIR TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) COUNTRY NEW ZEALAND(CX6) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1307- ●
5 UNION; AIR TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) EXC. COUNTRY NEW ZEALAND(CX6) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1307- ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1307- ●
5 UNION; AIR TANK
WHEEL BASE 6000MM(60W) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1307- ●
5 UNION; AIR TANK
WHEEL BASE 6000MM(60W) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1307- ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ● ●
5 UNION; AIR TANK
(A) M20 & PT3/4 ELBOW 		8-98067-083-1 01 1 1010- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1010- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1010- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1010- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1010- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1010- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1010- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1010- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1010- ● ●
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 03 1 1010- ● ●
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 02 1 1010- ● ●
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 02 1 1010- ● ●
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 01 1 1010- ● ●
13 ADAPTER; NYLON TUBE
DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1010- ● ●
28 BRACKET; AIR TANK
(B) 		8-98104-686-0 02 1 1010- ● ●
28 BRACKET; AIR TANK
(A) 		1-48317-324-2 02 1 1010- ● ●
28 BRACKET; AIR TANK
(D) 		8-98100-165-3 01 1 1010- ● ●
28 BRACKET; AIR TANK
(B) 		8-98104-686-0 01 1 1010- ● ●
28 BRACKET; AIR TANK
(C) 		8-98107-430-0 02 1 1010- ● ●
31 BOLT; BRKT TO FRAME
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1010- ● ●
31 BOLT; BRKT TO FRAME
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1010- ● ●
31 BOLT; BRKT TO FRAME
(B) M10X35 FLANGE 		0-28651-035-0 06 1 1010- ● ●
31 BOLT; BRKT TO FRAME
(A) M12X40 FLANGE 		0-28651-240-0 04 1 1010- ● ●
32 NUT; BRKT TO FRAME
(B) M10 FLANGE 		0-91180-110-0 06 1 1010- ● ●
32 NUT; BRKT TO FRAME
(A) M12 FLANGE 		0-91180-112-0 04 1 1010- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1010- ● ●
39 U-BOLT; AIR TANK
(A) L=250 		1-48317-308-0 02 1 1010- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1010- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1010- ● ●
43 BOLT; STAY,AIR TANK,MAIN
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1010- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1010- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1010- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1010- ● ●
64 STAY; AIR TANK,MAIN 1-48317-907-0 01 1 1010- ● ●
80 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 04 1 1010- ● ●
80 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 03 1 1010- ● ●
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK 8-97615-622-0 02 1 1010- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK 8-97615-622-0 01 1 1010- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK 8-97615-622-0 01 1 1010- ● ●

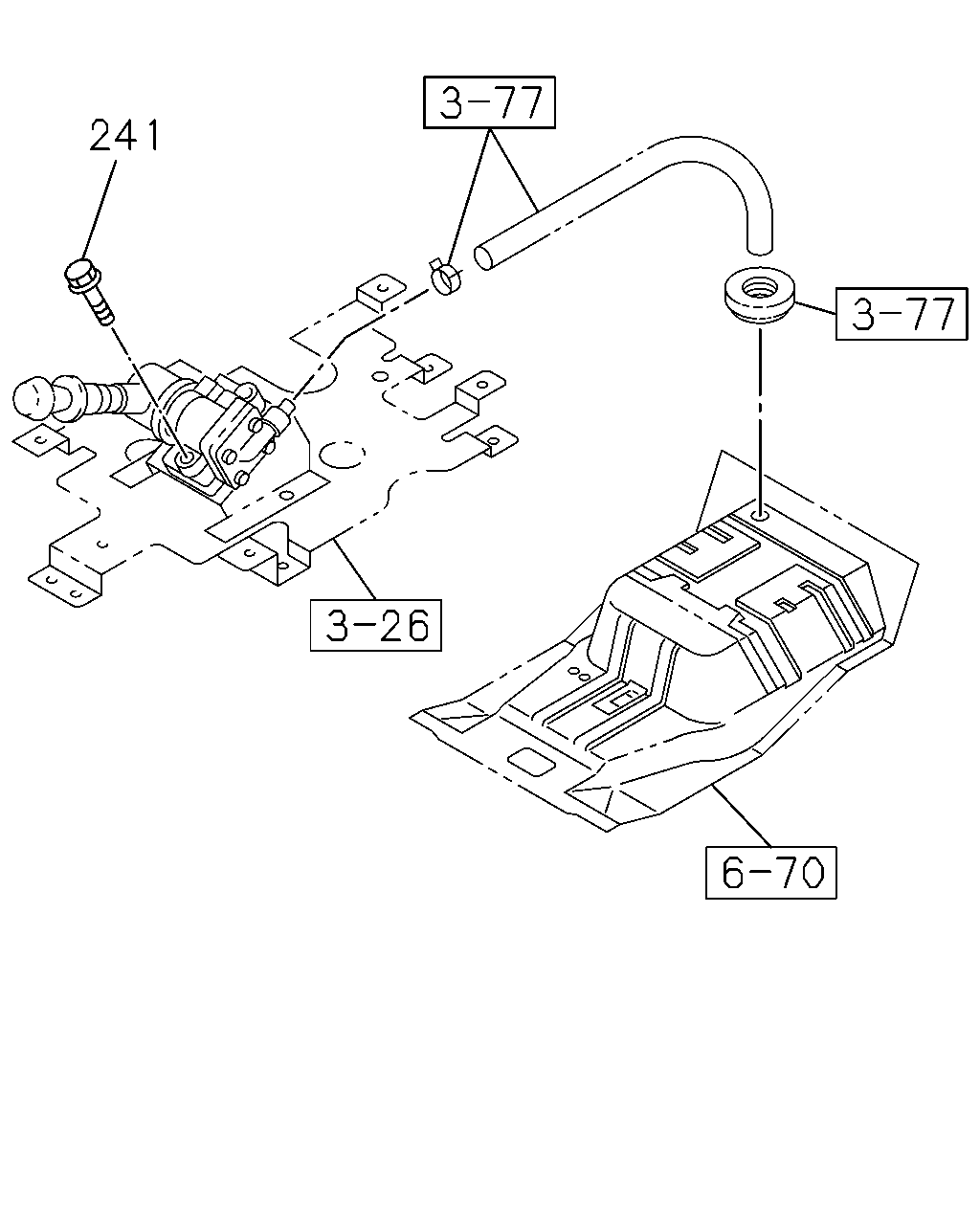

çizim 171794
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1010- ● ●

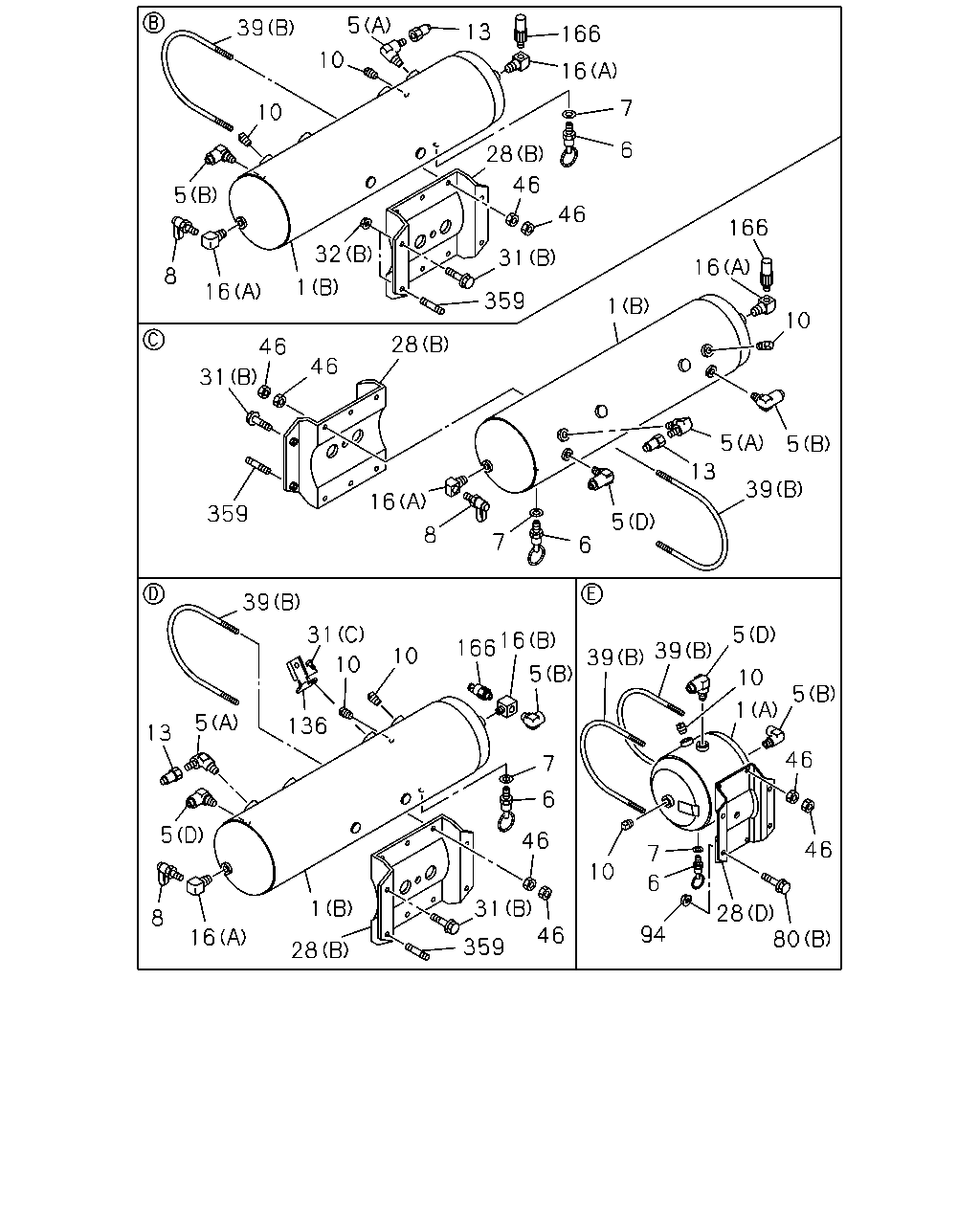

çizim 171808
7 6 46 31 359 46 28 16 166 13 5 10 10 39 5 8 1 32 16 46 31 46 28 359 16 7 6 5 13 5 5 10 39 16 166 8 5 10 1 46 46 28 80 94 6 10 39 39 7 5 5 16 166 7 6 46 46 31 359 28 10 136 1 16 8 5 13 39 31 10 5 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(B) 		8-98166-855-0 02 1 1010- ● ●
1 TANK ASM; AIR
(A) 		8-98081-870-1 01 1 1010- ● ●
1 TANK ASM; AIR
(C) 		8-98166-854-0 01 1 1010- ● ●
1 TANK ASM; AIR
(B) 		8-98166-855-0 01 1 1010- ● ●
5 UNION; AIR TANK
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1010- ● ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1010- ● ●
5 UNION; AIR TANK
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1010- ● ●
5 UNION; AIR TANK
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1010- ● ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1010-1306 ● ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1010-1306 ● ●
5 UNION; AIR TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) COUNTRY NEW ZEALAND(CX6) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1307- ●
5 UNION; AIR TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) EXC. COUNTRY NEW ZEALAND(CX6) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1307- ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1307- ●
5 UNION; AIR TANK
WHEEL BASE 6000MM(60W) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1307- ●
5 UNION; AIR TANK
WHEEL BASE 6000MM(60W) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1307- ●
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ● ●
5 UNION; AIR TANK
(A) M20 & PT3/4 ELBOW 		8-98067-083-1 01 1 1010- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1010- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1010- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1010- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1010- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1010- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1010- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1010- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1010- ● ●
8 CONNECTOR; AIR TANK
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1010- ● ●
8 CONNECTOR; AIR TANK
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1010- ● ●
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 03 1 1010- ● ●
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 02 1 1010- ● ●
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 02 1 1010- ● ●
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 01 1 1010- ● ●
13 ADAPTER; NYLON TUBE
DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1010- ● ●
16 CONNECTOR; SWITCH
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 03 1 1010- ● ●
16 CONNECTOR; SWITCH
(B) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 01 1 1010- ● ●
16 CONNECTOR; SWITCH
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1010- ● ●
28 BRACKET; AIR TANK
(B) 		8-98104-686-0 02 1 1010- ● ●
28 BRACKET; AIR TANK
(A) 		1-48317-324-2 02 1 1010- ● ●
28 BRACKET; AIR TANK
(D) 		8-98100-165-3 01 1 1010- ● ●
28 BRACKET; AIR TANK
(B) 		8-98104-686-0 01 1 1010- ● ●
28 BRACKET; AIR TANK
(C) 		8-98107-430-0 02 1 1010- ● ●
31 BOLT; BRKT TO FRAME
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1010- ● ●
31 BOLT; BRKT TO FRAME
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1010- ● ●
31 BOLT; BRKT TO FRAME
(B) M10X35 FLANGE 		0-28651-035-0 06 1 1010- ● ●
31 BOLT; BRKT TO FRAME
(A) M12X40 FLANGE 		0-28651-240-0 04 1 1010- ● ●
32 NUT; BRKT TO FRAME
(B) M10 FLANGE 		0-91180-110-0 06 1 1010- ● ●
32 NUT; BRKT TO FRAME
(A) M12 FLANGE 		0-91180-112-0 04 1 1010- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1010- ● ●
39 U-BOLT; AIR TANK
(A) L=250 		1-48317-308-0 02 1 1010- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1010- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1010- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1010- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1010- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1010- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1010- ● ●
80 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 04 1 1010- ● ●
80 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 03 1 1010- ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 1010- ● ●
136 BRACKET; CLIP 8-98114-814-0 02 1 1010- ● ●
136 BRACKET; CLIP 8-98114-814-0 02 1 1010- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK 8-97615-622-0 02 1 1010- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK 8-97615-622-0 01 1 1010- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK 8-97615-622-0 01 1 1010- ● ●
359 STUD; BRKT TO FRAME
M10X28,M10X15 L=50 		5-09300-050-0 06 1 1010- ● ●
