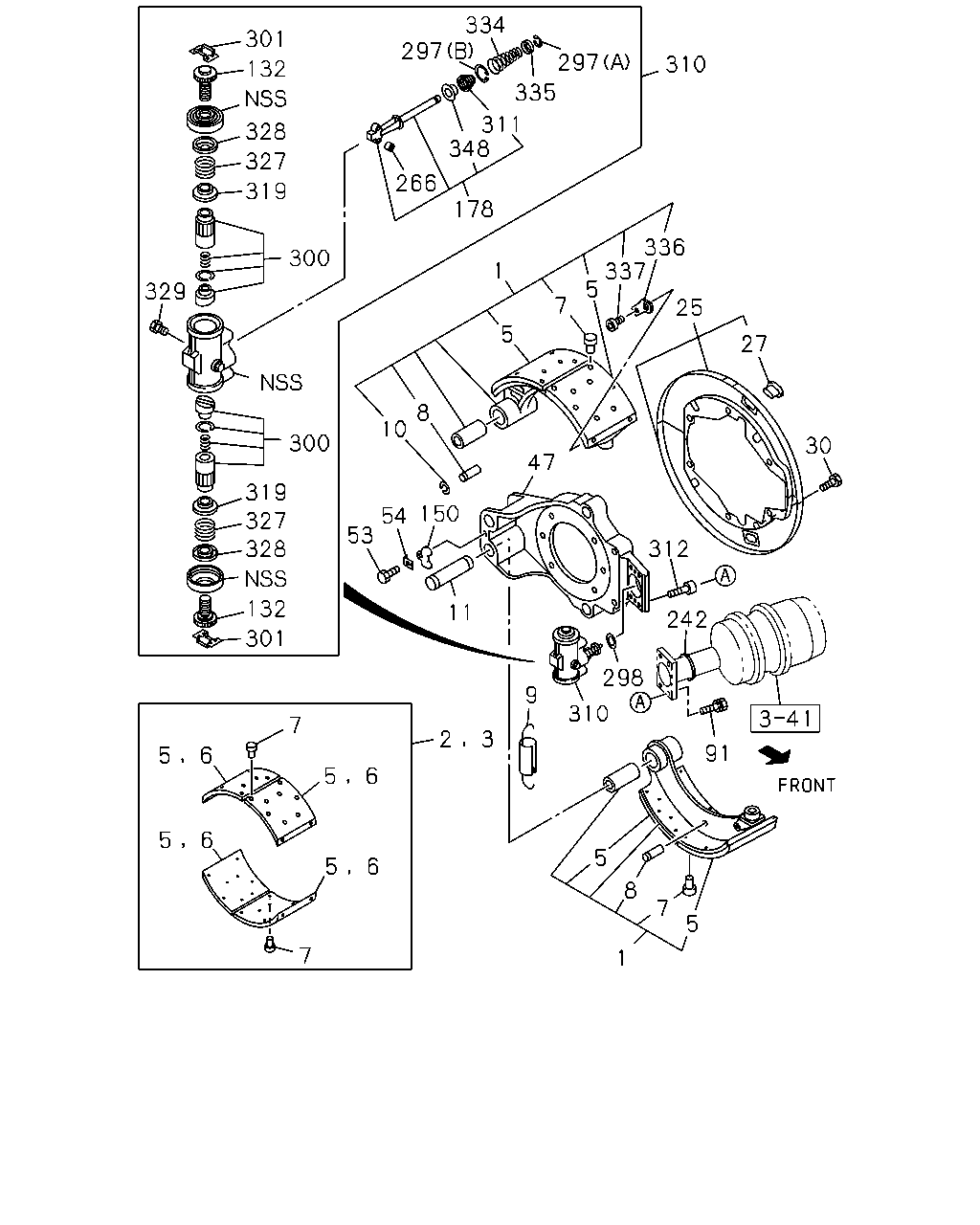

3-05 — REAR WHEEL BRAKE (#60067) — 61 parça

301 301 347 301 328 327 319 329 348 311 335 297 334 297 319 327 328 301 346

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
297	RING; SNAP (A)	1-47649-031-0	02	1	1010-	●	●
297	RING; SNAP (B)	1-47649-034-1	02	1	1010-	●	●
301	CLIP; ANTI LOTATION	1-47621-017-0	04	1	1010-	●	●
311	BOOT; WEDGE	1-47649-042-0	02	1	1010-	●	●
319	RING; DRIVE	1-47629-200-0	04	1	1010-	●	●
327	SPRING; ADJ	1-47629-196-0	04	1	1010-	●	●
328	CAGE; SPRING	1-47629-192-0	04	1	1010-	●	●
329	SCREW; LOCATING	1-47619-149-1	04	1	1010-	●	●
334	SPRING; ROD	1-47649-041-0	02	1	1010-	●	●
335	RETAINER; SPRING	1-47649-020-0	02	1	1010-	●	●
346	REPAIR KIT; EXPANDER	1-85576-403-0	02	1	1010-	●	●
347	REPAIR KIT; BOOT,EXPANDER	1-85576-404-0	02	1	1010-	●	●
348	CAP; EXPANDER	1-47649-044-0	02	1	1010-	●	●

1 5 7 8 5 7 5 6 6 5 7 6 5 5 5 301 132 328 327 319 300 300 329 319 327 328 132 301 334 297 335 297 310 311 348 266 178 30 27 25 336 337 5 7 5 1 8 10 47 150 54 53 11 312 242 298 91 310 9 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR LEADING	1-47170-504-0	01	1	1010-	●	●
1	SHOE; BRK,RR TRAILING	1-47170-505-0	01	1	1010-	●	●
1	SHOE; BRK,RR LEADING	1-47170-506-0	01	1	1010-	●	●
1	SHOE; BRK,RR TRAILING	1-47170-507-0	01	1	1010-	●	●
2	LINING SET; RR BRK,STANDARD	1-88310-773-0	02	1	1010-	●	●
3	LINING SET; RR BRK,OVER SIZE	1-88310-774-0	02	1	1010-	●	●
5	LINING; RR BRK SHOE,STANDARD	1-47126-091-0	08	1	1010-	●	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47126-092-0	08	1	1010-	●	●
7	RIVET; LINING,RR BRK L=15.5	1-09732-053-0	AR	1	1010-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE	1-47119-175-0	04	1	1010-	●	●
9	SPRING; RETURN,BRK SHOE	1-09583-376-0	02	1	1010-	●	●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	04	1	1010-	●	●
11	PIN; ANCHOR,RR WHEEL BRK L=138.5	1-47131-045-0	04	1	1010-	●	●
25	COVER SET; RR BRK DRUM FORWARD RH,REARWARD LH	1-47151-806-0	01	1	1010-	●	●
25	COVER SET; RR BRK DRUM FORWARD LH,REARWARD RH	1-47151-807-0	01	1	1010-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	1010-	●	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1010-	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-549-0	01	1	1010-1306	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	8-98091-254-1	01	1	1307-	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-550-0	01	1	1010-1306	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	8-98091-255-1	01	1	1307-	●	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	1010-1306	●	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1307-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1010-	●	●
91	BOLT; CHAMBER M10X45 W/LK WASHER	0-50551-045-0	08	1	1010-1306	●	●
91	BOLT; CHAMBER M10X45	1-47139-174-0	08	1	1307-	●	●
132	SCREW; ADJ,RR BRK	1-47623-035-2	04	1	1010-	●	●
150	PLATE; LK,ANCHOR PIN	1-47133-010-0	02	1	1010-	●	●
178	WEDGE; RR WHEEL CYL	1-47640-012-0	02	1	1010-	●	●
242	SEAL	1-47159-186-0	04	1	1010-	●	●
266	ROLLER; WEDGE	1-47643-007-0	04	1	1010-	●	●
297	RING; SNAP (A)	1-47649-031-0	02	1	1010-	●	●
297	RING; SNAP (B)	1-47649-034-1	02	1	1010-	●	●
298	GASKET	1-48259-231-0	02	1	1010-	●	●
300	SLEEVE	1-47629-247-1	04	1	1010-	●	●
301	CLIP; ANTI LOTATION	1-47621-017-0	04	1	1010-	●	●
310	EXPANDER	1-47601-087-0	02	1	1010-	●	●
311	BOOT; WEDGE	1-47649-042-0	02	1	1010-	●	●
312	BOLT; EXPANDER M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	1010-	●	●
319	RING; DRIVE	1-47629-200-0	04	1	1010-	●	●
327	SPRING; ADJ	1-47629-196-0	04	1	1010-	●	●
328	CAGE; SPRING	1-47629-192-0	04	1	1010-	●	●
329	SCREW; LOCATING	1-47619-149-1	04	1	1010-	●	●
334	SPRING; ROD	1-47649-041-0	02	1	1010-	●	●
335	RETAINER; SPRING	1-47649-020-0	02	1	1010-	●	●
336	PLATE; PIVOT	1-47119-152-0	04	1	1010-	●	●
337	BOLT; PLATE	1-47119-153-0	04	1	1010-	●	●
348	CAP; EXPANDER	1-47649-044-0	02	1	1010-	●	●
