◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#6006) — 147 parça

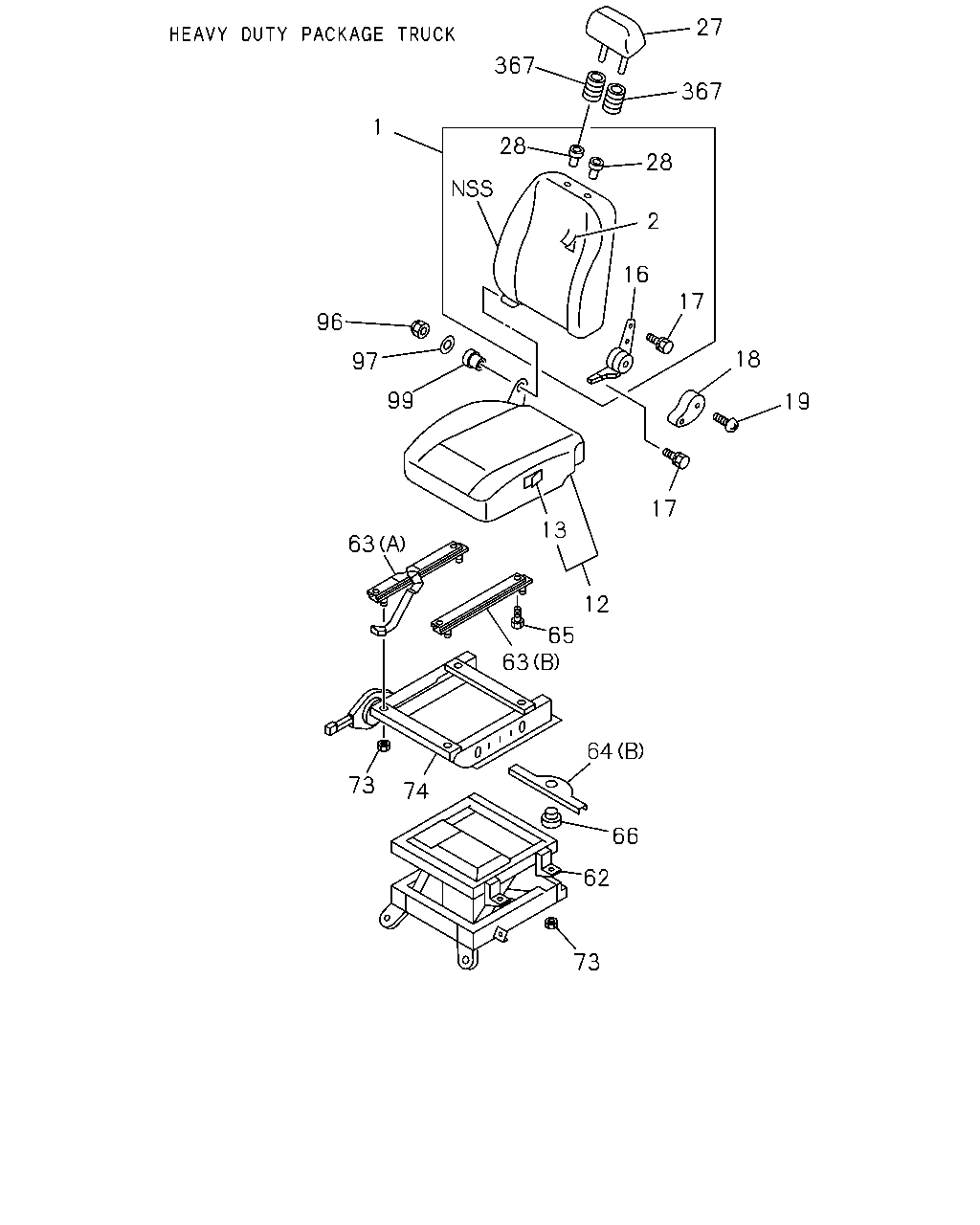

çizim 42447
27 367 367 1 28 28 2 16 17 96 18 97 99 19 17 13 63 12 65 63 64 73 74 66 62 73
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
SAUDI ARABIA EQUIPMENT(WH1) 		1-75028-320-0 01 1 9606-9810
1 BACK ASM; SEAT 1-75028-615-2 01 1 9811-
1 BACK ASM; SEAT
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75028-319-0 01 1 9606-9810
2 COVER; TRIM,FRT SEAT,BACK
SAUDI ARABIA EQUIPMENT(WH1) 		1-75116-114-0 01 1 9606-9810
2 COVER; TRIM,FRT SEAT,BACK 1-75116-273-1 01 1 9811-
2 COVER; TRIM,FRT SEAT,BACK
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75116-115-0 01 1 9606-9810
12 CUSHION; SEAT,FRT
SAUDI ARABIA EQUIPMENT(WH1) 		1-75028-326-0 01 1 9606-9810
12 CUSHION; SEAT,FRT 1-75028-599-3 01 1 9811-
12 CUSHION; SEAT,FRT
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75028-325-0 01 1 9606-9810
13 COVER; TRIM,FRT SEAT,CUSHION
SAUDI ARABIA EQUIPMENT(WH1) 		1-75116-108-0 01 1 9606-9810
13 COVER; TRIM,FRT SEAT,CUSHION 1-75116-277-2 01 1 9811-
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75116-109-0 01 1 9606-9810
16 ADJUSTER ASM; RECLINING 1-75418-015-2 01 1 9606-9810
17 BOLT; RECLINING
M8X20 		1-09980-438-0 04 1 9606-9810
17 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9811-
18 COVER; RECLINING 1-75417-061-0 01 1 9606-9810
18 COVER; RECLINING 1-75418-052-0 01 1 9811-
19 SCREW; COVER
M6X6 		1-09981-499-0 01 1 9606-9810
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9811-
27 REST; HD,FRT SEAT 1-75657-020-0 01 1 9606-9810
28 HOLDER; GUIDE,HD REST
LIGHT BLUE 		8-94477-444-0 01 1 9606-9810
28 HOLDER; GUIDE,HD REST
LIGHT BLUE 		8-94477-441-0 01 1 9606-9810
62 DAMPER ASM; SEAT SUSP
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-75538-114-7 01 1 9610-9810
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-020-1 01 1 9606-9810
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-227-0 01 1 9811-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-019-1 01 1 9606-9810
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-295-0 01 1 9811-
64 STOPPER; LWR,SUSPENSION DEVICE
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-09987-123-0 01 1 9610-9810
64 STOPPER; LWR,SUSPENSION DEVICE
HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-75537-194-0 01 1 9610-9810
65 SCREW; ADJ TO SEAT
M8X23 W/LK WASHER 		8-94254-743-0 04 1 9606-9810
66 RUBBER; LWR STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-75537-130-0 01 1 9610-9810
73 NUT; ADJ,HEIGHT CONT
HEAVY DUTY PACKAGE TRUCK<RD2> M8 FLANGE 		5-09440-005-0 08 1 9610-9810
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9811-
73 NUT; ADJ,HEIGHT CONT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M8 FLANGE 		8-94279-518-0 04 1 9606-9810
74 ADJUSTER; FRT SEAT,HEIGHT CONT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-75517-018-4 01 1 9610-9810
96 NUT; LK,HINGE
M8 		1-09984-109-0 01 1 9606-9810
97 WASHER; PL,RECLINING
ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9606-9810
99 BUSHING; SEAT BACK 1-75508-004-0 01 1 9606-9810
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 9811-
367 BOOT; HD REST 8-94412-828-0 02 1 9606-9810

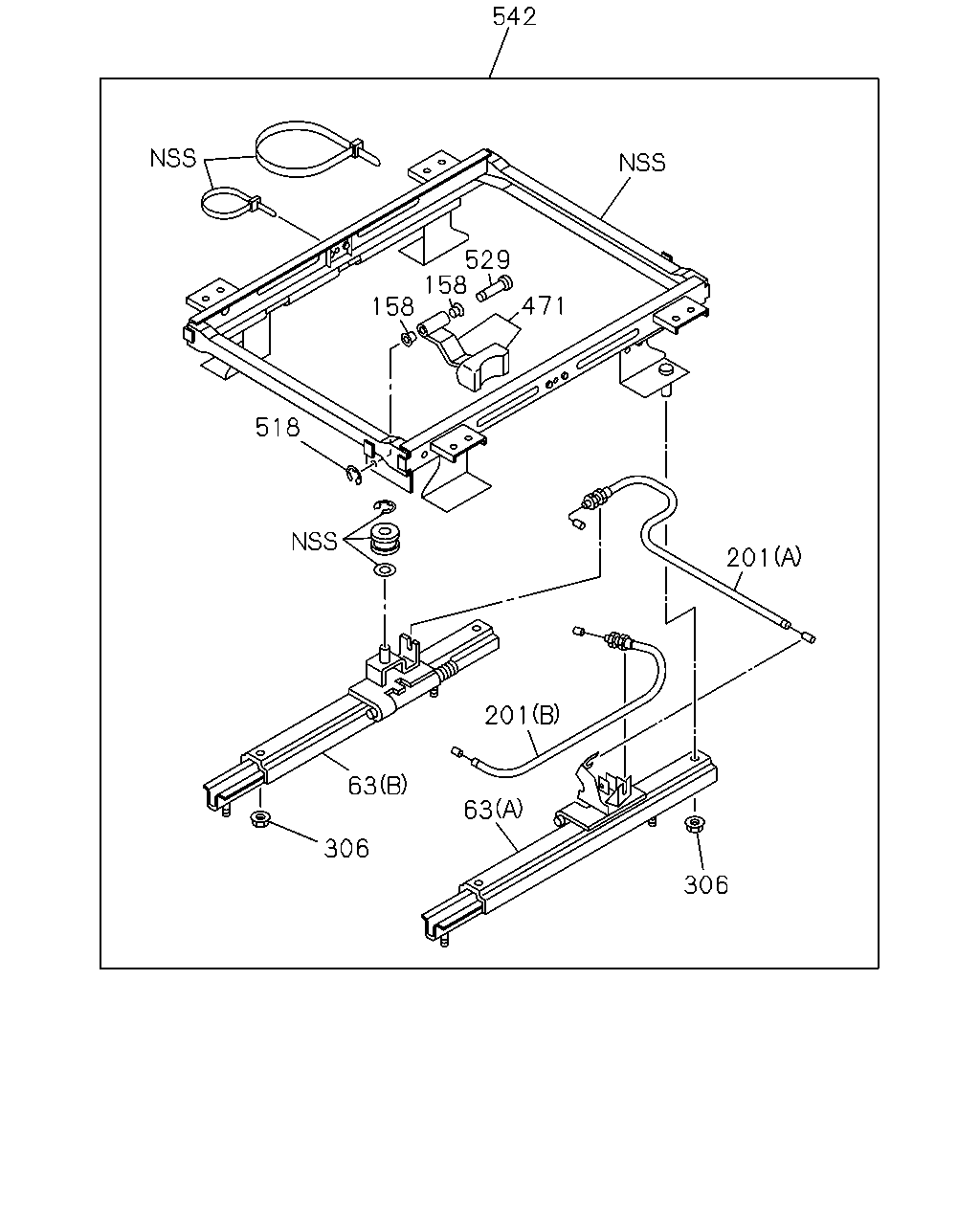

çizim 42452
542 529 158 471 158 518 201 201 63 63 306 306
BalonParca AdiParca NoAdetTipApplied Date
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-020-1 01 1 9606-9810
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-227-0 01 1 9811-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-019-1 01 1 9606-9810
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-295-0 01 1 9811-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 9811-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 9811-
201 CABLE; ADJ
(B) L=605 		1-75518-289-0 01 1 9811-
306 NUT; SEAT ADJ
M8 FLANGE 		8-94279-518-0 04 1 9811-
471 LEVER; SEAT ADJ 1-75518-290-0 01 1 9811-
518 NUT; TILT ADJ 1-75518-263-0 01 1 9811-
529 PIN; LINK 1-75518-262-0 01 1 9811-
542 ADJUSTER ASM; SEAT SLIDE 1-75518-283-0 01 1 9811-

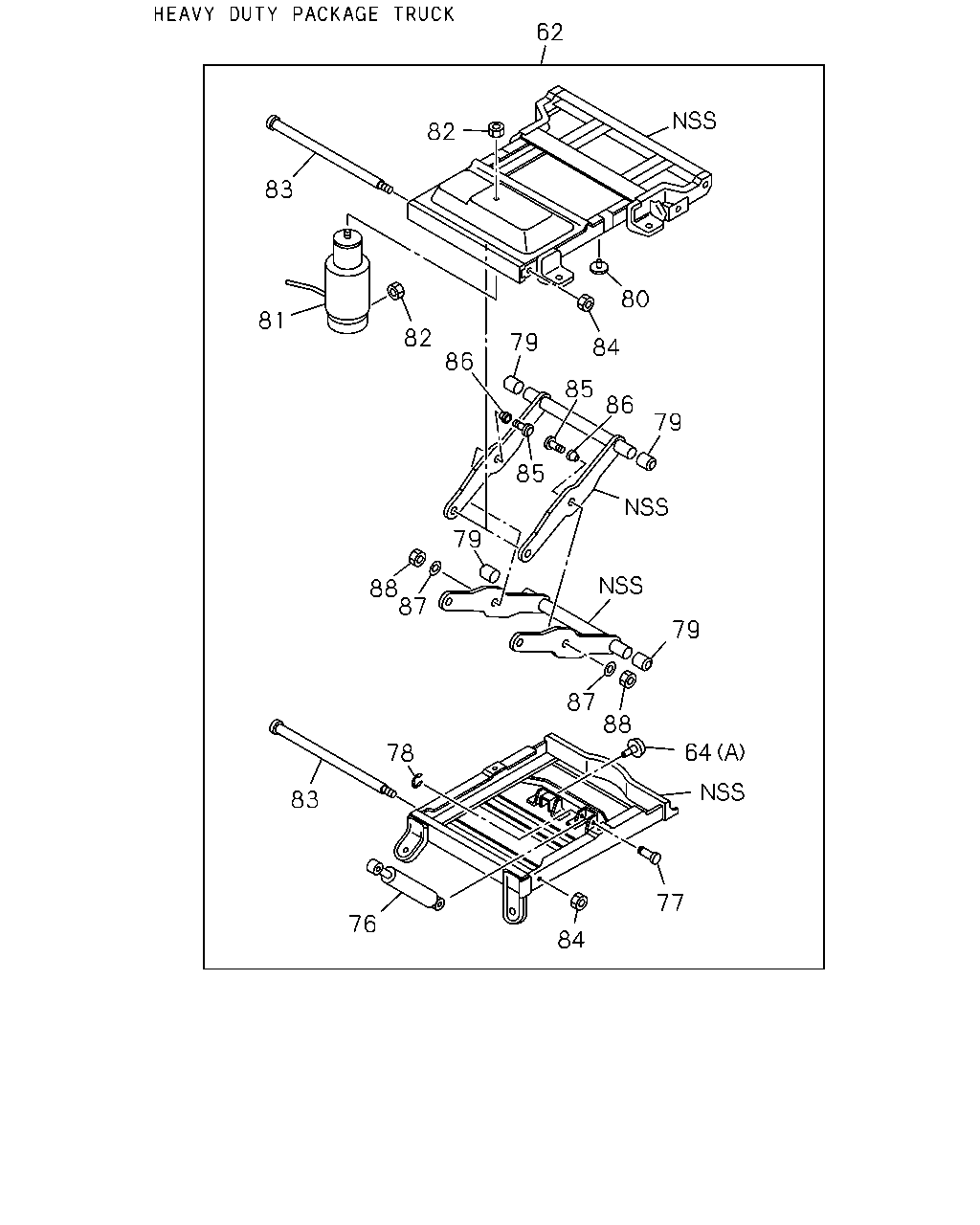

çizim 42487
62 82 83 80 81 82 79 84 86 85 86 79 85 79 88 87 79 87 88 64 78 83 77 76 84
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-75538-114-7 01 1 9610-9810
64 STOPPER; LWR,SUSPENSION DEVICE
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-09987-123-0 01 1 9610-9810
64 STOPPER; LWR,SUSPENSION DEVICE
HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-75537-194-0 01 1 9610-9810
76 DAMPER; AIR SUSP
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-75537-197-0 01 1 9610-9810
77 PIN; DAMPER
HEAVY DUTY PACKAGE TRUCK<RD2> 		9-08201-035-0 02 1 9610-9810
78 RING; SNAP
HEAVY DUTY PACKAGE TRUCK<RD2> ID=8 		9-09185-008-0 02 1 9610-9810
79 ROLLER ASM; AIR SUSP
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-75538-119-0 04 1 9610-9810
80 RUBBER; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> 		9-61468-039-0 02 1 9610-9810
81 SPRING; AIR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-75537-195-0 01 1 9610-9810
82 NUT; AIR SUSP
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-09984-096-0 02 1 9610-9810
83 PIN; LOW & UPR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-75530-016-0 02 1 9610-9810
84 NUT; AIR SUSP
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-75530-014-0 02 1 9610-9810
85 BOLT; AIR SUSP
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-75538-118-0 02 1 9610-9810
86 BUSHING; GUIDE
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-75148-153-0 02 1 9610-9810
87 WASHER; AIR SUSP
HEAVY DUTY PACKAGE TRUCK<RD2> ID=10.5 OD=26 		9-09160-710-0 02 1 9610-9810
88 NUT; AIR SUSP
HEAVY DUTY PACKAGE TRUCK<RD2> M10 		8-94279-519-0 02 1 9610-9810
çizim 42523
27 367 367 1 28 28 2 16 17 96 97 18 99 19 17 13 12 63 63 65 65 42 73 138 46 55
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
SAUDI ARABIA EQUIPMENT(WH1) 		1-75028-320-0 01 1 9606-9810
1 BACK ASM; SEAT 1-75028-615-2 01 1 9811-
1 BACK ASM; SEAT
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75028-319-0 01 1 9606-9810
2 COVER; TRIM,FRT SEAT,BACK
SAUDI ARABIA EQUIPMENT(WH1) 		1-75116-114-0 01 1 9606-9810
2 COVER; TRIM,FRT SEAT,BACK 1-75116-273-1 01 1 9811-
2 COVER; TRIM,FRT SEAT,BACK
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75116-115-0 01 1 9606-9810
12 CUSHION; SEAT,FRT
SAUDI ARABIA EQUIPMENT(WH1) 		1-75028-326-0 01 1 9606-9810
12 CUSHION; SEAT,FRT 1-75028-599-3 01 1 9811-
12 CUSHION; SEAT,FRT
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75028-325-0 01 1 9606-9810
13 COVER; TRIM,FRT SEAT,CUSHION
SAUDI ARABIA EQUIPMENT(WH1) 		1-75116-108-0 01 1 9606-9810
13 COVER; TRIM,FRT SEAT,CUSHION 1-75116-277-2 01 1 9811-
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75116-109-0 01 1 9606-9810
16 ADJUSTER ASM; RECLINING 1-75418-015-2 01 1 9606-9810
17 BOLT; RECLINING
M8X20 		1-09980-438-0 04 1 9606-9810
17 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9811-
18 COVER; RECLINING 1-75417-061-0 01 1 9606-9810
18 COVER; RECLINING 1-75418-052-0 01 1 9811-
19 SCREW; COVER
M6X6 		1-09981-499-0 01 1 9606-9810
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9811-
27 REST; HD,FRT SEAT 1-75657-020-0 01 1 9606-9810
28 HOLDER; GUIDE,HD REST
LIGHT BLUE 		8-94477-444-0 01 1 9606-9810
28 HOLDER; GUIDE,HD REST
LIGHT BLUE 		8-94477-441-0 01 1 9606-9810
42 STAND; DRIVER SEAT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-75557-391-8 01 1 9606-9810
42 STAND; DRIVER SEAT 1-75558-491-4 01 1 9811-
46 BOLT; STAND TO FLOOR 1-09980-566-0 02 1 9606-9810
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9811-0703
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M8 FLANGE 		8-94279-504-1 02 1 9606-9810
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9811-0703
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704-
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-020-1 01 1 9606-9810
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-227-0 01 1 9811-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-019-1 01 1 9606-9810
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-295-0 01 1 9811-
65 SCREW; ADJ TO SEAT
M8X23 W/LK WASHER 		8-94254-743-0 04 1 9606-9810
73 NUT; ADJ,HEIGHT CONT
HEAVY DUTY PACKAGE TRUCK<RD2> M8 FLANGE 		5-09440-005-0 08 1 9610-9810
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9811-
73 NUT; ADJ,HEIGHT CONT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M8 FLANGE 		8-94279-518-0 04 1 9606-9810
96 NUT; LK,HINGE
M8 		1-09984-109-0 01 1 9606-9810
97 WASHER; PL,RECLINING
ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9606-9810
99 BUSHING; SEAT BACK 1-75508-004-0 01 1 9606-9810
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 9811-
138 PROTECTOR; SEAT STAND
SERVICED BY L=500 		1-79937-746-0 01 1 9606-9609
138 PROTECTOR; SEAT STAND
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> SERVICED BY L=500 		1-79937-746-0 01 1 9610-9810
367 BOOT; HD REST 8-94412-828-0 02 1 9606-9810
çizim 42563
1 2 99 17 12 18 13 24 228 19 542 73 55 46 42 73
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
SAUDI ARABIA EQUIPMENT(WH1) 		1-75028-320-0 01 1 9606-9810
1 BACK ASM; SEAT 1-75028-615-2 01 1 9811-
1 BACK ASM; SEAT
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75028-319-0 01 1 9606-9810
2 COVER; TRIM,FRT SEAT,BACK
SAUDI ARABIA EQUIPMENT(WH1) 		1-75116-114-0 01 1 9606-9810
2 COVER; TRIM,FRT SEAT,BACK 1-75116-273-1 01 1 9811-
2 COVER; TRIM,FRT SEAT,BACK
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75116-115-0 01 1 9606-9810
12 CUSHION; SEAT,FRT
SAUDI ARABIA EQUIPMENT(WH1) 		1-75028-326-0 01 1 9606-9810
12 CUSHION; SEAT,FRT 1-75028-599-3 01 1 9811-
12 CUSHION; SEAT,FRT
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75028-325-0 01 1 9606-9810
13 COVER; TRIM,FRT SEAT,CUSHION
SAUDI ARABIA EQUIPMENT(WH1) 		1-75116-108-0 01 1 9606-9810
13 COVER; TRIM,FRT SEAT,CUSHION 1-75116-277-2 01 1 9811-
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75116-109-0 01 1 9606-9810
17 BOLT; RECLINING
M8X20 		1-09980-438-0 04 1 9606-9810
17 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9811-
18 COVER; RECLINING 1-75417-061-0 01 1 9606-9810
18 COVER; RECLINING 1-75418-052-0 01 1 9811-
19 SCREW; COVER
M6X6 		1-09981-499-0 01 1 9606-9810
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9811-
24 KNOB; RECLINING,FRT,SEAT 1-75418-056-0 01 1 9811-
42 STAND; DRIVER SEAT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-75557-391-8 01 1 9606-9810
42 STAND; DRIVER SEAT 1-75558-491-4 01 1 9811-
46 BOLT; STAND TO FLOOR 1-09980-566-0 02 1 9606-9810
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9811-0703
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M8 FLANGE 		8-94279-504-1 02 1 9606-9810
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9811-0703
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704-
73 NUT; ADJ,HEIGHT CONT
HEAVY DUTY PACKAGE TRUCK<RD2> M8 FLANGE 		5-09440-005-0 08 1 9610-9810
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 08 1 9811-
73 NUT; ADJ,HEIGHT CONT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M8 FLANGE 		8-94279-518-0 04 1 9606-9810
99 BUSHING; SEAT BACK 1-75508-004-0 01 1 9606-9810
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 9811-
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9811-
542 ADJUSTER ASM; SEAT SLIDE 1-75518-283-0 01 1 9811-
