Sayfa 4-60 - Isuzu EPC

4-60 — REAR SUSPENSION (#60058) — 180 parça

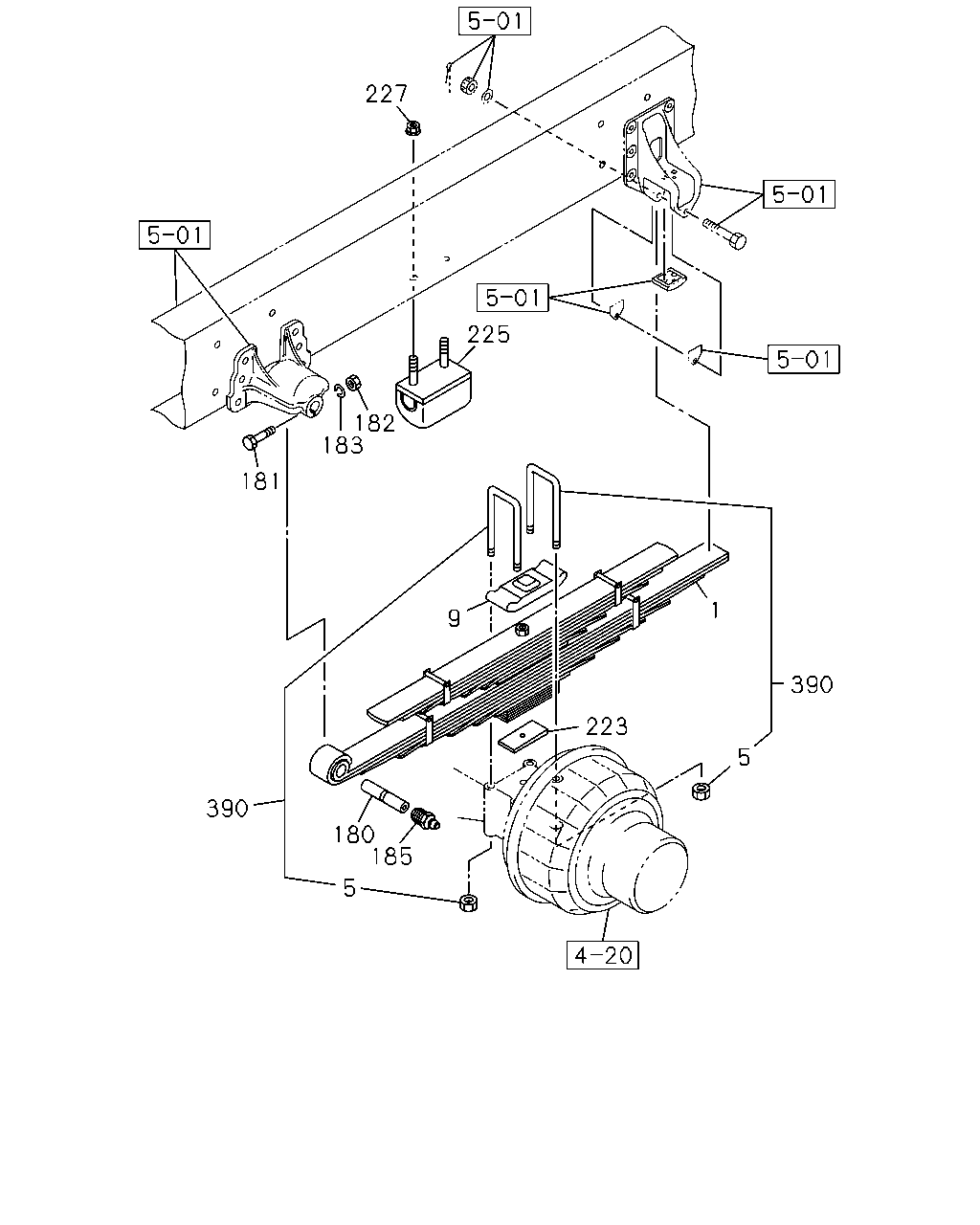

227 225 182 183 181 1 9 390 223 5 390 180 185 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G51) 14-LEAF	1-51300-352-0	02	1	9910-0106	●	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G51) 14-LEAF	1-51300-352-0	02	1	0107-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF	1-51300-334-3	02	1	9510-9909	●	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G51) 13-LEAF	1-51300-334-3	02	1	9910-0106	●	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	1-51300-334-3	02	1	0107-0210	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G51) 13-LEAF	1-51300-334-3	02	1	0107-0210		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G51) 13-LEAF	1-51300-334-3	02	1	0211-		●
5	NUT; U-BOLT,RR SPR M24	9-99112-824-0	08	1	9510-0210	●	●
5	NUT; U-BOLT,RR SPR M24	9-99112-824-0	08	1	0211-0512		●
5	NUT; U-BOLT,RR SPR M24	0-91112-824-0	08	1	0601-		●
9	PAD; U BOLT,RR SPR REAR SPRING HEAVY DUTY(G51)	1-51372-030-0	02	1	9910-0106	●	●
9	PAD; U BOLT,RR SPR REAR SPRING HEAVY DUTY(G51)	1-51372-030-0	02	1	0107-		●
9	PAD; U BOLT,RR SPR	1-51372-048-1	02	1	9510-9909	●	●
9	PAD; U BOLT,RR SPR EXC. REAR SPRING HEAVY DUTY(G51)	1-51372-048-1	02	1	9910-0106	●	●
9	PAD; U BOLT,RR SPR	1-51372-048-1	02	1	0107-0210	●
9	PAD; U BOLT,RR SPR EXC. REAR SPRING HEAVY DUTY(G51)	1-51372-048-1	02	1	0107-0210		●
9	PAD; U BOLT,RR SPR EXC. REAR SPRING HEAVY DUTY(G51)	1-51372-048-1	02	1	0211-		●
180	PIN; RR SPR REAR SPRING HEAVY DUTY(G51)	1-51361-020-0	02	1	9910-0106	●	●
180	PIN; RR SPR REAR SPRING HEAVY DUTY(G51)	1-51361-020-0	02	1	0107-		●
180	PIN; RR SPR DO=28 L=131 PT1/8	1-51361-015-0	02	1	9510-9909	●	●
180	PIN; RR SPR EXC. REAR SPRING HEAVY DUTY(G51) DO=28 L=131 PT1/8	1-51361-015-0	02	1	9910-0106	●	●
180	PIN; RR SPR DO=28 L=131 PT1/8	1-51361-015-0	02	1	0107-0210	●
180	PIN; RR SPR EXC. REAR SPRING HEAVY DUTY(G51) DO=28 L=131 PT1/8	1-51361-015-0	02	1	0107-0210		●
180	PIN; RR SPR EXC. REAR SPRING HEAVY DUTY(G51) DO=28 L=131 PT1/8	1-51361-015-0	02	1	0211-		●
181	BOLT; SPR & SHACKLE REAR SPRING HEAVY DUTY(G51) M14X80	0-10806-480-0	02	1	9910-0106	●	●
181	BOLT; SPR & SHACKLE REAR SPRING HEAVY DUTY(G51) M14X80	0-10806-480-0	02	1	0107-0512		●
181	BOLT; SPR & SHACKLE REAR SPRING HEAVY DUTY(G51) M14X80	0-10856-480-0	02	1	0601-		●
181	BOLT; SPR & SHACKLE M14X65	0-10811-465-0	02	1	9510-9909	●	●
181	BOLT; SPR & SHACKLE EXC. REAR SPRING HEAVY DUTY(G51) M14X65	0-10811-465-0	02	1	9910-0106	●	●
181	BOLT; SPR & SHACKLE M14X65	0-10811-465-0	02	1	0107-0210	●
181	BOLT; SPR & SHACKLE EXC. REAR SPRING HEAVY DUTY(G51) M14X65	0-10811-465-0	02	1	0107-0210		●
181	BOLT; SPR & SHACKLE EXC. REAR SPRING HEAVY DUTY(G51) M14X65	0-10811-465-0	02	1	0211-		●
182	NUT; PIN,RR SPR M14	9-99110-414-0	02	1	9510-0210	●	●
182	NUT; PIN,RR SPR M14	9-99110-414-0	02	1	0211-0512		●
182	NUT; PIN,RR SPR M14	0-91110-514-0	02	1	0601-		●
183	WASHER; LK,PIN,RR SPR ID=14.2	9-09150-514-0	02	1	9510-0210	●	●
183	WASHER; LK,PIN,RR SPR ID=14.2	9-09150-514-0	02	1	0211-0603		●
183	WASHER; LK,PIN,RR SPR ID=14.2	0-91510-514-0	02	1	0604-		●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	9-09031-010-0	02	1	9510-0210	●	●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	9-09031-010-0	02	1	0211-0512		●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-		●
223	SPACER; U BOLT,RR SPR WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) REAR SPRING HEAVY DUTY(G51)	1-51377-368-1	02	1	0107-1212		●
223	SPACER; U BOLT,RR SPR REAR SPRING HEAVY DUTY(G51)	1-51377-368-0	02	1	9910-0004	●
223	SPACER; U BOLT,RR SPR REAR SPRING HEAVY DUTY(G51)	1-51377-371-0	02	1	9910-0004		●
223	SPACER; U BOLT,RR SPR REAR SPRING HEAVY DUTY(G51)	1-51377-371-0	02	1	0005-0106	●	●
223	SPACER; U BOLT,RR SPR WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) REAR SPRING HEAVY DUTY(G51)	1-51377-371-1	02	1	0107-1212		●
223	SPACER; U BOLT,RR SPR	1-51377-166-0	02	1	9510-9909	●	●
223	SPACER; U BOLT,RR SPR EXC. REAR SPRING HEAVY DUTY(G51)	1-51377-166-0	02	1	9910-0106	●	●
223	SPACER; U BOLT,RR SPR	1-51377-166-0	02	1	0107-0210	●
223	SPACER; U BOLT,RR SPR EXC. REAR SPRING HEAVY DUTY(G51)	1-51377-166-0	02	1	0107-0210		●
223	SPACER; U BOLT,RR SPR EXC. REAR SPRING HEAVY DUTY(G51)	1-51377-166-0	02	1	0211-		●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-53366-067-4	02	1	0107-		●
225	RUBBER; CUSHION,RR SPR REAR SPRING HEAVY DUTY(G51)	1-53366-045-1	02	1	9910-0106	●	●
225	RUBBER; CUSHION,RR SPR REAR SPRING HEAVY DUTY(G51)	1-53366-045-1	02	1	0107-0107		●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR SPRING HEAVY DUTY(G51)	1-53366-045-1	02	1	0107-		●
227	NUT; CUSHION RUBBER REAR SPRING HEAVY DUTY(G51) M12 FLANGE	0-91150-212-0	04	1	9910-0106	●	●
227	NUT; CUSHION RUBBER REAR SPRING HEAVY DUTY(G51) M12 FLANGE	0-91150-212-0	04	1	0107-0107		●
227	NUT; CUSHION RUBBER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91150-212-0	04	1	0107-0602		●
227	NUT; CUSHION RUBBER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR SPRING HEAVY DUTY(G51) M12 FLANGE	0-91150-212-0	04	1	0107-0602		●
227	NUT; CUSHION RUBBER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91180-212-0	04	1	0603-		●
227	NUT; CUSHION RUBBER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR SPRING HEAVY DUTY(G51) M12 FLANGE	0-91180-212-0	04	1	0603-		●
390	U-BOLT SET; RR SPRING FINAL GEAR 16.5"<B2Y> REAR SPRING HEAVY DUTY(G51) L=490	1-87870-036-4	04	1	9910-0106	●	●
390	U-BOLT SET; RR SPRING FINAL GEAR 16.5"<B2Y> REAR SPRING HEAVY DUTY(G51) L=490	1-87870-036-4	04	1	0107-		●
390	U-BOLT SET; RR SPRING FINAL GEAR 16.5"<B2Y> EXC. REAR SPRING HEAVY DUTY(G51) L=470	1-87870-267-1	04	1	9910-0106	●	●
390	U-BOLT SET; RR SPRING FINAL GEAR 16.5"<B2Y> EXC. REAR SPRING HEAVY DUTY(G51) L=470	1-87870-267-1	04	1	0107-		●
390	U-BOLT SET; RR SPRING L=455	1-87870-268-0	04	1	9510-9909	●	●
390	U-BOLT SET; RR SPRING EXC. FINAL GEAR 16.5"<B2Y>,REAR SPRING HEAVY DUTY(G51) L=455	1-87870-268-1	04	1	9910-0106	●	●
390	U-BOLT SET; RR SPRING L=455	1-87870-268-1	04	1	0107-0210	●
390	U-BOLT SET; RR SPRING EXC. FINAL GEAR 16.5"<B2Y>,REAR SPRING HEAVY DUTY(G51) L=455	1-87870-268-1	04	1	0107-0210		●
390	U-BOLT SET; RR SPRING EXC. FINAL GEAR 16.5"<B2Y>,REAR SPRING HEAVY DUTY(G51) L=455	1-87870-268-1	04	1	0211-		●

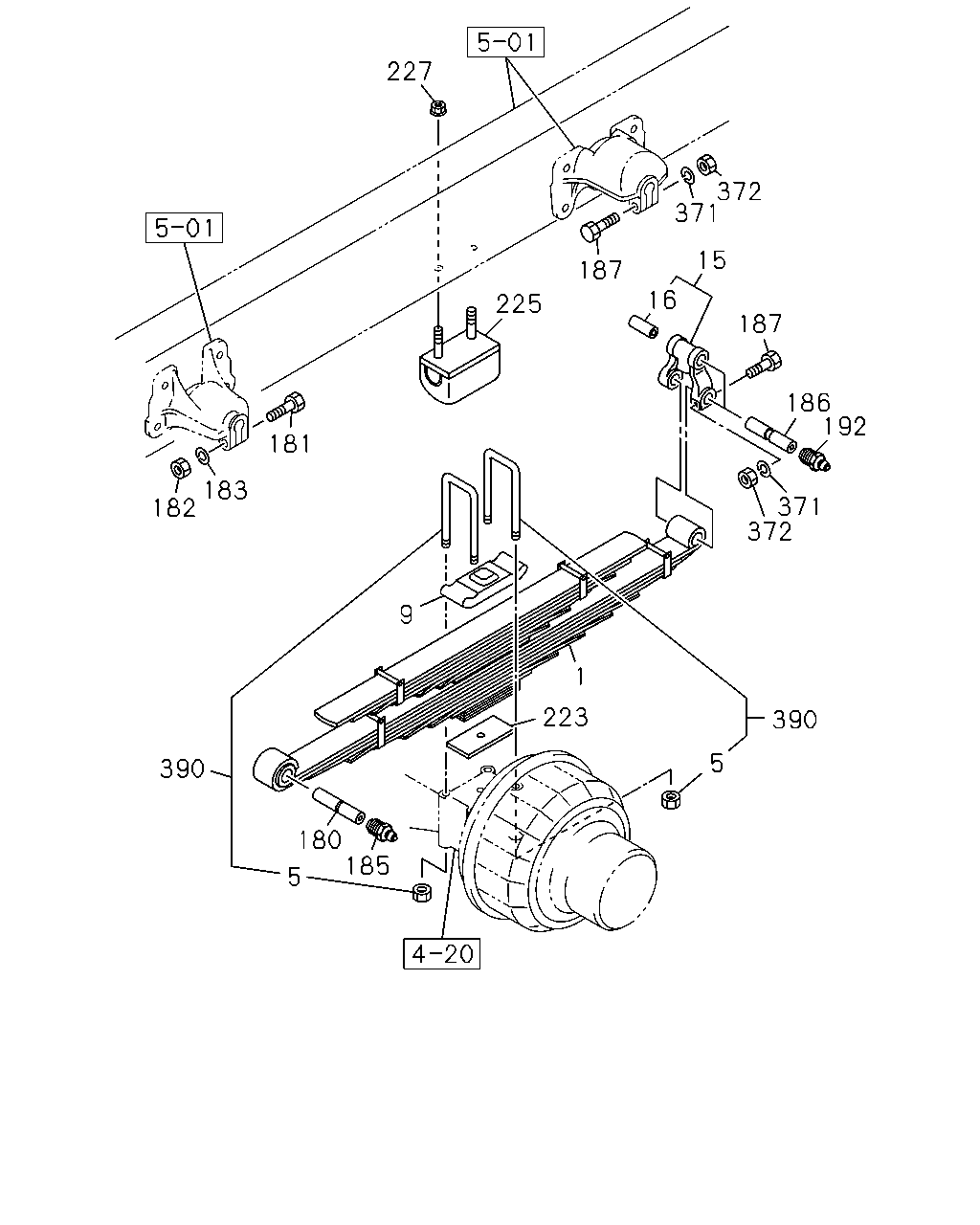

227 372 371 15 187 16 225 187 186 192 181 183 182 371 372 9 1 223 390 5 390 180 185 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G51) 14-LEAF	1-51300-352-0	02	1	9910-0106	●	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G51) 14-LEAF	1-51300-352-0	02	1	0107-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF	1-51300-334-3	02	1	9510-9909	●	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G51) 13-LEAF	1-51300-334-3	02	1	9910-0106	●	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	1-51300-334-3	02	1	0107-0210	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G51) 13-LEAF	1-51300-334-3	02	1	0107-0210		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G51) 13-LEAF	1-51300-334-3	02	1	0211-		●
5	NUT; U-BOLT,RR SPR M24	9-99112-824-0	08	1	9510-0210	●	●
5	NUT; U-BOLT,RR SPR M24	9-99112-824-0	08	1	0211-0512		●
5	NUT; U-BOLT,RR SPR M24	0-91112-824-0	08	1	0601-		●
9	PAD; U BOLT,RR SPR REAR SPRING HEAVY DUTY(G51)	1-51372-030-0	02	1	9910-0106	●	●
9	PAD; U BOLT,RR SPR REAR SPRING HEAVY DUTY(G51)	1-51372-030-0	02	1	0107-		●
9	PAD; U BOLT,RR SPR	1-51372-048-1	02	1	9510-9909	●	●
9	PAD; U BOLT,RR SPR EXC. REAR SPRING HEAVY DUTY(G51)	1-51372-048-1	02	1	9910-0106	●	●
9	PAD; U BOLT,RR SPR	1-51372-048-1	02	1	0107-0210	●
9	PAD; U BOLT,RR SPR EXC. REAR SPRING HEAVY DUTY(G51)	1-51372-048-1	02	1	0107-0210		●
9	PAD; U BOLT,RR SPR EXC. REAR SPRING HEAVY DUTY(G51)	1-51372-048-1	02	1	0211-		●
15	SHACKLE; RR SPR	1-51362-049-1	02	1	9510-9909	●	●
15	SHACKLE; RR SPR EXC. REAR SPRING HEAVY DUTY(G51)	1-51362-049-2	02	1	9910-0106	●	●
15	SHACKLE; RR SPR	1-51362-049-2	02	1	0107-0210	●
15	SHACKLE; RR SPR EXC. REAR SPRING HEAVY DUTY(G51)	1-51362-049-2	02	1	0107-0210		●
15	SHACKLE; RR SPR EXC. REAR SPRING HEAVY DUTY(G51)	1-51362-049-2	02	1	0211-		●
16	BUSHING; SHACKLE,RR SPR	9-51351-019-0	02	1	9510-9909	●	●
16	BUSHING; SHACKLE,RR SPR EXC. REAR SPRING HEAVY DUTY(G51)	9-51351-019-2	02	1	9910-0106	●	●
16	BUSHING; SHACKLE,RR SPR	9-51351-019-2	02	1	0107-0210	●
16	BUSHING; SHACKLE,RR SPR EXC. REAR SPRING HEAVY DUTY(G51)	9-51351-019-2	02	1	0107-0210		●
16	BUSHING; SHACKLE,RR SPR EXC. REAR SPRING HEAVY DUTY(G51)	9-51351-019-2	02	1	0211-0902		●
16	BUSHING; SHACKLE,RR SPR EXC. REAR SPRING HEAVY DUTY(G51)	8-98081-830-0	02	1	0903-		●
16	BUSHING; SHACKLE,RR SPR EXC. REAR SPRING HEAVY DUTY(G51) BEST VALUE PARTS	1-87610-163-0	02	1	0903-		●
180	PIN; RR SPR REAR SPRING HEAVY DUTY(G51)	1-51361-020-0	02	1	9910-0106	●	●
180	PIN; RR SPR REAR SPRING HEAVY DUTY(G51)	1-51361-020-0	02	1	0107-		●
180	PIN; RR SPR DO=28 L=131 PT1/8	1-51361-015-0	02	1	9510-9909	●	●
180	PIN; RR SPR EXC. REAR SPRING HEAVY DUTY(G51) DO=28 L=131 PT1/8	1-51361-015-0	02	1	9910-0106	●	●
180	PIN; RR SPR DO=28 L=131 PT1/8	1-51361-015-0	02	1	0107-0210	●
180	PIN; RR SPR EXC. REAR SPRING HEAVY DUTY(G51) DO=28 L=131 PT1/8	1-51361-015-0	02	1	0107-0210		●
180	PIN; RR SPR EXC. REAR SPRING HEAVY DUTY(G51) DO=28 L=131 PT1/8	1-51361-015-0	02	1	0211-		●
181	BOLT; SPR & SHACKLE REAR SPRING HEAVY DUTY(G51) M14X80	0-10806-480-0	02	1	9910-0106	●	●
181	BOLT; SPR & SHACKLE REAR SPRING HEAVY DUTY(G51) M14X80	0-10806-480-0	02	1	0107-0512		●
181	BOLT; SPR & SHACKLE REAR SPRING HEAVY DUTY(G51) M14X80	0-10856-480-0	02	1	0601-		●
181	BOLT; SPR & SHACKLE M14X65	0-10811-465-0	02	1	9510-9909	●	●
181	BOLT; SPR & SHACKLE EXC. REAR SPRING HEAVY DUTY(G51) M14X65	0-10811-465-0	02	1	9910-0106	●	●
181	BOLT; SPR & SHACKLE M14X65	0-10811-465-0	02	1	0107-0210	●
181	BOLT; SPR & SHACKLE EXC. REAR SPRING HEAVY DUTY(G51) M14X65	0-10811-465-0	02	1	0107-0210		●
181	BOLT; SPR & SHACKLE EXC. REAR SPRING HEAVY DUTY(G51) M14X65	0-10811-465-0	02	1	0211-		●
182	NUT; PIN,RR SPR M14	9-99110-414-0	02	1	9510-0210	●	●
182	NUT; PIN,RR SPR M14	9-99110-414-0	02	1	0211-0512		●
182	NUT; PIN,RR SPR M14	0-91110-514-0	02	1	0601-		●
183	WASHER; LK,PIN,RR SPR ID=14.2	9-09150-514-0	02	1	9510-0210	●	●
183	WASHER; LK,PIN,RR SPR ID=14.2	9-09150-514-0	02	1	0211-0603		●
183	WASHER; LK,PIN,RR SPR ID=14.2	0-91510-514-0	02	1	0604-		●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	9-09031-010-0	02	1	9510-0210	●	●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	9-09031-010-0	02	1	0211-0512		●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-		●
186	PIN; SHACKLE,RR SPR DO=28 L=131 PT1/8	1-51361-015-0	04	1	9510-9909	●	●
186	PIN; SHACKLE,RR SPR EXC. REAR SPRING HEAVY DUTY(G51) DO=28 L=131 PT1/8	1-51361-015-0	04	1	9910-0106	●	●
186	PIN; SHACKLE,RR SPR DO=28 L=131 PT1/8	1-51361-015-0	04	1	0107-0210	●
186	PIN; SHACKLE,RR SPR EXC. REAR SPRING HEAVY DUTY(G51) DO=28 L=131 PT1/8	1-51361-015-0	04	1	0107-0210		●
186	PIN; SHACKLE,RR SPR EXC. REAR SPRING HEAVY DUTY(G51) DO=28 L=131 PT1/8	1-51361-015-0	04	1	0211-		●
187	BOLT; SPR & SHACKLE M14X65	0-10811-465-0	04	1	9510-9909	●	●
187	BOLT; SPR & SHACKLE EXC. REAR SPRING HEAVY DUTY(G51) M14X65	0-10811-465-0	04	1	9910-0106	●	●
187	BOLT; SPR & SHACKLE M14X65	0-10811-465-0	04	1	0107-0210	●
187	BOLT; SPR & SHACKLE EXC. REAR SPRING HEAVY DUTY(G51) M14X65	0-10811-465-0	04	1	0107-0210		●
187	BOLT; SPR & SHACKLE EXC. REAR SPRING HEAVY DUTY(G51) M14X65	0-10811-465-0	04	1	0211-		●
192	NIPPLE; GREASE,SHACKLE PIN PT1/8 STRAIGHT	9-09031-010-0	04	1	9510-9909	●	●
192	NIPPLE; GREASE,SHACKLE PIN EXC. REAR SPRING HEAVY DUTY(G51) PT1/8 STRAIGHT	9-09031-010-0	04	1	9910-0106	●	●
192	NIPPLE; GREASE,SHACKLE PIN PT1/8 STRAIGHT	9-09031-010-0	04	1	0107-0210	●
192	NIPPLE; GREASE,SHACKLE PIN EXC. REAR SPRING HEAVY DUTY(G51) PT1/8 STRAIGHT	9-09031-010-0	04	1	0107-0210		●
192	NIPPLE; GREASE,SHACKLE PIN EXC. REAR SPRING HEAVY DUTY(G51) PT1/8 STRAIGHT	9-09031-010-0	04	1	0211-0512		●
192	NIPPLE; GREASE,SHACKLE PIN EXC. REAR SPRING HEAVY DUTY(G51) PT1/8 STRAIGHT	0-90301-410-0	04	1	0601-		●
223	SPACER; U BOLT,RR SPR WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) REAR SPRING HEAVY DUTY(G51)	1-51377-368-1	02	1	0107-1212		●
223	SPACER; U BOLT,RR SPR REAR SPRING HEAVY DUTY(G51)	1-51377-368-0	02	1	9910-0004	●
223	SPACER; U BOLT,RR SPR REAR SPRING HEAVY DUTY(G51)	1-51377-371-0	02	1	9910-0004		●
223	SPACER; U BOLT,RR SPR REAR SPRING HEAVY DUTY(G51)	1-51377-371-0	02	1	0005-0106	●	●
223	SPACER; U BOLT,RR SPR WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) REAR SPRING HEAVY DUTY(G51)	1-51377-371-1	02	1	0107-1212		●
223	SPACER; U BOLT,RR SPR	1-51377-166-0	02	1	9510-9909	●	●
223	SPACER; U BOLT,RR SPR EXC. REAR SPRING HEAVY DUTY(G51)	1-51377-166-0	02	1	9910-0106	●	●
223	SPACER; U BOLT,RR SPR	1-51377-166-0	02	1	0107-0210	●
223	SPACER; U BOLT,RR SPR EXC. REAR SPRING HEAVY DUTY(G51)	1-51377-166-0	02	1	0107-0210		●
223	SPACER; U BOLT,RR SPR EXC. REAR SPRING HEAVY DUTY(G51)	1-51377-166-0	02	1	0211-		●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-53366-067-4	02	1	0107-		●
225	RUBBER; CUSHION,RR SPR REAR SPRING HEAVY DUTY(G51)	1-53366-045-1	02	1	9910-0106	●	●
225	RUBBER; CUSHION,RR SPR REAR SPRING HEAVY DUTY(G51)	1-53366-045-1	02	1	0107-0107		●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR SPRING HEAVY DUTY(G51)	1-53366-045-1	02	1	0107-		●
227	NUT; CUSHION RUBBER REAR SPRING HEAVY DUTY(G51) M12 FLANGE	0-91150-212-0	04	1	9910-0106	●	●
227	NUT; CUSHION RUBBER REAR SPRING HEAVY DUTY(G51) M12 FLANGE	0-91150-212-0	04	1	0107-0107		●
227	NUT; CUSHION RUBBER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91150-212-0	04	1	0107-0602		●
227	NUT; CUSHION RUBBER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR SPRING HEAVY DUTY(G51) M12 FLANGE	0-91150-212-0	04	1	0107-0602		●
227	NUT; CUSHION RUBBER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91180-212-0	04	1	0603-		●
227	NUT; CUSHION RUBBER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR SPRING HEAVY DUTY(G51) M12 FLANGE	0-91180-212-0	04	1	0603-		●
371	WASHER; LK,SHACKLE ID=14.2	9-09150-514-0	04	1	9510-9909	●	●
371	WASHER; LK,SHACKLE EXC. REAR SPRING HEAVY DUTY(G51) ID=14.2	9-09150-514-0	04	1	9910-0106	●	●
371	WASHER; LK,SHACKLE ID=14.2	9-09150-514-0	04	1	0107-0210	●
371	WASHER; LK,SHACKLE EXC. REAR SPRING HEAVY DUTY(G51) ID=14.2	9-09150-514-0	04	1	0107-0210		●
371	WASHER; LK,SHACKLE EXC. REAR SPRING HEAVY DUTY(G51) ID=14.2	9-09150-514-0	04	1	0211-0603		●
371	WASHER; LK,SHACKLE EXC. REAR SPRING HEAVY DUTY(G51) ID=14.2	0-91510-514-0	04	1	0604-		●
372	NUT; SHACKLE M14	9-99110-414-0	04	1	9510-9909	●	●
372	NUT; SHACKLE EXC. REAR SPRING HEAVY DUTY(G51) M14	9-99110-414-0	04	1	9910-0106	●	●
372	NUT; SHACKLE M14	9-99110-414-0	04	1	0107-0210	●
372	NUT; SHACKLE EXC. REAR SPRING HEAVY DUTY(G51) M14	9-99110-414-0	04	1	0107-0210		●
372	NUT; SHACKLE EXC. REAR SPRING HEAVY DUTY(G51) M14	9-99110-414-0	04	1	0211-0512		●
372	NUT; SHACKLE EXC. REAR SPRING HEAVY DUTY(G51) M14	0-91110-514-0	04	1	0601-		●
390	U-BOLT SET; RR SPRING FINAL GEAR 16.5"<B2Y> REAR SPRING HEAVY DUTY(G51) L=490	1-87870-036-4	04	1	9910-0106	●	●
390	U-BOLT SET; RR SPRING FINAL GEAR 16.5"<B2Y> REAR SPRING HEAVY DUTY(G51) L=490	1-87870-036-4	04	1	0107-		●
390	U-BOLT SET; RR SPRING FINAL GEAR 16.5"<B2Y> EXC. REAR SPRING HEAVY DUTY(G51) L=470	1-87870-267-1	04	1	9910-0106	●	●
390	U-BOLT SET; RR SPRING FINAL GEAR 16.5"<B2Y> EXC. REAR SPRING HEAVY DUTY(G51) L=470	1-87870-267-1	04	1	0107-		●
390	U-BOLT SET; RR SPRING L=455	1-87870-268-0	04	1	9510-9909	●	●
390	U-BOLT SET; RR SPRING EXC. FINAL GEAR 16.5"<B2Y>,REAR SPRING HEAVY DUTY(G51) L=455	1-87870-268-1	04	1	9910-0106	●	●
390	U-BOLT SET; RR SPRING L=455	1-87870-268-1	04	1	0107-0210	●
390	U-BOLT SET; RR SPRING EXC. FINAL GEAR 16.5"<B2Y>,REAR SPRING HEAVY DUTY(G51) L=455	1-87870-268-1	04	1	0107-0210		●
390	U-BOLT SET; RR SPRING EXC. FINAL GEAR 16.5"<B2Y>,REAR SPRING HEAVY DUTY(G51) L=455	1-87870-268-1	04	1	0211-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
