4-55 — FRONT LEAF SPRING (#60057) — 62 parça

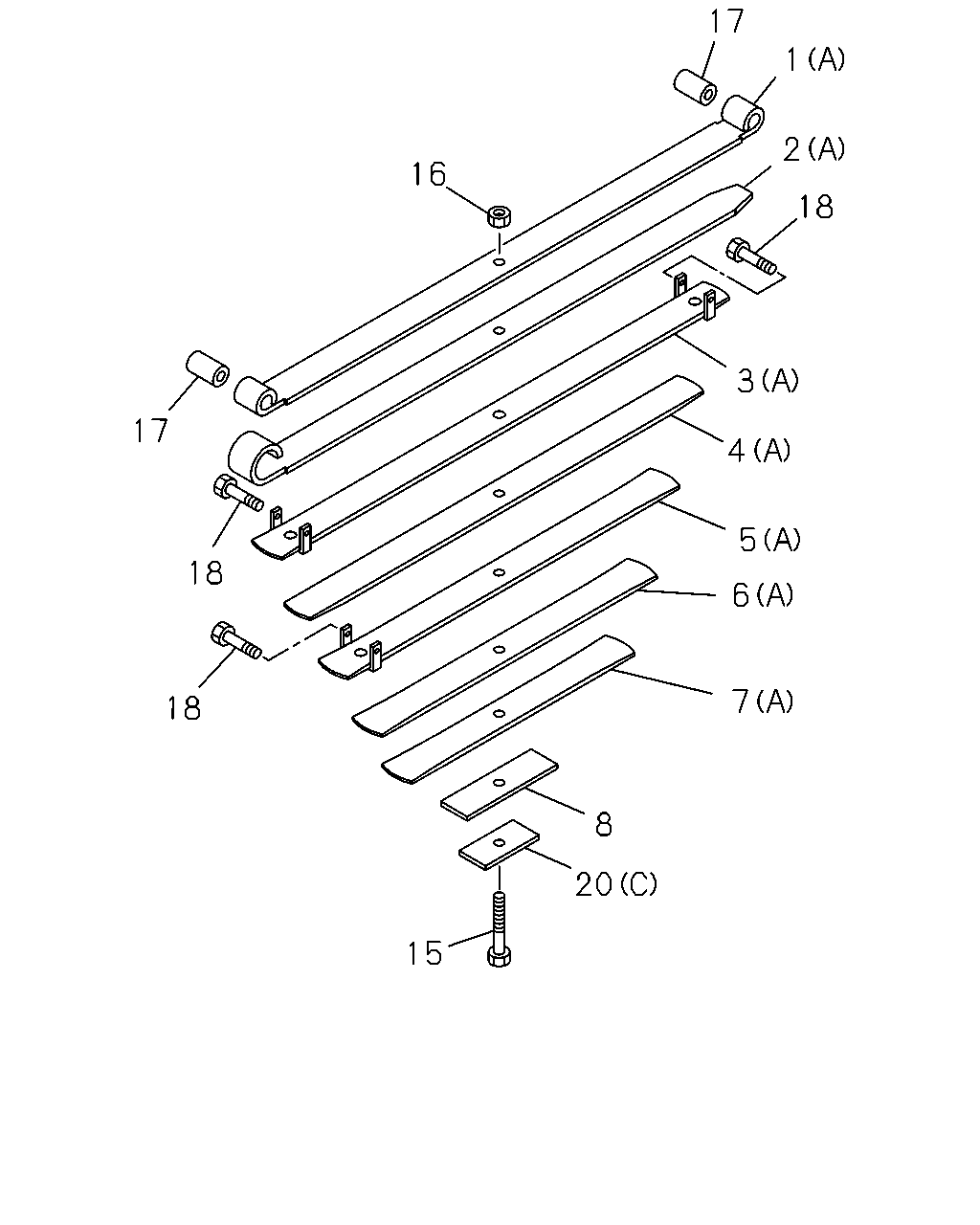

17 1 2 16 18 3 17 4 5 18 7 18 8 20 15 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 1-51130-343-0	1-51131-343-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: B = 1-51130-345-0	1-51131-345-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: C = 1-51130-475-0	1-51131-475-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 1-51130-343-0	1-51132-343-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: B = 1-51130-345-0	1-51132-345-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: C = 1-51130-475-0	1-51132-475-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A), W/CLIP ASM PART: A = 1-51130-343-0	1-51133-343-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B), W/CLIP ASM PART: B = 1-51130-345-0	1-51133-345-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B), W/CLIP ASM PART: C = 1-51130-475-0	1-51133-475-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: A = 1-51130-343-0	1-51134-343-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: B = 1-51130-345-0	1-51134-345-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: C = 1-51130-475-0	1-51134-475-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A), W/CLIP ASM PART: A = 1-51130-343-0	1-51135-343-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B), W/CLIP ASM PART: B = 1-51130-345-0	1-51135-345-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B), W/CLIP ASM PART: C = 1-51130-475-0	1-51135-475-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: A = 1-51130-343-0	1-51136-343-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: B = 1-51130-345-0	1-51136-345-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: C = 1-51130-475-0	1-51136-475-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A) ASM PART: A = 1-51130-343-0	1-51137-343-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: B = 1-51130-345-0	1-51137-345-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: C = 1-51130-475-0	1-51137-475-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: A = 1-51130-343-0	1-51138-343-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=140 ASM PART: C = 1-51130-475-0	1-51156-304-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=135 ASM PART: A = 1-51130-343-0, B = 1-51130-345-0	1-51156-333-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-343-0, B = 1-51130-345-0, C = 1-51130-475-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 1-51130-343-0, B = 1-51130-345-0, C = 1-51130-475-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51130-343-0, B = 1-51130-345-0, C = 1-51130-475-0	1-09000-328-0	03	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: C = 1-51130-475-0	1-51177-107-0	02	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: B = 1-51130-345-0	1-51177-107-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=6 ASM PART: B = 1-51130-345-0	1-51177-115-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=13 ASM PART: A = 1-51130-343-0	1-51177-181-0	01	1	-

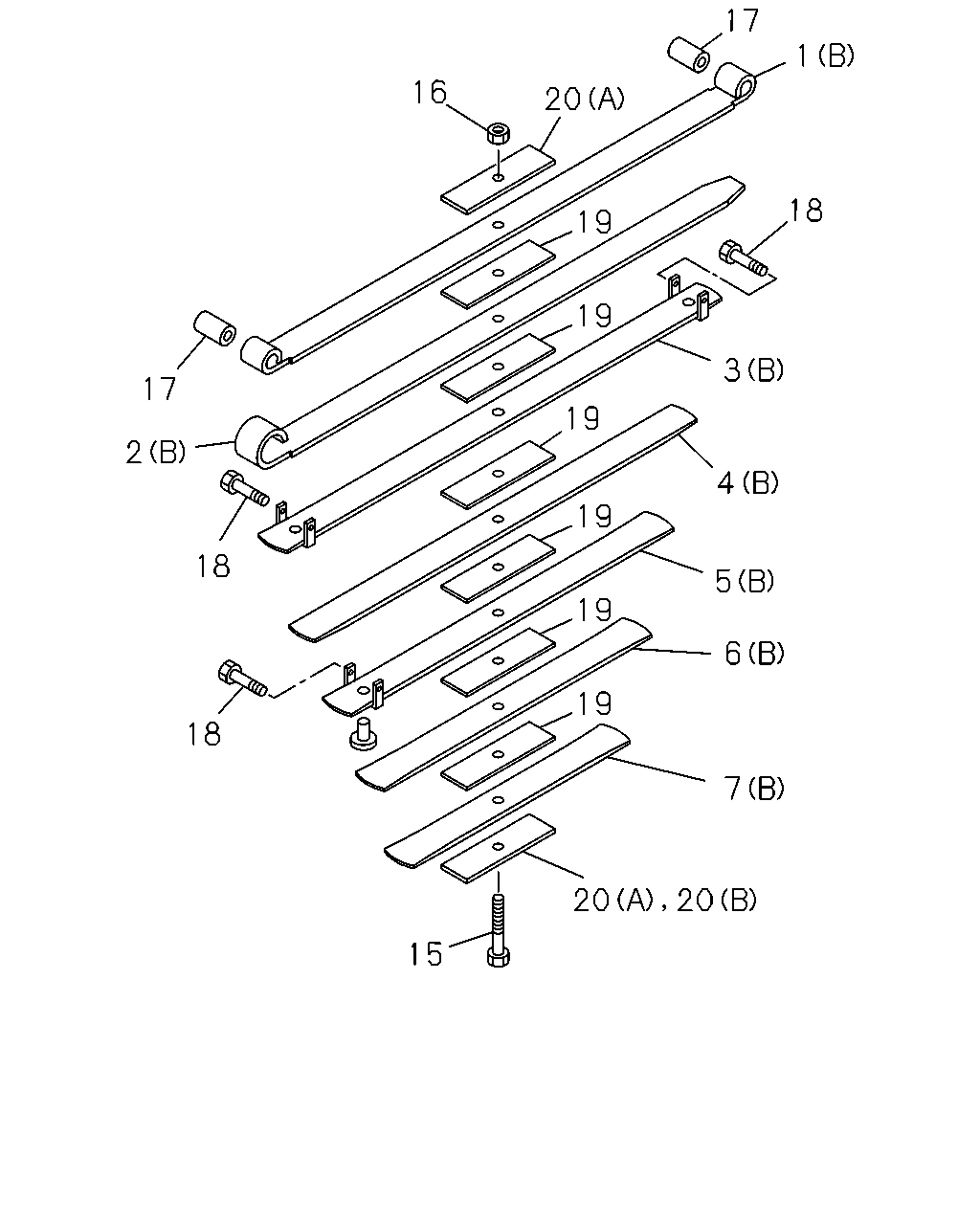

17 1 16 20 18 19 19 3 17 19 2 4 19 18 5 19 6 19 18 7 20 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 1-51130-343-0	1-51131-343-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: B = 1-51130-345-0	1-51131-345-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: C = 1-51130-475-0	1-51131-475-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 1-51130-343-0	1-51132-343-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: B = 1-51130-345-0	1-51132-345-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: C = 1-51130-475-0	1-51132-475-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A), W/CLIP ASM PART: A = 1-51130-343-0	1-51133-343-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B), W/CLIP ASM PART: B = 1-51130-345-0	1-51133-345-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B), W/CLIP ASM PART: C = 1-51130-475-0	1-51133-475-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: A = 1-51130-343-0	1-51134-343-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: B = 1-51130-345-0	1-51134-345-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: C = 1-51130-475-0	1-51134-475-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A), W/CLIP ASM PART: A = 1-51130-343-0	1-51135-343-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B), W/CLIP ASM PART: B = 1-51130-345-0	1-51135-345-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B), W/CLIP ASM PART: C = 1-51130-475-0	1-51135-475-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: A = 1-51130-343-0	1-51136-343-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: B = 1-51130-345-0	1-51136-345-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: C = 1-51130-475-0	1-51136-475-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A) ASM PART: A = 1-51130-343-0	1-51137-343-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: B = 1-51130-345-0	1-51137-345-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: C = 1-51130-475-0	1-51137-475-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=140 ASM PART: C = 1-51130-475-0	1-51156-304-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=135 ASM PART: A = 1-51130-343-0, B = 1-51130-345-0	1-51156-333-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-343-0, B = 1-51130-345-0, C = 1-51130-475-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 1-51130-343-0, B = 1-51130-345-0, C = 1-51130-475-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51130-343-0, B = 1-51130-345-0, C = 1-51130-475-0	1-09000-328-0	03	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 1-51130-345-0, C = 1-51130-475-0	1-51177-071-0	06	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: C = 1-51130-475-0	1-51177-107-0	02	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: B = 1-51130-345-0	1-51177-107-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=6 ASM PART: B = 1-51130-345-0	1-51177-115-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=13 ASM PART: A = 1-51130-343-0	1-51177-181-0	01	1	-
