4-50 — FRONT SUSPENSION (#60056) — 95 parça

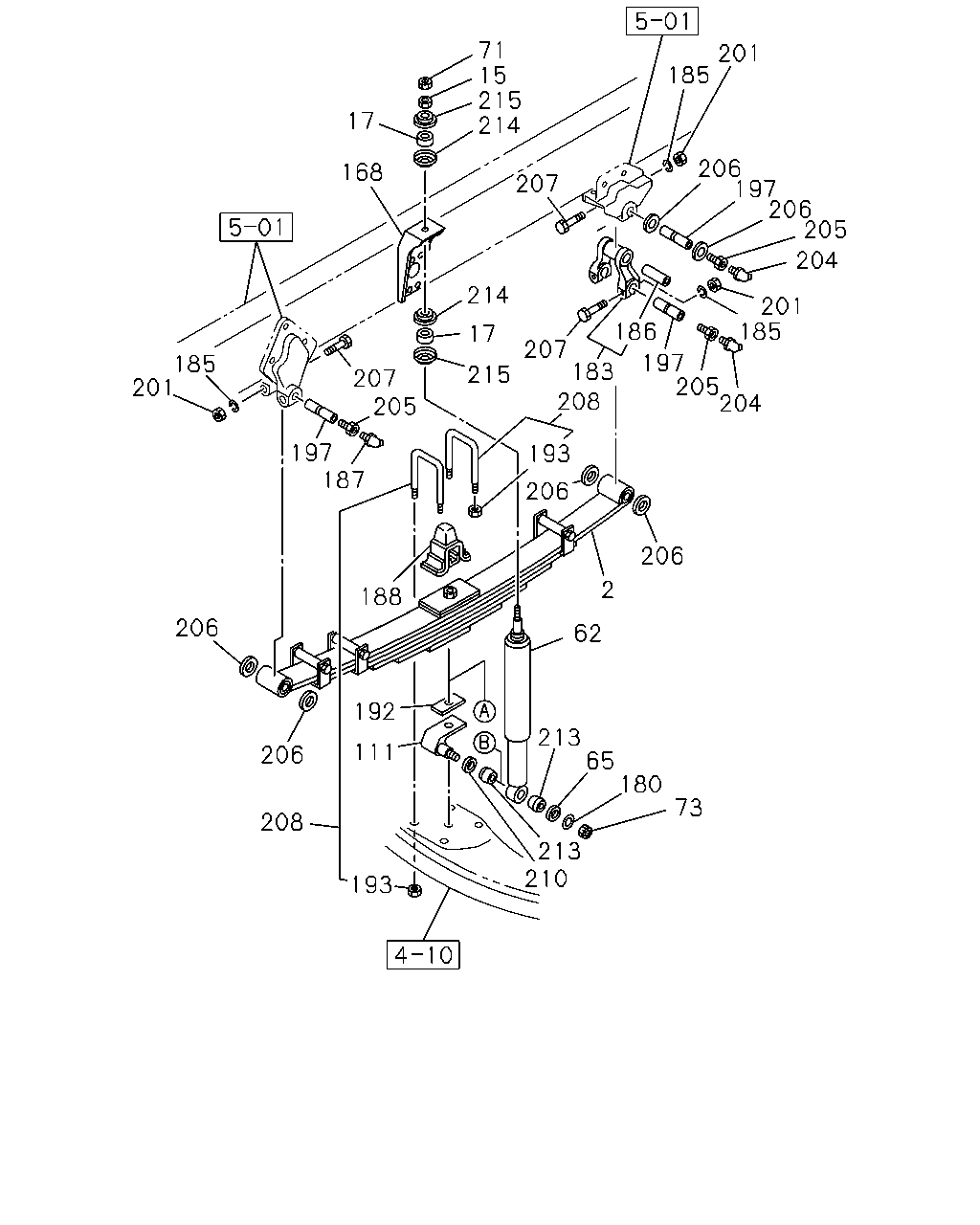

çizim 172713
71 15 215 214 201 185 17 206 197 206 205 168 207 204 214 201 185 186 17 207 183 197 205 204 185 201 215 207 205 208 197 187 193 206 206 2 188 206 62 192 213 65 180 111 206 73 208 213 210 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 7-LEAF 		1-51130-345-0 01 1 9510-0210 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 7-LEAF 		1-51130-345-0 01 1 0211-0310 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 7-LEAF 		1-51130-475-0 01 1 9510-0210 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 7-LEAF 		1-51130-475-0 01 1 0211-0310 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-343-0 02 1 9510-0210 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-343-0 02 1 0211-0310 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		1-51130-343-0 02 1 0311- ●
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 02 1 9510-0210 ● ●
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 02 1 0211-0910 ●
15 NUT; S/ABS,UPR
M12 		8-98010-412-0 02 1 0911- ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 9510-0210 ● ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 0211- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-4 02 1 9510-0210 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-4 02 1 0211- ●
65 WASHER; S/ABS
ID=23 		1-51631-019-0 02 1 9510-0210 ● ●
65 WASHER; S/ABS
ID=23 		1-51631-019-0 02 1 0211- ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 9510-0210 ● ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 0211-0910 ●
71 NUT; LK,S/ABS,UPR
M12 		8-98010-412-0 02 1 0911- ●
73 NUT; BRKT,SHOCK
M16 		9-99110-416-0 02 1 9510-9702 ● ●
73 NUT; BRKT,SHOCK
M16 		9-99110-516-0 02 1 9703-0206 ● ●
73 NUT; BRKT,SHOCK
M16 		9-99110-416-0 02 1 0207-0210 ● ●
73 NUT; BRKT,SHOCK
M16 		9-99110-416-0 02 1 0211-0512 ●
73 NUT; BRKT,SHOCK
M16 		0-91110-516-0 02 1 0601- ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-720-1 01 1 9510-0210 ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-720-1 01 1 0211-1004 ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98153-481-0 01 1 1005- ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-721-1 01 1 9510-0210 ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-721-1 01 1 0211-1004 ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98153-482-0 01 1 1005- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 9510-0210 ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 0211- ●
180 WASHER; PL,PIN
ID=17 		9-09160-516-0 02 1 9510-0210 ● ●
180 WASHER; PL,PIN
ID=17 		9-09160-516-0 02 1 0211-0605 ●
180 WASHER; PL,PIN
ID=17 OD=30 		0-91610-516-0 02 1 0606- ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 9510-0210 ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0211- ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9510-0210 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0211-0603 ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0604- ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9510-0210 ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0211-0902 ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903- ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9510-0210 ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0211-0512 ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 9510-0210 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 0211- ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 01 1 9510-9510 ● ●
192 PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 01 1 9510-0210 ● ●
192 PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 01 1 0211- ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9510-0210 ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0211-0512 ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206 ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9510-0210 ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 0211- ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9510-0210 ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0211-0512 ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9510-9608 ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9609-9802 ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9609-9802 ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9803-0210 ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0211-0512 ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9510-0210 ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0211- ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9510-0210 ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0211- ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9510-0210 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0211-0512 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-2 04 1 9510-0210 ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-2 04 1 0211- ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 9510-0210 ● ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 0211- ●
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 9510-0210 ● ●
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 0211- ●
214 WASHER; S/ABS,UPR,INNER
ID=16.8 		1-51631-022-0 04 1 9510-0210 ● ●
214 WASHER; S/ABS,UPR,INNER
ID=16.8 		1-51631-022-0 04 1 0211- ●
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 04 1 9510-0210 ● ●
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 04 1 0211- ●

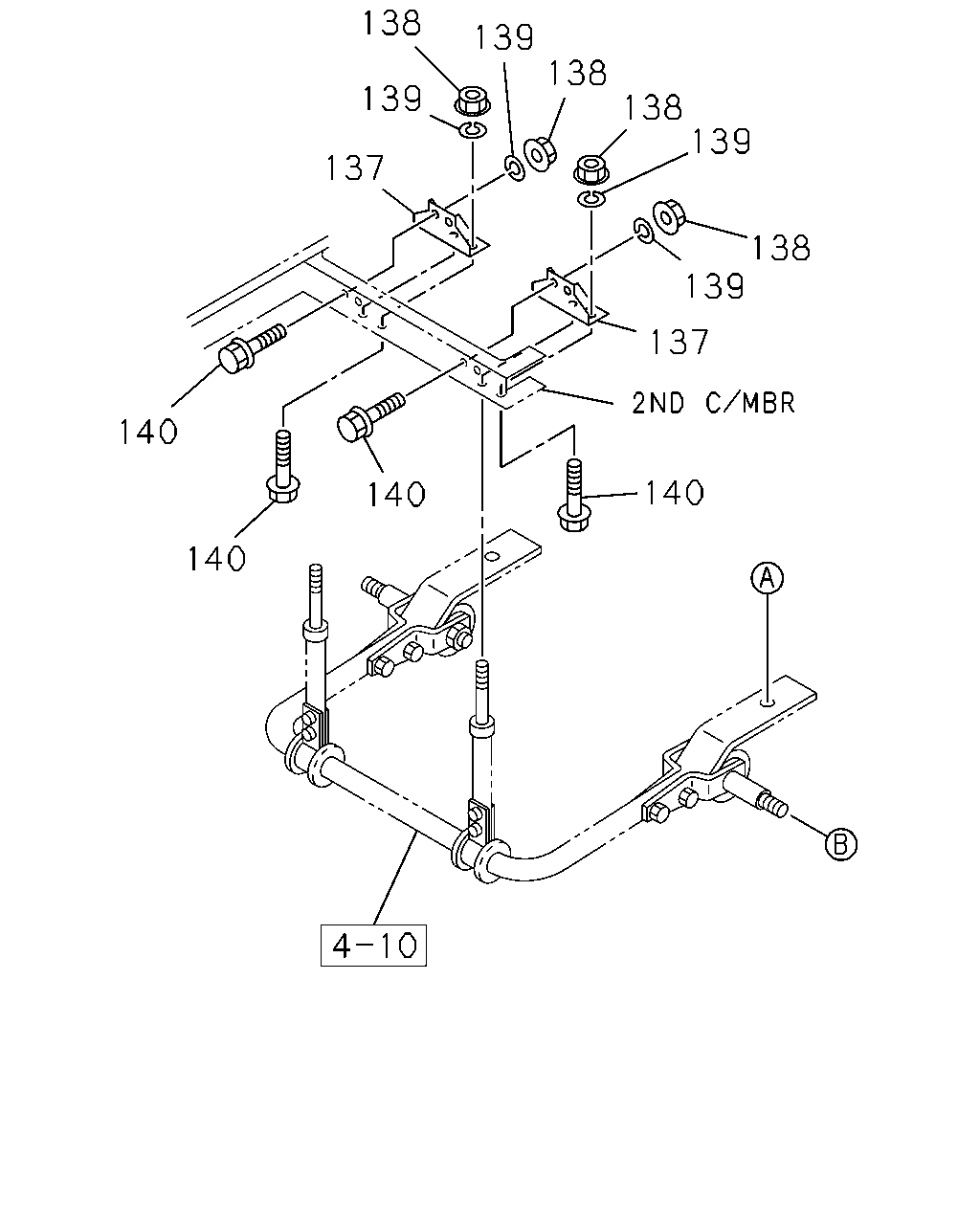

çizim 172720
138 139 138 139 138 139 137 138 139 137 140 140 140 140
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-046-3 02 1 9510-0210 ● ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-046-3 02 1 0211- ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 		9-09110-510-0 08 1 9510-9606 ● ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 FLANGE 		0-91150-210-0 08 1 9607-0210 ● ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 FLANGE 		0-91150-210-0 08 1 0211-0602 ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 FLANGE 		0-91180-210-0 08 1 0603- ●
139 WASHER; PL,BRKT
FRONT STABILIZER SHAFT<F59> ID=10.5 OD=26 		9-09160-710-0 08 1 9510-9606 ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X30 FLANGE 		0-28081-030-0 08 1 9510-9606 ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X35 FLANGE 		0-28681-035-0 08 1 9607-0001 ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X30 FLANGE 		0-28681-030-0 08 1 0002-0210 ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X30 FLANGE 		0-28681-030-0 08 1 0211-0512 ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X30 FLANGE 		0-28651-030-0 08 1 0601- ●
