◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶
4-42 — POWER STEERING OIL PUMP (#60055) — 120 parça

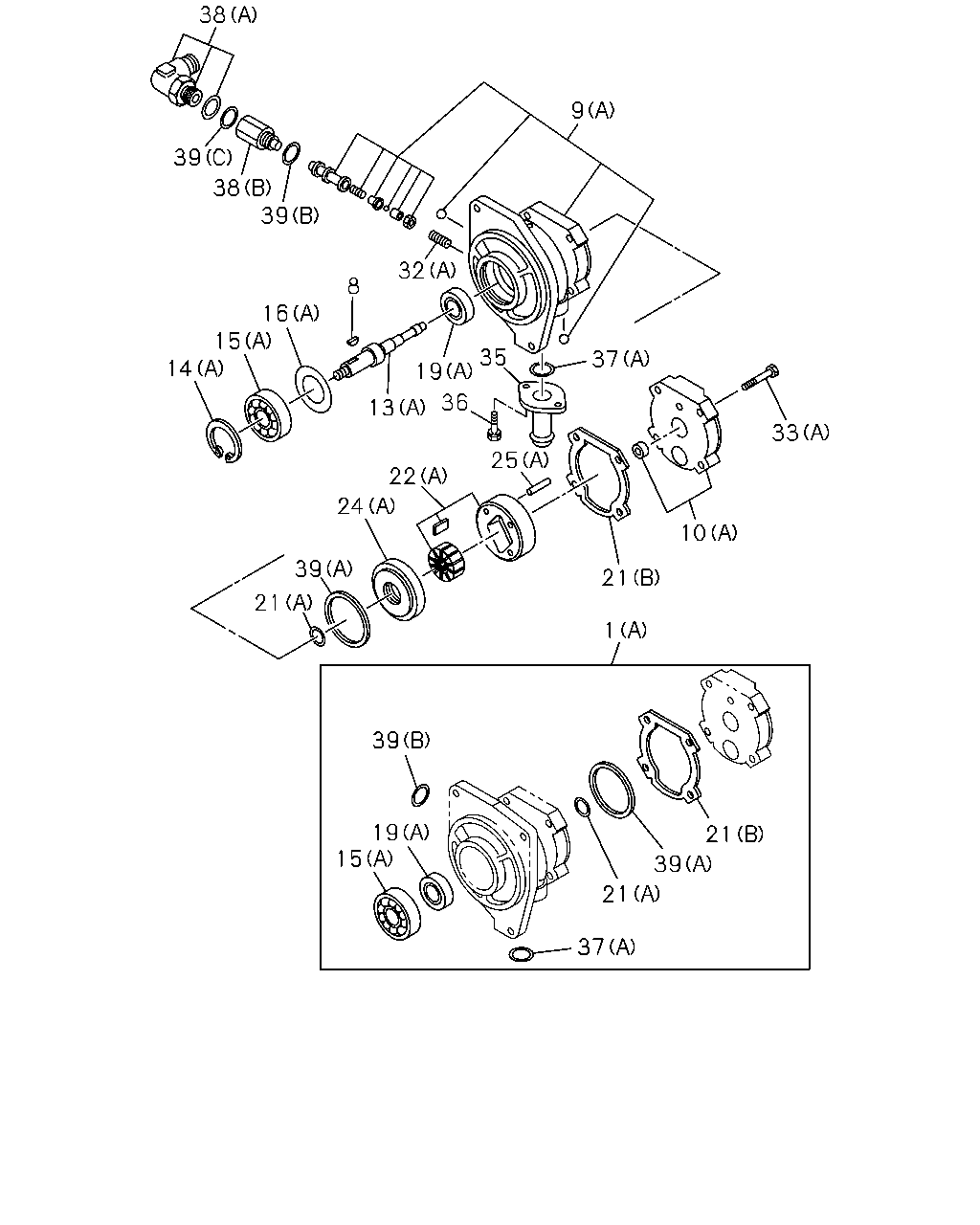

çizim 172701
38 9 39 38 39 32 8 16 15 35 37 14 19 36 13 33 25 22 24 10 39 21 21 1 39 19 15 21 39 21 37
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
(A) ASM PART: A = 1-19500-530-0 		1-85574-042-0 01 1 -
1 REPAIR KIT; OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-85574-060-0 01 1 -0812
1 REPAIR KIT; OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-85574-064-0 01 1 0901-
1 REPAIR KIT; OIL PUMP
(A) ASM PART: C = 1-19500-595-0 		1-85574-080-0 01 1 -
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-530-0, B = 1-19500-548-1, C = 1-19500-595-0 		9-08055-413-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
(A) ASM PART: A = 1-19500-530-0 		1-19511-143-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-19511-149-0 01 1 -0812
9 BODY ASM; FRT,OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-19511-151-0 01 1 0901-
9 BODY ASM; FRT,OIL PUMP
(A) ASM PART: C = 1-19500-595-0 		1-19511-186-0 01 1 -
10 BODY ASM; RR,OIL PUMP
(A) ASM PART: A = 1-19500-530-0 		1-19511-102-0 01 1 -
10 BODY ASM; RR,OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-19511-150-0 01 1 -0812
10 BODY ASM; RR,OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-19511-152-0 01 1 0901-
10 BODY ASM; RR,OIL PUMP
(A) ASM PART: C = 1-19500-595-0 		8-97182-108-0 01 1 -
13 SHAFT KIT; RET
(A) ASM PART: A = 1-19500-530-0 		1-19521-030-0 01 1 -
13 SHAFT KIT; RET
(B) ASM PART: B = 1-19500-548-1 		1-19521-034-0 01 1 -0812
13 SHAFT KIT; RET
(B) ASM PART: B = 1-19500-548-1 		1-19521-035-0 01 1 0901-
13 SHAFT KIT; RET
(A) ASM PART: C = 1-19500-595-0 		1-19521-040-0 01 1 -
14 RING; RET,OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-19519-135-0 01 1 0901-
14 RING; RET,OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-19519-172-0 01 1 -0812
14 RING; RET,OIL PUMP
(A) ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		1-19519-257-0 01 1 -
15 BEARING; BALL,OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-19515-004-0 01 1 -
15 BEARING; BALL,OIL PUMP
(A) ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		1-19519-264-0 01 1 -
16 RING; RET,OIL PUMP
(A) ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		1-19519-258-0 01 1 -
16 RING; RET,OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		9-19519-078-0 01 1 -
19 SEAL; OIL,OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-19519-252-0 01 1 -
19 SEAL; OIL,OIL PUMP
(A) ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		1-19519-256-0 01 1 -
21 GASKET; FRT COVER TO BODY
(C) ASM PART: B = 1-19500-548-1 		1-19519-314-0 01 1 0901-
21 GASKET; FRT COVER TO BODY
(C) ASM PART: B = 1-19500-548-1 		1-19519-321-0 01 1 -0812
21 GASKET; FRT COVER TO BODY
(A) ASM PART: A = 1-19500-530-0 		8-94475-378-0 01 1 -
21 GASKET; FRT COVER TO BODY
(B) ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		8-94475-380-1 01 1 -
21 GASKET; FRT COVER TO BODY
(A) ASM PART: C = 1-19500-595-0 		8-97182-099-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(A) ASM PART: A = 1-19500-530-0 		1-19519-304-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-19519-336-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(A) ASM PART: C = 1-19500-595-0 		1-19519-342-0 01 1 -
24 PLATE ASM; THRUST
(A) ASM PART: A = 1-19500-530-0 		1-19515-012-0 01 1 -
24 PLATE ASM; THRUST
(B) ASM PART: B = 1-19500-548-1 		1-19519-316-0 01 1 -
24 PLATE ASM; THRUST
(A) ASM PART: C = 1-19500-595-0 		8-97182-103-0 01 1 -
25 PIN; HSG,P/S
(A) ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		1-33739-345-0 02 1 -
25 PIN; HSG,P/S
(B) ASM PART: B = 1-19500-548-1 		9-88510-408-0 02 1 -
32 SPRING; OIL PUMP
(A) ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		8-94475-376-0 01 1 -
32 SPRING; OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		9-19529-013-0 01 1 -
33 BOLT; COVER
(B) ASM PART: B = 1-19500-548-1 		1-19519-244-0 04 1 0901-
33 BOLT; COVER
(B) ASM PART: B = 1-19500-548-1 		1-19519-331-0 04 1 -0812
33 BOLT; COVER
(A) ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		1-48119-054-0 04 1 -
35 PIPE; HOSE CONN,OIL PUMP
ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		8-94395-492-0 01 1 -
36 BOLT; CONN,PIPE
ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		8-94461-139-1 02 1 -
37 GASKET; PIPE CONN,OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-19519-292-0 01 1 -
37 GASKET; PIPE CONN,OIL PUMP
(A) ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		1-33739-070-0 01 1 -
38 CONNECTOR; OIL PUMP
(B) ASM PART: A = 1-19500-530-0 		1-19519-306-0 01 1 -9510
38 CONNECTOR; OIL PUMP
(A) ASM PART: A = 1-19500-530-0, B = 1-19500-548-1, C = 1-19500-595-0 		1-19519-307-0 01 1 -
38 CONNECTOR; OIL PUMP
(B) ASM PART: A = 1-19500-530-0 		1-19519-324-0 01 1 9511-
38 CONNECTOR; OIL PUMP
(B) ASM PART: C = 1-19500-595-0 		1-19519-324-0 01 1 -
39 GASKET; OIL PUMP
(A) ASM PART: A = 1-19500-530-0 		1-19519-259-0 01 1 -
39 GASKET; OIL PUMP
(C) ASM PART: A = 1-19500-530-0, B = 1-19500-548-1, C = 1-19500-595-0 		1-19519-308-0 01 1 -
39 GASKET; OIL PUMP
(D) ASM PART: B = 1-19500-548-1 		1-19519-313-0 01 1 0901-
39 GASKET; OIL PUMP
(D) ASM PART: B = 1-19500-548-1 		1-19519-320-0 01 1 -0812
39 GASKET; OIL PUMP
(A) ASM PART: C = 1-19500-595-0 		8-94475-379-0 01 1 -
39 GASKET; OIL PUMP
(B) ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		9-48429-028-0 01 1 -

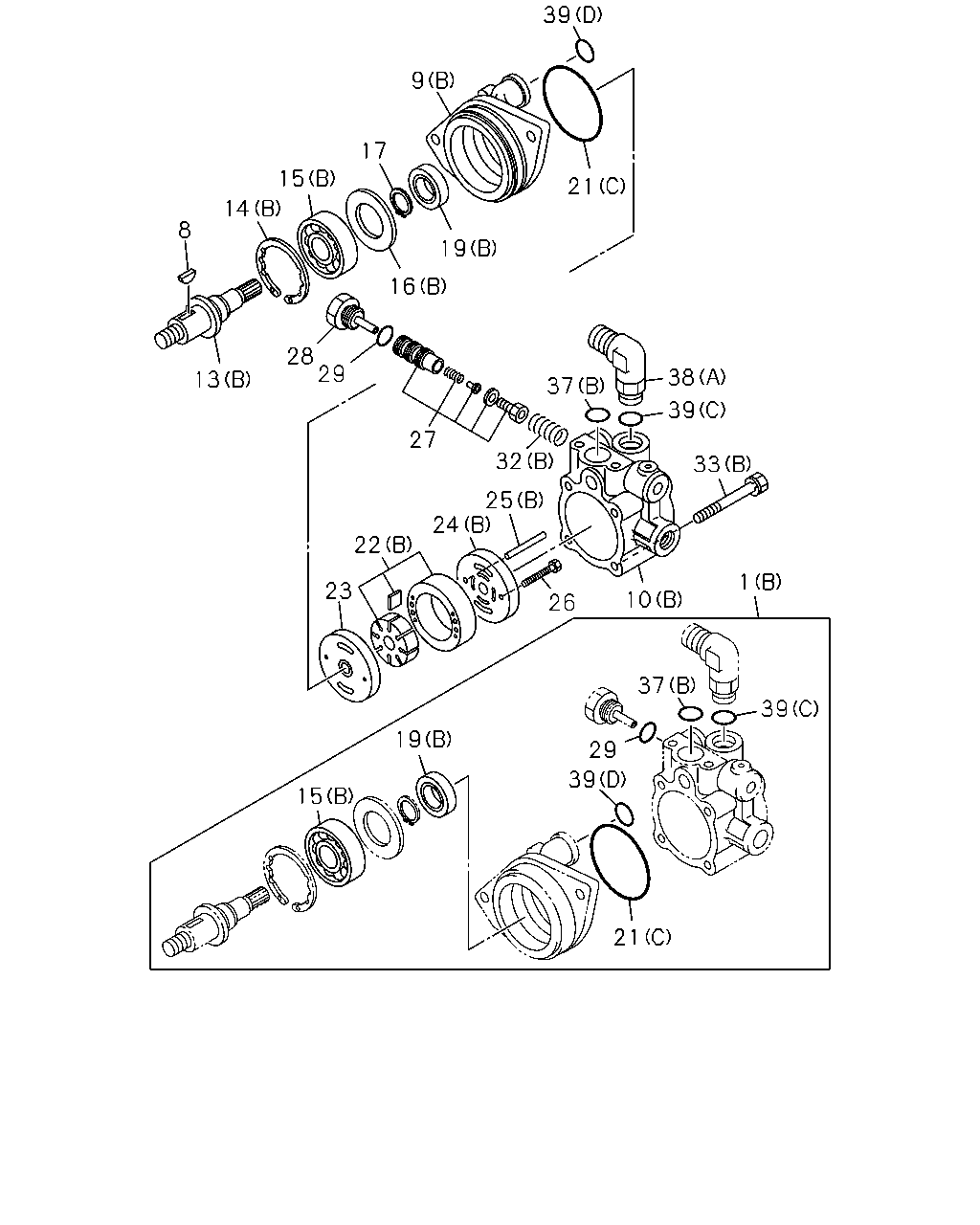

çizim 172718
39 9 17 15 21 14 8 19 16 28 29 38 13 37 39 27 32 33 25 24 22 1 23 10 26 37 39 19 29 39 15 21
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
(A) ASM PART: A = 1-19500-530-0 		1-85574-042-0 01 1 -
1 REPAIR KIT; OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-85574-060-0 01 1 -0812
1 REPAIR KIT; OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-85574-064-0 01 1 0901-
1 REPAIR KIT; OIL PUMP
(A) ASM PART: C = 1-19500-595-0 		1-85574-080-0 01 1 -
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-530-0, B = 1-19500-548-1, C = 1-19500-595-0 		9-08055-413-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
(A) ASM PART: A = 1-19500-530-0 		1-19511-143-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-19511-149-0 01 1 -0812
9 BODY ASM; FRT,OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-19511-151-0 01 1 0901-
9 BODY ASM; FRT,OIL PUMP
(A) ASM PART: C = 1-19500-595-0 		1-19511-186-0 01 1 -
10 BODY ASM; RR,OIL PUMP
(A) ASM PART: A = 1-19500-530-0 		1-19511-102-0 01 1 -
10 BODY ASM; RR,OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-19511-150-0 01 1 -0812
10 BODY ASM; RR,OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-19511-152-0 01 1 0901-
10 BODY ASM; RR,OIL PUMP
(A) ASM PART: C = 1-19500-595-0 		8-97182-108-0 01 1 -
13 SHAFT KIT; RET
(A) ASM PART: A = 1-19500-530-0 		1-19521-030-0 01 1 -
13 SHAFT KIT; RET
(B) ASM PART: B = 1-19500-548-1 		1-19521-034-0 01 1 -0812
13 SHAFT KIT; RET
(B) ASM PART: B = 1-19500-548-1 		1-19521-035-0 01 1 0901-
13 SHAFT KIT; RET
(A) ASM PART: C = 1-19500-595-0 		1-19521-040-0 01 1 -
14 RING; RET,OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-19519-135-0 01 1 0901-
14 RING; RET,OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-19519-172-0 01 1 -0812
14 RING; RET,OIL PUMP
(A) ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		1-19519-257-0 01 1 -
15 BEARING; BALL,OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-19515-004-0 01 1 -
15 BEARING; BALL,OIL PUMP
(A) ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		1-19519-264-0 01 1 -
16 RING; RET,OIL PUMP
(A) ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		1-19519-258-0 01 1 -
16 RING; RET,OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		9-19519-078-0 01 1 -
17 RING; RET
ASM PART: B = 1-19500-548-1 		1-19519-177-0 01 1 -
19 SEAL; OIL,OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-19519-252-0 01 1 -
19 SEAL; OIL,OIL PUMP
(A) ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		1-19519-256-0 01 1 -
21 GASKET; FRT COVER TO BODY
(C) ASM PART: B = 1-19500-548-1 		1-19519-314-0 01 1 0901-
21 GASKET; FRT COVER TO BODY
(C) ASM PART: B = 1-19500-548-1 		1-19519-321-0 01 1 -0812
21 GASKET; FRT COVER TO BODY
(A) ASM PART: A = 1-19500-530-0 		8-94475-378-0 01 1 -
21 GASKET; FRT COVER TO BODY
(B) ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		8-94475-380-1 01 1 -
21 GASKET; FRT COVER TO BODY
(A) ASM PART: C = 1-19500-595-0 		8-97182-099-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(A) ASM PART: A = 1-19500-530-0 		1-19519-304-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-19519-336-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(A) ASM PART: C = 1-19500-595-0 		1-19519-342-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: B = 1-19500-548-1 		1-19519-133-1 01 1 -
24 PLATE ASM; THRUST
(A) ASM PART: A = 1-19500-530-0 		1-19515-012-0 01 1 -
24 PLATE ASM; THRUST
(B) ASM PART: B = 1-19500-548-1 		1-19519-316-0 01 1 -
24 PLATE ASM; THRUST
(A) ASM PART: C = 1-19500-595-0 		8-97182-103-0 01 1 -
25 PIN; HSG,P/S
(A) ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		1-33739-345-0 02 1 -
25 PIN; HSG,P/S
(B) ASM PART: B = 1-19500-548-1 		9-88510-408-0 02 1 -
26 SCREW; PLATE
ASM PART: B = 1-19500-548-1 		1-19519-076-0 02 1 -
27 VALVE ASM; OIL PUMP
ASM PART: B = 1-19500-548-1 		1-19519-183-1 01 1 -
28 PLUG; DRAIN,OIL PUMP
ASM PART: B = 1-19500-548-1 		1-19519-230-0 01 1 -
29 GASKET; PLUG TO VLV
ASM PART: B = 1-19500-548-1 		8-94242-528-0 01 1 -
32 SPRING; OIL PUMP
(A) ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		8-94475-376-0 01 1 -
32 SPRING; OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		9-19529-013-0 01 1 -
33 BOLT; COVER
(B) ASM PART: B = 1-19500-548-1 		1-19519-244-0 04 1 0901-
33 BOLT; COVER
(B) ASM PART: B = 1-19500-548-1 		1-19519-331-0 04 1 -0812
33 BOLT; COVER
(A) ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		1-48119-054-0 04 1 -
37 GASKET; PIPE CONN,OIL PUMP
(B) ASM PART: B = 1-19500-548-1 		1-19519-292-0 01 1 -
37 GASKET; PIPE CONN,OIL PUMP
(A) ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		1-33739-070-0 01 1 -
38 CONNECTOR; OIL PUMP
(B) ASM PART: A = 1-19500-530-0 		1-19519-306-0 01 1 -9510
38 CONNECTOR; OIL PUMP
(A) ASM PART: A = 1-19500-530-0, B = 1-19500-548-1, C = 1-19500-595-0 		1-19519-307-0 01 1 -
38 CONNECTOR; OIL PUMP
(B) ASM PART: A = 1-19500-530-0 		1-19519-324-0 01 1 9511-
38 CONNECTOR; OIL PUMP
(B) ASM PART: C = 1-19500-595-0 		1-19519-324-0 01 1 -
39 GASKET; OIL PUMP
(A) ASM PART: A = 1-19500-530-0 		1-19519-259-0 01 1 -
39 GASKET; OIL PUMP
(C) ASM PART: A = 1-19500-530-0, B = 1-19500-548-1, C = 1-19500-595-0 		1-19519-308-0 01 1 -
39 GASKET; OIL PUMP
(D) ASM PART: B = 1-19500-548-1 		1-19519-313-0 01 1 0901-
39 GASKET; OIL PUMP
(D) ASM PART: B = 1-19500-548-1 		1-19519-320-0 01 1 -0812
39 GASKET; OIL PUMP
(A) ASM PART: C = 1-19500-595-0 		8-94475-379-0 01 1 -
39 GASKET; OIL PUMP
(B) ASM PART: A = 1-19500-530-0, C = 1-19500-595-0 		9-48429-028-0 01 1 -
